Китайский завод автомобильный распылитель для

Китайский завод автомобильный распылитель для

Категория: Spray Booths >>>
Поставщик: Zouping,Xinghuo,Coating,Equipment,Co.,Ltd.

Цена:527 677,82 ₽ - 609 232,04 ₽*

Количество:

Описание и отзывы

Трекер стоимости

Месяц	Минимальная цена	Макс. стоимость
Aug-16-2025	670150.17 $*	683553.8 $*
Jul-16-2025	543507.49 $*	554377.80 $*
Jun-16-2025	659596.86 $*	672788.71 $*
May-16-2025	654319.19 $*	667405.82 $*
Apr-16-2025	522400.14 $*	532848.13 $*
Mar-16-2025	643766.63 $*	656641.82 $*
Feb-16-2025	638489.20 $*	651259.61 $*
Jan-16-2025	633212.23 $*	645876.19 $*

Характеристики

Specification

Type	car spray booth
Place of origin	Shandong,China
Brand Name	Xinghuo
Model Number	X-500
External Size	7000mmx5300mmx3300mm
Internal Size	6900mmx3900mmx2600mm
Entrance door	3000mmx2500mm
Lighting System	LED light
Heating System	electrical heating(diesel heating,natural gas heating)
Filters	high efficiency filter
Wall panel	rock wool
Baking temperature	spray paint baking 60~80
Air fan type	YDW
Power	42KW
Voltage	380V50hz
No Load Speed	0.25-0.35m/s
Warranty	12 months

Products Detail

spray booth ! ! !

Professional auto spray booth supplier, customized electric heating, diesel heating, natural gas heating car spray booth and industrial spray booth ！！！

If you need it, we can design and customize for you ! ! !

House System

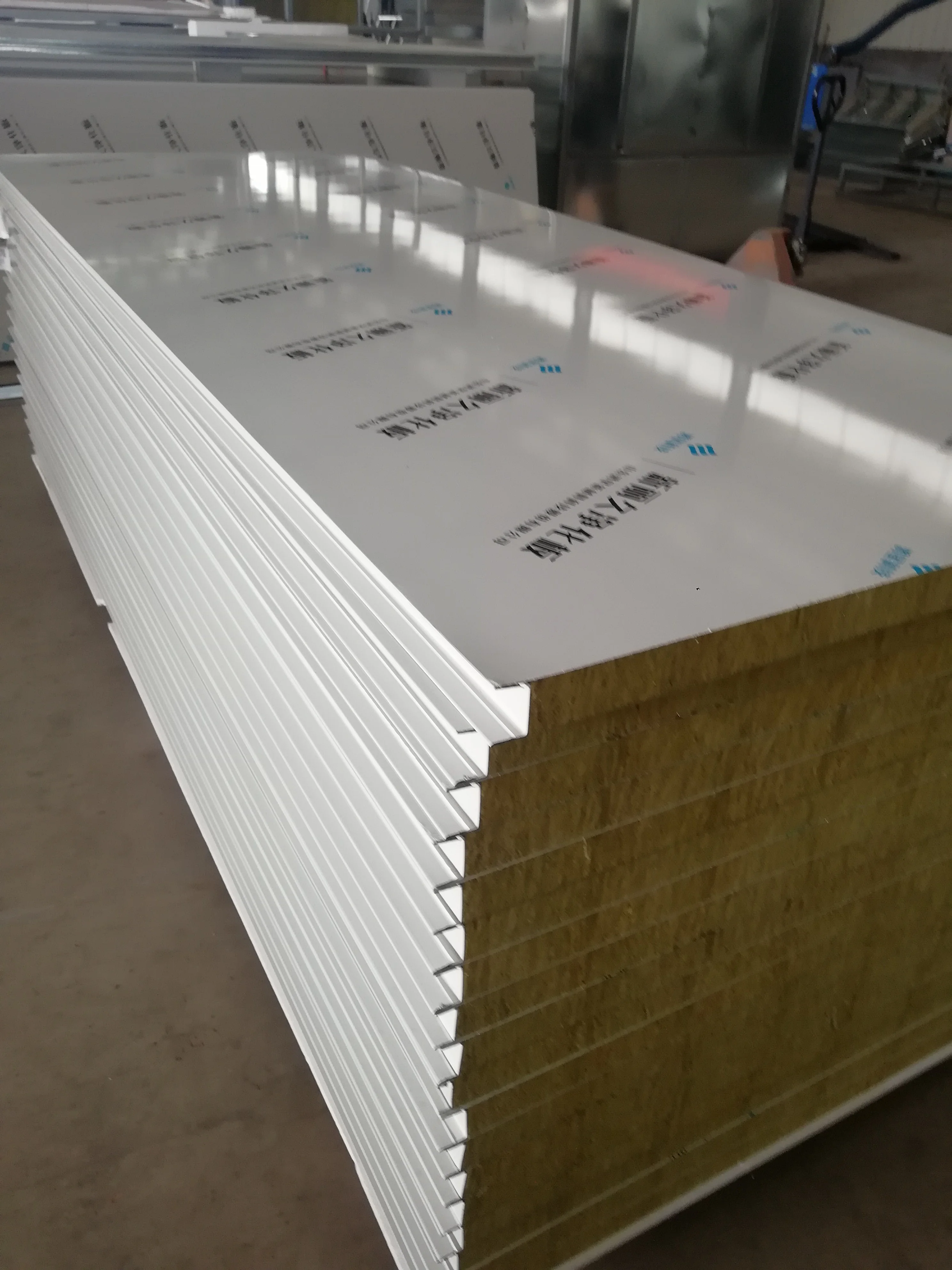

1.wall panel:

50 mm rock wool board ,100 kg/cubic; insulation board: 50 mm;
single-layer color steel plate: 0.4 mm;

2.The roof:
0.6 mm color plate,and the top skeleton is welded with 40*60 square tube.

3.The slot and wrap angle:
bent with δ0.8 mm galvanized sheet.

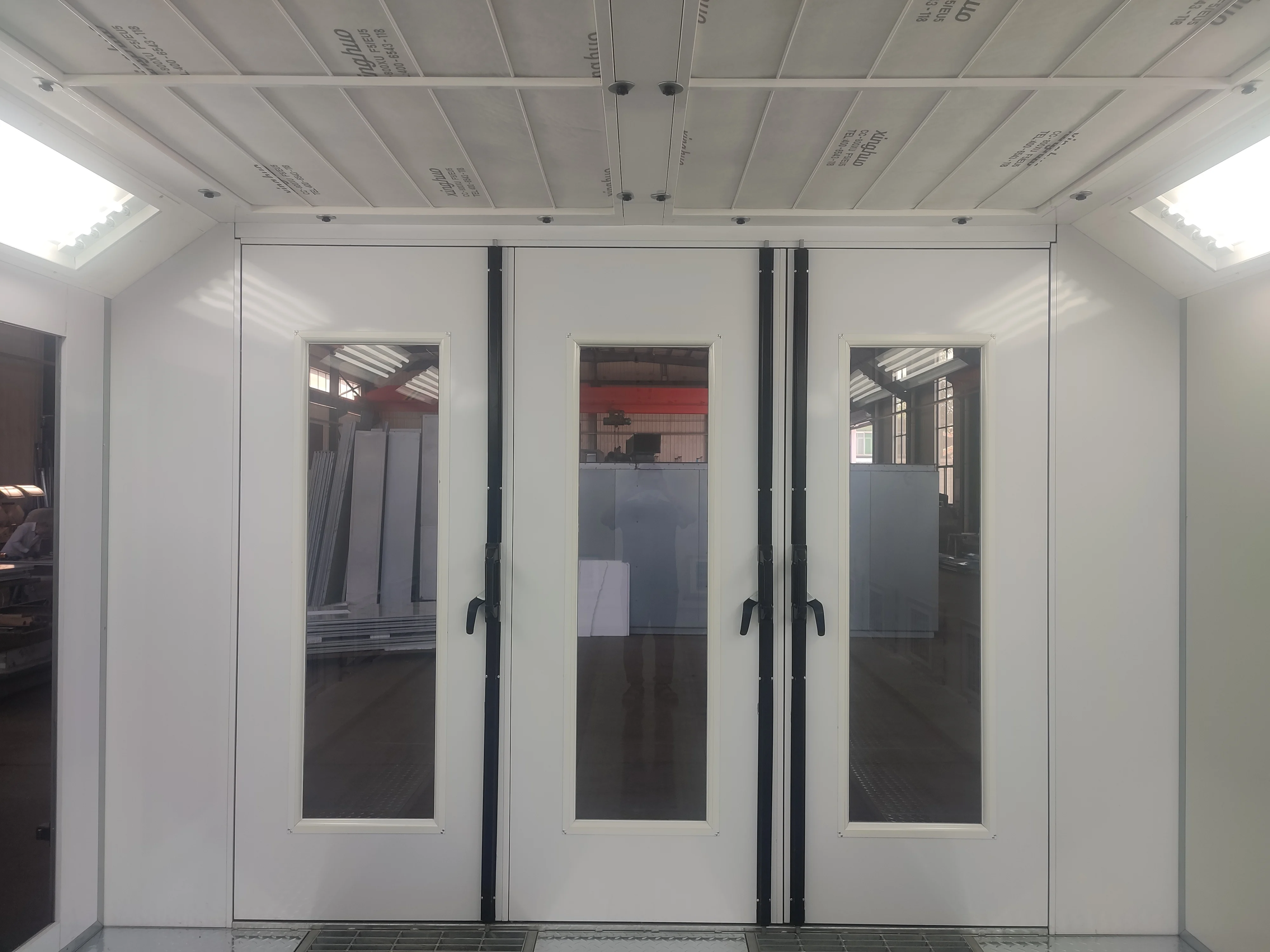

Gate system

Gate width: W:3000 mm×H : 2500 mm;

Entrance door:folding three-sheet metal large glass door,W: 1000 mm × H: 2500 mm;
safety door: W:650 mm×H:1800 mm. It's on one side of the room, and equipped with a glass observation window.

Air Filtration System

①The air inlet of the fan adopts the primary filter of the special air inlet cotton;

②The top of the static pressure chamber adopts CC-800 XU advanced filter cotton for high-efficiency filtration;

③The bottom of the steel grille is equipped with bottom cotton paint mist filter felt for efficient filtration;

⑤The exhaust box body adopts 2 layers of paint mist filter cotton.

Fan system

①Intake fans:

2 sets of 3 kw Jiangsu YDW double-inlet fans.

②Outtake fans:

1 set of 5.5 KW Jiangsu YDW type double inlet fan,and the exhaust air volume of each fan is 15500 m³/h, with a total of 5.5 KW.

Heating system

Diesel heating

Italian G20 diesel burner, heat exchanger made of SUS304 high-quality stainless steel.

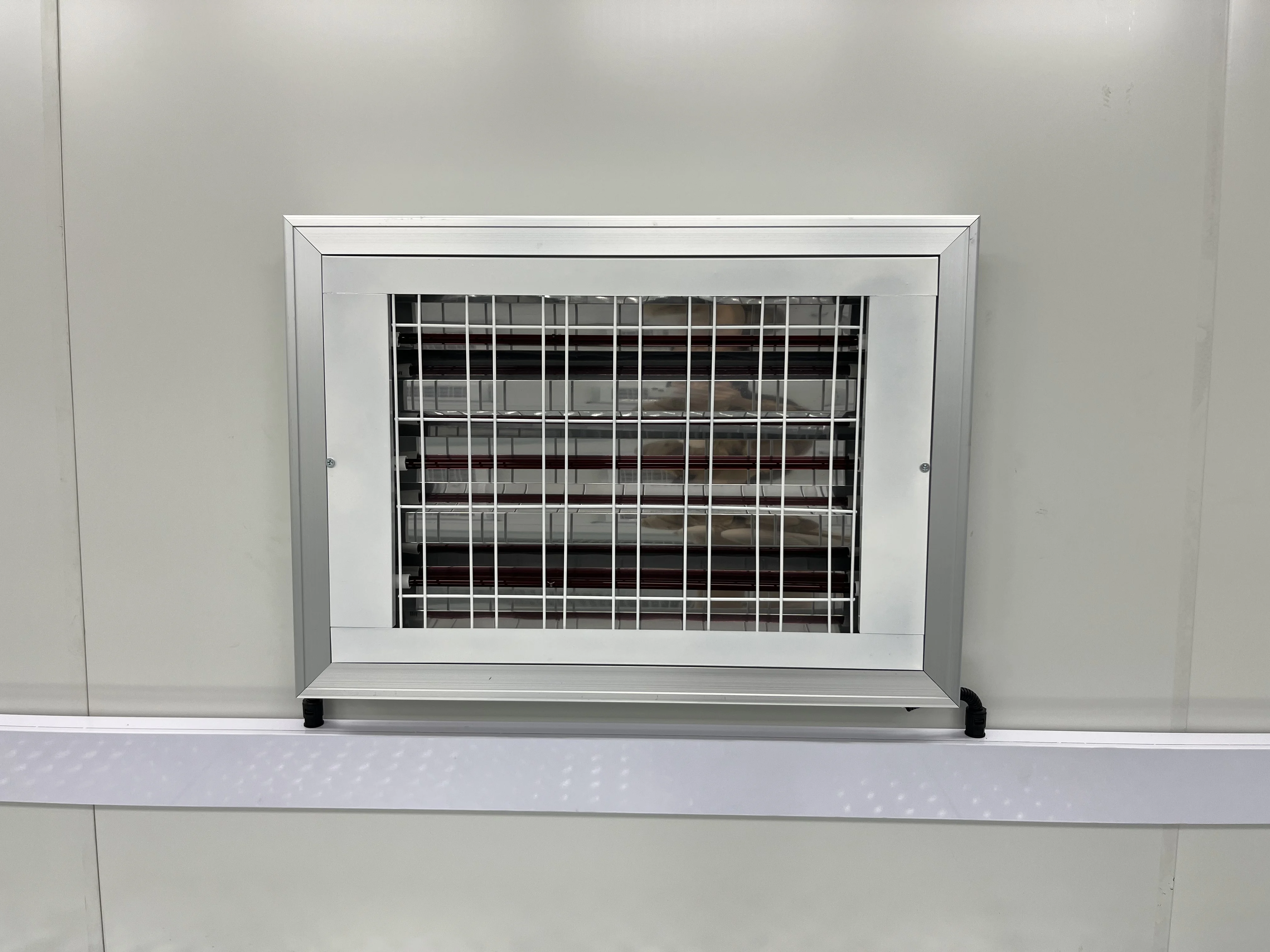

electrical heating

A total of 10 sets of side-by-side heating and baking lamps are configured, each set of 3kw, a total of 30kw.

Natural gas heating

Italian FS20 natural gas burner, heat exchanger made of SUS304 high-quality stainless steel.

Base system

③The steel grating :

30*4 mm flat iron and 6# thread welding;

④The checkered plate :1.8mm steel plate.

①The front and lower skirts of the house:

1.2 mm galvanized sheet;

the other skirts: 0.8 mm galvanized sheet;

②The connecting legs : 1.8 mm galvanized sheet bent ;
