Китайская Портативная установка для горизонтального бурения HDD другая

Китайская Портативная установка для горизонтального бурения HDD другая

Категория: Other Construction Machinery >>>
Поставщик: Henan,Power,Machinery,Equipment,Co.,Ltd.

Цена:107 460,00 $*

Количество:

Описание и отзывы

Трекер стоимости

Месяц	Минимальная цена	Макс. стоимость
Sep-20-2025	127877.23 $*	134271.28 $*
Aug-20-2025	126803.68 $*	133143.18 $*
Jul-20-2025	106385.48 $*	111704.89 $*
Jun-20-2025	124654.57 $*	130887.26 $*
May-20-2025	108535.56 $*	113962.92 $*
Apr-20-2025	122504.7 $*	128629.89 $*
Mar-20-2025	121430.63 $*	127502.43 $*
Feb-20-2025	120355.21 $*	126373.24 $*
Jan-20-2025	119281.1 $*	125245.48 $*

Характеристики

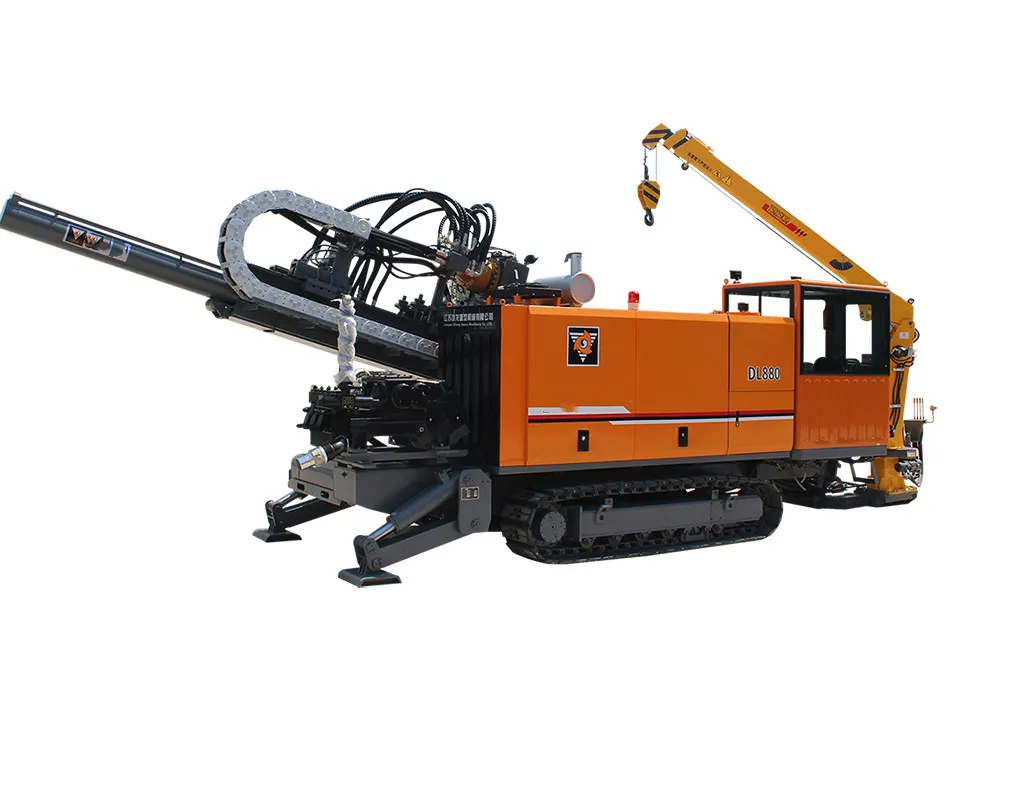

China portable HDD machine horizontal directional drilling rig other construction machinery

Product Advantages

Product Advantages of China portable HDD machine horizontal directional drilling rig other construction machinery

1. Closed loop of the main rotation hydraulic system, better working efficiency.

2. Forced air cooling system,work reliably for a long time

3. High-speed operation system has multi-shift stepless speed regulation function ,significantly increasing the operation efficiency.

4. Apply for the patent technology "Automatic swing Angle manipulator" ,when loading and discharge drill rods automatically flatten, save time and strength.

5. Hydraulic pilot control adopted pushing/pulling and turning, making the operation flexible and reliable.

6. Structure design is simple, reliable, easily to operate and maintain.

Product Parameters

Product Parameters of China portable HDD machine horizontal directional drilling rig other construction machinery

Model	DL880
Engine	194 KW
Max.Thrust Force	460KN
Max.Pullback Force	890KN
Max.Torque	27000N.m
Max.Rotary Speed	140rpm
Max.Moving Speed of Power Head	31m/min
Mud Mump Flow	600L/min
Max.Mud Pressure	10±0.5Mpa
*Dimension（LWH）*	778023002480mm
Weight	14.1T
Diameter of Drill Rod	ϕ89mm
Length of Drill Rod	3m
Max Diameter of Pullback Pipe	ϕ1200mm
Max Pullback Pipe Length	900m
Incidence Angle	11~20°
Climbing Angle	14 °

If you are interested in our products and want to get a faster price,please contact me as below:

WhatsApp: +8615238600249

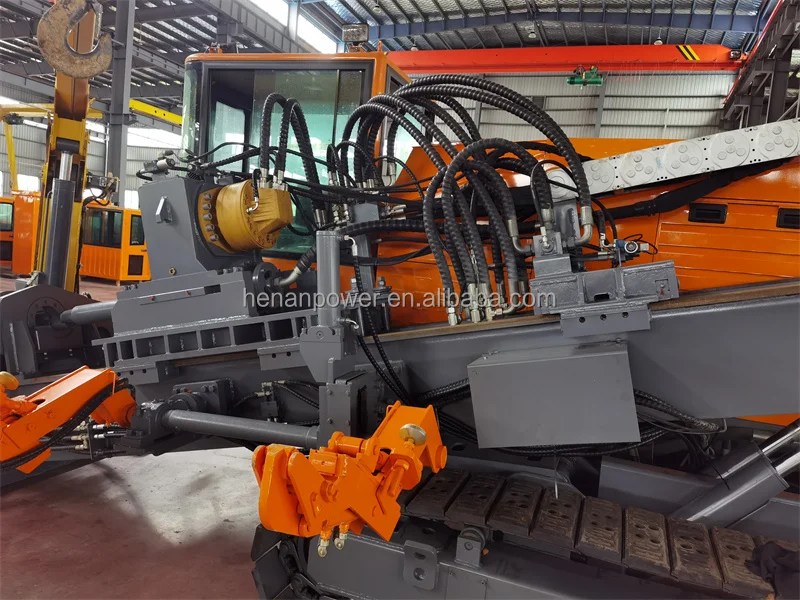

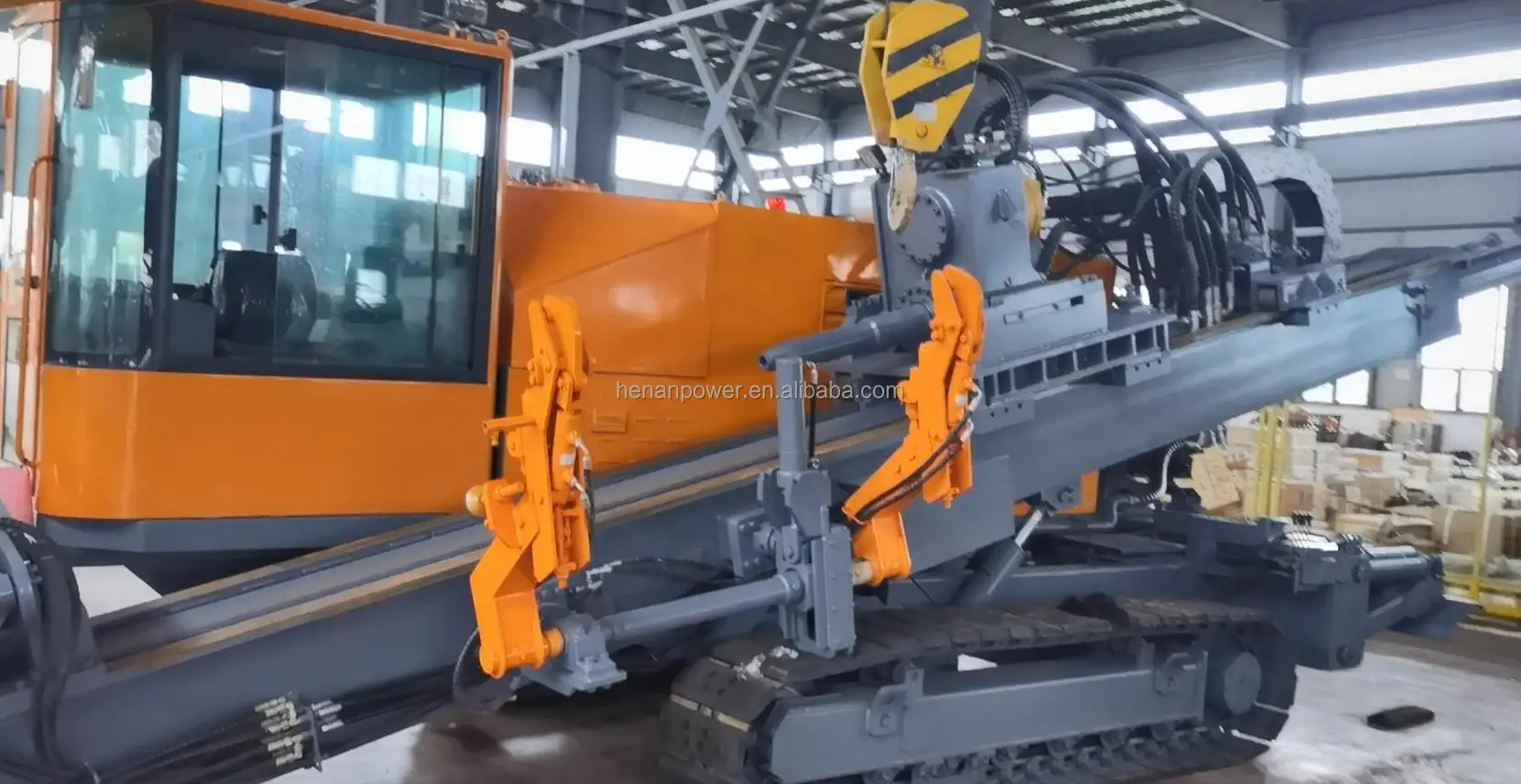

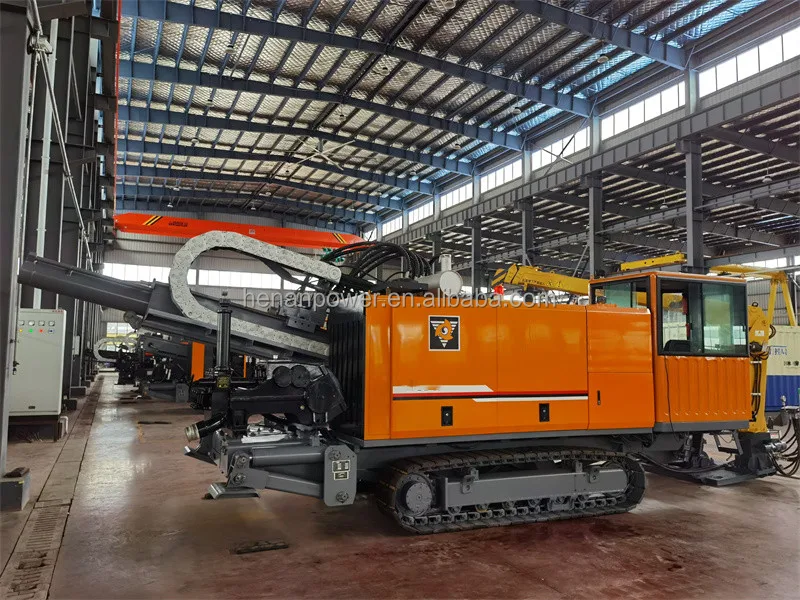

Product Details

Product Details of China portable HDD machine horizontal directional drilling rig other construction machinery

1. 194kW engine, strong power.

2. The rotary system is directly driven by high-torque hydraulic motor, which saves the energy loss of reducer and makes the equipment have higher mechanical efficiency.

3. The rig cab is equipped with warm and cold air conditioning, with better comfort and wide operating vision.

4. Crawler walking, make transfer and transportation of the equipment more convenient.

Product Packaging

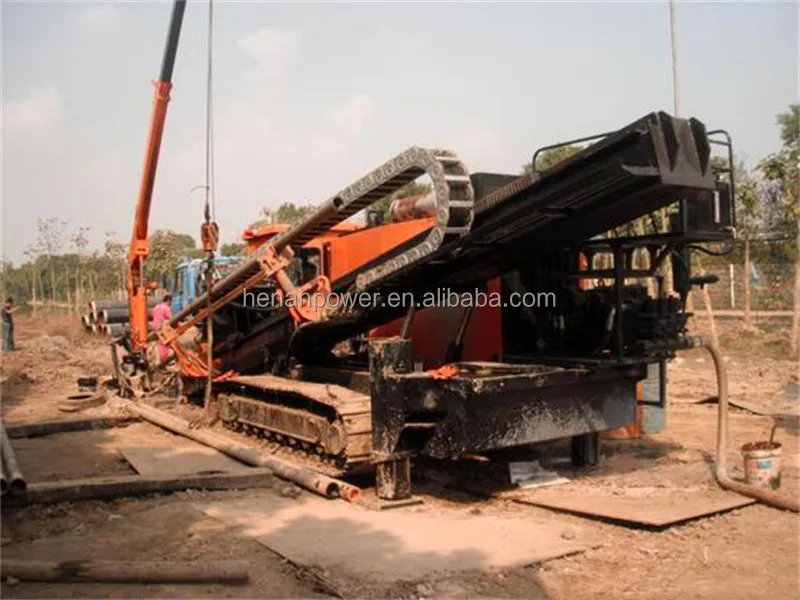

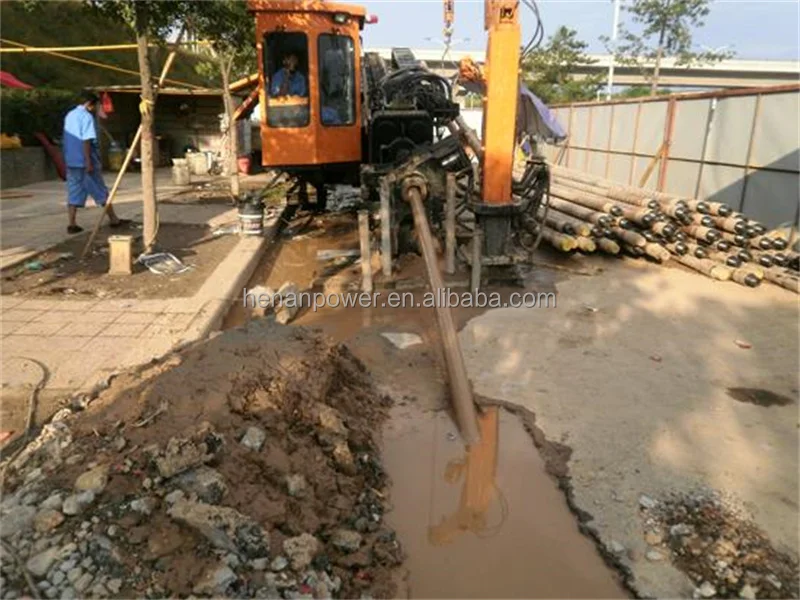

Product Application

Product Application of China portable HDD machine horizontal directional drilling rig other construction machinery

DL880 Crawler integrated horizontal directional drilling machine refers to an engineering machine designed for the purpose of pipeline laying in case of no excavation of earth surface, and is widely applied for laying pipelines for urban water supply, gas, natural gas, power and petroleum etc.
