Буровой станок буровой BTLY-150 модель портативная буровая установка для бурения скважин на

Буровой станок буровой BTLY-150 модель портативная буровая установка для бурения скважин на

Категория: Other Construction Machinery >>>
Поставщик: Shandong,Better,Drilling,Machinery,Co.,Ltd.

Цена:5 500,00 $ - 8 800,00 $*

Количество:

Описание и отзывы

Трекер стоимости

Месяц	Минимальная цена	Макс. стоимость
Sep-19-2025	6545.4 $*	6872.46 $*
Aug-19-2025	6490.69 $*	6815.90 $*
Jul-19-2025	5445.37 $*	5717.88 $*
Jun-19-2025	6380.89 $*	6699.80 $*
May-19-2025	5555.66 $*	5833.75 $*
Apr-19-2025	6270.68 $*	6584.11 $*
Mar-19-2025	6215.3 $*	6526.88 $*
Feb-19-2025	6160.38 $*	6468.91 $*
Jan-19-2025	6105.10 $*	6410.62 $*

Характеристики

Product Description

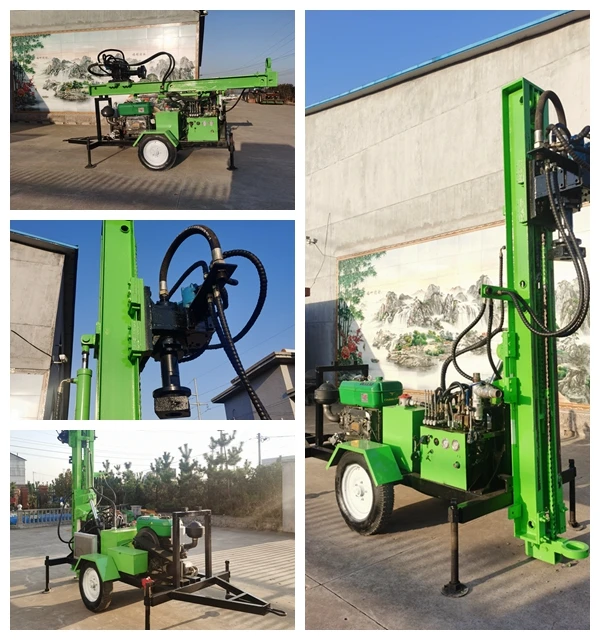

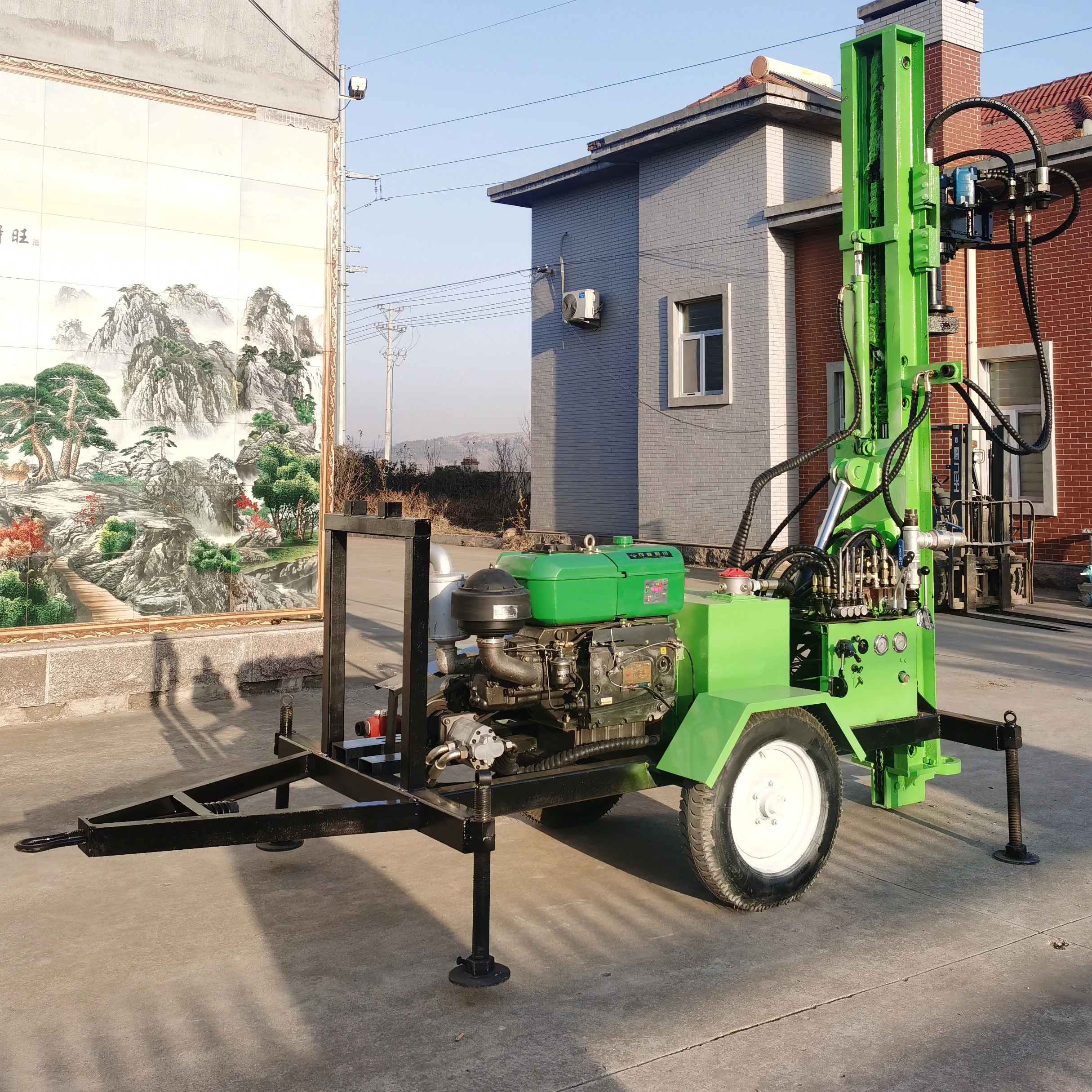

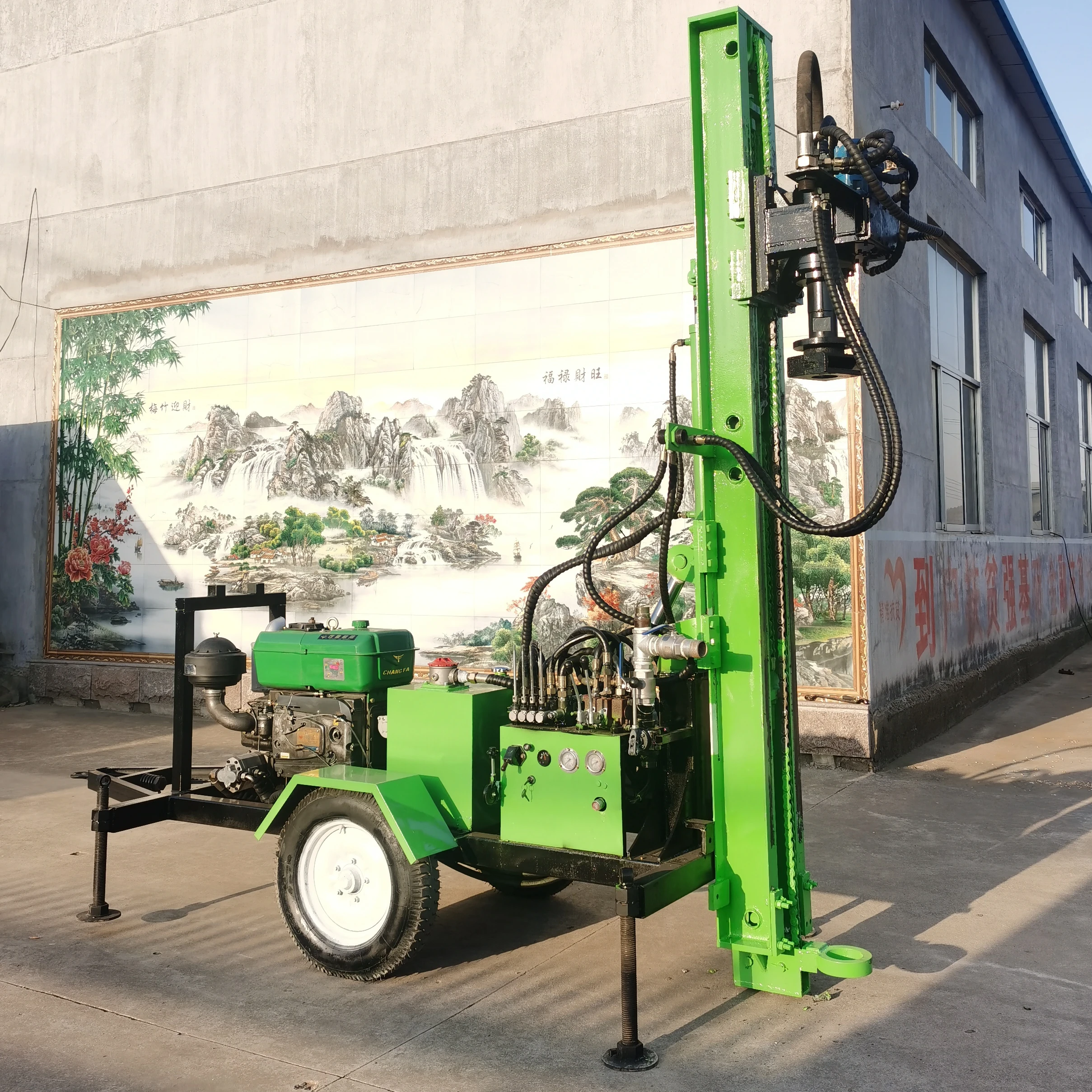

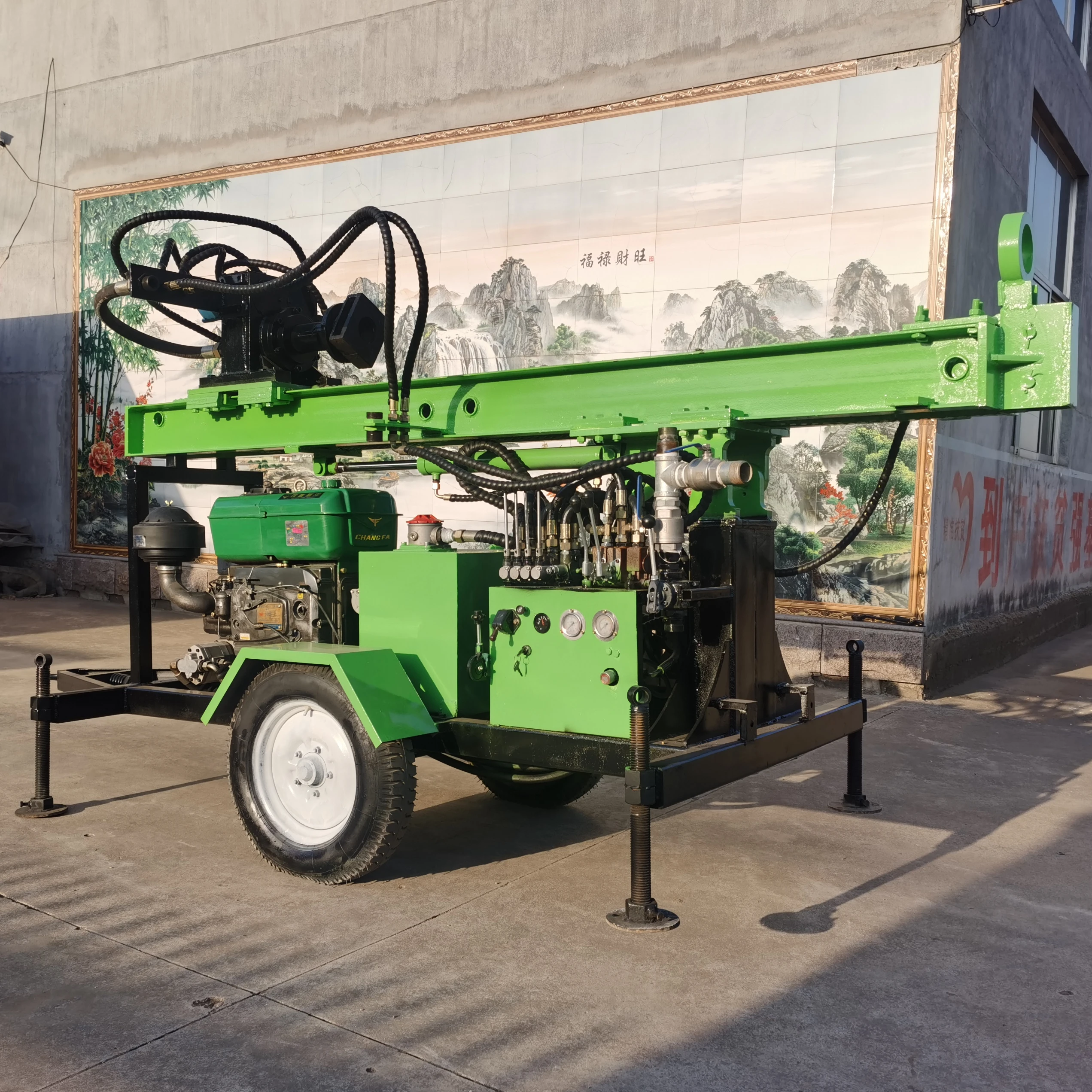

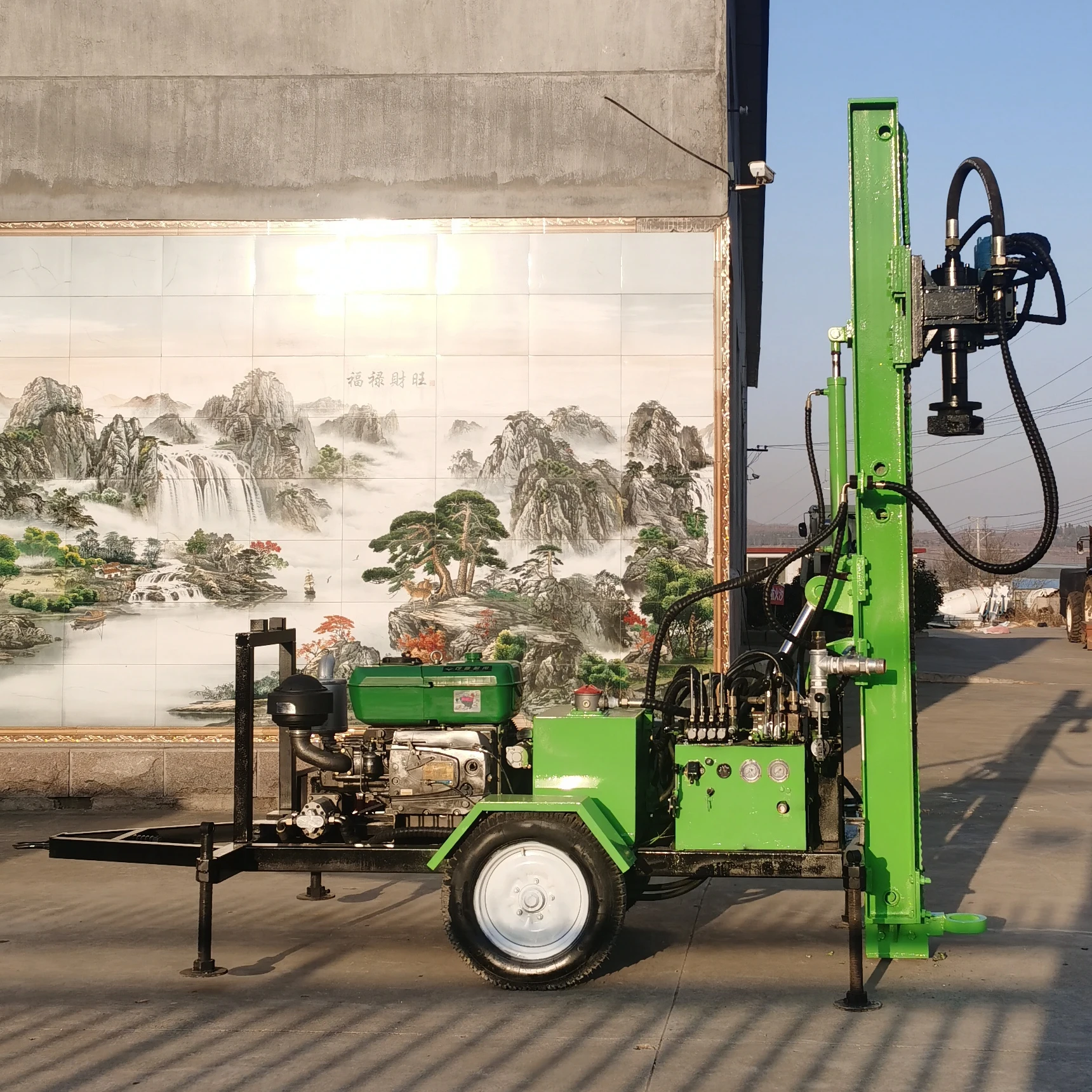

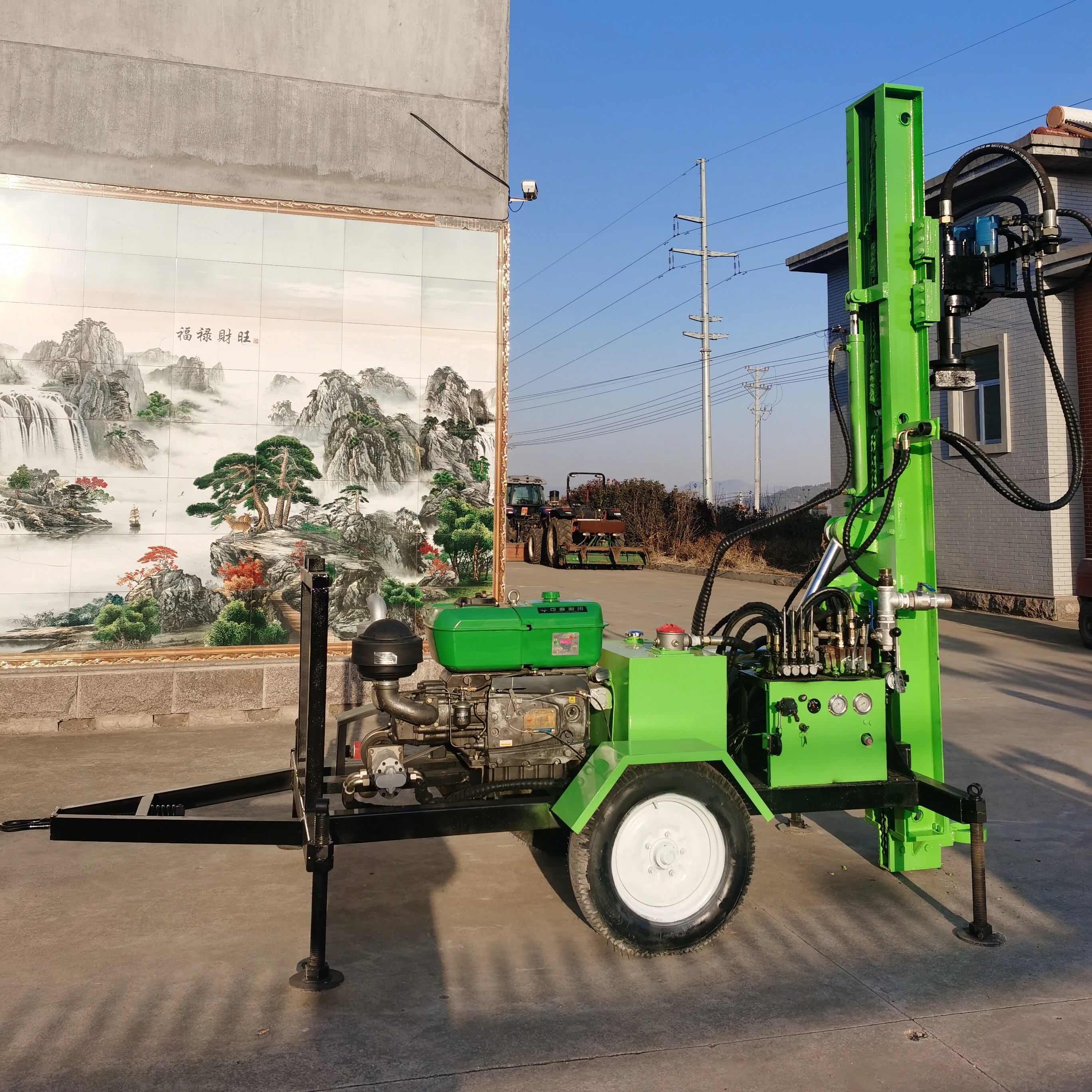

Trailer Water Well Drilling Rig Introduction:

1. BTLY-150 series rotary trailer mounted drilling rig is equipped with wheel running gear and hydraulic oil cylinder pillar, transferring, convenient and easy to drill horizontal adjustment

2. Equipped with hydraulic feed mechanism, drilling efficiency is greatly improved.

3. Equipped with a pressure gauge instructions at the bottom of the bore pressure, easy to monitor the hole.

4. Falling tower for hydraulic operation, convenient and reliable

5. Diesel engine with electric start, labor saving

Rig details

Model	BTLY-150
Drilling hole diameter	130-220mm
Drilling depth	150-200m
Drilling angle from ground	45-90·
Drilling tools propel stroke per time	1500mm, 2000mm
Air consumption	12-22m³/min
Diesel engine	28-33HP
Drilling head rotary speed	0-200 r/min
Using pressure	0.8-2.1 Mpa
Rotary torque	1960N.m
Lifting max force	120KN
Drilling rod	76mm
The weight rig	2000kgs
