Листогибочный пресс для металла 40t2500


Поделиться:


Цена:*

Количество:



Описание и отзывы


Трекер стоимости

Месяц Минимальная цена Макс. стоимость
Sep-15-2025 0.78 $* 0.46 $*
Aug-15-2025 0.54 $* 0.64 $*
Jul-15-2025 0.26 $* 0.29 $*
Jun-15-2025 0.76 $* 0.50 $*
May-15-2025 0.39 $* 0.54 $*
Apr-15-2025 0.33 $* 0.45 $*
Mar-15-2025 0.26 $* 0.64 $*
Feb-15-2025 0.20 $* 0.28 $*
Jan-15-2025 0.42 $* 0.94 $*

Характеристики





_02.jpgWC67Y/K-100T/3200 press brake /cnc hydraulic press brake machine





Technical parameters




























































































NOItemValueUnit
1Nominal force1000KN
2Worktable length3200mm
3Worktable height850mm
4Slider stroke100mm
5Max opening height320mm
6Slider stroke adjustment75mm
7Distance between columns2600mm
8Throat depth320mm
9  Slider speed

 V-working:9


V-return: 45


 V-unload: 50


mm/s

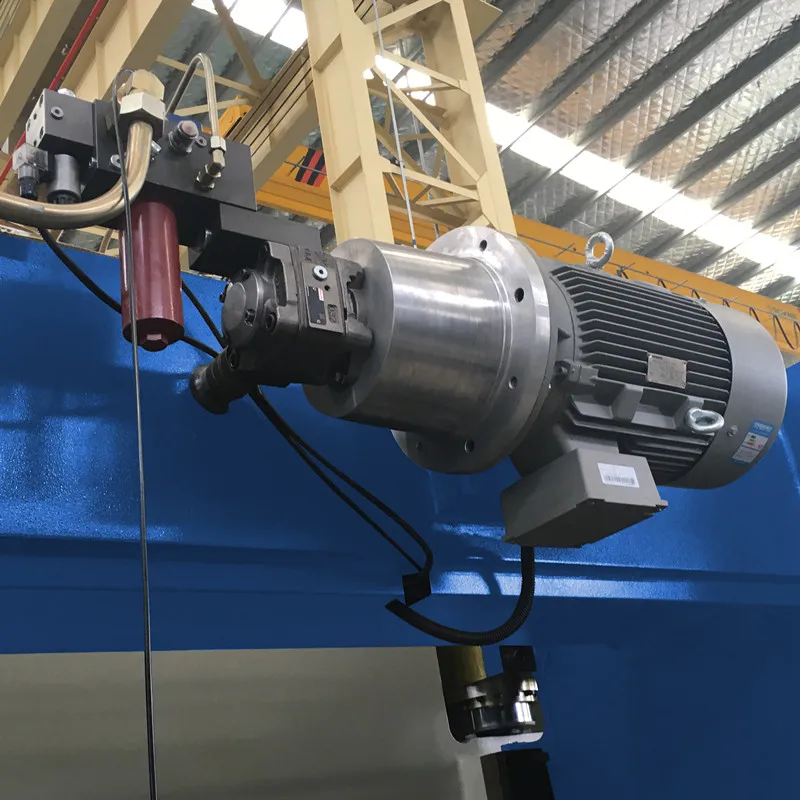

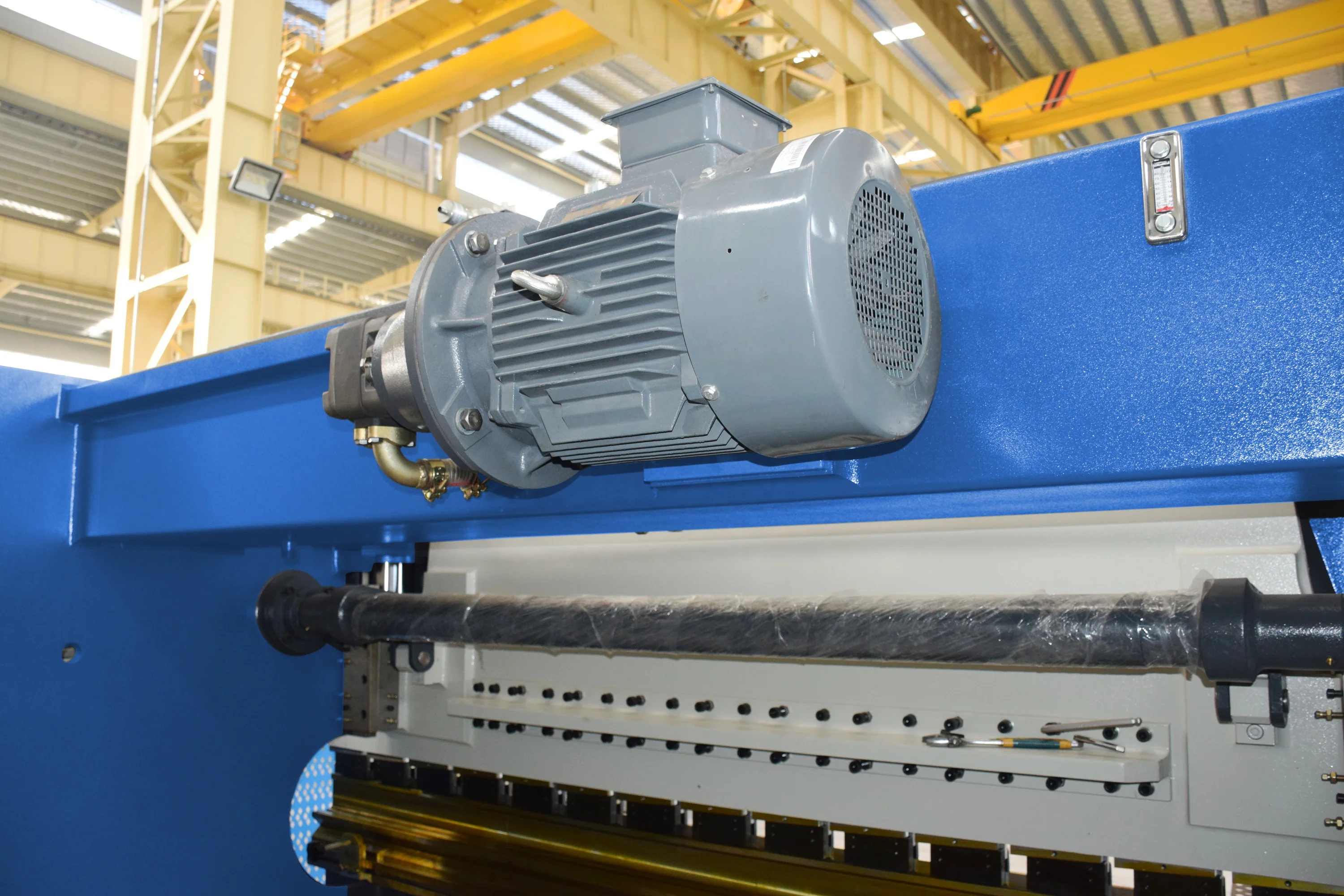

10Main motorY160M-6     n=960r.p.m      N=7.5KW
11Oil pump25MCY14-1B   q=25ml/r      p=31.5Mpa
12System max pressure25Mpa
13Dimension3300×1600×2200mm







Main feature


1. The frame is steel structure, left and right vertical plate, table and pressure plate welded into a unitary structure, after welding to eliminate internal stress by tempering, exceptional rigidity, high stability.



2. Important parts of the frame, sliders, etc. are used ANSYS finite element analysis software to ensure machine reliability.



3. Hydraulic drive, cylinder on both end of machine, disposed on the slider to drive it work directly.



4. Torsion axis synchronization for  slide synchronous mechanism.



5. Adopt a mechanical stopper mechanism, stable and reliable.

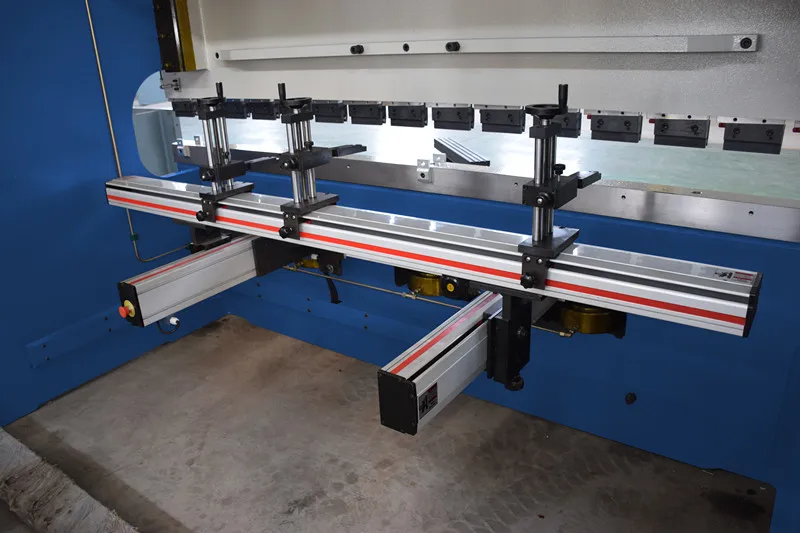

6. Back Gauge size and slide stroke controlled  by CNC system, back gauge with high precision ball screw, stable operation and precise positioning.





7. The CNC system adopts frequency conversion control technology, with multi-step
programming function, simple and easy to operate.





8. Inclined wedge deflection on the compensation mechanism, in order to guarantee access to high bending accuracy

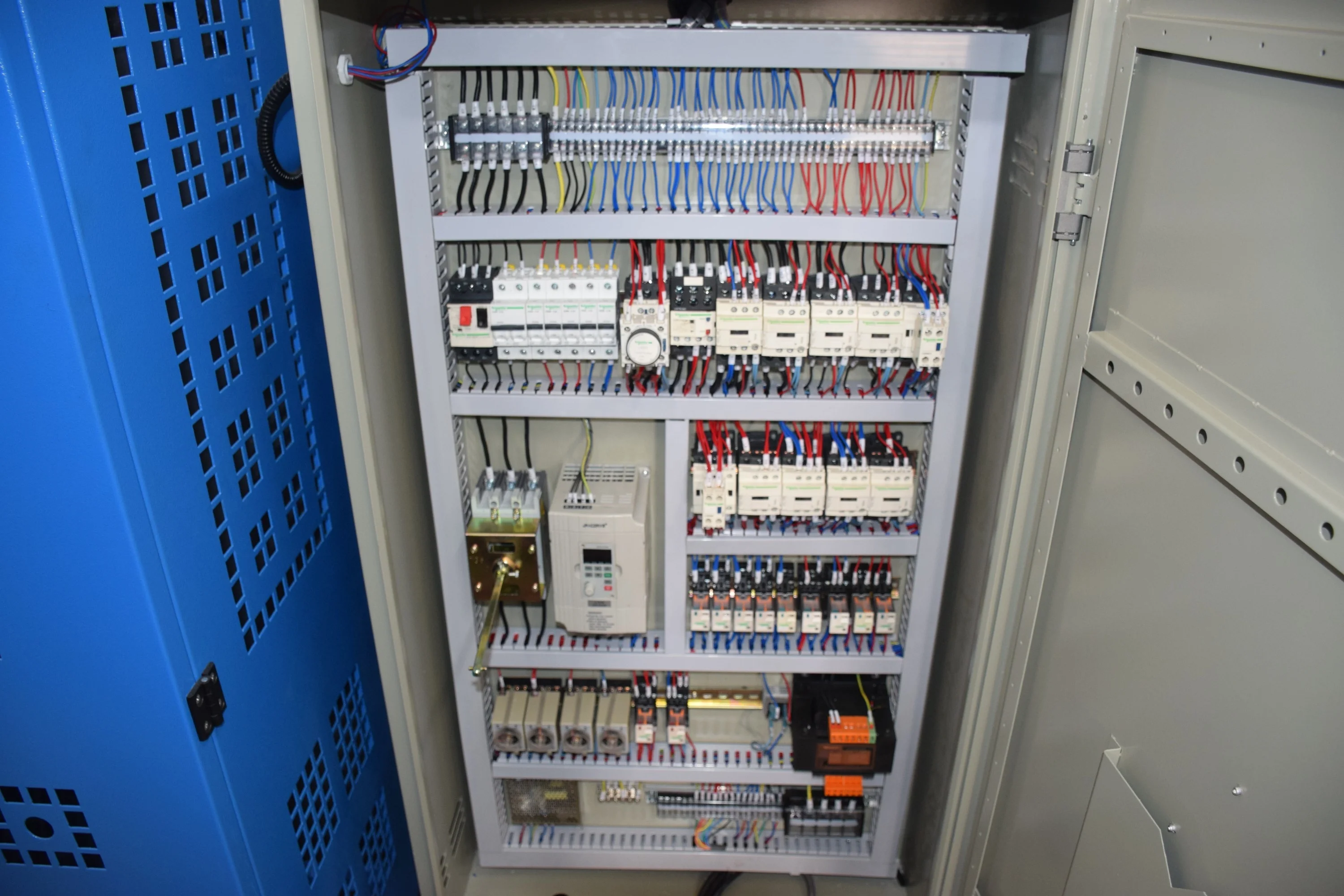

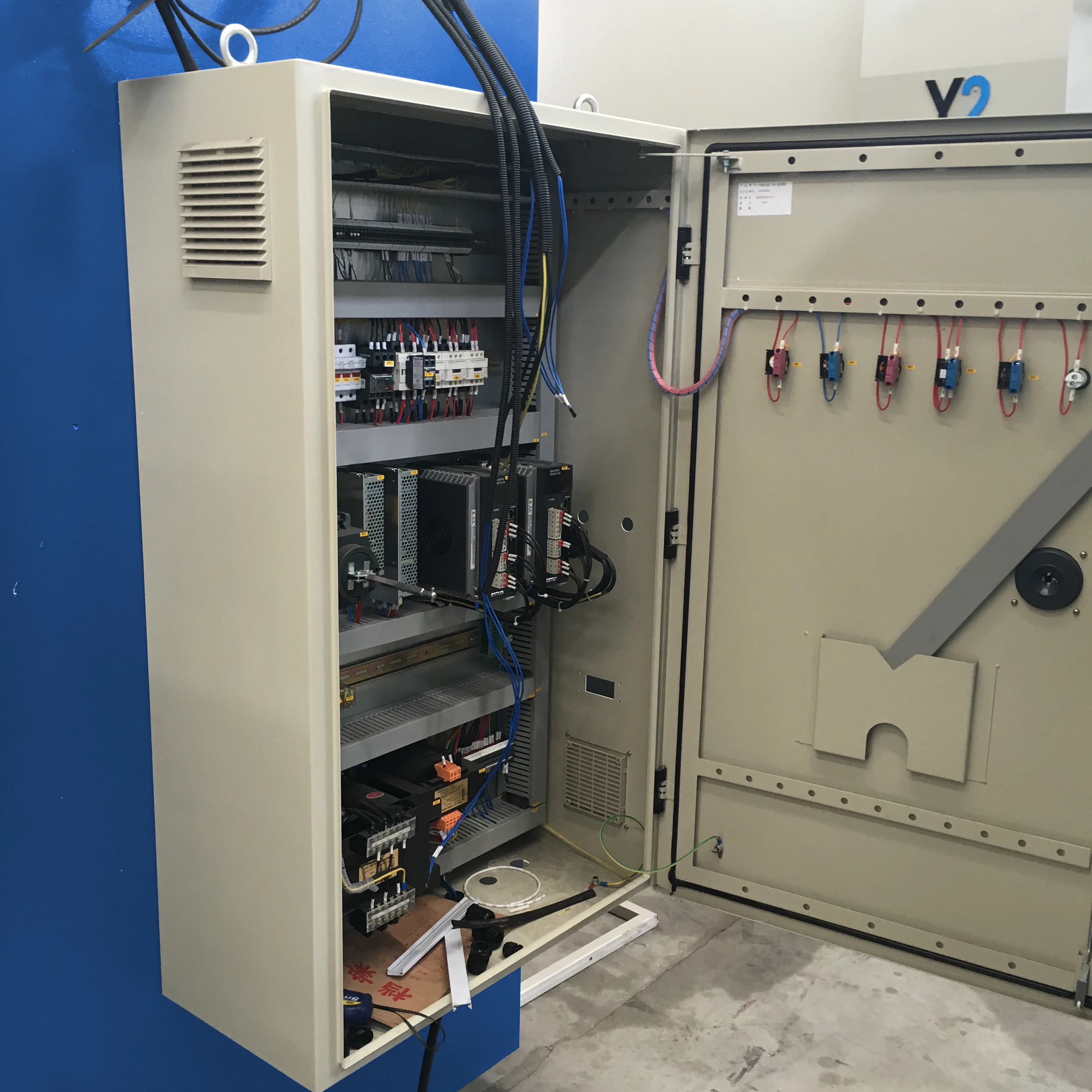

9. Safety barrier device all around the machinery, electrical cabinets equipped with Open door cut-off function, emergency stop button around front and back, protective cover foot switch to ensure safe working.
































_04.jpg_06.jpg_07.jpg_08.jpg_09.jpgQQ20180413104233
