Характеристики
Product Description

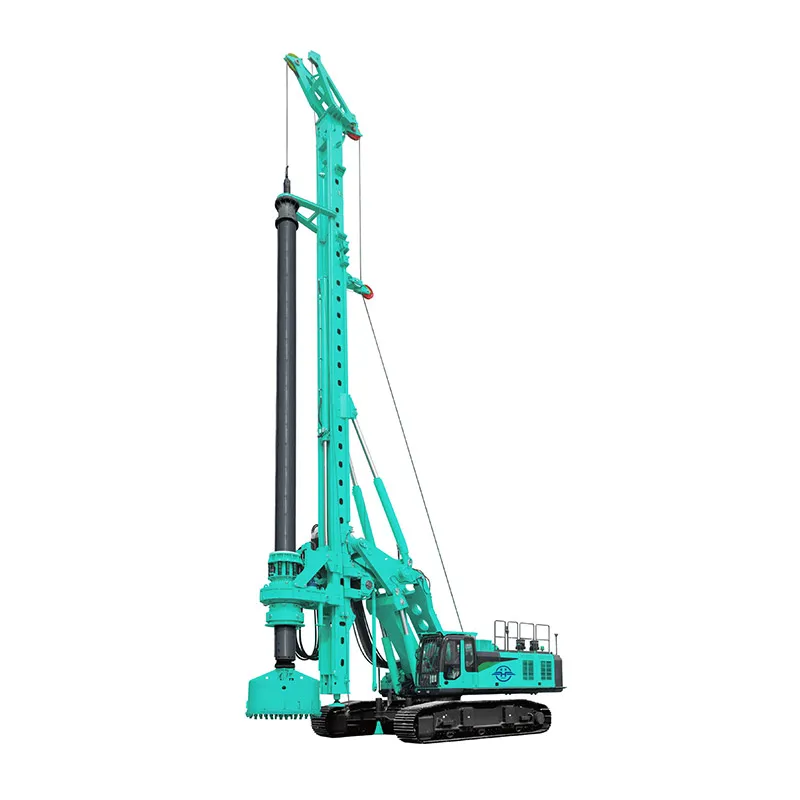

HF360E deep well drilling rig Torque Drilling Rig Machine Rotary Drilling Rig For Piling Construction
Product number: HF360E
Engine Model:TAD1353VE
Rated power (kW/r/min): 345kW/6-27r/min
Max.Drilling Diameter:2600mm/2300
Max.Drilling Depth：103m
HF360E Performance Characteristics
Optimally designed double swing arm luffing mechanism and optimized hinge point position take account of the construction stability and the transportation convenience at the same time.
Dedicated H-type hydraulic retractable crawler chassis for rotary drilling rigs with large-diameter slewing bearing ensures superior stability and convenient transportation.
Imported Volvo engine with strong power effectively reduces fuel consumption and use costs.
The hydraulic system adopts load sensing technology with total power control and limit power control, making the system more efficient and energy-saving. Independent radiator system provides high heat dissipation efficiency.
The proprietary single-row rope main winch of XCMG effectively solves the twine problem and greatly prolongs the service life of wire rope.
The rotary drive owns normal mode special for soil layers and rock-entering mode special for rock formations, which improves construction efficiency. The autorotation of rotary drive can achieve continuous adjustments of speed in normal mode and rock-entering mode.
Standard centralized lubrication system makes the maintenance more convenient and improves working reliability.
Dedicated H-type hydraulic retractable crawler chassis for rotary drilling rigs with large-diameter slewing bearing ensures superior stability and convenient transportation.
Imported Volvo engine with strong power effectively reduces fuel consumption and use costs.
The hydraulic system adopts load sensing technology with total power control and limit power control, making the system more efficient and energy-saving. Independent radiator system provides high heat dissipation efficiency.
The proprietary single-row rope main winch of XCMG effectively solves the twine problem and greatly prolongs the service life of wire rope.
The rotary drive owns normal mode special for soil layers and rock-entering mode special for rock formations, which improves construction efficiency. The autorotation of rotary drive can achieve continuous adjustments of speed in normal mode and rock-entering mode.
Standard centralized lubrication system makes the maintenance more convenient and improves working reliability.
Technical Data
HF360E Main Technical Parameters | ||||||
Type | Unit | parameter | ||||
Max. Drilling Diameter | mm | Φ2600/φ2300* | ||||
Max. Drilling Depth | m | 103 | ||||
Engine | Model | TAD1353VE | ||||
Rated Power | kW | 345 | ||||
Rotary Drive | Max. output torque | kN. m | 360 | |||
Rotary Speed | r/min | 6-27 | ||||
Crowd Cylinder | Max.pull-down piston push | kN | 300 | |||
Max.pull-down piston pull | kN | 350 | ||||
Max. pull-down piston stroke | m | 6 | ||||
Crowd Winch | Max. pull-down piston push | kN | 300* | |||
Max. pull-down piston pull | kN | 350* | ||||
Max. pull-down piston stroke | m | 10/16* | ||||
Main Winch | Max. pulling force | kN | 370 | |||
Max.line speed | m/min | 60 | ||||
Auxiliary Winch | Max. puHing force | kN | 100 | |||
Max.line speed | m/min | 41 | ||||
Mast Rake Side/forwards/backwards | ° | ±4/5/15 | ||||
Undercarrige | Max. traveling speed | km/h | 1.3 | |||
Max.grade ability | % | 35 | ||||
Track shoe width | mm | 800 | ||||
Distance between tracks | mm | 3500-4900 | ||||
Hydraulic system | Working pressure | MPa | 33 | |||
Overall Drilling Weight | t | 115 | ||||
Dimension | Working condition | mm | 10870x4900x25820 | |||
ransportation condition | mm | 20650x3500x3845 | ||||
Farameters with “*”refer to the ones of crowd winch configuration. | ||||||

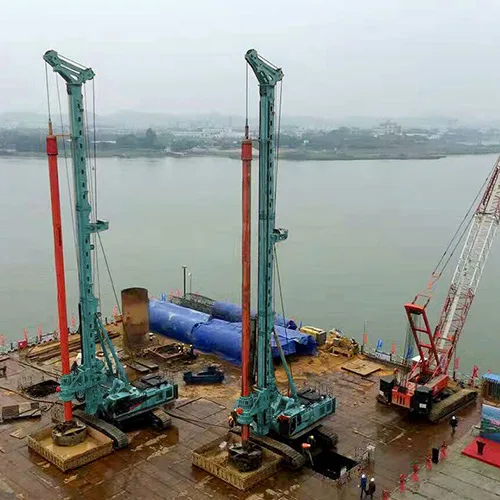

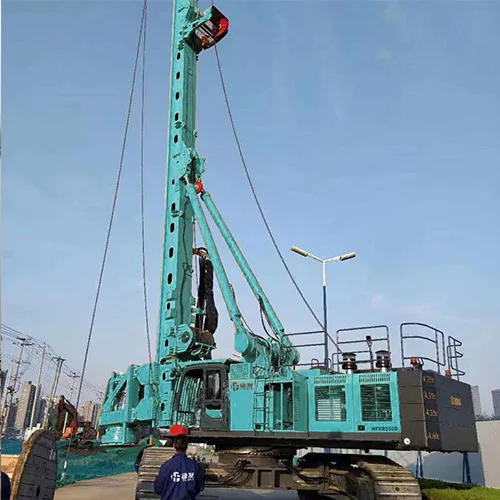

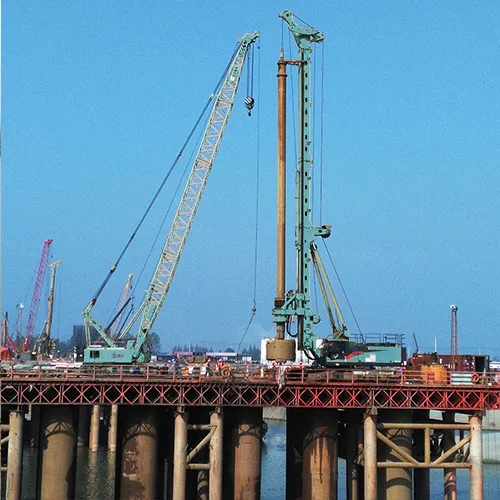

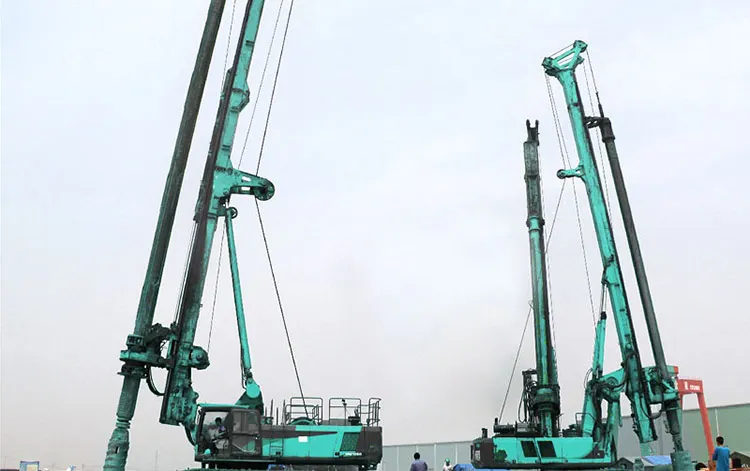

Working Site
our company
FAQ
1. Are you trading company or manufacturer
We are professional manufacturer, and our factory mainly produce water well drilling rig, core drilling rig, DTH drilling rig, piling rig, etc. Our products have been exported to more than 50 countries of Asia, South America, Africa, and get a good reputation in the world.
2. Are your products qualified?
Yes, our products all have gained ISO certificate,and we have specialized quality inspection department for checking every machine before leaving our factory.
Yes, our products all have gained ISO certificate,and we have specialized quality inspection department for checking every machine before leaving our factory.
3. How about your machine quality?
All of our machines hold the ISO, QC and TUV certificate, and each set of machine must pass a great number of strict testing in order to offer the best quality to our customers.
All of our machines hold the ISO, QC and TUV certificate, and each set of machine must pass a great number of strict testing in order to offer the best quality to our customers.
4. Do you have after service?
Yes, we have special service team which will offer you professional guidance. If you need, we can send our engineer to your worksite and provide the training for your staff.
Yes, we have special service team which will offer you professional guidance. If you need, we can send our engineer to your worksite and provide the training for your staff.
5. What about the qaulity warranty?
We offer one-year quality warranty for machines' main body.
6. How long can you deliver the machine?
Generally, we can deliver the machine in 7 days.
Generally, we can deliver the machine in 7 days.
