150ton гидравлический cnc Пресс листогибочный станок полностью


Поделиться:


Цена:*

Количество:



Описание и отзывы


Трекер стоимости

Месяц Минимальная цена Макс. стоимость
Sep-15-2025 0.25 $* 0.77 $*
Aug-15-2025 0.6 $* 0.15 $*
Jul-15-2025 0.95 $* 0.84 $*
Jun-15-2025 0.36 $* 0.75 $*
May-15-2025 0.51 $* 0.47 $*
Apr-15-2025 0.38 $* 0.89 $*
Mar-15-2025 0.39 $* 0.50 $*
Feb-15-2025 0.24 $* 0.18 $*
Jan-15-2025 0.49 $* 0.19 $*

Характеристики



Products Description


Model
WE67K-100T/3200mm
Nominal Pressure
1000KN
Length of Worktable
3200MM
Capacity
4.5mm*3200mm Steel Plate
Accuracy
0.5mm
Size(L*W*H)
3300mm*1750mm*2420mm




Main Features


1.CNC Series machines redesigned based on users preferences to become a unique machine with its individual electronic and mechanical features.

2.CNC Series are among the highest rated machines which will help you increase your productivity and keep costs at minimum level with its user friendly CNC controller and low cost hydraulic maintenance.

3.New CNC is exactly what you need for your production where complicated, sensitive, single or multiple bends on high speed are paramount.

4.High quality and repetitive bending is obtained by using synchronized cylinders and valves.

5.Automatic utilisation of all axes on startup.

6.Rigid upper beam runs on 8-point bearings with bending precision of 0,01 mm.

7.Well-known top and bottom tool brands are long lasting hardened and provide precise bending.

8.All SC PRESS machines are designed using SOLID WORKS 3D programming and made with enhancedST44-1 quality steel using the latest Technology.

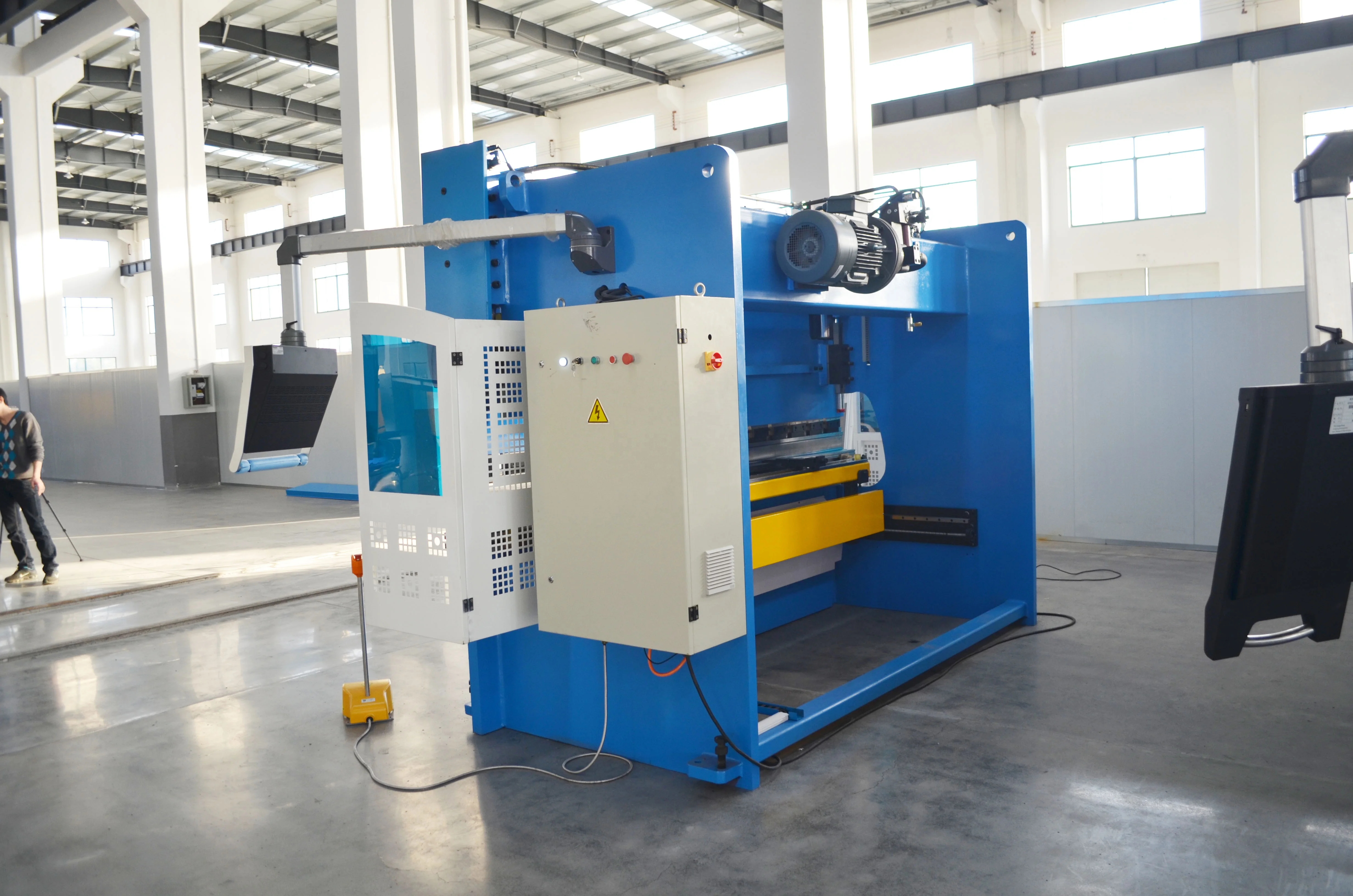

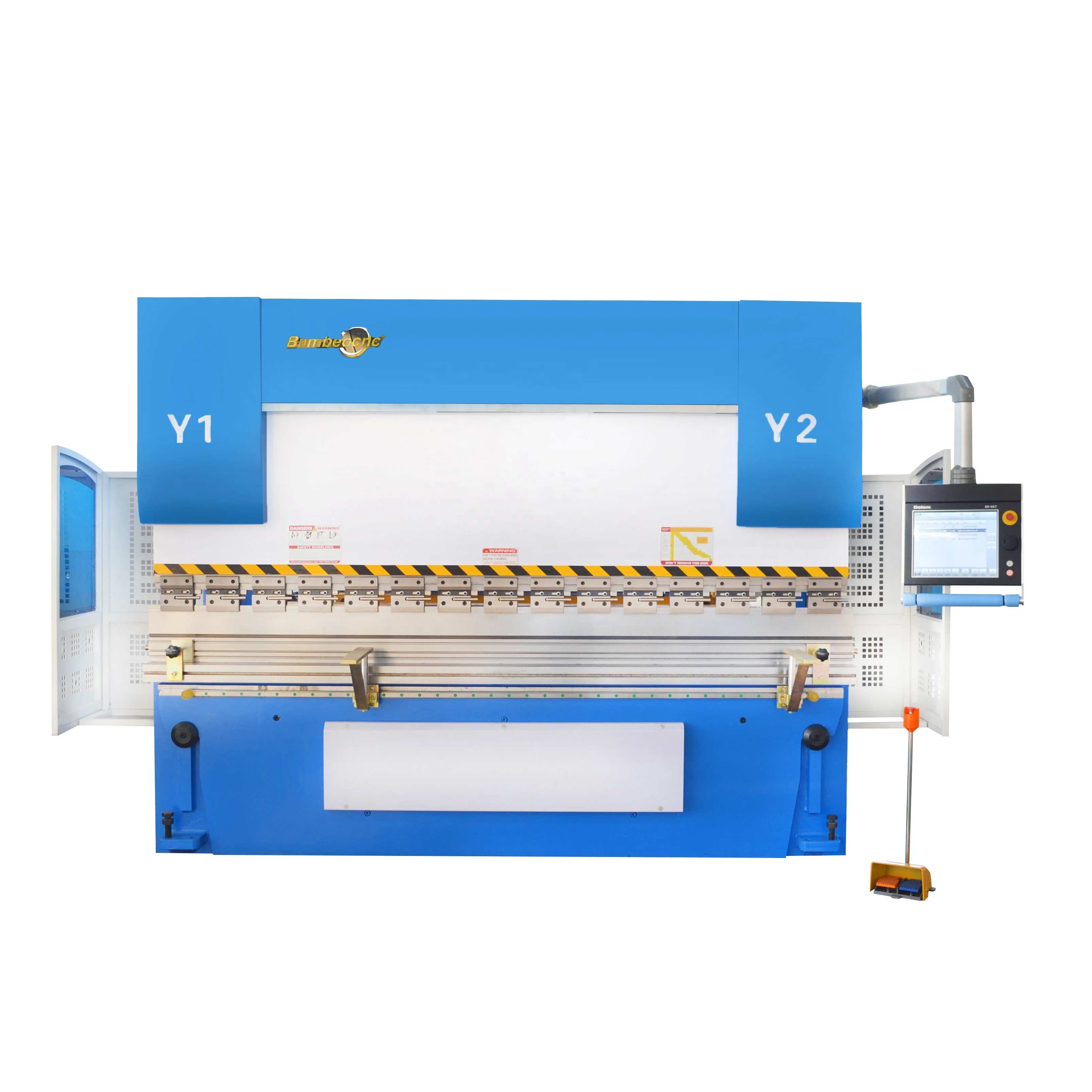

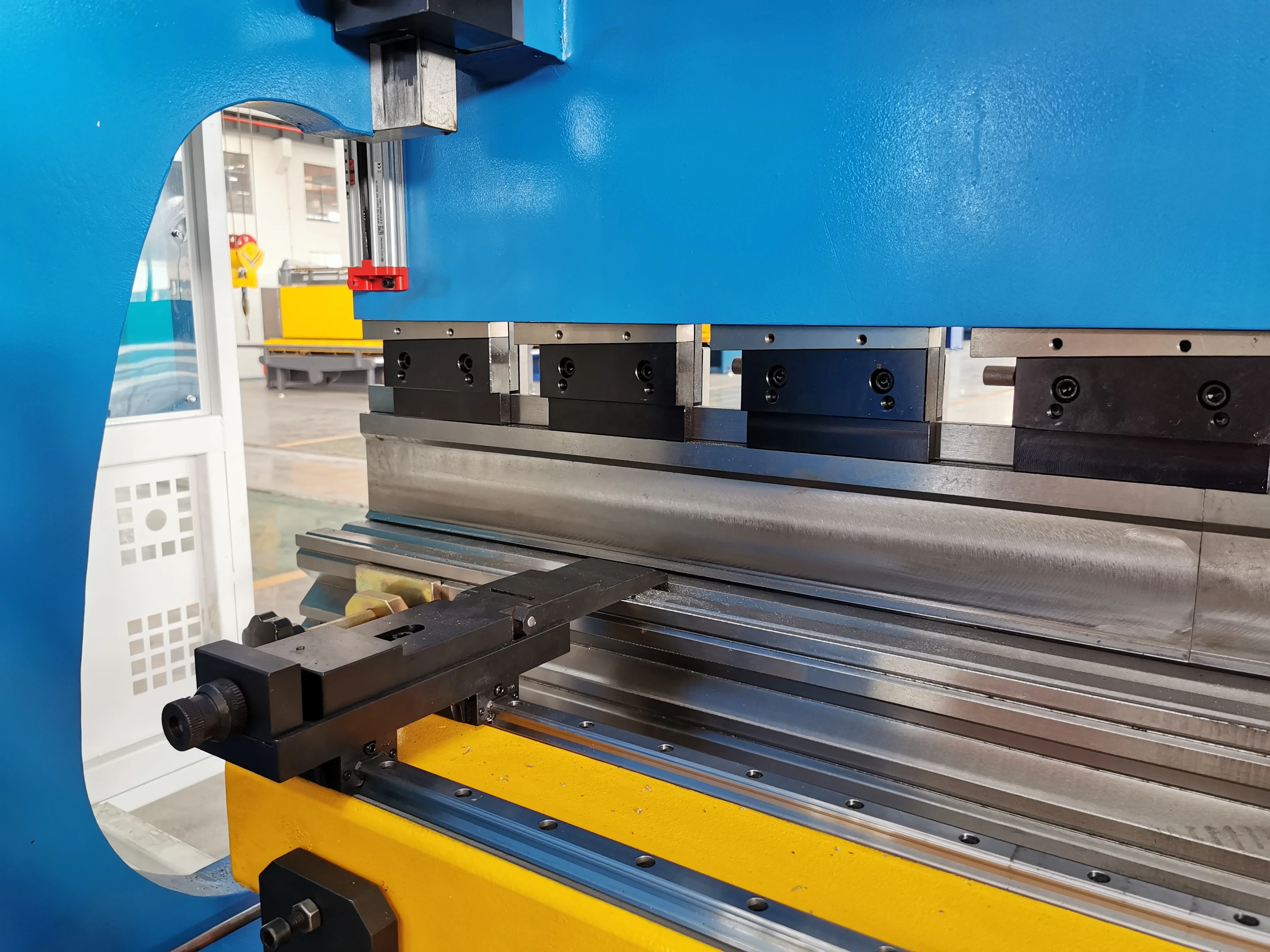

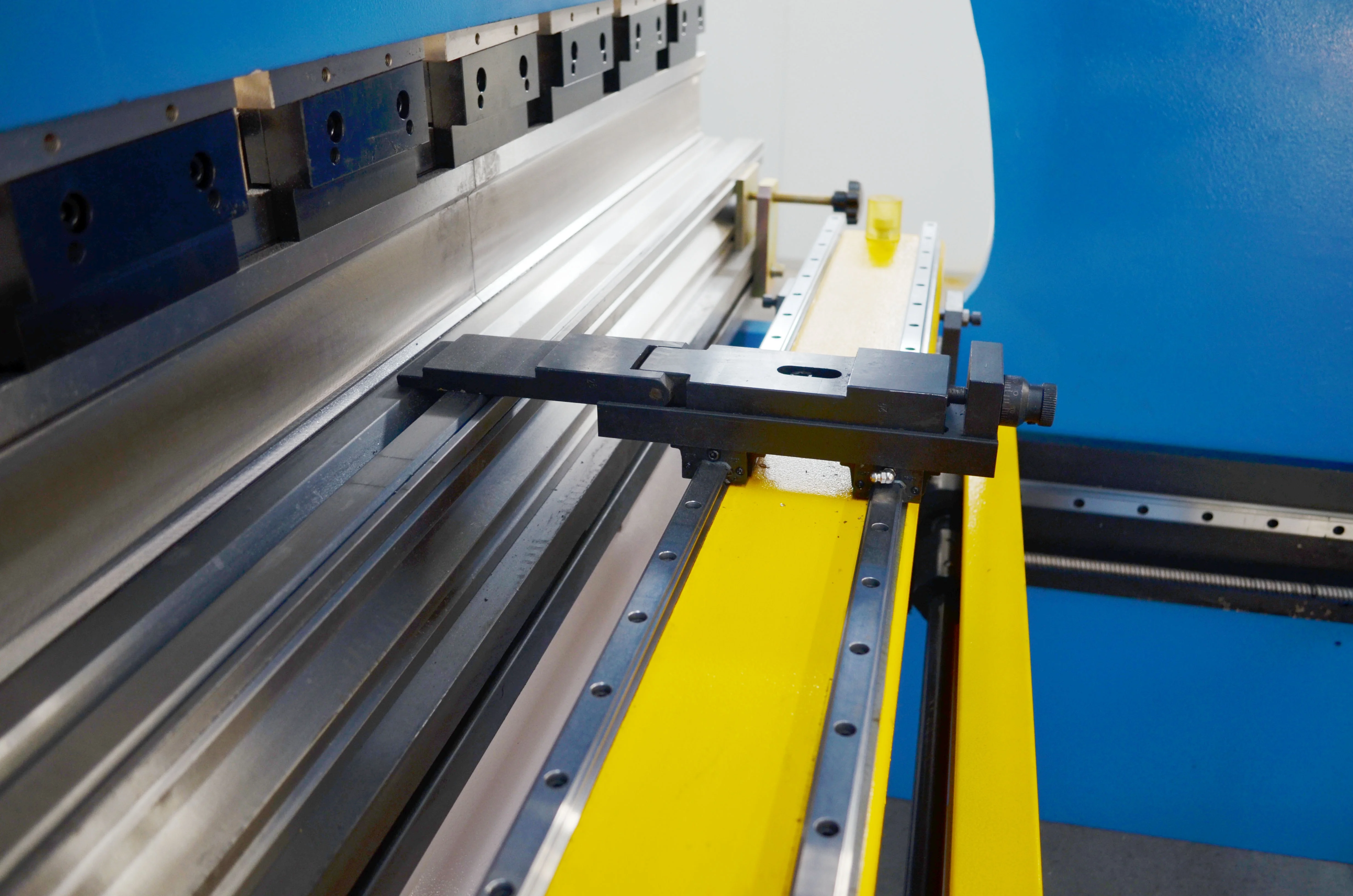

Details Images






Standard Configuration
1.
CNC Controller
Delem From Holand.ESA From Italy .Cybelec From Switzerland
2.
Hydraulic System
Bosch Rexroth From Germany
Hydraulic system:
--Adopt integrated hydraulic control system, more reliable and easy for maintenance.Hydraulic system is from Bosch -
Rexroth,Germany.
--All seals in cylinder is PARKER from USA,the most famous brand,good quality and high performance
--Overload overflow protection is outfitted to hydraulic system,which can assure no leakage,and the oil level can be read
or seendirectly.
--The hydraulic system is made in compliance with current regulations (Directive 98/37 EC).
3.
Main Motor
Siemens From Germany
4.
Main Electrics
SCHNEIDER from France
Electrical system and the safety interlock:
--Electrical Cabinet under the standard of IP65, Electrical under international CE Standard, safe and reliable, strong anti
interference capability
--Protective fence and the safety interlock to ensure the operation safety. Have a movable single-hand pedal switch,easy
 to operate
--Front Side Covers with safety switches, Back light safety guards (Category-4),Foot pedal conforming to CE regulation.
5.
Seal Ring
NOK From Japan
6.
Pipe Connector
EMB From Germany
7.
Ball Srew
Hiwin From Taiwan
8.
Limit Switch
SCHNEIDER from France
9.
Pump
Bosch Rexroth From Germany
10.
Foot Switch
Karcon From South Korea




Product Parameter




Our Service




Packing & Delivery


Packaging
Size
123 (L) * 456 (W) * 789 (D)
Weight
7 T



Packaging Details
Container transportation, mold surface coated with anti-rust coating. The machine is fixed with wire ropes in the container. Free loading of other goods for customers




FAQ


Q1:What kinds of press brake are there?
A1:We have electro-hydraulic press brake and CNC hydraulic press brake, you can contact our sales consultant for specific parameters, we will recommend the appropriate machine to you according to the size you need.
Q2.What is the price of the machine?
A2:Our price depends on your specific requirements, such as parameters, controllers will affect the price.
Q3:How Can i calculate the Machine Capacity?
A3: Just send me the materials and Max thickness and Length .Engineer will tell us the capacity directly.
Q4:Can I customize the machine?
A4:Yes.We can design and manufacture according to your requirements.
Q5: How does your factory do regarding quality control?
A5: Quality is the priority. We always attach great importance to quality controlling from beginning to the end.


Company Profile


Maanshan Bamboo CNC Machinery Technology Co., Ltd.
Bambeocnc is a mordern enterprise ,No adjustable plate shears blade clearance ,manufacturing ,sales and service of CNC shearing machines ,CNC hydraulic return Guillotine shear ,CNC press brake ,cnc Electro-hydraulic press brake ,Full CNC V grooving machine ,Hydraulic Angle Notching machine and so on.
Our company has a group of knowledgeable and professional ,young team workers who are committed to cutting ,bending area development ,With three dimensional CAD,CAPP ,PDM .and other design software ,we can meet special order requirments of customers and provide an optimum plan for every customer.
Our company advocates"leading technology ,quality first ,honesty ,pragmatic and innovative"business philosophy .we had implemented ISO9001:2008 international quality system standards fully and manufactured our machine in strict accordance with user requirements .national standards and industry standards.We can guarantee the product quality and delivery by ensuring each process and checking every detail in the period.
