Лидер продаж Прямая продажа с завода Высококачественная стандартная покрасочная камера для

Лидер продаж Прямая продажа с завода Высококачественная стандартная покрасочная камера для

Категория: Spray Booths >>>
Поставщик: Zouping,Jinding,Coating,Equipment,Co.,Ltd.

Цена:4 000,00 $ - 4 200,00 $*

Количество:

Описание и отзывы

Трекер стоимости

Месяц	Минимальная цена	Макс. стоимость
Sep-16-2025	4760.61 $*	4998.23 $*
Aug-16-2025	4720.92 $*	4956.34 $*
Jul-16-2025	3960.13 $*	4158.11 $*
Jun-16-2025	4640.12 $*	4872.78 $*
May-16-2025	4040.60 $*	4242.78 $*
Apr-16-2025	4560.6 $*	4788.79 $*
Mar-16-2025	4520.91 $*	4746.0 $*
Feb-16-2025	4480.75 $*	4704.88 $*
Jan-16-2025	4440.82 $*	4662.71 $*

Характеристики

Product Description

Model	JD-A1
Production name	50mm EPS wallboard electric heating car spray booth
External dimensions	700053003200mm (L×W×H)(as your requirements)
Internal dimensions	690039002400mm (L×W×H)(as your requirements)
Composite plate	50mm EPS wallboard, density 10kg, tin thickness 0.4mm
Steel grating	Mechanism of pressure welding 3*5, both sides of the anti slide thickness 2.2mm
Climbing table	Size 1.60.7m, mechanism pressure welding 35 grille
The vertical leg	10cm international steel welding
Box	5*5 pipe welding, spray
Lighting system	LED lighting, 24 groups
The top beam	5*5 pipe welding
Two layer bending parts	0.6mm galvanized plate bending, spray
Filter cotton	High efficiency three-dimensional plastic filter cotton
Filter cotton box	Using 1mm thick galvanized sheet bending, welding
The door and the edge	Aluminium alloy
Fan	2×4KW YDW double-intake centrifugal fans, total air capacity: 25000m³/h.
Wire	4 square copper core
Heating system	8 groups of three electric heating tube infrared heat lamp, each 1kw.
Air duct	Air duct of galvanized plate mechanism,square, tin thickness 0.6mm
Other parts	A set
The total power	33kw

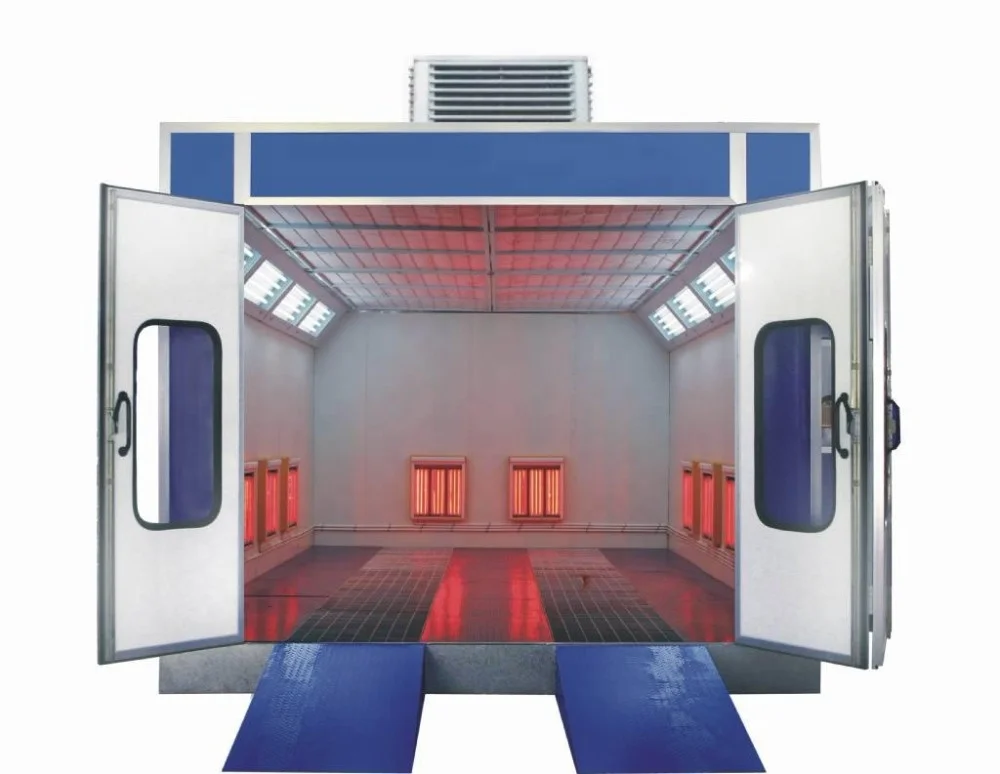

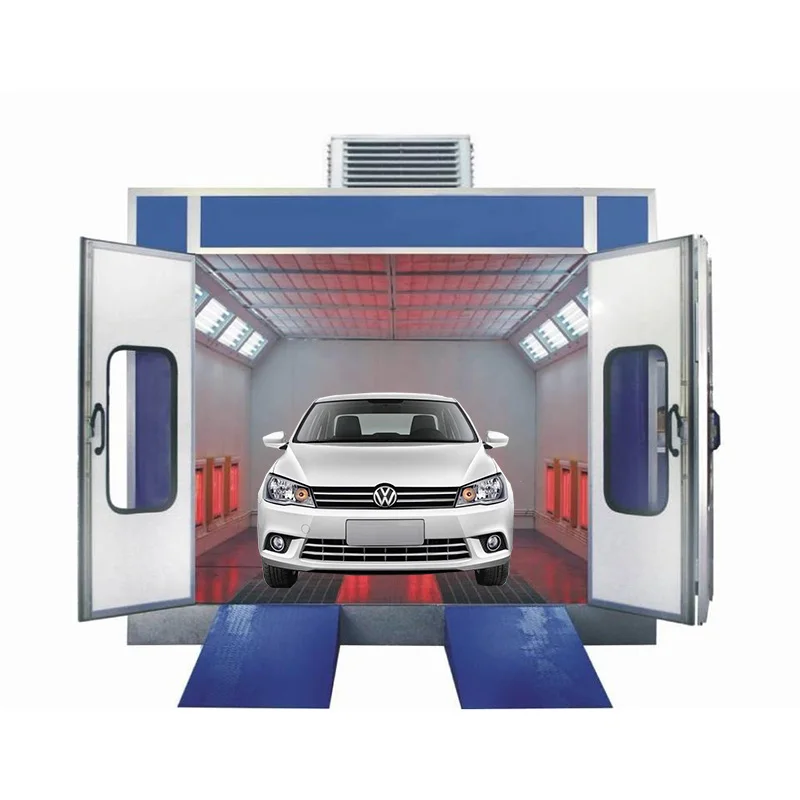

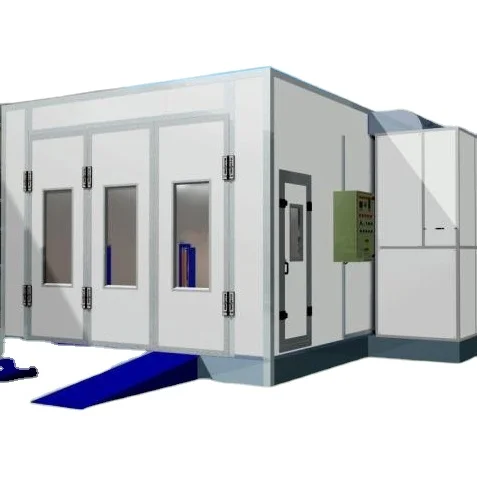

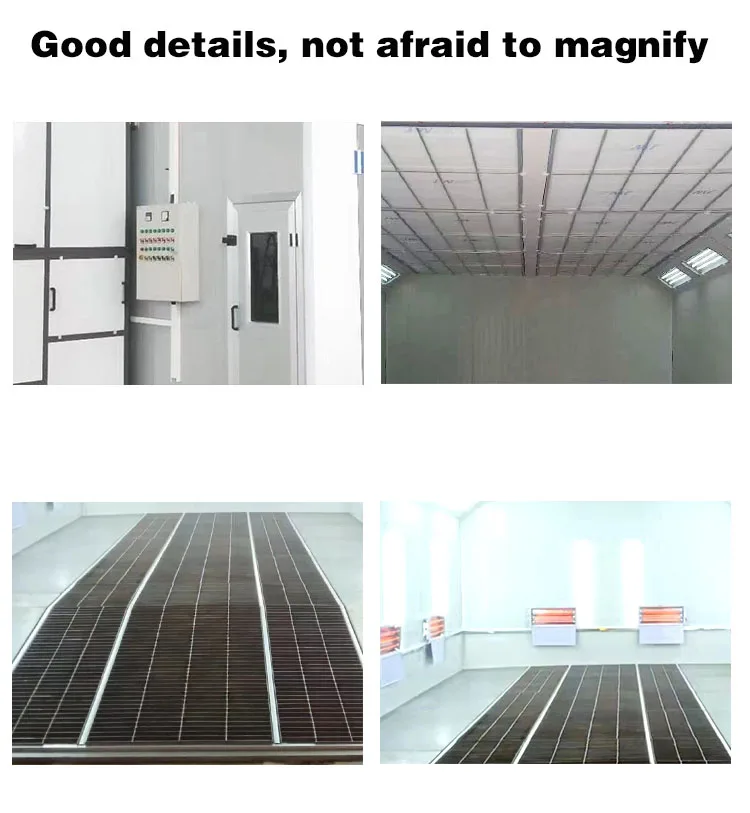

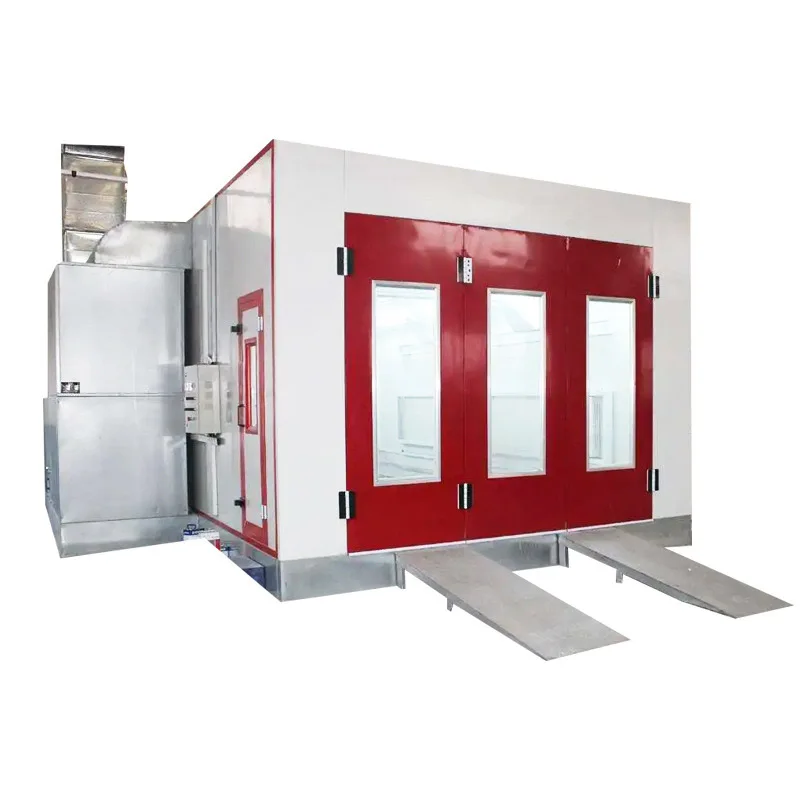

Detailed Images

Packing & Delivery

Packaging
Packaging Details	The normal package is sea package suitable for container loading. If export to european countries, it according to customers special request.

Packaging
Packaging Details	The normal package is sea package suitable for container loading. If export to european countries, it according to customers special request.

Certifications

Company Profile

Our Service

1. OEM ODM service, customized products avaiable.
2. 24 hours on line or phone, technical support
3. With detailed installation drawing and using manual, especially for new clients or complex spray booth or painting line, vivid CD or door to door service avaiable.
4. One year's guarantee, within this period, if any spare part broken in machine, our factory freely change a new one for you
5. Lifelong time freely provide technical support
