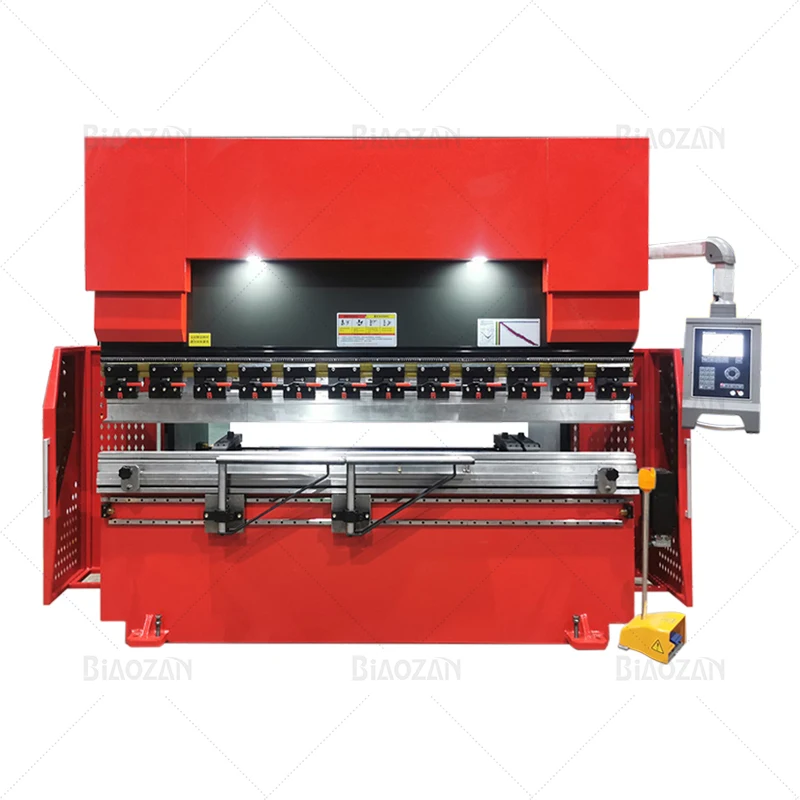

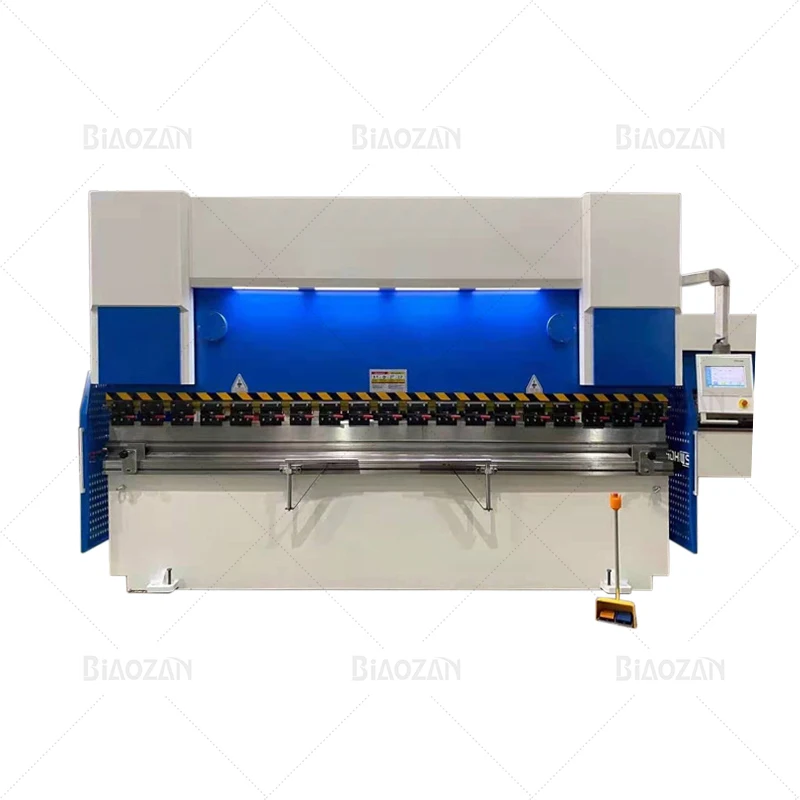

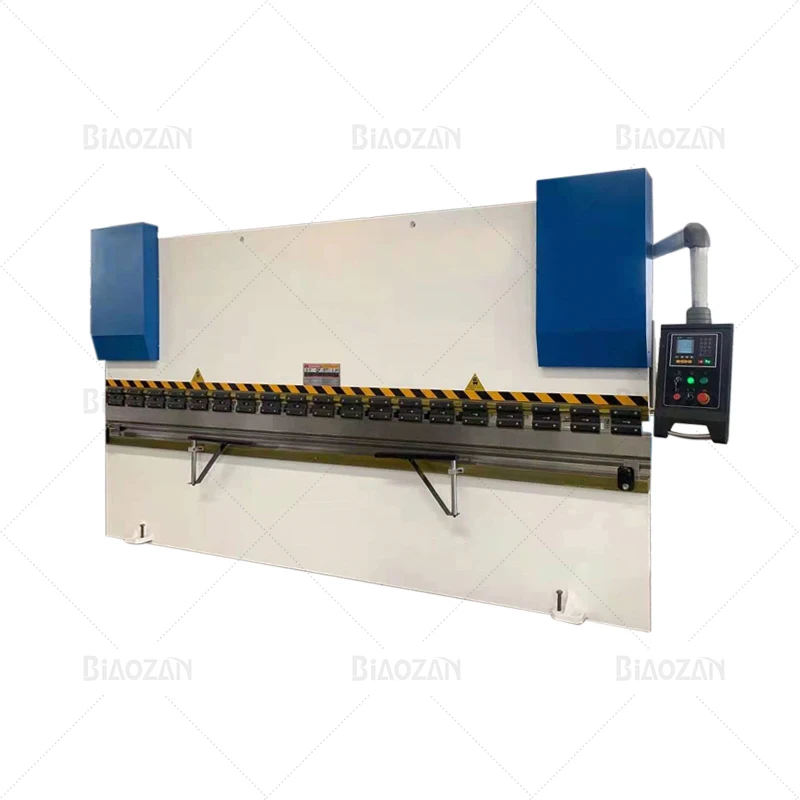

Высококачественный гидравлический складной станок листогибочный пресс для
- Категория: Metal Sheeting Processing Machines >>>
- Поставщик: Shanghai,Biaozan,Industrial,Co.,Ltd.
Поделиться:
Описание и отзывы
Трекер стоимости
| Месяц | Минимальная цена | Макс. стоимость |
|---|---|---|
| Aug-16-2025 | 9651.6 $* | 9844.15 $* |
| Jul-16-2025 | 7827.88 $* | 7984.84 $* |
| Jun-16-2025 | 9499.99 $* | 9689.17 $* |
| May-16-2025 | 9423.94 $* | 9611.54 $* |
| Apr-16-2025 | 7523.78 $* | 7673.49 $* |
| Mar-16-2025 | 9271.26 $* | 9456.71 $* |
| Feb-16-2025 | 9195.97 $* | 9379.93 $* |
| Jan-16-2025 | 9119.35 $* | 9301.49 $* |
Характеристики
Products Description
Type | Nominal Force | Worktable Length | Poles Distance | Throat Septh | Slider Travel | Max Open | Power | Dimension |
(KN) | (mm) | (mm) | (mm) | (mm) | (mm) | (KW) | L*W*H(mm) | |
30T/1600 | 300 | 1600 | 1280 | 200 | 80 | 285 | 3 | 1600*1000*1600 |
35T/2000 | 350 | 2000 | 1480 | 200 | 80 | 285 | 4 | 2000*1100*1800 |
40T/2200 | 400 | 2200 | 1850 | 230 | 100 | 320 | 5.5 | 2200*1200*1910 |
40T/2500 | 400 | 2500 | 1850 | 230 | 100 | 320 | 5.5 | 2500*1200*1910 |
50T/2500 | 500 | 2500 | 1850 | 230 | 100 | 320 | 5.5 | 2500*1200*2000 |
63T/2500 | 630 | 2500 | 1900 | 250 | 100 | 320 | 5.5 | 2500*1300*2210 |
63T/2500 | 630 | 3200 | 2500 | 250 | 100 | 320 | 5.5 | 3200*1300*2210 |
80T/2500 | 800 | 2500 | 1900 | 300 | 100 | 320 | 7.5 | 2500*1400*2300 |
80T/3200 | 800 | 3200 | 2500 | 320 | 100 | 350 | 7.5 | 3200*1500*2300 |
100T/3200 | 1000 | 2500 | 1900 | 320 | 100 | 350 | 7.5 | 4000*1500*2400 |
100T/4000 | 1000 | 3200 | 2500 | 320 | 120 | 370 | 7.5 | 2500*1600*2400 |
100T/3200 | 1000 | 4000 | 3000 | 320 | 120 | 370 | 7.5 | 3200*1600*2600 |
125T/3200 | 1250 | 3200 | 2500 | 320 | 120 | 370 | 7.5 | 4000*1600*2700 |
125T/4000 | 1250 | 4000 | 3000 | 320 | 120 | 370 | 7.5 | 3200*1600*2600 |
160T/3200 | 1600 | 3200 | 2500 | 320 | 200 | 460 | 11 | 4000*1600*2700 |
160T/4000 | 1600 | 4000 | 3000 | 320 | 200 | 460 | 11 | 3200*1600*2600 |
160T/5000 | 1600 | 5000 | 4000 | 320 | 200 | 460 | 11 | 4000*1600*2700 |
160T/6000 | 1600 | 6000 | 4940 | 320 | 200 | 460 | 11 | 3200*1700*2700 |
200T/3200 | 2000 | 3200 | 2500 | 320 | 200 | 460 | 11 | 4000*1700*2800 |
200T/4000 | 2000 | 4000 | 3000 | 320 | 200 | 460 | 11 | 5000*1900*3100 |
200T/5000 | 2000 | 5000 | 4000 | 320 | 200 | 460 | 11 | 6000*1900*3200 |
200T/6000 | 2000 | 6000 | 5000 | 320 | 200 | 460 | 11 | 3200*1950*2800 |
250T/3200 | 2500 | 3200 | 2500 | 400 | 250 | 590 | 18.5 | 4000*1950*2800 |
250T/4000 | 2500 | 4000 | 3000 | 400 | 250 | 590 | 18.5 | 5000*1950*3000 |
250T/5000 | 2500 | 5000 | 4000 | 400 | 250 | 590 | 18.5 | 6000*1950*3300 |
250T/6000 | 2500 | 6000 | 5000 | 400 | 250 | 590 | 18.5 | 3200*2000*3200 |
300T/3200 | 3000 | 3200 | 2500 | 400 | 250 | 590 | 22 | 4000*2000*3400 |
300T/4000 | 3000 | 4000 | 4000 | 400 | 250 | 590 | 22 | 5000*2000*3400 |
300T/5000 | 3000 | 5000 | 5000 | 400 | 250 | 590 | 22 | 6000*2000*3400 |
300T/6000 | 3000 | 6000 | 2530 | 400 | 250 | 590 | 22 | 3200*2000*3450 |
400T/4000 | 4000 | 4000 | 3000 | 400 | 250 | 590 | 30 | 4000*2000*3450 |
400T/5000 | 4000 | 5000 | 4000 | 400 | 250 | 590 | 30 | 5000*2000*3450 |
400T/6000 | 4000 | 6000 | 5000 | 400 | 250 | 590 | 30 | 6000*2000*3450 |
500T/5000 | 5000 | 5000 | 4000 | 400 | 250 | 590 | 45 | 5050*3500*3700 |
500T/6000 | 5000 | 6000 | 5000 | 400 | 320 | 590 | 45 | 6050*3500*3700 |
600T/4000 | 6000 | 4000 | 3000 | 400 | 320 | 590 | 55 | 4050*4500*3700 |
600T/6000 | 6000 | 6000 | 5000 | 400 | 320 | 590 | 55 | 6050*4500*3700 |
800T/6000 | 8000 | 6000 | 5000 | 400 | 320 | 590 | 55 | 6300*4500*6000 |
Details Images
1. The frame adopts steel structural parts, the left and right vertical plates, the workbench and the pressure plate are welded into a whole structure. After welding, the internal stress is eliminated by tempering, so the overall rigidity is high and the stability is high.
2. The main components such as the fuselage and the slider are analyzed by ANSYS finite element analysis software to ensure the stability of the machine tool.
3. Hydraulic upper transmission, stable and firm.
4. The mechanical block and the torsion shaft are synchronized with high precision.
5. Taiwan Shangyin ball screw and linear guide can have an accuracy of 0.02mm. The backgauge distance and slider stroke are controlled by the CNC system, which is convenient and quick.
6. Jining Taifeng cylinders undergo forging, quenching and tempering, fine grinding, hard chrome plating and other processes, and are equipped with foreign seals to overcome oil leakage.
7. The hydraulic system adopts the German Bosch Rexroth oil circuit integrated hydraulic system, which reduces pipeline installation and has a beautiful and simple appearance.
8. The hydraulic components are selected from Germany to ensure the stability of the machine tool operation.
9. This machine adopts German Siemens three-phase system power supply (380V) for power supply, the control circuit voltage (220V) is provided by the control transformer Schneider, and the DC power supply required for the solenoid valve of the implementation circuit.
2. The main components such as the fuselage and the slider are analyzed by ANSYS finite element analysis software to ensure the stability of the machine tool.
3. Hydraulic upper transmission, stable and firm.
4. The mechanical block and the torsion shaft are synchronized with high precision.
5. Taiwan Shangyin ball screw and linear guide can have an accuracy of 0.02mm. The backgauge distance and slider stroke are controlled by the CNC system, which is convenient and quick.
6. Jining Taifeng cylinders undergo forging, quenching and tempering, fine grinding, hard chrome plating and other processes, and are equipped with foreign seals to overcome oil leakage.
7. The hydraulic system adopts the German Bosch Rexroth oil circuit integrated hydraulic system, which reduces pipeline installation and has a beautiful and simple appearance.
8. The hydraulic components are selected from Germany to ensure the stability of the machine tool operation.
9. This machine adopts German Siemens three-phase system power supply (380V) for power supply, the control circuit voltage (220V) is provided by the control transformer Schneider, and the DC power supply required for the solenoid valve of the implementation circuit.
