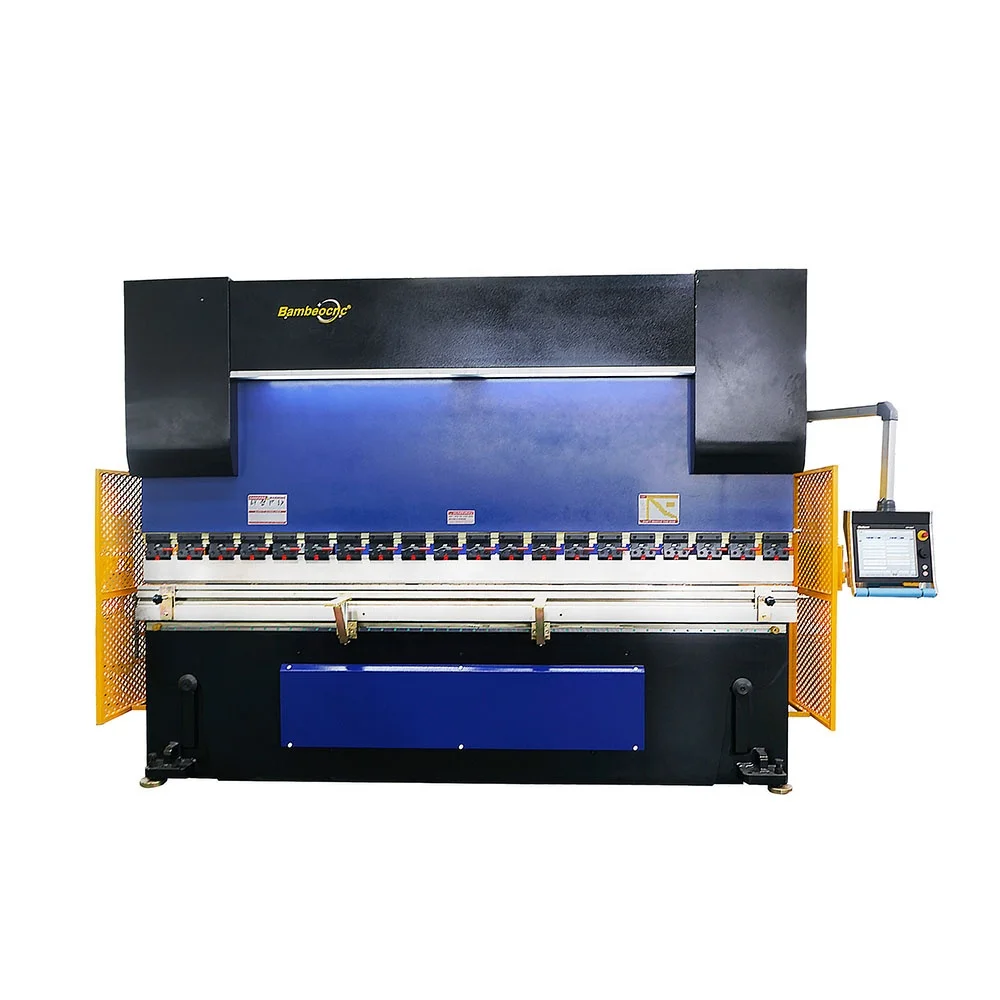

80Ton 3200 гидравлический пресс тормоз металла гибочная машина с
- Категория: Metal Sheeting Processing Machines >>>
- Поставщик: Maanshan,Bamboo,CNC,Machinery,Technology,Co.,Ltd.
Поделиться:
Описание и отзывы
Трекер стоимости
| Месяц | Минимальная цена | Макс. стоимость |
|---|---|---|
| Aug-19-2025 | 660767.84 $* | 673982.46 $* |
| Jul-19-2025 | 535898.61 $* | 546616.32 $* |
| Jun-19-2025 | 650361.59 $* | 663368.61 $* |
| May-19-2025 | 645158.96 $* | 658061.76 $* |
| Apr-19-2025 | 515086.56 $* | 525388.34 $* |
| Mar-19-2025 | 634753.84 $* | 647448.53 $* |
| Feb-19-2025 | 629550.42 $* | 642141.6 $* |
| Jan-19-2025 | 624347.45 $* | 636834.42 $* |
Характеристики
Main Features
1.CNC Series machines redesigned based on users preferences to become a unique machine with its individual electronic and mechanical features.
2.CNC Series are among the highest rated machines which will help you increase your productivity and keep costs at minimum level
3.with its user friendly CNC controller and low cost hydraulic maintenance.
4. New CNC is exactly what you need for your production where complicated, sensitive, single or multiple bends on high speed are paramount.
5.High quality and repetitive bending is obtained by using synchronized cylinders and valves.
6.Automatic utilisation of all axes on startup.
7.Rigid upper beam runs on 8-point bearings with bending precision of 0,01 mm.
8.Well-known top and bottom tool brands are long lasting hardened and provide precise bending.
9. All Bamboo machines are designed using SOLID WORKS 3D programming and made with enhanced ST44-1 quality steel using the latest Technology.
Product Type: | CNC Synchronized Hydrualic Press Brake |
Bending Material: | Metal/ Stainless Steel /Carbon Steel /Aluminum |
Blade Material | 9 Crsi/6CrW2Si(Optional) |
Backgauge range | 20-1000mm(Optional) |
Safety Standard | Europe CE/South America NR12 |
Control Axes: | Y1 + Y2 + X + W-axis Crowing( Standard) |
Controller | Delem DA52 from Holland (Up to 4 Axis) |
After-sales Service | Engineers available to service machinery overseas |
Technical Parameter
Delem DA-52s
• Quick, one page programming
• Hotkey navigation
• 7" widescreen color TFT
• Up to 4 axes (Y1, Y2, and 2 auxiliary axes)
• Crowning control
• Tool/material/product library
• USB, peripheral interfacing
• Advanced Y-axis control algorithms for closed
• loop as well as open loop valves
• Panel based controller with optional housing
Delem DA-56S
• 2D graphical programing
• 10.4" LCD TFT colour display
• Bend sequence determination
• Developed length calculation
•Crowning control, USB peripheral interfacing
•Advanced Y-axis control algorithms for closed -loop as well as open-loop valves.

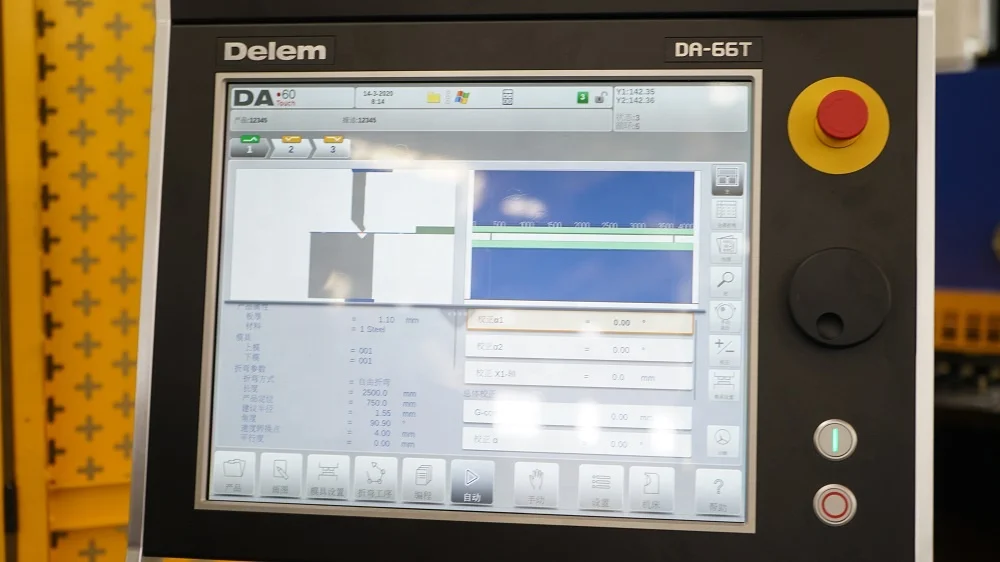

Delem DA-66T
• 2D graphical touch screen programing mode
• 3D visualisation in simulation and production
• 17" high resolution colour TFT, Full Windows application suite
• Delem Modusys compatibility (module scalability and adaptivity)
• USB, peripheral interfacing
• User specific application support within the controllers multitasking environment
•Sensor bending &correction interface
Machine Block
The frame steels are German origin,ultrasonic controlled & ST-44 material. Machine welding is made by welding aparatus & welding robots. After the welding,we make stress relief process by vibration system. After the stress relief process machine frame goes to CNC 2 axes machining centers for accuracy,. All reference surfaces and connection holes are machined. By all this processes machine frame sensivity is protected for a long life time.
Table hydraulic crowning system
This system enables the user to offset deformations of the beam while bending.Thus, the angle is keeping constant along the entire plate length.

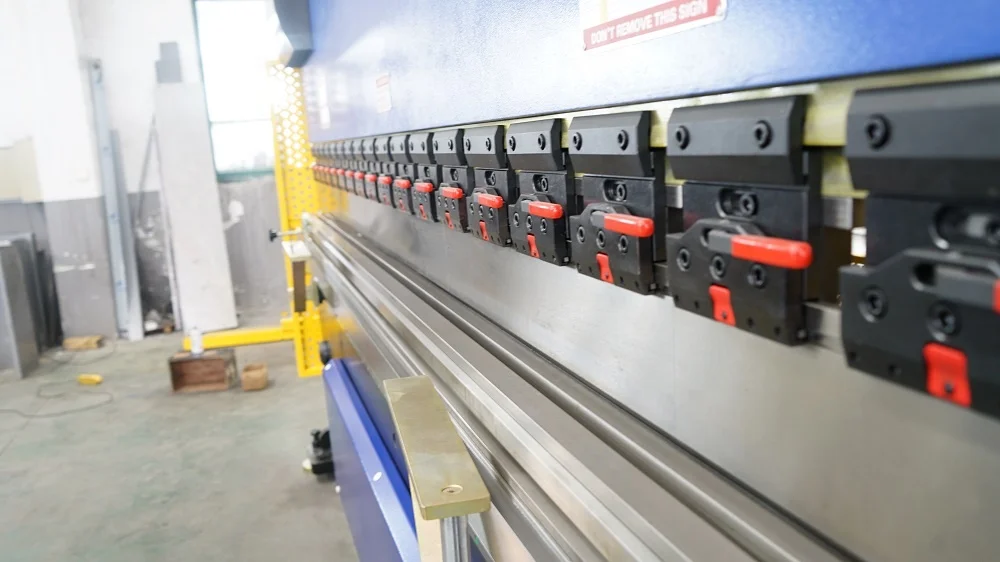

Tools clamping device
The speed grip system reduces the time spent changing tools by 8.5 times compared with traditional systems.
--Up punching dies will be cut into section as the requirement as below:
--25mm 30mm 40mm 45mm 50mm 170mm 100mm right 100mm left.
--The equipped standard Dies, special non-standard mold is available under client's requirement according to real workpiece situation
Simens motor
Using Siemens motor guarantees the machine service life, and reduce the noise when woking
Bosch Rexroth Hydraulic System
--Adopt integrated hydraulic control system, more reliable and easy for maintenance.
--Reduced noise: the particular installation choices allow to obtain especially moderate noise levels both on machines of average capacity
--Overload overflow protection is outfitted to hydraulic system,which can assure no leakage,and the oil level can be read or seen directly.

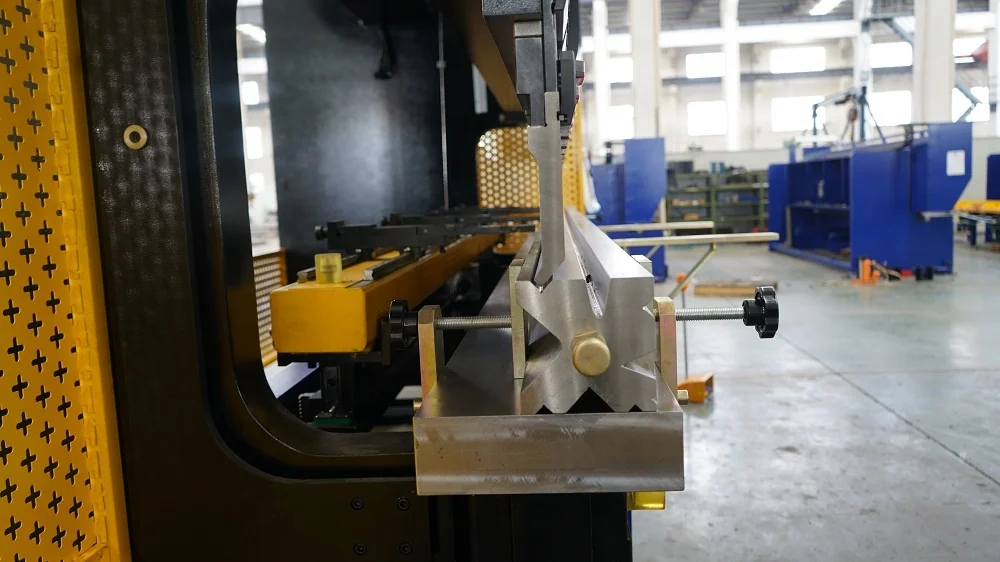

Ball Screw+Linear Guide of Hiwin From TaiWan
--High Precision Backgauge is equipped with fine ball screw and guide linear
--Backgauge adopts horizontal installation shell structure with high stability,singe shell double guide rail, high precision,X-axixs drive, automatioc CNC sytem
Electric of Schneider From France
Stable France Schnerder Electrics Taiwan DELTA Frequency Converter to penvent X-Axis Swinging When Positioning
Foot Switch of Karcon from South Korea
Foot switch, easy to operate
The brand Karcon, enhacing the service life and operational sensitivity.
Optional
BAMBOO CNC MACHINERY TECHNOLOGY CO., LTD
BAMBOO is a leading manufacturer and global supplier of sheet metal working machinery specializing in the production of CNC press brake,Hydrualic Shearing Machine ,Hydraulic Press .Power Press ,Iron worker and Laser cutting macine.etc
BAMBOO With 10 years of experience in a 2000 m2 modern production facility by a qualified team of 220 people adopting efficiency and quality as primary principles besides leading Sheet Metal Processing Machines sector via its powerful R&D structure.
Production lin of CNC press brake
.
Q1:How Can i calculate the Machine Capacity?
A: Just send me the Max thickness and Length .Engineer will tell us the capacity directly
Q2:How about the machine warranty?Is the whole machine?
A:We canoffer 2 years warranty for the following parts :
--Hydraulic System with pump and Valve
--Hydraulic Cylinders
--Electric units
--Hydraulic Cylinders
--Gasket Ring( We will send you extra with the machine also )
--Tube Connector
--Control Button
--Limit Switch
--Controller
During the warranty period we provide any accessories for free
Q3: What is your MOQ?
A:To let more customer know our quality, we accepty trial order service,So the MOQ is 1 set.
Q4: what is your delivery time?
A:We supply prompt delivery time:25-30days.
Q5:What kind of payment does your company support?
A:T/T, L/C , Cash, Western Union are all accepted
Bamboo CNC Press Brake before Loading
Bamboo CNC Press Brake Loading in 40HQ Container
