Product description
Product introduction

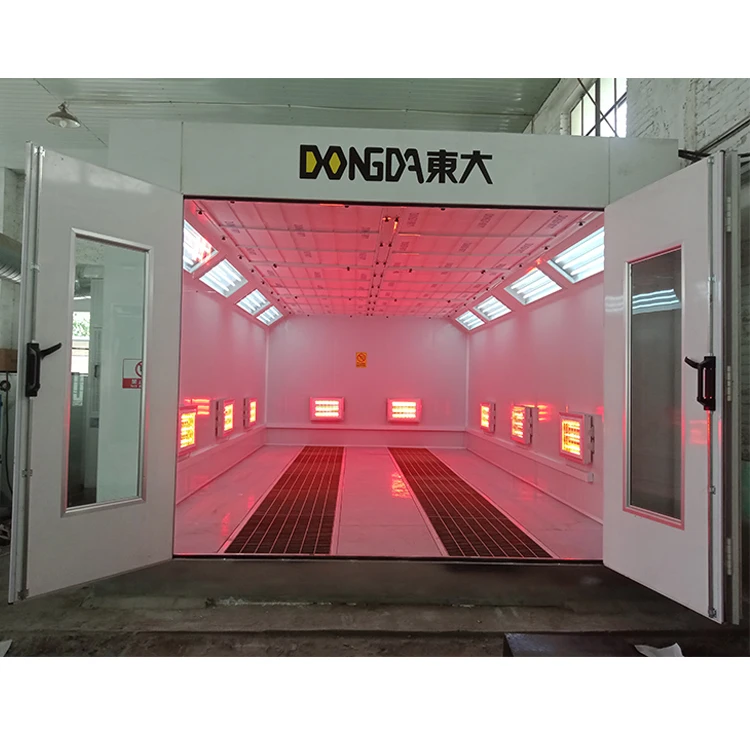

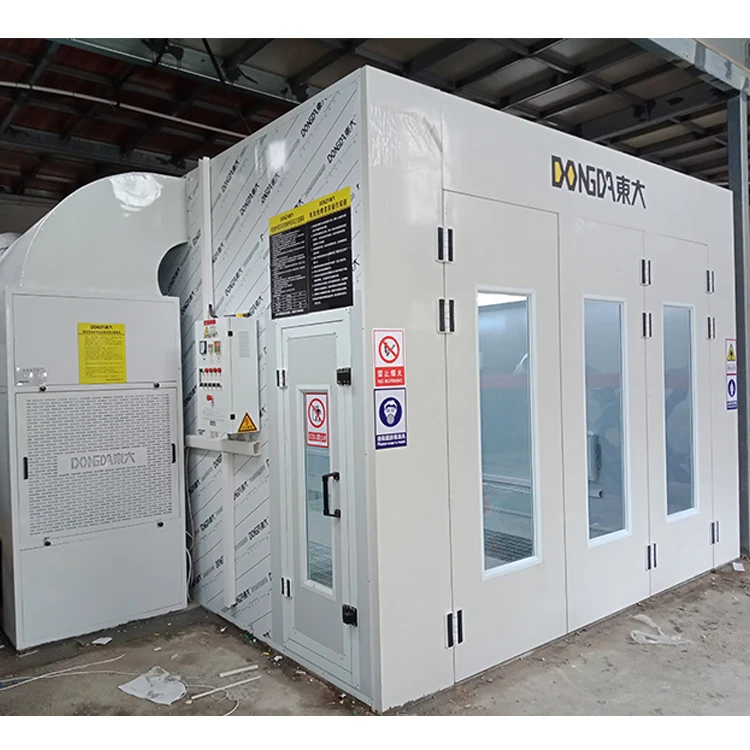

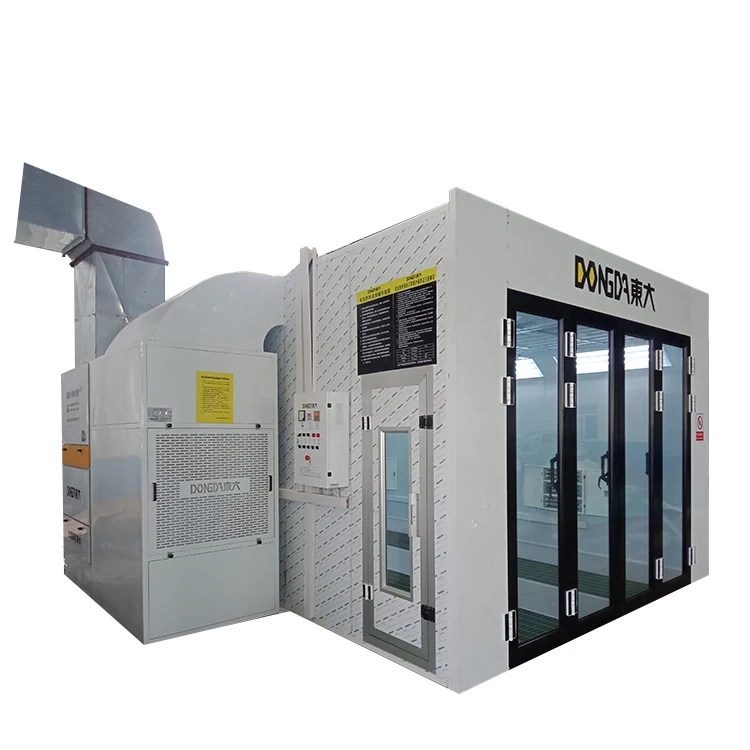

Vehicles spray booth provides a closed environment for vehicles painting with pres-sure controlling. As we know that dust free,appropriate temperature and wind speedare necessary for painting.
Then this spray booth can provide a relatively ideal painting environment; this can becontrolled by several groups of ventilation, heating system and filtering system etc.Heated air produced by the burner can help the spray booth to hold a suitable tem-perature, air flow and illumination.
OUR SPRAY BOOTH CAN CUSTOMED AS YOUR REQUIREMENT
OUR SPRAY BOOTH CAN CUSTOMED AS YOUR REQUIREMENT
MODEL | DOWNDRAFT DD-1000 |
| Inside Size |
6900×3900×2500mm(L×W×H) | Outside Size | 7000×5200×3300mm(L×W×H) | |

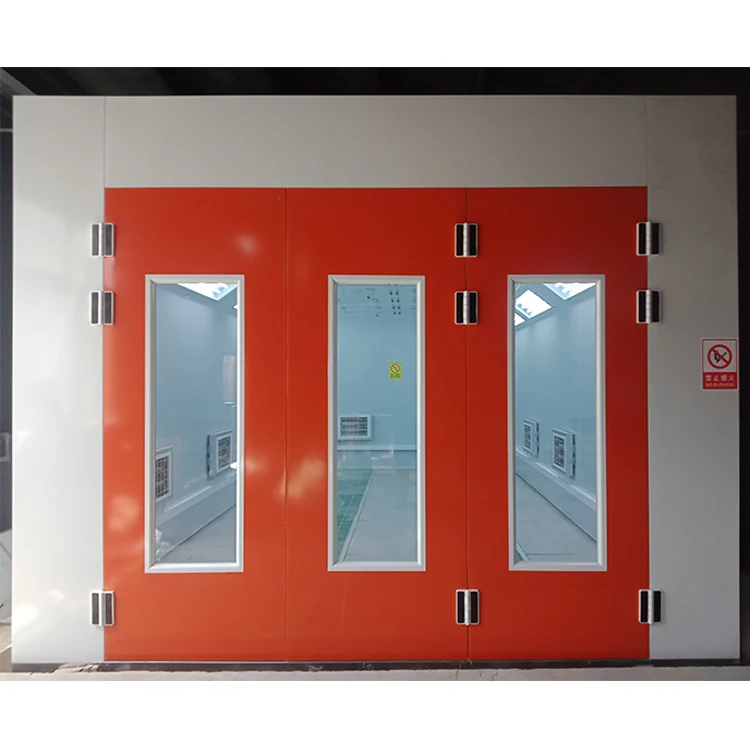

Entrance Door | 3-leaf Sheet metal door,size is 3,000x2,480mm(WxH) Square self-locking aluminum alloy viewing window, luxury door lock, square tube guide posts, aluminum alloy hinges,Sealed with special sealing strips. | ||
Personnel Door | 1 leaf Aluminum alloy edge ,size is 700x1800mm(wxh),aluminum apply edging,two sets pressure locks and glass observation window. | ||
Cabin | 1,wall panels with self-sealing construction, the thickness is 50mm,and the inside and outside δ=0.426mm color steel plate; | ||

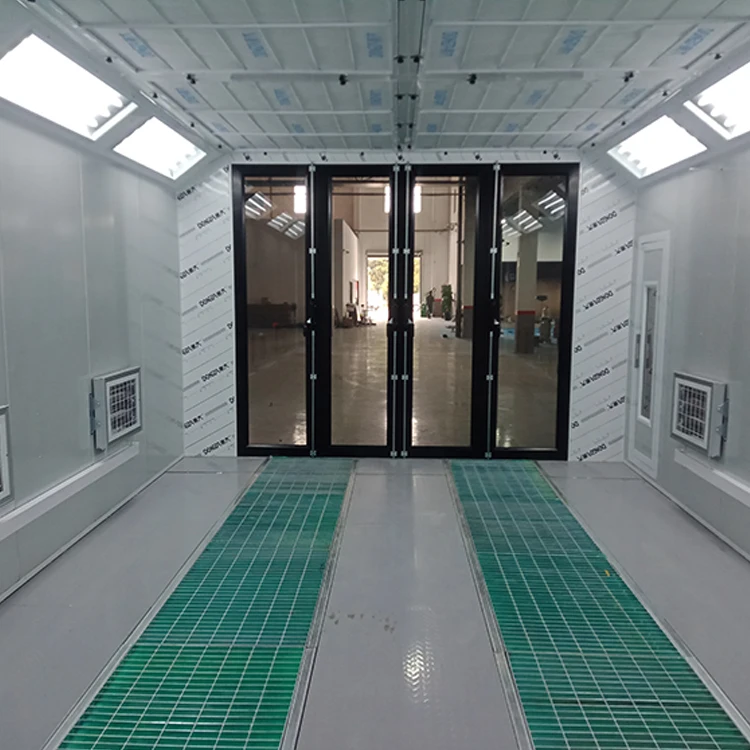

Basement | steel structure base;two rows of grilles made by 30x4 belt steel,three rows of diamond plates,hight is 300mm,two ramps 280×1800mm(H×L) | ||
Intake and Exhaust | 1,the fan cabinet is made of sprayed profiles and steel with protective film | ||
Duct work | galvanized steel plate and flange;2 straight tubes, 1 elbow.Φ600mm | ||
Heating System | 8 set of far-infrared heater,8*3w=24w | ||
Filtering System | Pre-Filter Effectively capture dust particles larger than 10um | ||
lighting System | Celling lights:24pcsx24w LED lamp ≥800Lux | ||

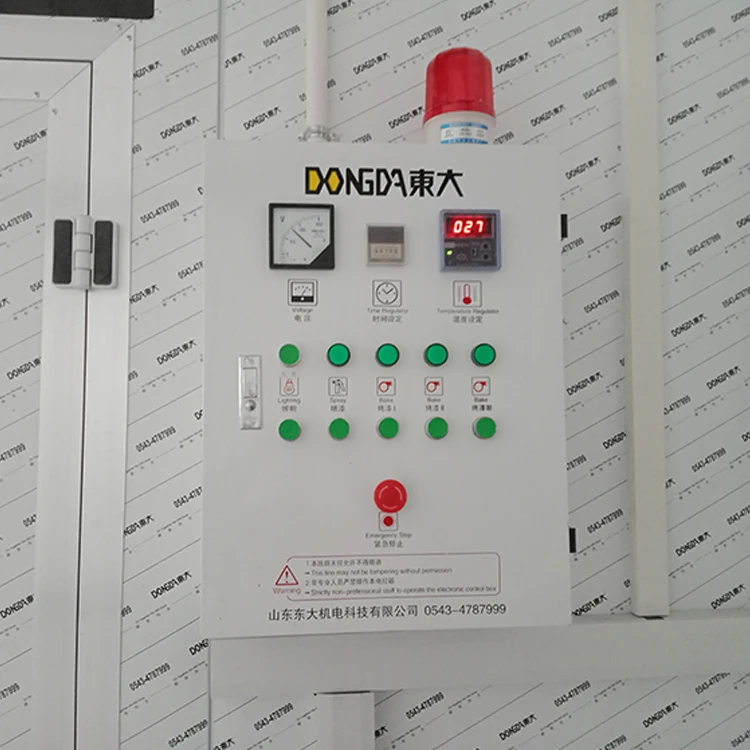

| Electric control box with: temperature setting, time setting, spray paint, paint, lighting, power supply, emergency stop switch, etc. | ||
No-load airflow | ≥0.3m/s | ||
Power supply | 380v/3phase/50HZ | ||
Maximum Baking | 55 | ||
Total power | 31KW | ||
Color | BOOTH OPTIONS,sea blue, blush, orange, white gray, etc. | ||
Ventilation of the spray booth:
Spray booth has several ventilation systems which provide better painting conditions. Allthe filter systems and air exhaust systems undemeath create a efiently vertical air flow;and this air flow distribute inside of the booth evenly; then this air flow make overspray re-moving away from the vehicle immediately and completely.
Air recirculation on baking model:
100% of the air produced by the fan is transported into LONGXIANG spray booth duringthe baking model; and only 15%-20% is expelled outside which means the balance85%-80% is recovered and flld up with fresh air by means of the changeover damper.
The inner temperature of the spray booth raises rapidly; Then the heating system willpower off at once when it reaches at baking temperature, this will save more energy.
Lighting
The lighting system is provided by four*36W light fixed in the ceiling panels and side walls.They are sealed with 5mm tempered safety glass. LONGXIANG spray booth lighting system is able to supply enough lighting with lower energy consume safely.
Filters
The fitering system is made up by highefficiency filters. The filers hold higher dust reten-tion capacity and lower resistance to the air passage. The long life designing reduces fre-quency of replacement, which is contributing to reductions in running costs.
Warranty
Our equipments except quick-wear-parts are guaranteed for 12 months from the date of re-ceipt, and the flters and lamps are quick-wear-parts.
Shandong Dongda Electromechanical Technology Co., Ltd. specializes in R&D,design, manufacture, installation of automotive spray booths, furniture spray booths,curtain spray booths, purifiers and other auto maintenance and environmental protec-tion equipment. It is a specialized and modern machinery manufacturing company. Thecompany was founded in 1999 and was transformed from Zouping County YuandaPaint Equipment Factory. It is located in Zouping, one of the top 100 counties in china.
To better ensure the safety of your goods, professional, environmentally friendly, convenient and efficient packaging services will be provided.
FAQ
1.What's your advantage?
A: Honest business with competitive price and professional service on export process.
2. How I believe you?
A : We consider honest as the life of our company, we can tell you the contact information of our some other clients for you to check our credit. Besides, there is trade assurance from Alibaba, your order and money will be well guaranteed.
3.Can you give warranty of your products?
A: Yes, we extend a 100% satisfaction guarantee on all items. Please feel free to feedback immediately if you are not pleased with our quality or service.
4.Where are you? Can I visit you?
A: Sure,welcome to you visit our factory at any time.
5.How about the delivery time?
A: Within 15-35 days after we confirm you requirement.
6.what kind of payment does your company support?
A: T/T, 100% L/C at sight, Cash, Western Union are all accepted if you have other payment,please contact me.
