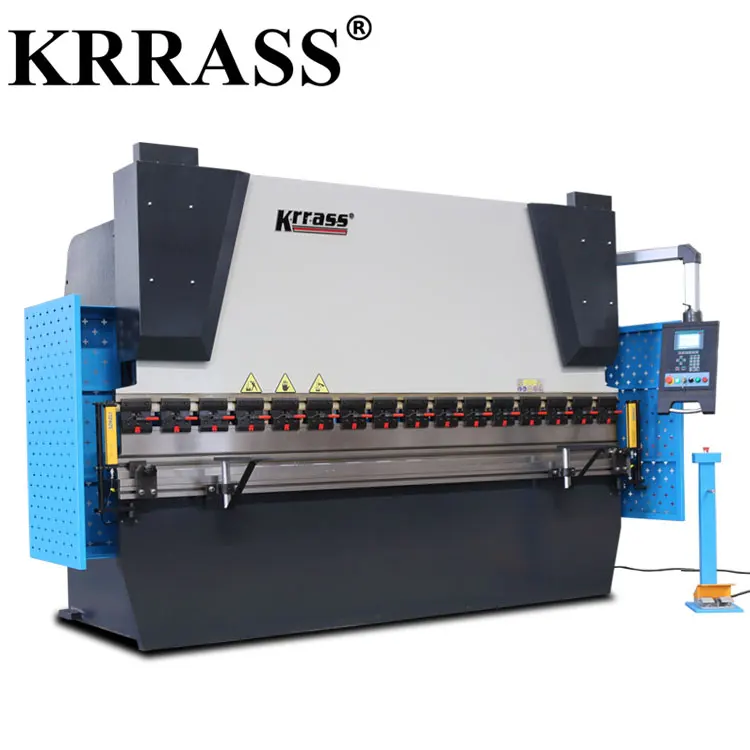

KRRASS 2 axis CNC листогибочный пресс PBA-100Tx3200 E200P E300 NC системы управления ЧПУ машина для гибки

Описание и отзывы

Трекер стоимости

Характеристики





1. General Features

• Overall welding the front workbench vertical plates and machine frame ensures there are no seam between vertical plates and bilateral wall plates.

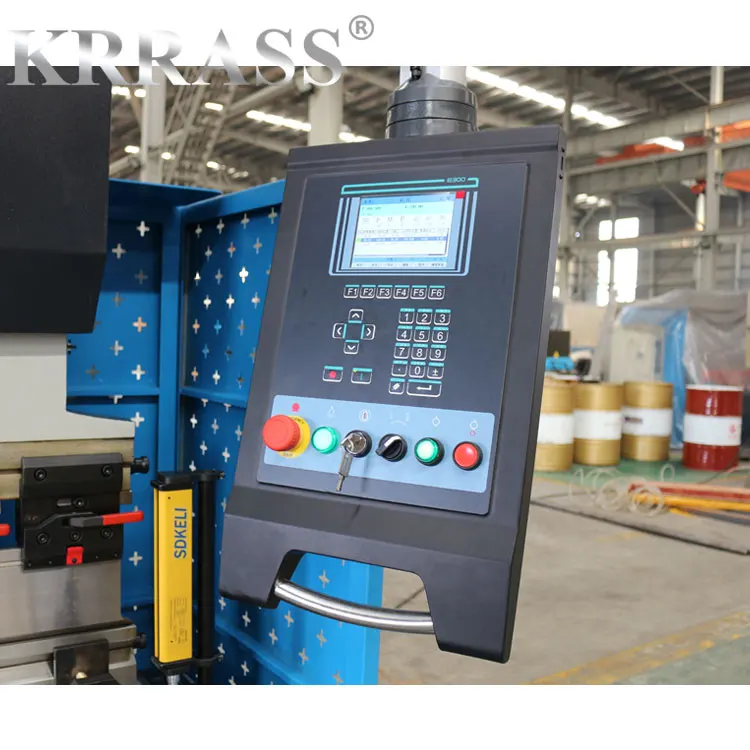

• Adopt Estun E300 controller cantilever referring to man-machine engineering design, with simple NC operation surface, improving the operational accuracy and comfortability.


• Left and right safety fences are used to protect the worker’s safety.





























































































































  Series No.	Name	Unit	100T/3200
  1	Bending Pressure	kn	1000
  2	Bending length(A)	mm	3200
  3	Column Distance (B)	mm	2600
  4	Throat Depth(D)	mm	320
  5	Slider Stroke(C)	mm	150
  6	Max Opening Height(E)	mm	400
  7	Y-Axis Downward Speed	mm/sec	80
  8	Y-axis Return Stroke Speed	mm/sec	70
  9	Bending angle Precision	(')	0.5
  10	X-Axis Max Distance	mm	500
  11	Workpiece Linearity	mm/m	0.5
  12	Backgauge Precision	mm/m	0.05
  14	Sliding Front Supporting Arms	pcs	2
  15	Back stopper	pcs	3
  16	Main Motor Power	kw	7.5
  17	CNC Controller	-	E300
  18	Length* Width* Height	( LXWXH)mm	3200*1600*2600
  19	Weight	kg	6800
  20	Work Video		https://youtu.be/DVgS-zAzK6Y






2. Standard Configuration



1. Standard Equipment:

• Estun E300 double-servo controller


• Controller controls and adjusts Yaxis and X axis


• Servo drive and control positioning of X-axis and Y-axis

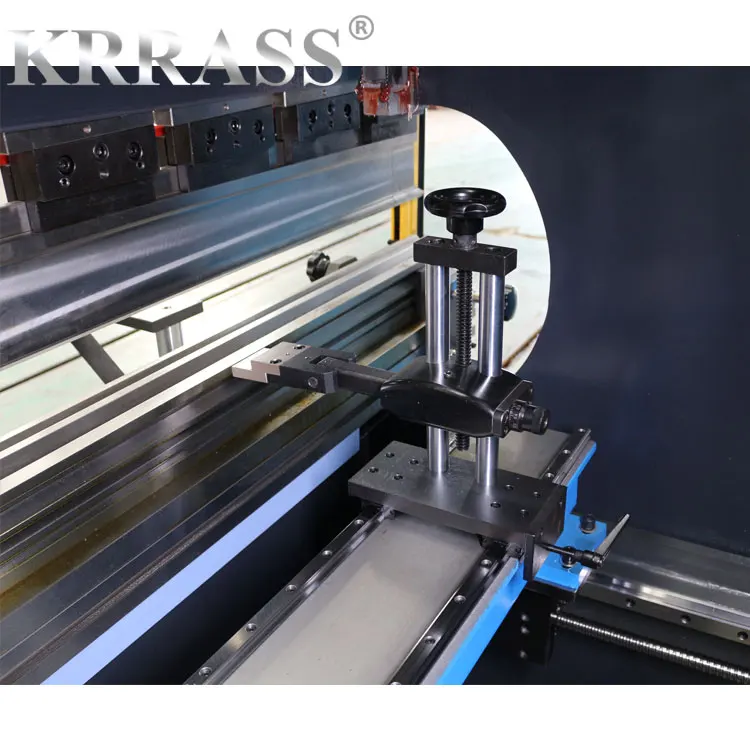

• Use HIWIN ball screw and linear guide rail, accuracy 0.05mm

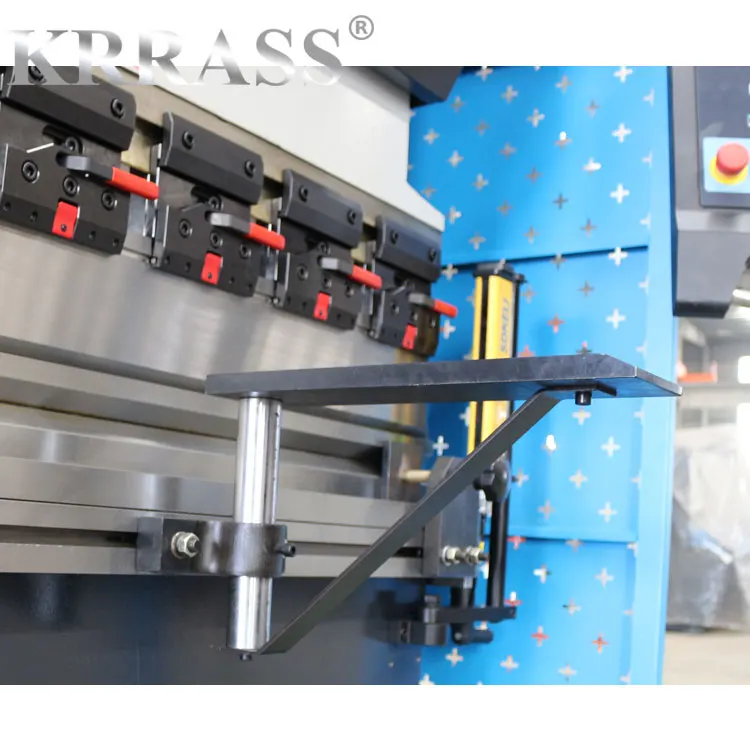

• Front material supporter

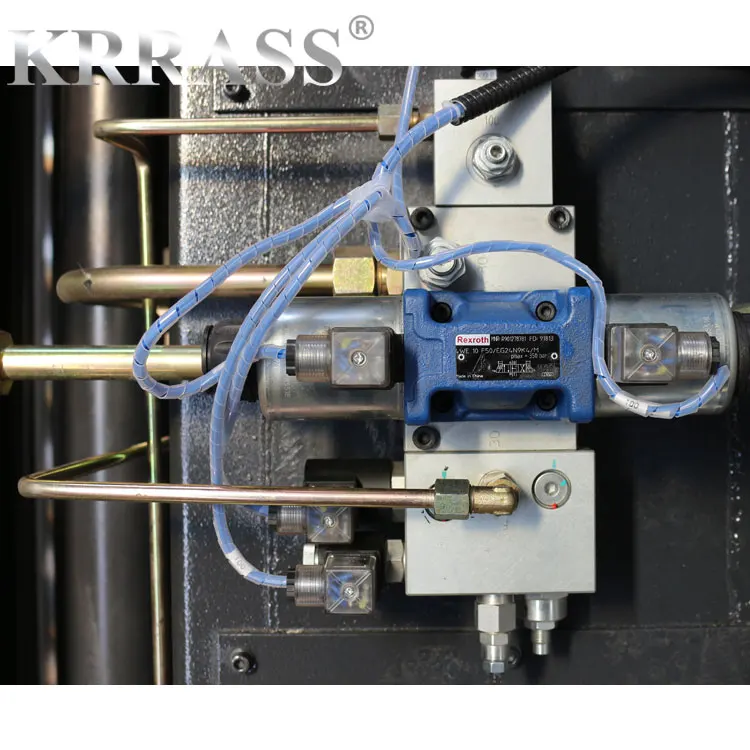

• Germany Bosch Rexroth hydraulic valve block


• Germany EMB oil tube connector


• Germany Siemens main motor


• France Schneider electrics


• Hydraulic & electrical overload protection

2. Safety Equipment:

     1.EN 12622:2009 + A1:2013          2.EN ISO 12100:2010      3.EN 60204-1:2006+A1:2009

• Front finger Protection(Safety light curtain)


• South Korea Kacon Foot Switch(Level 4 of safety)

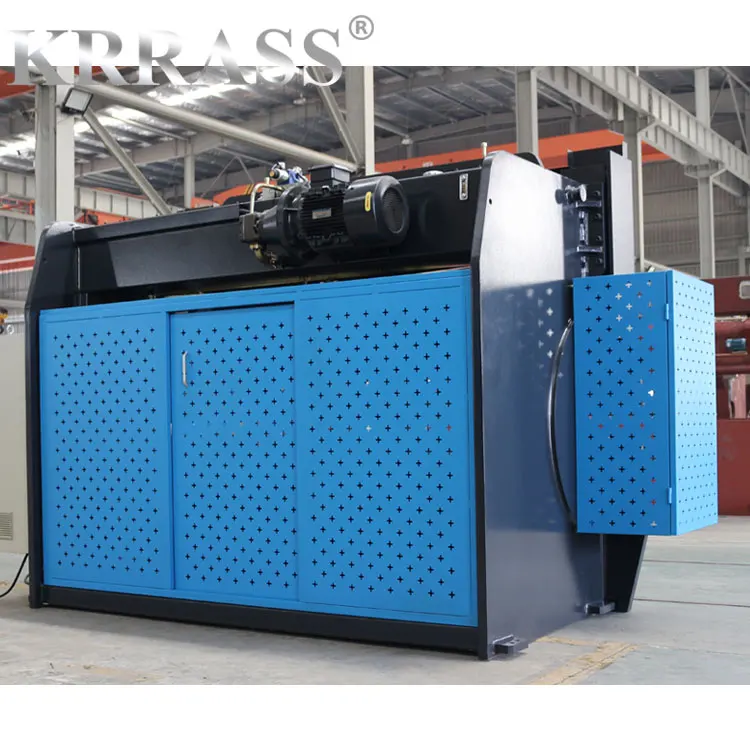

• Back metal safe fence with CE standards


• Safety relay with Monitor the pedal switch and safety protection
