Product Overview

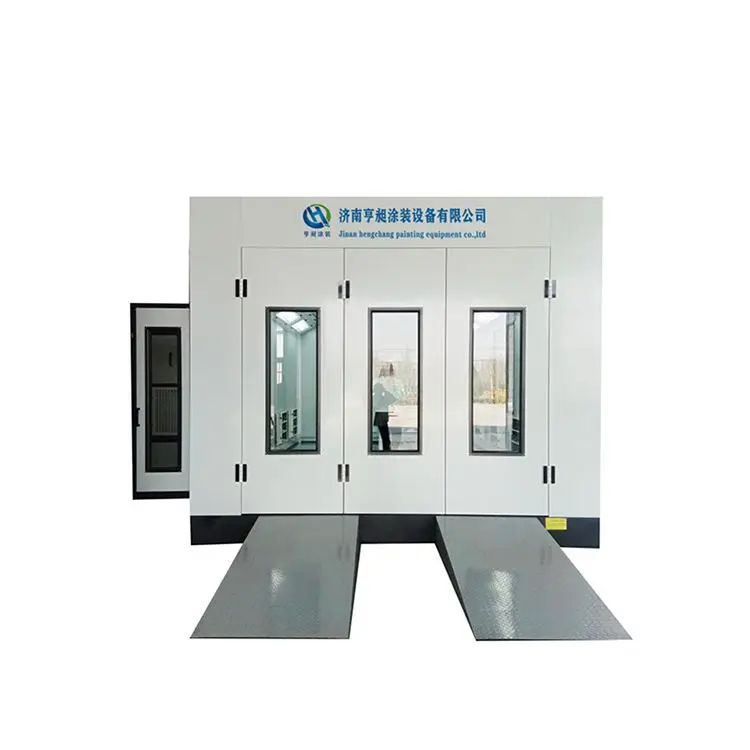

Car Spray Booth
The car spray room is generally used for spraying and baking car paint
Main feature:
1.Fast pre-processing, better processing effect
2.The working environment is good. Spray booths are equipped with filter devices
3.High working efficiency and good spraying effect
4.The safety factor is high. The car spray booth is equipped with a constant temperature controller and a safety and explosion-proof system
PRODUCT SPECIFICATIONS
External dimensions | 7000×5350×3400mm(L×W×H) | |||
Inner dimension | 6900×3900×2650mm(L×W×H) | |||
Import and export gate | Three doors, 3000x2600 mm(W×H), sheet metal doors | |||
Work door | 650*2000mm(W*H), with pressure lock | |||
Main system | ||||
Room body system | Wall panel | -50mm socket type EPS flame-retardant insulation board, 0.45mm color steel plate | ||
-High quality galvanized top plate | ||||
Ground platform | -Galvanized sheet bending Ground platform, height 280mm, with steel structure bracket, 3 rows of 30x4 mm ground grid, 2 rows of checkered plates | |||
-2 Slope on the platform, 620*2000mm (W*L) | ||||
Inlet and exhaust system | Inlet fan | 2*3kw double inlet centrifugal fan, each air volume: 10000m³/h | ||
Exhaust fan | 1*5.5kw double inlet centrifugal fan, model: YDW4.5S, air volume per unit: 15000m³/h | |||
Cabinet device | -Side air intake, plastic-sprayed square tube steel frame, firm and beautiful. | |||
-One generator cabinet, 2 910mm hair dryers | ||||
-1 section 90° elbow | ||||
Wind speed | Loaded Wind speed: 0.35 m/s; number of air changes: 280 time/h. | |||

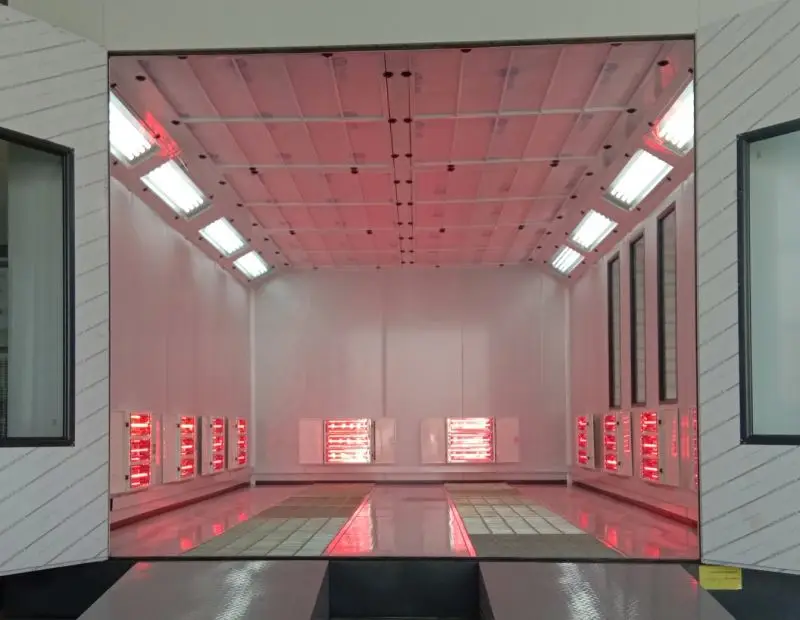

Heating system | Electric heating | It adopts infrared heating, 10 groups of 3KW single door far-infrared baking lamps. Maximum working temperature: 80℃, heating speed (20-80℃): 15-20min. | ||
Cabinet configuration | EPS interlayer, heat insulation, flame retardant | |||
Lighting system | dome light | 8 groups*4pcs*16w LED fluorescent lamp | ||
Waist light | 5 groups*2*16w LED fluorescent lamp | |||
filtering system | Primary effect filter cotton | G2 grade, filtering effect> 83% | ||
Top high efficiency filter cotton | EU5 grade high-efficiency filtration, filtration effect＞98%, Exhaust floor cotton filter | |||
cotton | ||||
Electric control system | control Panel | Intelligent Electric control system | ||
Features | Lighting, temperature and time setting, painting, constant temperature painting, baking, emergency stop, fault alarm, etc. | |||
Total power | 42 KW | |||
Voltage frequency | 380V, 50HZ, three-phase electricity | |||
PRODUCT CONFIGURATION
C-slot filter cotton bracket
EPS wall panel

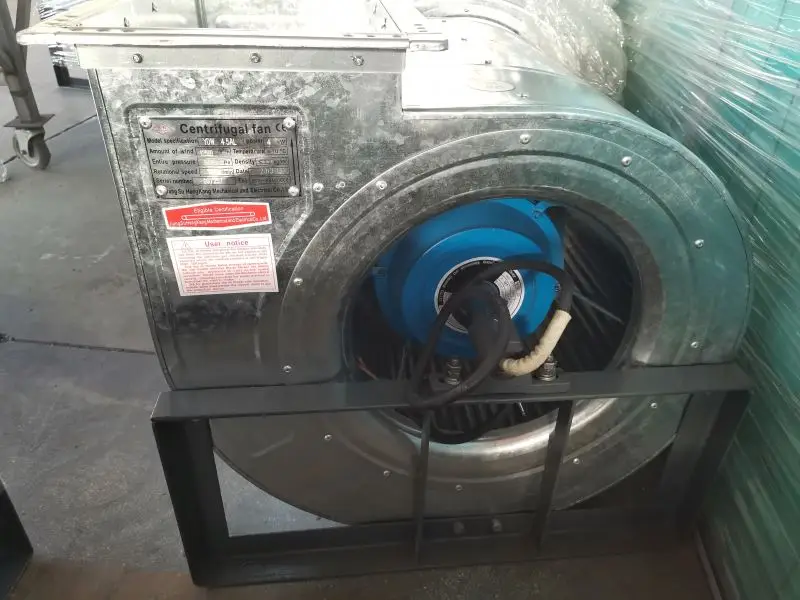

Pure copper wire high-quality brand fan

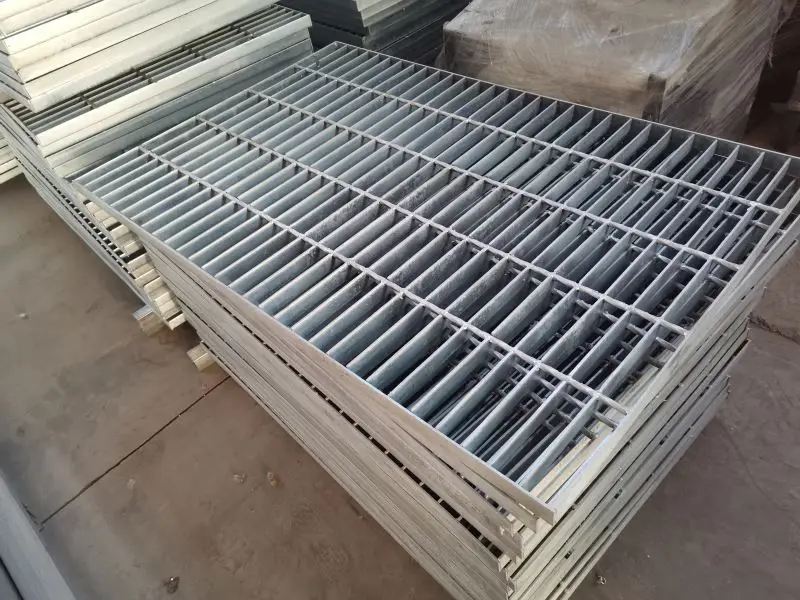

Galvanized custom iron bar steel grille

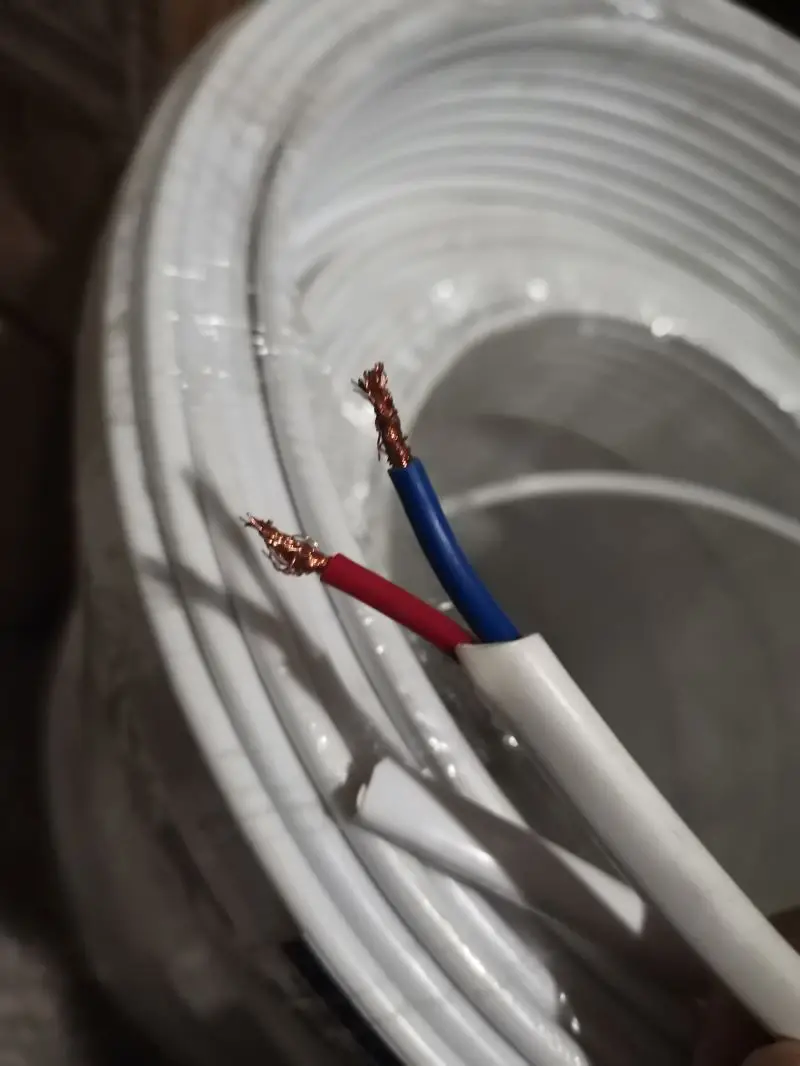

National standard pure copper wire
Spray pattern board
National standard pure copper electrical wire
Boutique single-door three-tube baking lamp

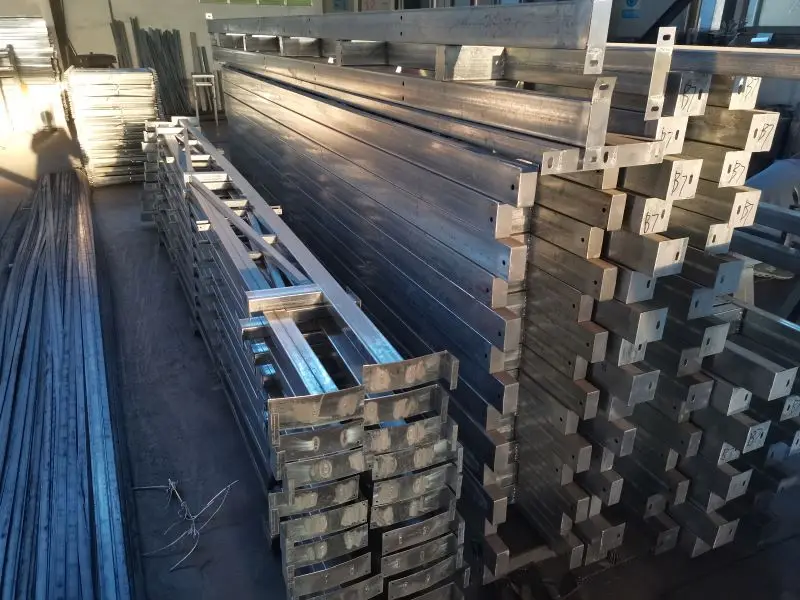

National standard galvanized square tube structure
Successful Project
Company Profile
"Shandong yuchuan environmental protection and energy saving technology co., LTD." since its inception, long-term commitment to high-end spray paint room dust, waste gas treatment equipment, processing equipment, sewage treatment equipment, welding smoke purification equipment, spraying drying equipment, spraying drying line, flue gas treatment equipment (desulfurization denitration) in areas such as providing optimization scheme, technology in accordance with the company,The testing methods are perfect, and the engineers and technicians have more than ten years of practical experience in environmental protection and industrial automation.
Yuchuanzhizao:Uphold science and technology, environmental protection, green, energy-saving design idea, in creating social benefit, environmental benefit at the same time, also for the customer's environmental problems and to create the economic benefit for clients, the company focus on a number of technical and management personnel, can provide customers with a good pre-sale, sale, and after-sales service and can according to user's water conditions,It can be used to develop appropriate water treatment equipment and equipment, so as to achieve economic and practical.
Yuchuan Zhizao: with high quality products, perfect after-sales service, excellence, pioneering and enterprising pragmatic spirit to serve the majority of users, we are willing to treat every user in good faith.The company to promote the development of environmental protection industry, and strive to provide the majority of users with technology, quality products and sincere service to protect our beautiful home!
All the staff of the company will be in line with the "excellent science and technology, integrity-based" business policy and "sincere and pragmatic" business purpose, to serve you, enthusiastic service to our customers, sincere cooperation, mutual benefit and common development, for we can have the same blue sky and work hard!
The company's commitment is: to create first-class quality, first-class reputation, first-class service to win the trust of users. Company culture concept: respect nature, comply with nature, protect nature and green development, circular development, low-carbon development as the concept;
The company firmly believes that as long as market-oriented, innovation as the driving force, quality of survival, development and growth, to environmental protection as the main body, we will achieve sustainable development of environmental protection!
Company Address: Zhizao New Town, Chengdong, Jinan, Shandong Province (No. 6188, Shuangshan Street)Our Advantages
FAQ
1.What's your advantage?
A: Honest business with competitive price and professional service on export process.
2. How I believe you?
A : We consider honest as the life of our company, we can tell you the contact information of our some other clients for you to
check our credit. Besides, there is trade assurance from Alibaba, your order and money will be well guaranteed.
3.Can you give warranty of your products?
A: Yes, we extend a 100% satisfaction guarantee on all items. Please feel free to feedback immediately if you are not pleased with
our quality or service.
4.Where are you? Can I visit you?
A: Sure,welcome to you visit our factory at any time.
5.How about the delivery time?
A: Within 15-35 days after we confirm you requirement.
6.what kind of payment does your company support?
A: T/T, 100% L/C at sight, Western Union are all accepted if you have other payment,please contact me.
A: Honest business with competitive price and professional service on export process.
2. How I believe you?
A : We consider honest as the life of our company, we can tell you the contact information of our some other clients for you to
check our credit. Besides, there is trade assurance from Alibaba, your order and money will be well guaranteed.
3.Can you give warranty of your products?
A: Yes, we extend a 100% satisfaction guarantee on all items. Please feel free to feedback immediately if you are not pleased with
our quality or service.
4.Where are you? Can I visit you?
A: Sure,welcome to you visit our factory at any time.
5.How about the delivery time?
A: Within 15-35 days after we confirm you requirement.
6.what kind of payment does your company support?
A: T/T, 100% L/C at sight, Western Union are all accepted if you have other payment,please contact me.
