Name:8*3200mm QC11Y  Variable Rake Hydraulic NC Metal Sheet Guillotine Shearing Machine

The Guillotine shear machine makes heavy-duty shear affordable. Frame and cutting beam offer maximum rigidity and resistance to deflection and torsional force for accurate shearing of mild steel up to30mm. This guillotine shear features four cutting edges that can be turned three times before grinding for increased production life. Cost-efficiently manufactured. Our guillotine shear machine fit your needs and your budget.

Standard Accessories

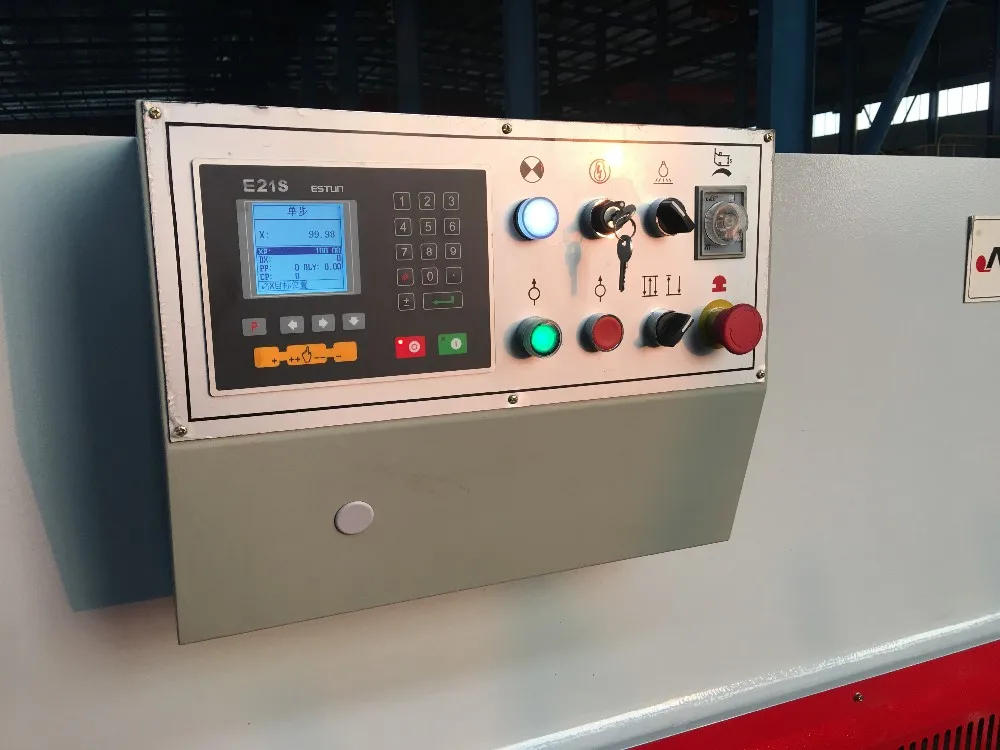

1.\tE21S-Estun: digital monitor to display the position of the back gauge

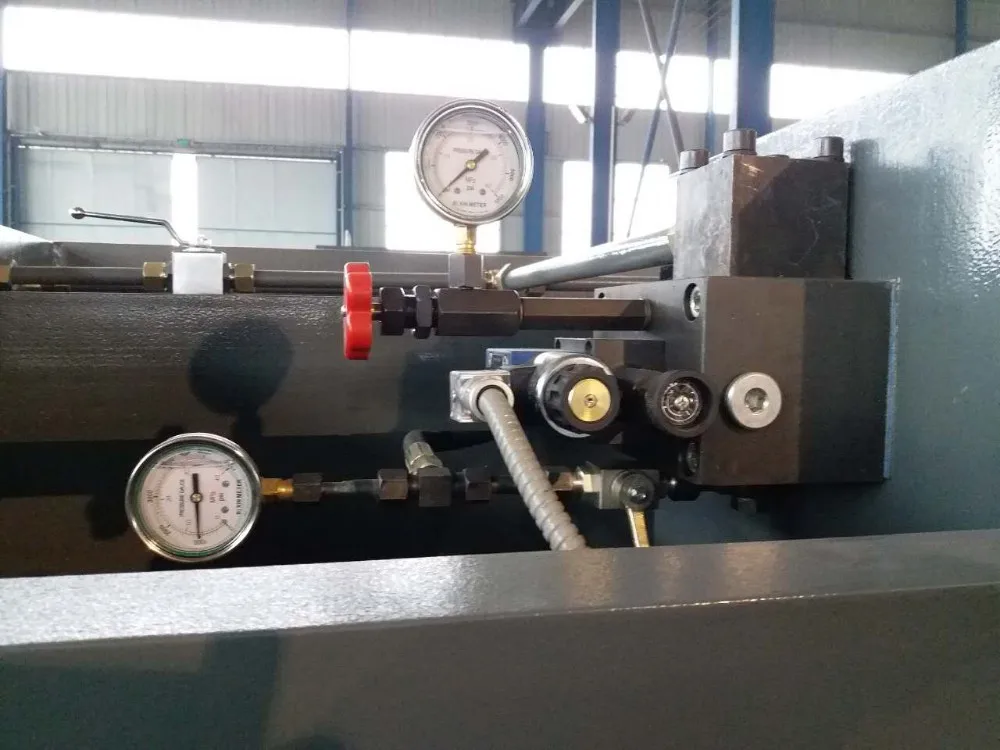

2.\tREXROTH, Germany hydraulic system
3.\tSUNNY, USA oil pump with slide-in pipes joints
4.\tBack gauge is moved with T-screw shaft, guided by rod-shaft and driven by AC motor
5.\tMotorized adjustment of blade gap and shearing angle
6.\tHydraulic hold downs with sequential operation
7.\tMoveable foot switch
8.\tFinger guard
9.\tInterchangeable blades with four cutting edges
10.\tOne set of standard blade (upper and lower) materials is 6CrW2Si

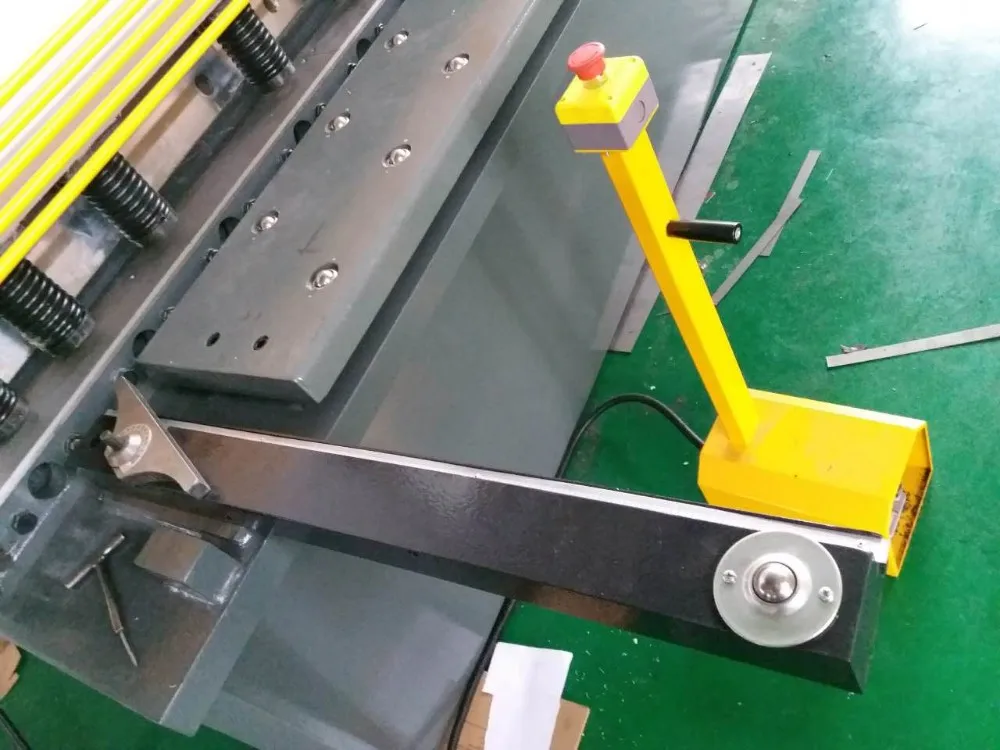

11.\tFront support arms with length 1000mm (at least 3pcs)

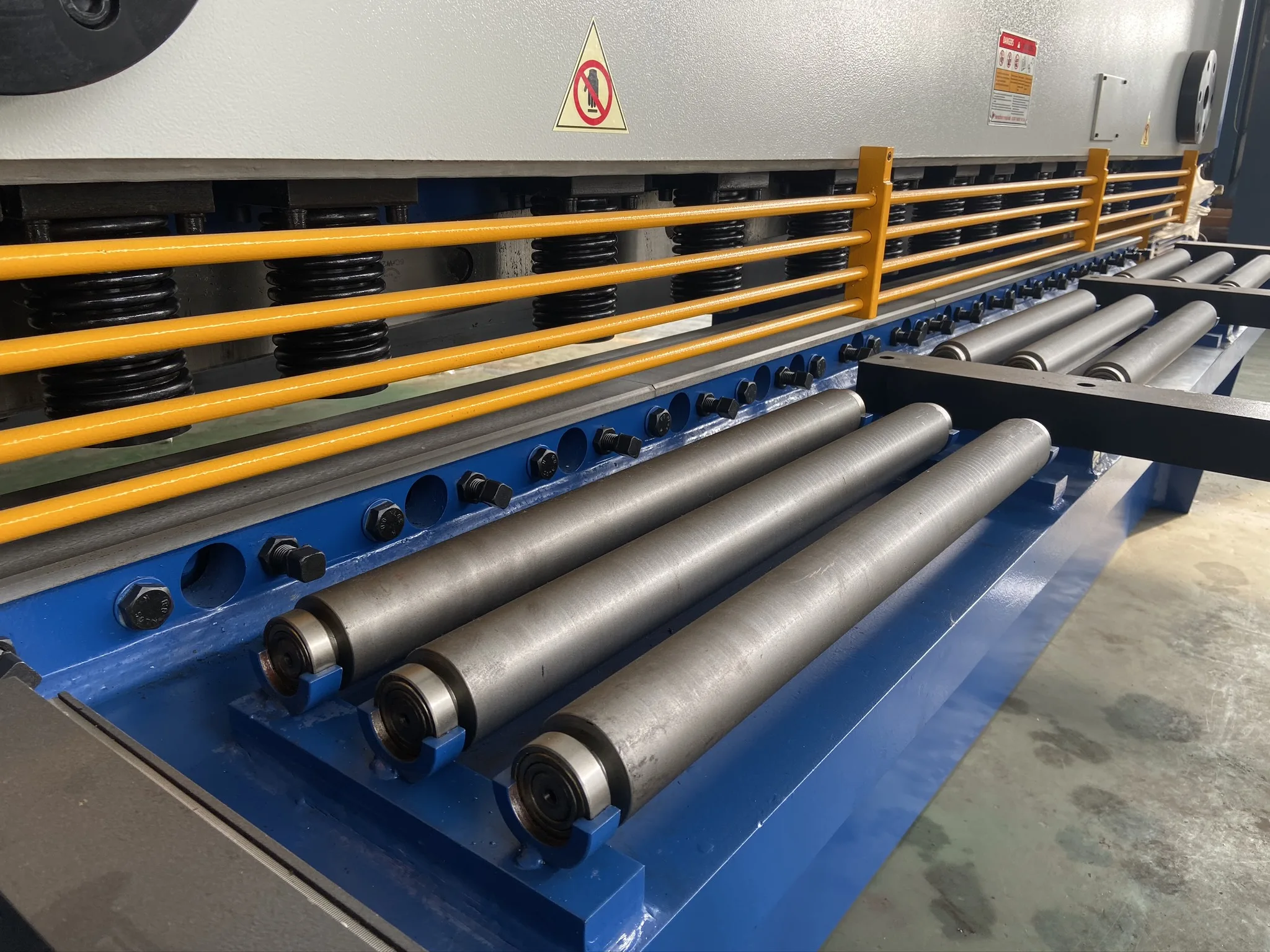

12.\tBall worktable ,reduce the contact between sheet plate and machine work table
13.\tOften-used internal hexagonal key spanner for adjusting blades
14.\tComprehensive instruction & maintenance manual

Optional Accessories

1.\tDAC360 , Netherlands CNC controller
2.\tBackgauge with ball screw and linear guideway ,drive by AC Servo motor
3.\tAutomatic cutting angle and blade gap
4.\t6CrW2Si blade changed to Cr12MoV blade (for cutting stainless steel)
5.\tPneumatic out table device for cutting piece falling smooth.
