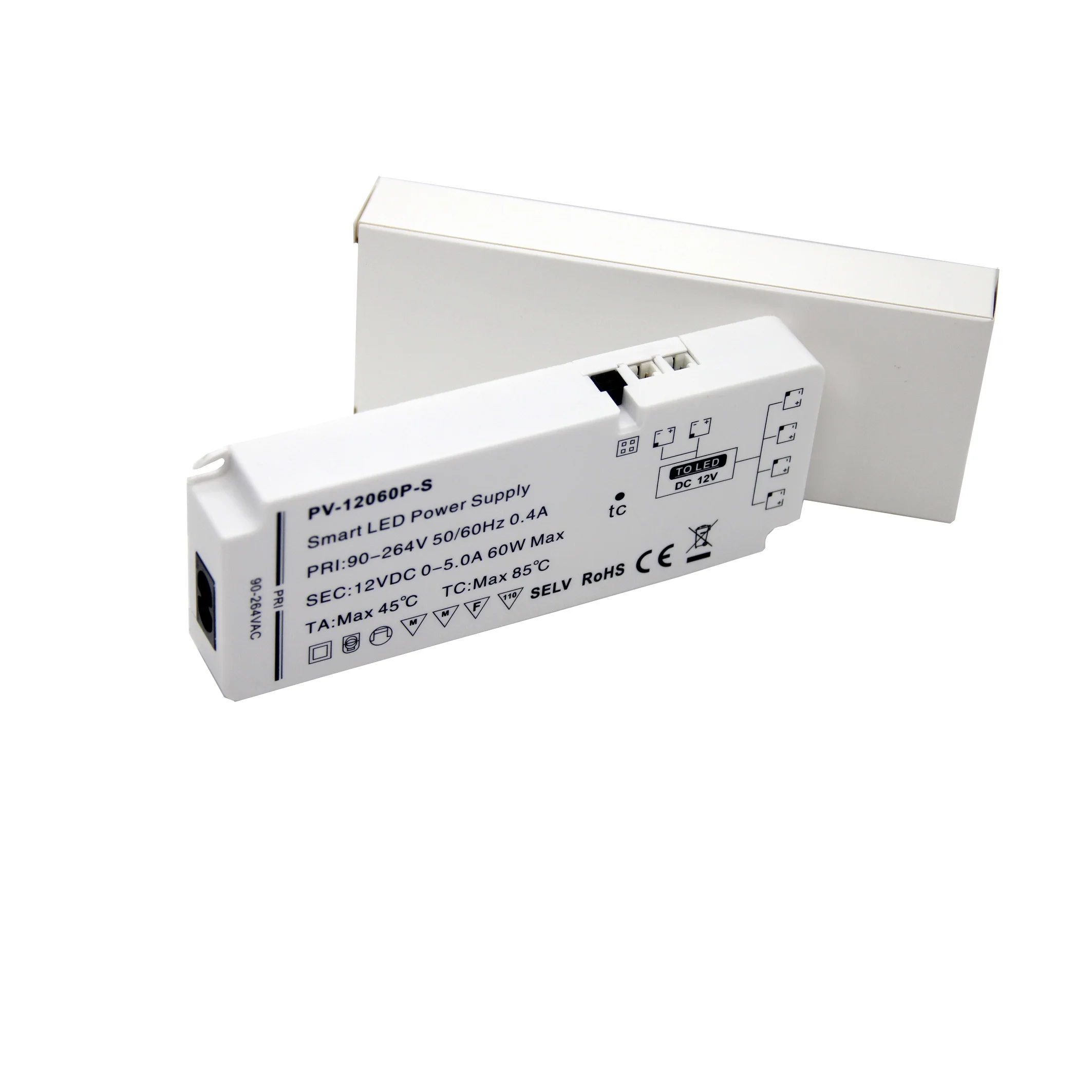

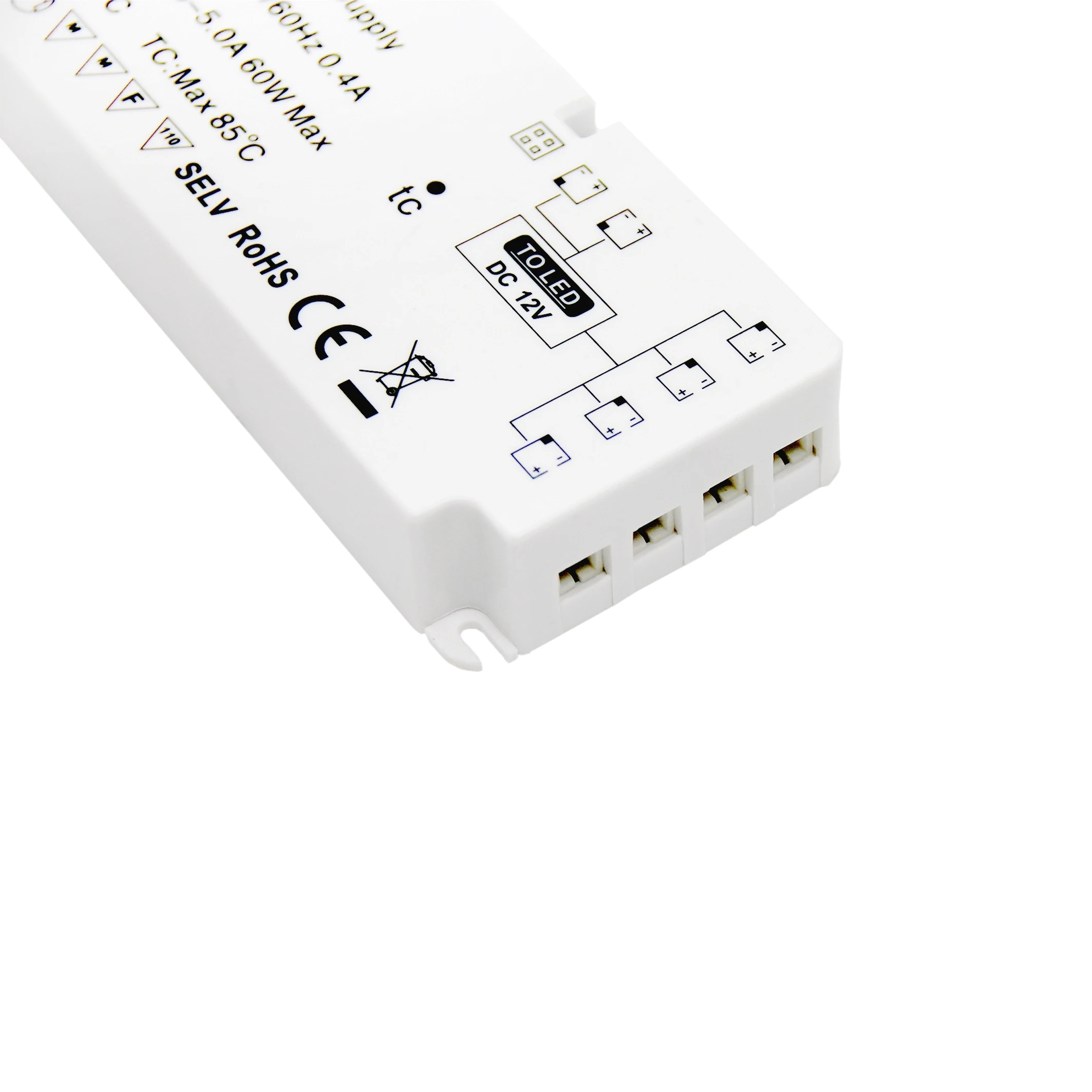

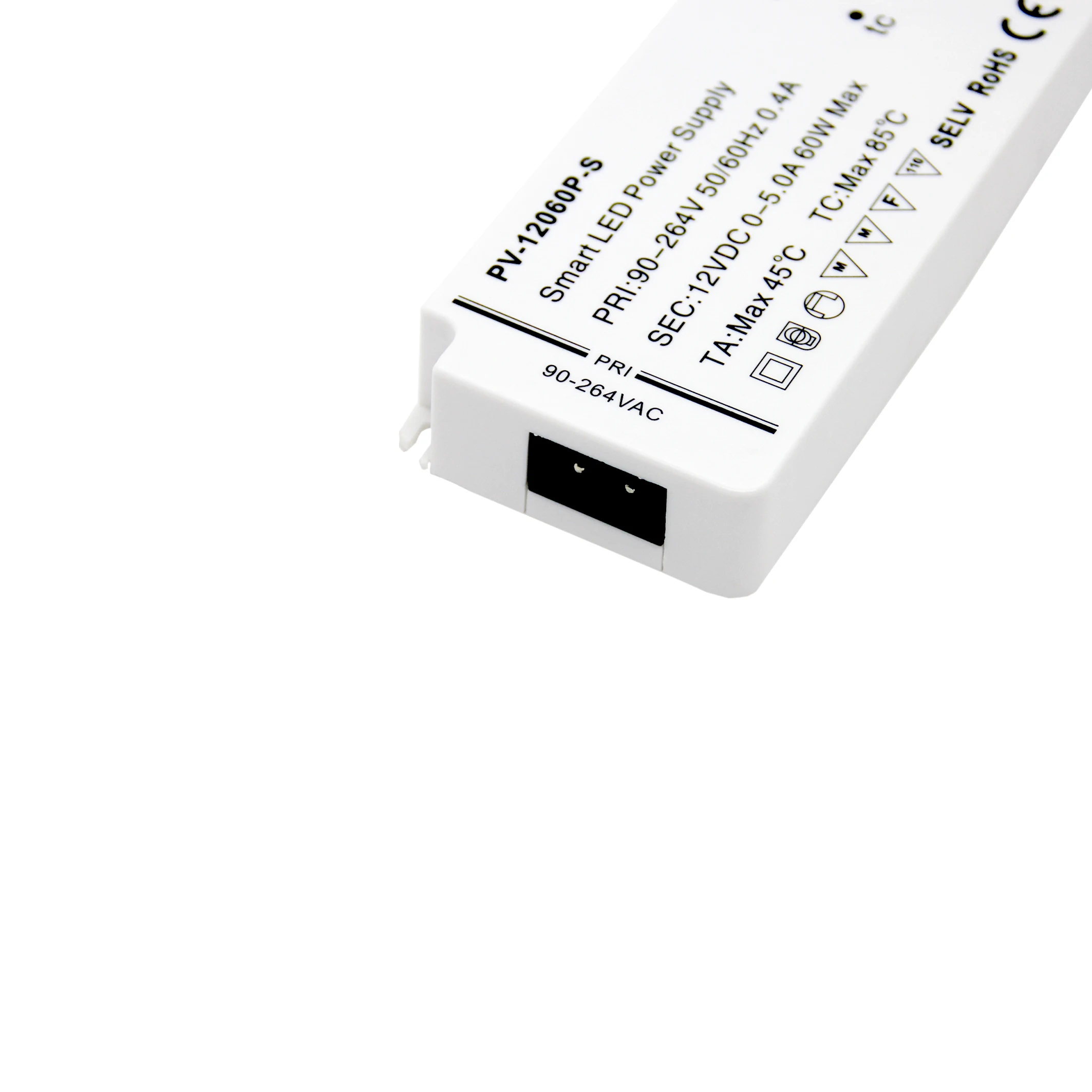

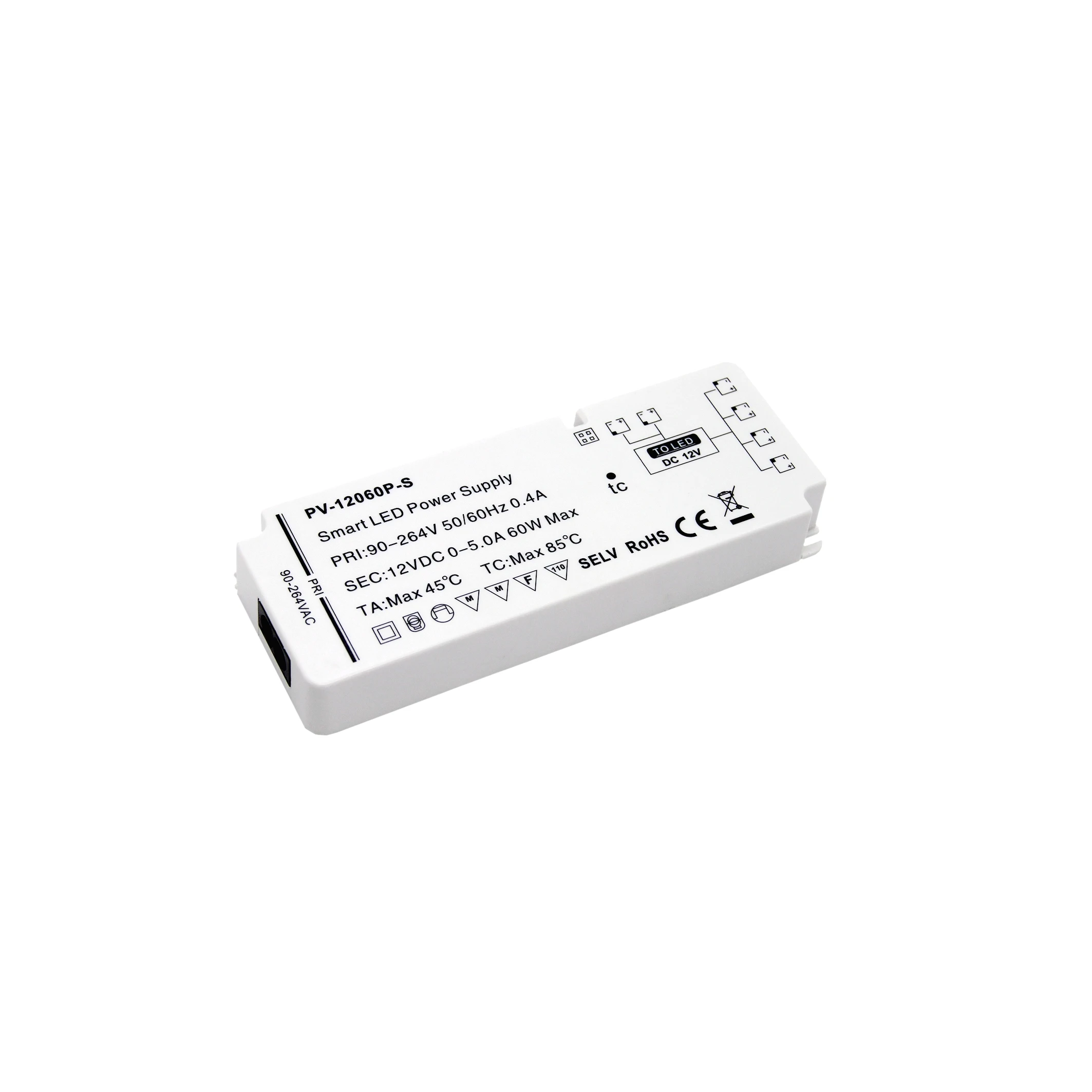

Легкий и тонкий корпус светодиодный драйвер 12 в 60 вт постоянного напряжения пластиковый блок питания для шкафа
- Категория: LED Driver >>>
- Поставщик: Zhuhai,Pt,Power,Technology,Co.,Ltd.
Поделиться:
Описание и отзывы
Трекер стоимости
| Месяц | Минимальная цена | Макс. стоимость |
|---|---|---|
| Sep-18-2025 | 5.91 $* | 5.60 $* |
| Aug-18-2025 | 5.28 $* | 5.63 $* |
| Jul-18-2025 | 4.62 $* | 4.91 $* |
| Jun-18-2025 | 5.3 $* | 5.54 $* |
| May-18-2025 | 4.53 $* | 4.69 $* |
| Apr-18-2025 | 5.33 $* | 5.52 $* |
| Mar-18-2025 | 5.60 $* | 5.74 $* |
| Feb-18-2025 | 4.66 $* | 4.33 $* |
| Jan-18-2025 | 4.39 $* | 4.92 $* |
Характеристики
Product Features:
* Constant Voltage design(CV Mode)
* Universal AC input
* Sealed inside with plastic irrigation. Conform with IP33 rating.
* Withstand 300VAC surge input for 5 seconds
* Built-in Protections: Short circuit/Overload
* Cooling by free air convection
* 100% Full Load Burn-in Test
* High performance
* 2-Years warranty; replacement upon rejection during warranty period.
* Universal AC input
* Sealed inside with plastic irrigation. Conform with IP33 rating.
* Withstand 300VAC surge input for 5 seconds
* Built-in Protections: Short circuit/Overload
* Cooling by free air convection
* 100% Full Load Burn-in Test
* High performance
* 2-Years warranty; replacement upon rejection during warranty period.
Model No.： | PV-12060P-S | PV-24060P-S | ||||||||||
Output | Rated Output Voltage | 12V | 24V | |||||||||
Output current Range | 0-5A | 0-2.5A | ||||||||||
Rated Output Power | 60W | |||||||||||
Output Voltage Precision | ±3% | |||||||||||
Output Ripple and Noise | ＜240mVP-P | 480mVP-P | ||||||||||
Load Regulation | ±2% | |||||||||||
Start/Rise Time | <1000ms/230VAC | |||||||||||
Retention Time | 20ms/230VAC | |||||||||||
Input | Input Voltage Range | 100-240VAC | ||||||||||
Input Frequency Range | 50-60HZ | |||||||||||
Power Efficiency | >86% | |||||||||||
Leak Current | ＜3mA/230VAC | |||||||||||
Protection | Overload Protection | When the load current exceeds 110-140% of the output current, the power supply will enter protection state. Protection Mode: Hiccup Mode. | ||||||||||
Short Circuit Protection | Protection mode: hiccup mode. When the short-circuit fault is removed, the power supply will automatically resume work. | |||||||||||
Working Environment Protection | Working Temperature | -30℃-65℃ | ||||||||||
Storage Temperature | -40℃-80℃ | |||||||||||
Ingress Protection Rating | 90%RH non condensing, refer to IP33 | |||||||||||
Shockproof Character | 10-500HZ,2G 10min/1cycle,period for 60min,each along X,Y,Z axes | |||||||||||
Temperature Coefficient | ±0.03%℃ (0-50℃) | |||||||||||
Security Features | Security Standard | IEC 61347-2-13 2014+A1 IEC 61347-1 2015+A1 | ||||||||||
Withstand Voltage | I/P-O/P:2KVAC | |||||||||||
Insulation Resistance | I/P-O/P:>100M Ohms/500VDC/25℃/70% RH | |||||||||||
Others | Outter Size | 160*61*22mm(L*W*H) | ||||||||||
Weight/PCS | 183g | |||||||||||
