8 + 1 Ось DELEM DA66T контроллер HPB- 220Ton3200 листовой металл Cnc гибочный станок для

8 + 1 Ось DELEM DA66T контроллер HPB- 220Ton3200 листовой металл Cnc гибочный станок для

Категория: Metal Sheeting Processing Machines >>>
Поставщик: Maanshan,Jiashida,Machine,Tool,Company

Цена:40 500,00 $*

Количество:

Описание и отзывы

Трекер стоимости

Месяц	Минимальная цена	Макс. стоимость
Sep-15-2025	48195.26 $*	50605.85 $*
Aug-15-2025	47790.78 $*	50180.89 $*
Jul-15-2025	40095.44 $*	42100.86 $*
Jun-15-2025	46980.31 $*	49329.82 $*
May-15-2025	40905.55 $*	42950.10 $*
Apr-15-2025	46170.33 $*	48479.24 $*
Mar-15-2025	45765.73 $*	48053.81 $*
Feb-15-2025	45360.97 $*	47628.98 $*
Jan-15-2025	44955.98 $*	47203.95 $*

Характеристики

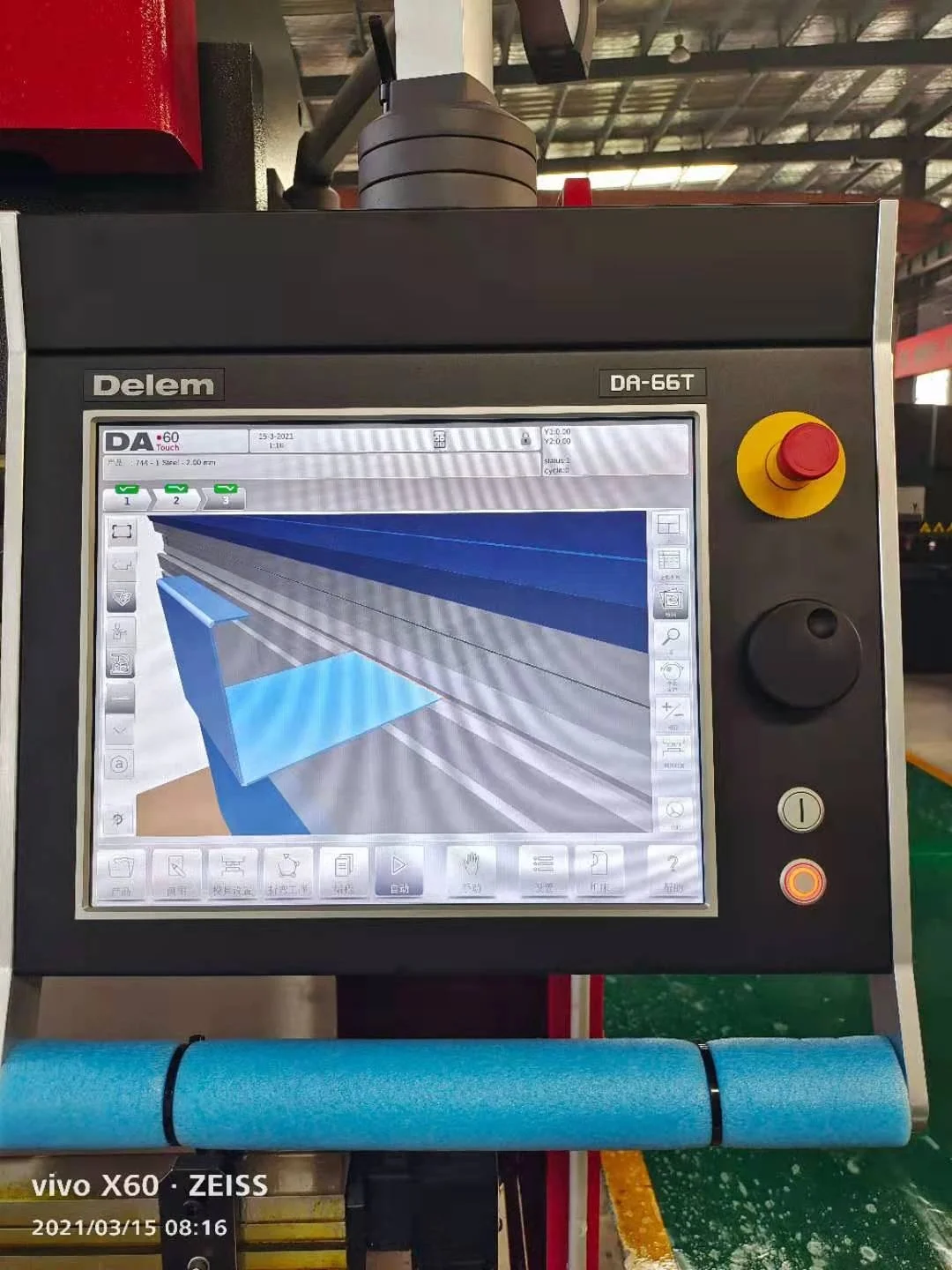

8+1Axis DELEM DA66T Controller HPB- 220Ton3200 Sheet metal Cnc Bending Machine for steel

Detail video on youtube: https://youtu.be/bg-xv4vHCFQ

DA66T (3).jpg

Features:

1.The frame is made of steel structure, left and right vertical plate, worktable and pressure plate are welded into a whole structure. After welding, the internal stress is eliminated by tempering, so the whole steel is good and the stability is high.
2.Latest high-frequency responding hydraulic control technology, faster, more efficient and accurate.
3.Optimal ratio of parameters and top-level core configuration ensure stable performance and easy operation.
4.MB8 standard 2 shafts back gauge system, as to complex shape work pieces, 4 or 5 shafts back gauge system and corresponding dies are available for your option.
5.According to state of sheet metal on the press brake, CNC system can automatically control the table deflection compensation yielding uniform length of all work-pieces angles.
6.The distance of the rear gear and the stroke of the slider are controlled by the numerical control system, which is convenient and quick.
7.The oil cylinder has been forged, Quenched and tempered, fine grinding, hard chromium plating and other processes, and with the import of sealing ring, the phenomenon of oil leakage in customer service.
8.The hydraulic system adopts the integrated hydraulic system of oil road to reduce the installation of the pipeline, and the appearance of the hydraulic system is beautiful and concise.
9.The use of hydraulic deflection compensation gives access to uniform full length workpieces. Hydraulic deflection compensation consists of a set of oil cylinders under the worktable, which can make the table occurs relative movement and form an ideal convex curve, ensuring the relative positions with slider keep unchanged. Compensation valves are subject to plate thickness and properties of material to be bent.

3-_02
