Характеристики
HSG 160t/3200 Da66t Aluminum Iron Plate Hydraulic Press Brake For Steel Warehouse Press Brake Machine
Product Description
Oil-electric hybrid bending machine
1.Two-way Convex Deflection Compensation
2. Various Upper and Lower Tools
3. Hydraulic Oil Consumption 76L
4. Optional Collaborative Robot
* Machine appearance, technical parameters, function description, data comparison shown in this page are from HSG in-house laboratory. All testing results and experimental data shall be subject to real machine.
2. Various Upper and Lower Tools
3. Hydraulic Oil Consumption 76L
4. Optional Collaborative Robot
* Machine appearance, technical parameters, function description, data comparison shown in this page are from HSG in-house laboratory. All testing results and experimental data shall be subject to real machine.
Energy-saving Technology
---------------
* It is servo motor that is used for controlling two-way pump to reverse liquid flow, so as to make slide blocks lift and fall.
* Flow, pressure and direction of hydraulic oil are under the control of dual-driven oil pump and servo motor.
* Overflow will never happen while slide block works. No electric power is needed while waiting for next procedure. The strength of electricity saving stands out if long-term use.
* Flow, pressure and direction of hydraulic oil are under the control of dual-driven oil pump and servo motor.
* Overflow will never happen while slide block works. No electric power is needed while waiting for next procedure. The strength of electricity saving stands out if long-term use.
Further Expansion of Processing Range
---------------
Its open height and stroke of slide block are raised to 520mm and 250mm respectively. In combination with 420mm (depth) throat, the bending range is further expanded. Time spent on taking out bending workpiece is reduced and any possible scratch is prevented.
Open height 520mm
Depth of throat 420mm
Stroke of slide block 250mm
Open height 520mm
Depth of throat 420mm
Stroke of slide block 250mm
Carbon Steel Welded Frame
---------------
Its slide block, lower platform, left and right column are subject to finite element mechanical analysis. As thus, the overall bending precision will be kept within 0.5°.
Bending precision ≤ 0.5°
Bending precision ≤ 0.5°
Post-positioning System
Backgauge can move at the speed of 1000mm/s. The slide block will lift and fall at the speed of 200mm/s. The bending speed reaches 15mm/s.
New Version
X-axis speed 600mm/s
Z-axis speed 1000mm/s
R-axis speed 120mm/s
Previous Version
X-axis speed 500mm/s
Z-axis speed 700mm/s
R-axis speed 60mm/s
New Version
X-axis speed 600mm/s
Z-axis speed 1000mm/s
R-axis speed 120mm/s
Previous Version
X-axis speed 500mm/s
Z-axis speed 700mm/s
R-axis speed 60mm/s
Italian ESA S650 Operating System
* 15-inch user-friendly touch screen
* Calculate bending force according to sheet length and thickness
* Database available for recording the correction of bending angle, with less time for that in future
* Accept sudden power failure and adapt to less desirable environment
* Calculate bending force according to sheet length and thickness
* Database available for recording the correction of bending angle, with less time for that in future
* Accept sudden power failure and adapt to less desirable environment
German COMAU Six-axis Collaborative Robot (Optional)
Automation interface is provided for upgrades anytime.
* Automatic sheet separation
* Automatic sheet stacking
* Automatic loading & unloading
* Automatic sheet rolling-over
* Automatic bending order change
Specification

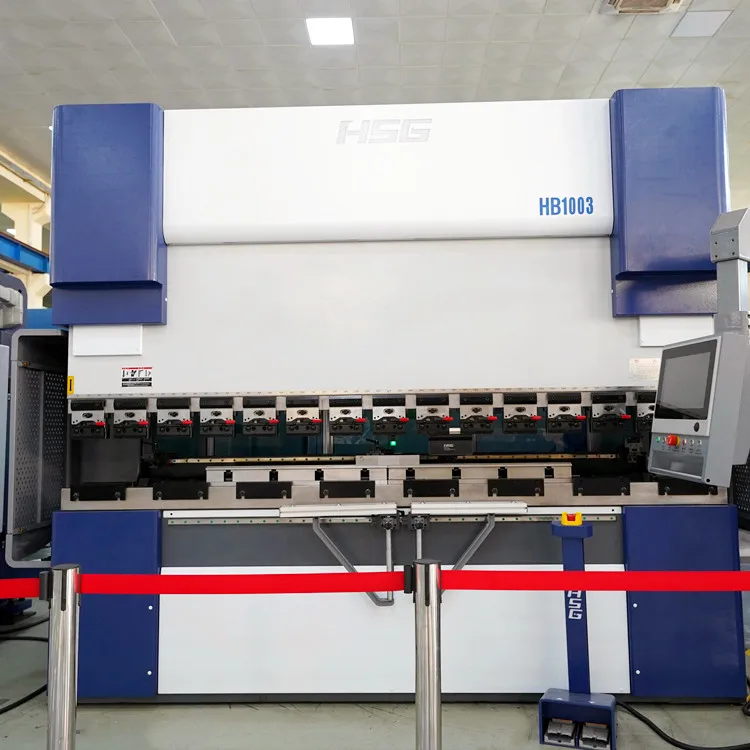

Technical Parameters | HB1003 | HB2204 | HB6020 |
Bending Force | 1000KN | 2200KN | 600KN |
Bending Length | 3100mm | 4300mm | 2150mm |
Spacing of Side Plates | 2700mm | 3760mm | 1700mm |
Height of Lower Platform | 950mm | 950mm | 950mm |
Depth of Throat | 420mm | 420mm | 420mm |
Open Height | 520mm | 520mm | 520mm |
Fast Falling Speed of Y Axis | 200mm/s | 150mm/s | 200mm/s |
Bending Speed of Y Axis | 15mm/s | 12mm/s | 15mm/s |
Capacity of Oil Tank | 76L | 76L | 76L |
