Economical Low Cost We67K-800/6000 High Quality Cnc Hydraulic Bending Machine With Da41 System Tandem 12 Mm
- Категория: Metal Sheeting Processing Machines >>>
- Поставщик: Dalian,J&Y,Heavy,Machine,Co.,Ltd.
Поделиться:
Описание и отзывы
Трекер стоимости
| Месяц | Минимальная цена | Макс. стоимость |
|---|---|---|
| Sep-19-2025 | 2267414.83 $* | 2380785.7 $* |
| Aug-19-2025 | 2248360.97 $* | 2360778.90 $* |
| Jul-19-2025 | 1886336.57 $* | 1980653.3 $* |
| Jun-19-2025 | 2210252.67 $* | 2320765.18 $* |
| May-19-2025 | 1924444.58 $* | 2020666.1 $* |
| Apr-19-2025 | 2172145.52 $* | 2280752.24 $* |
| Mar-19-2025 | 2153091.7 $* | 2260746.29 $* |
| Feb-19-2025 | 2134037.58 $* | 2240739.10 $* |
| Jan-19-2025 | 2114983.95 $* | 2220732.21 $* |
Характеристики

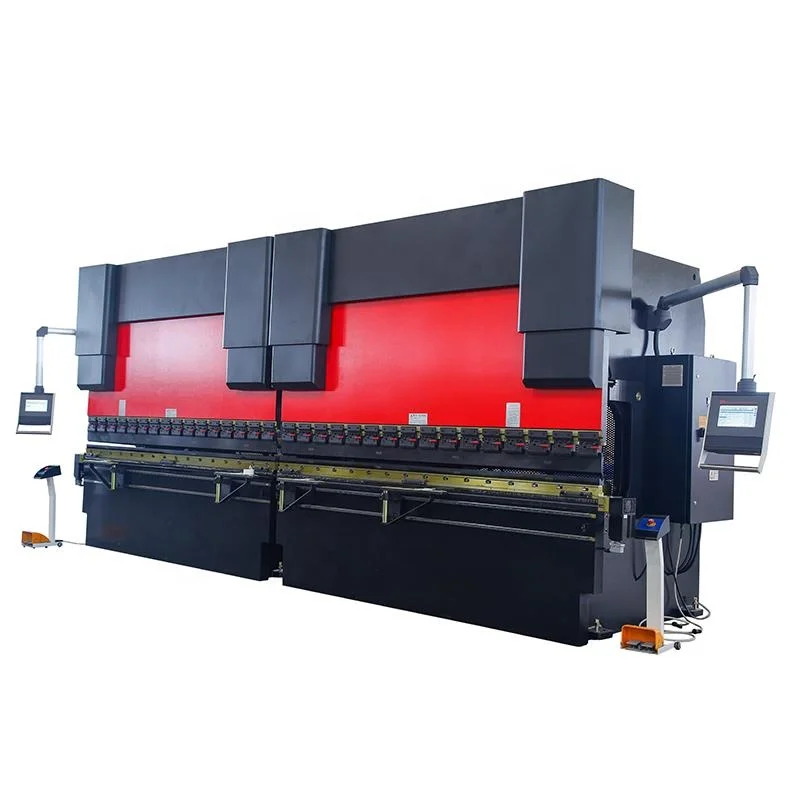

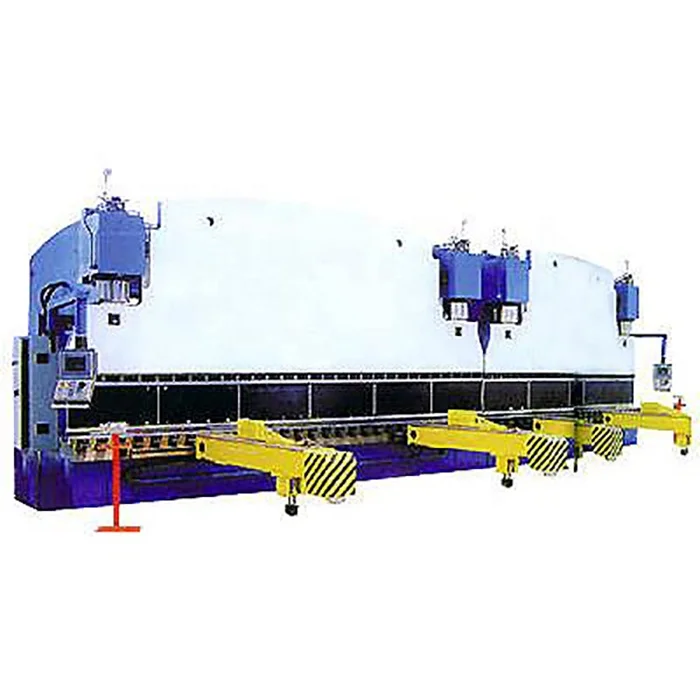

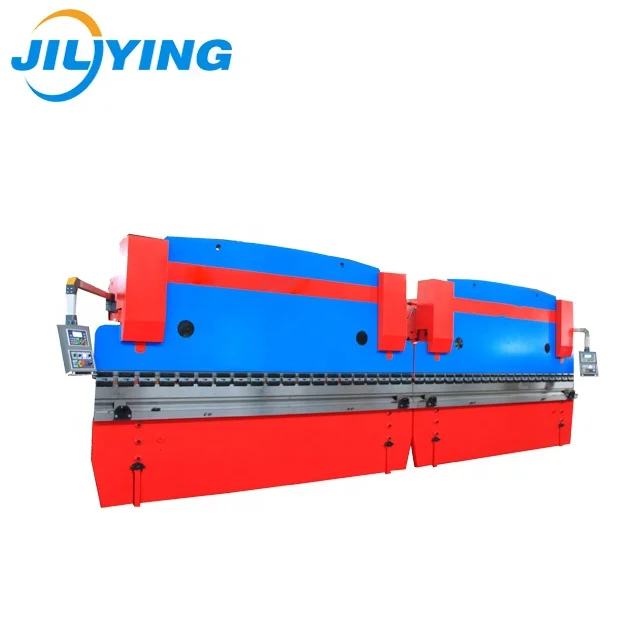

2-WE67Y/K Double-machine hydraulic (CNC) bending machine
Basic Principle:
1.This machine was combined by two sets of 400 tons press brake.
2.Tandem control achieve synchronous working. Single machine was combined by working table , right and left wall board.
3.Due to the transportation, we adopt assembled structure. The rack has strong rigidity, two cylinders were installed on right and left wall board, hydraulic system was under the action of electrical system, drive ram working down. On the ram, there are upper dies, when upper dies and lower dies touched, system will raise pressure and forming the workpieces.
4.With different dies and under different bending types, it can get different shapes of workpieces. The quality is stable and reliable.
CNC Press Brake
WE67K Series CNC Hydraulic Carbon Stainless Plate Press Brake Machine
1.High efficiency CNC Hydraulic Press Brake
2.Electro-hudraulic servo system
3.Stand configuration with 3+1Axis( optional 4+1axis,6+1axis)
4.Delem DA52 for the stand configuration,Delem DA56,DA66.DA69 for option.
5.Press brake adopt the double crowning mechanism.
6.A set of standard upper and lower die with the press brake machine
NC Press Brake
WC67K Series CNC Hydraulic Carbon Stainless Plate Press Brake Machine
1.ESTUN E200 special CNC system for press brake(double axes) is adopted.
2.The drive elememt of backgauge adopts Taiwan ball screw and linear guideway.
3. ESTUN E21, Delem DA41 for option cnc system.
Press bake parameter
Here is the WE67K Series CNC Hydraulic Carbon Stainless Plate Press Brake Machine technical parameters
| Speci |
Pressure (KN) |
Working Width (mm) |
Throat Depth (mm) |
Max.open height (mm) |
Power motor (kw) |
Overall size (mm) |
| 63/2500 | 630 | 2500 | 250 | 330 | 5.5 | 2750X1400X2180 |
| 100/2500 | 1000 | 2500 | 320 | 420 | 7.5 | 2750X1600X2450 |
| 125/3200 | 1250 | 3200 | 320 | 420 | 7.5 | 1450X1600X2450 |
| 160/3200 | 1600 | 3200 | 320 | 470 | 11 | 3450X2000X2900 |
| 200/6000 | 2000 | 6000 | 320 | 510 | 15 | 6250X2100X3200 |
| 400/6000 | 4000 | 6000 | 400 | 560 | 30 | 6250X2350X3595 |
Here is the WC67K Series NC hydraulic press brake machine technical parameters
| Speci |
Pressure (KN) |
Working Width (mm) |
Throat Depth (mm) |
Max.open height (mm |
Power motor (kw) |
Overall size (mm) |
| 40/2000 | 400 | 2000 | 250 | 325 | 4 | 2150x1185x1950 |
| 63/2500 | 630 | 2500 | 250 | 330 | 5.5 | 2650x1230x2180 |
| 80/2500 | 800 | 2500 | 320 | 370 | 7.5 | 2650x1325x2290 |
| 100/2500 | 1000 | 2500 | 320 | 380 | 7.5 | 3350x1325x2290 |
| 125/3200 | 1250 | 3200 | 320 | 380 | 7.5 | 3350x1350x2420 |
| 160/3200 | 1600 | 3200 | 320 | 450 | 7.5 | 3350x1590x2560 |
Press brake related

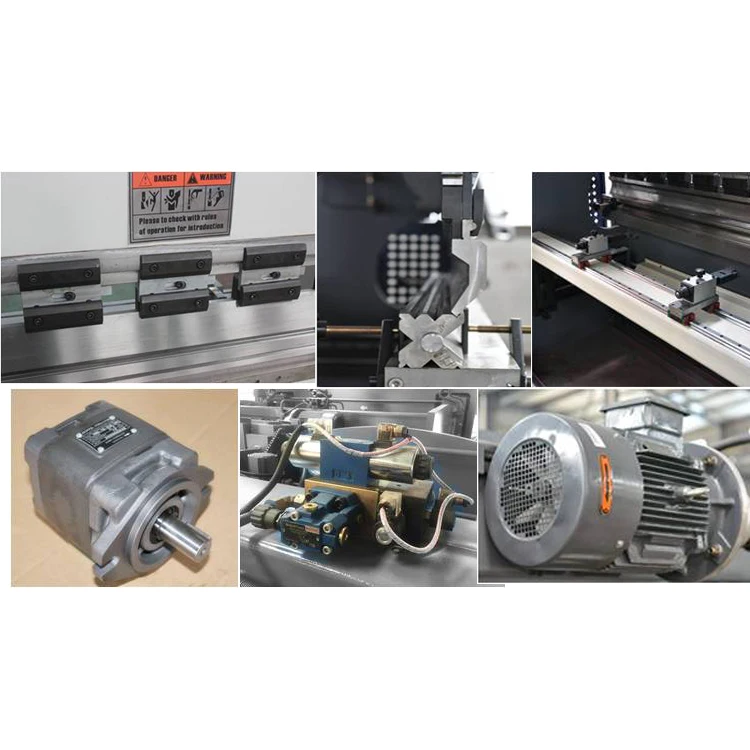

Here is the stand brand configuration of Press Brake Machine
| Item | Brand | Item | Brand |
| Main Motor | SIEMENS(Germany) | Hydraulic system | Rexroth(Germany) |
| Gear pump | Sunny(USA) | Sealing rings | NOK CO.(Japan) |
| CNC Controller system | Estun / Delem | Casting connector | Cast CO.(Italy) |
| Variable frequency drives | Delta(Taiwan) | Main electric parts | Schneider |
Related Machine
RELATE MACHINE
Except for the Machine
we also provide the Guillotine shearing machine,Press brake & Bending machine,Rolling machine,Hydraulic iron worker,Punching press machine,Four column press machine,Cnc plasma cutting machine,Welding Equipment,Dished End Machine,Buffing Machine
Want to know other machines related to this dish end flanging machines! More>>
Packaging & Shipping
Product packaging and shipping
Contact Details
Contact name: Belinda Sun
Email: belinda@ weldcnc.com
Whatsapp/Wechat/Mob: +86 15542318526
FAQ
FAQ
Q1.What is our main product ?
A1: Our company is a professional sheet metal processing machinery by JIUYING.HEAVY MACHINE CO.,LTD. in 1988. Concentrate on four column press machine, embossing door press machine, bending machine, shearing machine, cnc plasma cutting machine, rolling machine, punching machine, hydraulic ironworker, welding equipment.
All these machine will be solved for the tank, pan, trolley, ect.
Q2.When can I get the price ?
A2:We usually offer the quotation within 8hours, For urgent offer, please contact with us for special.
Q3.What is the Trade Term?
A3: We accept Ex-work factory , FOB Dalian, CNF or CIF, as your requirement.
Q4.How long is our Production leading time?
A4: It depends on type of equipment.
We often deliver the goods within 35days.
Q5.What is the Payment term?
A5: By T/T before shipment or By L/C at sight.
Q6. During shipping, if there is a damage to products, how do you get replacement?
A6: Firstly, we should investigate the reason cause the damage. At the same time, we will claim for the insurance by ourselves or assist the buyer.
Secondly we will send the replacement to the buyer. The responsible person for above damage will take charge of the cost of the replacement.
Q7. What are your terms of packing?
A7: Packing: export worthy package suitable for container transportation.
Wooden case, iron pallet, plastic film ect.
Q8. Do you test all your goods before delivery?
A8: Yes, we have 100% test before delivery.

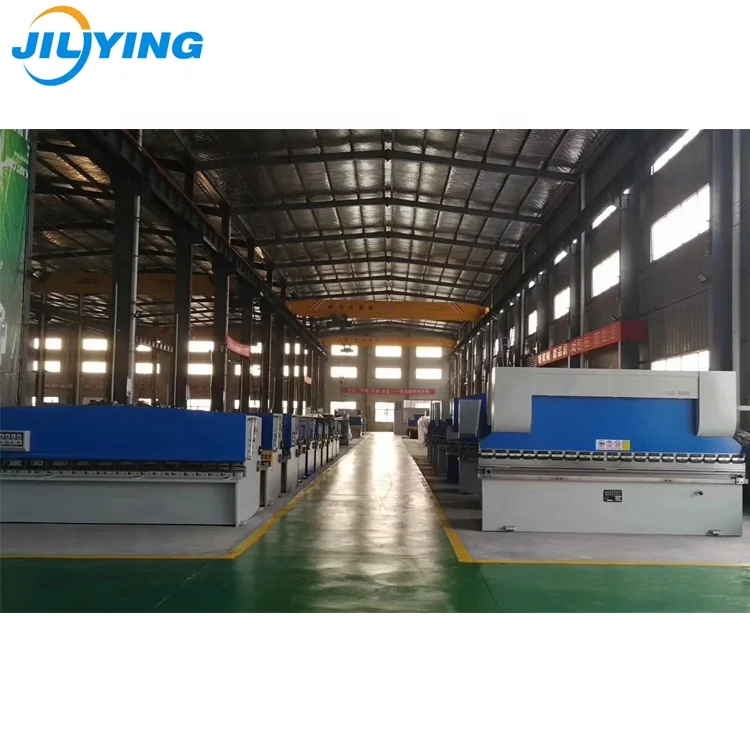

Q9: Where is your factory located?
A9: Our factory is located in Dalian, Liaoning province.
Q10: What is your warranty?
A10: Warranty: 24 months after commercial running or 18months from the date of shipment, subject to the earlier expiry.
Q11: Can you arrange thirty party pre-shipment inspection
A11: Pre-shipment inspection: Supplier’s pre-shipment inspection is Final; pre-shipment inspection by third Party on buyers cost.
Q12:Can we do our OEM logo?
A12:Yes, for the products with drawing supplied by you, we of course apply your logo.
