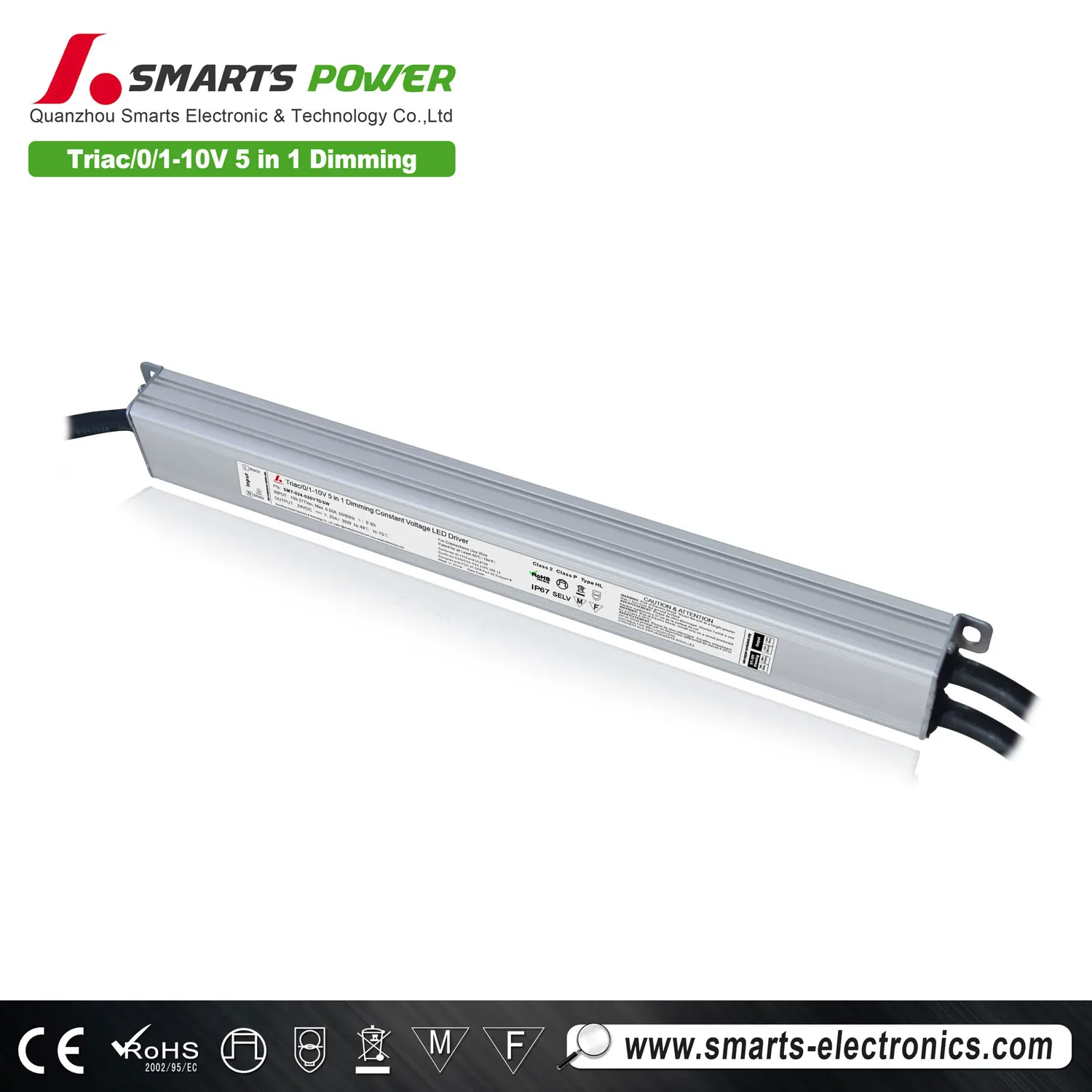

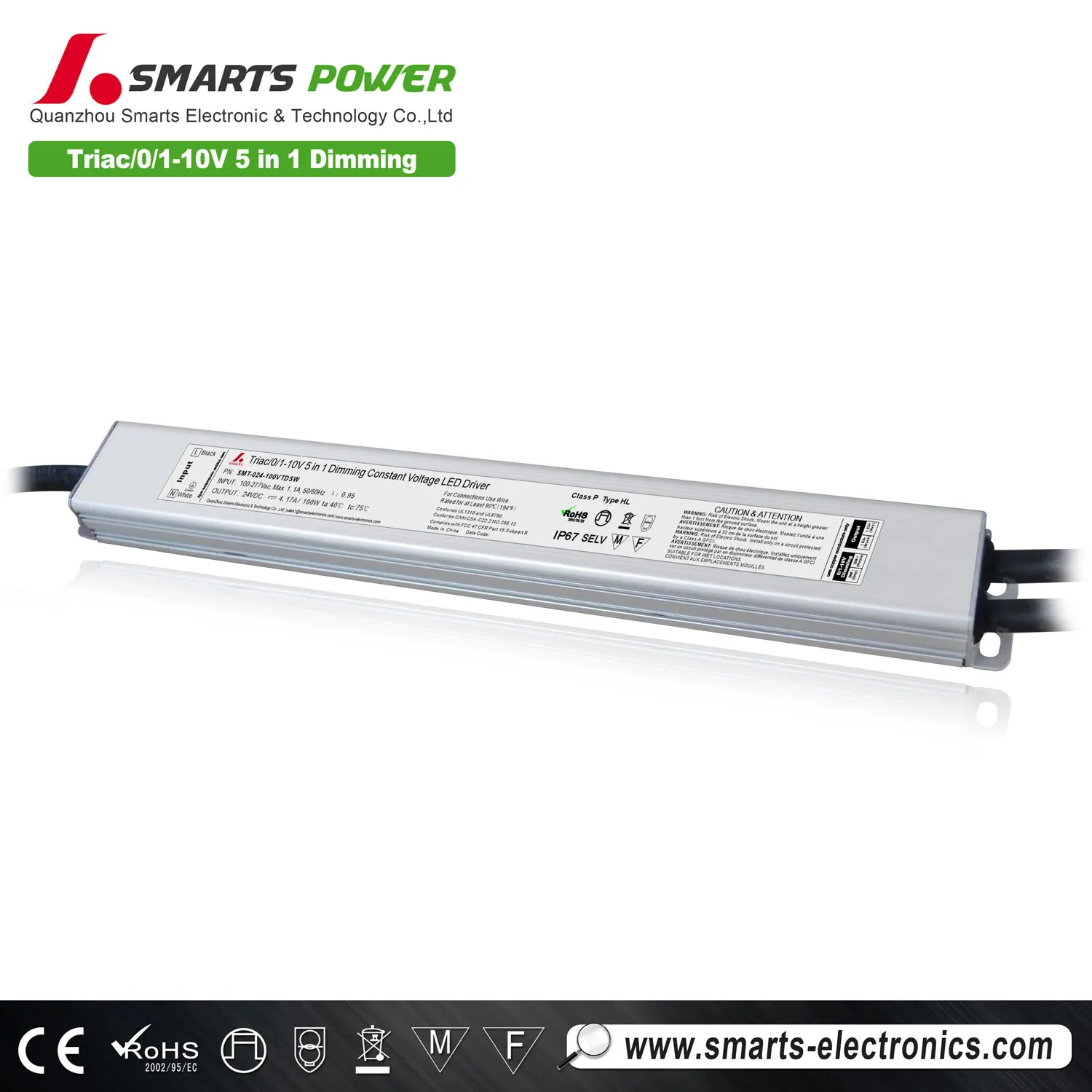

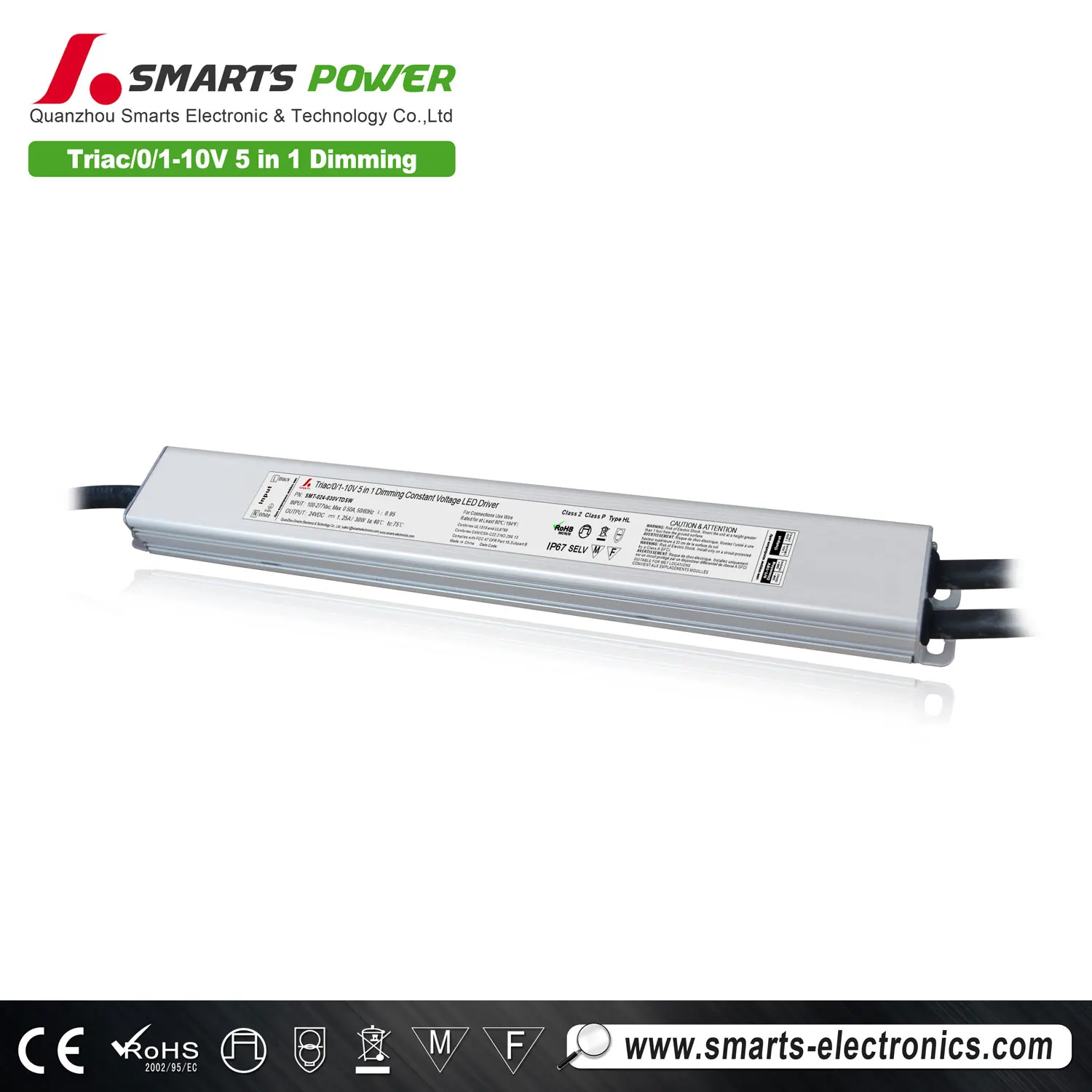

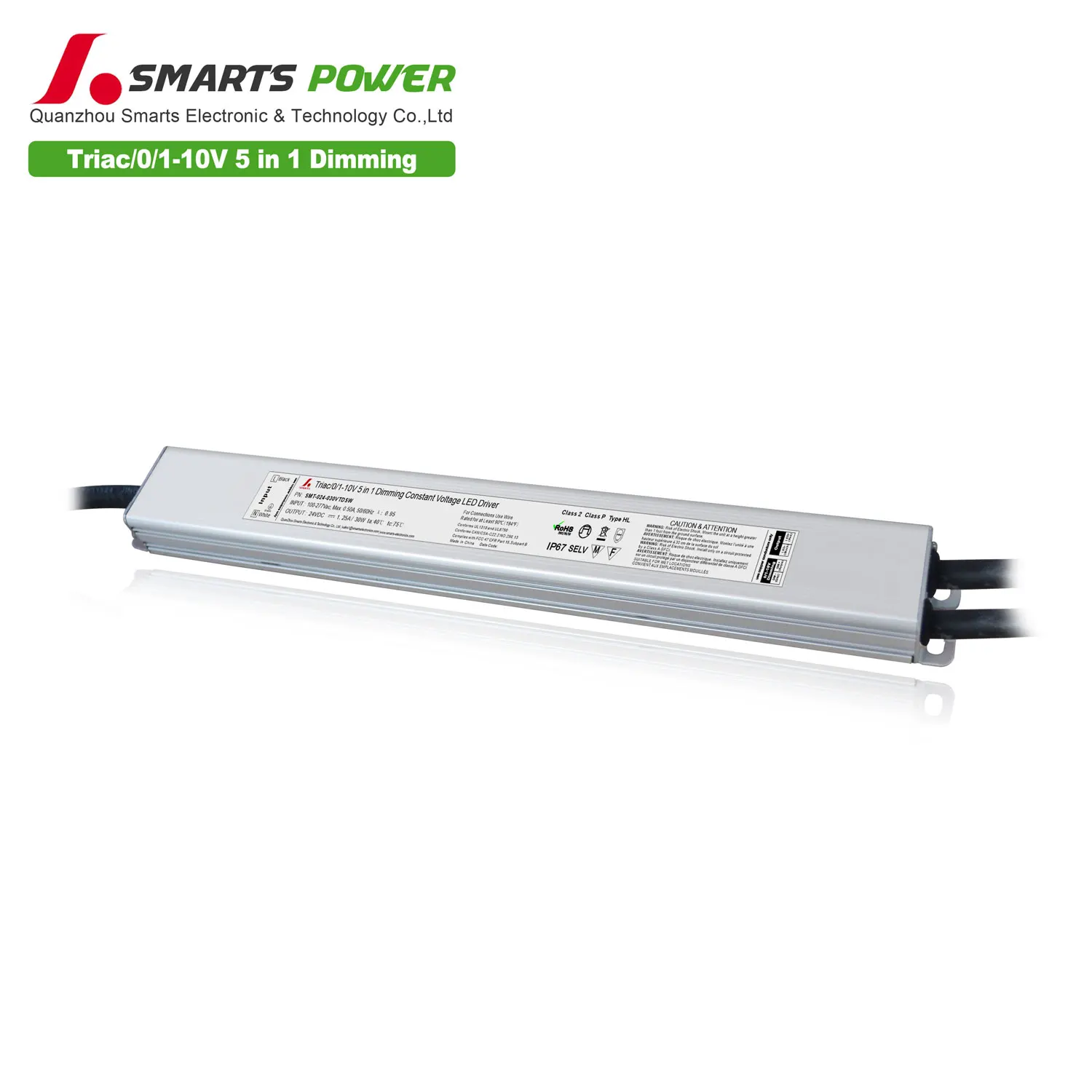

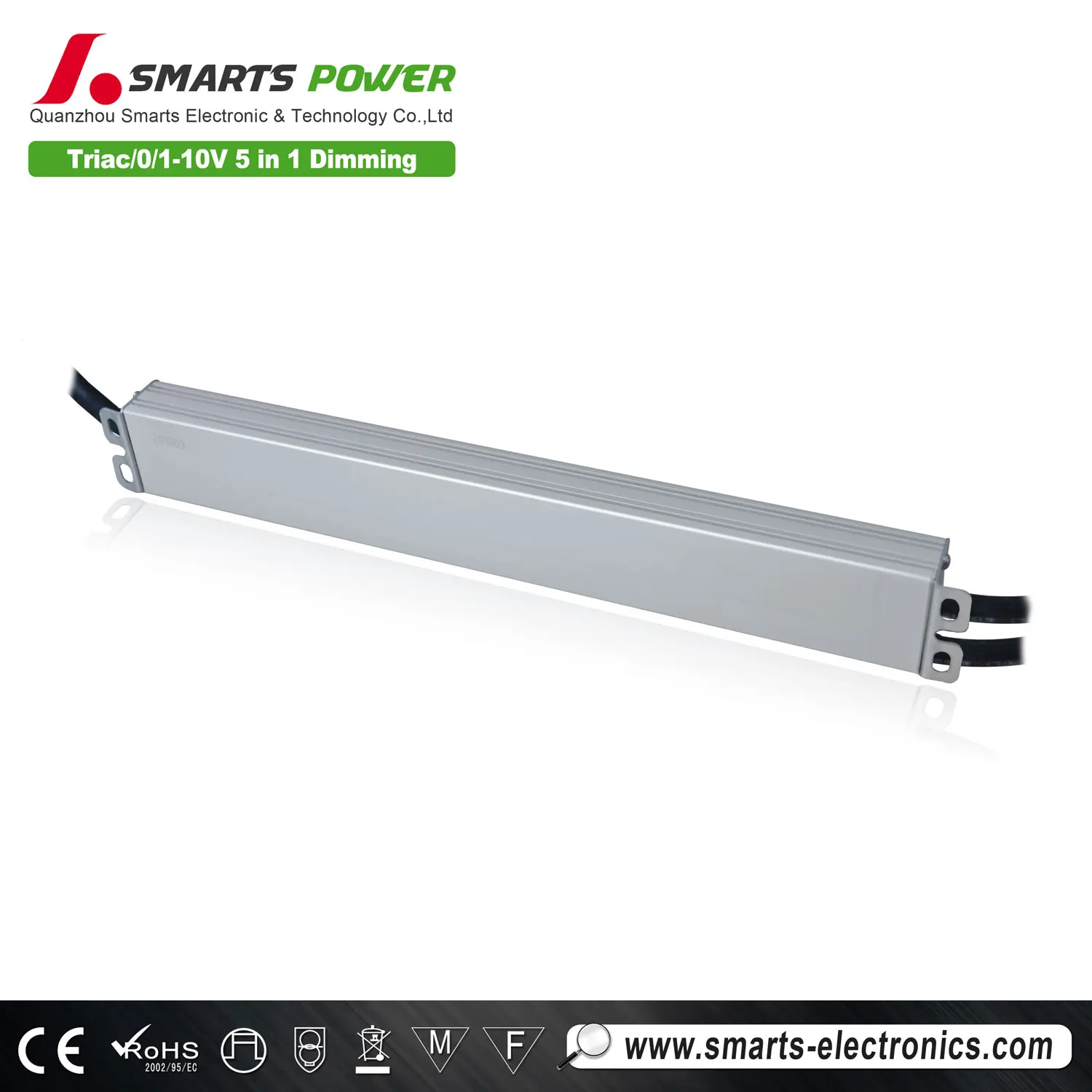

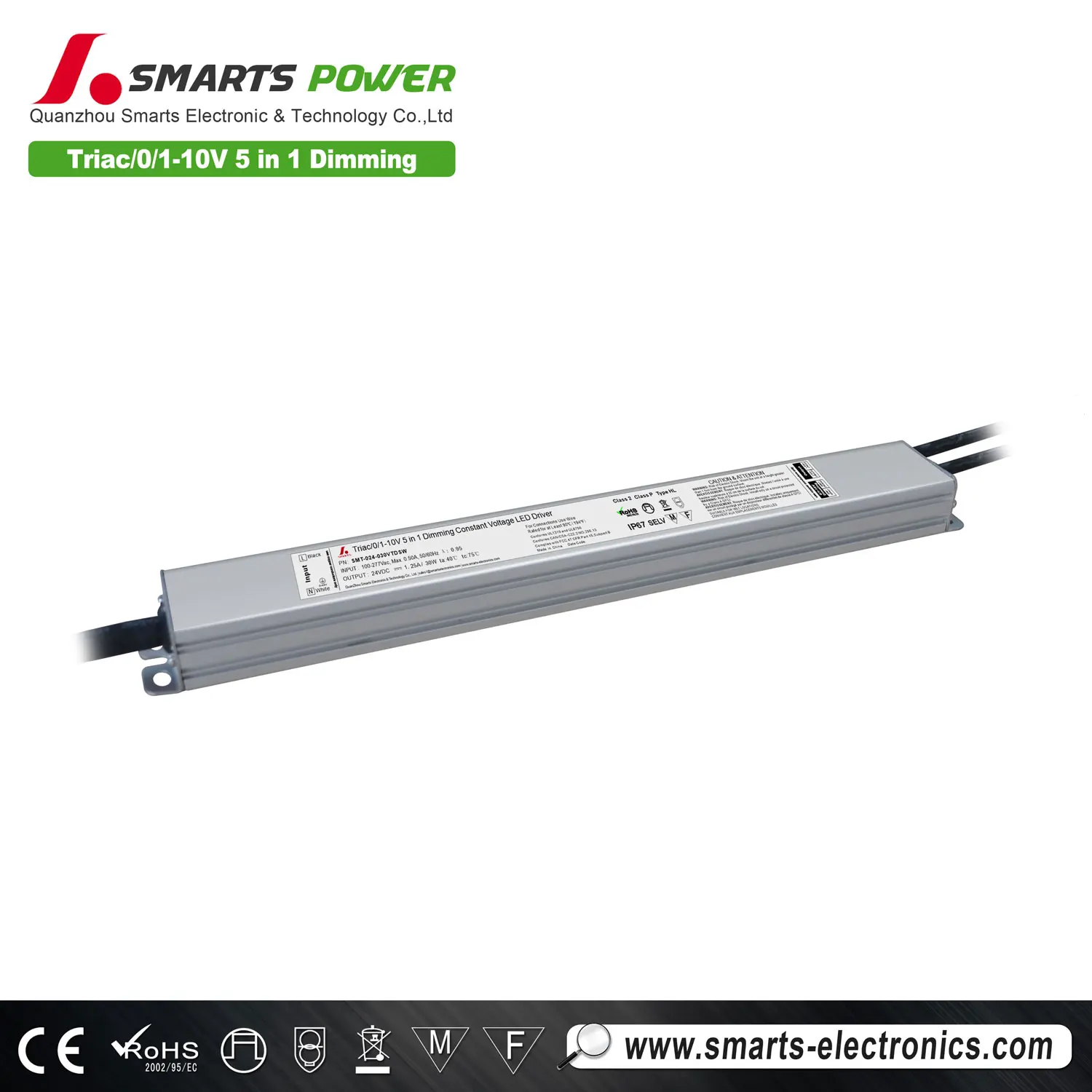

30 watt 36 watt 60 watt 96 watt 150 watt dimming led driver Class P Standard
Product Description
Our dimming led driver with multiple dimming options is 12v 24v from 30watts to 300watts available with isolated circuits and overload protection. This 277vac dimmable led driver is designed to work with any recent standard wall dimmer (Triac or Low voltage Magnetic) and allows you to smoothly dim your LED Strips from 100% to 10% without any noise or flickering.
Features
- Output constant voltage
- Input voltage range: 100-277VAC
- UL/cUL listed, Class 2, Class P, type HL approval
- Built-in PFC function / Efficiency > 83% / PF> 0.99
- Dimming range: 0~100% / load:10~100%
- Protections:short circuit/over voltage/over heat
- IP67 design for indoor dry or damp or wet environment installations
- Cooling by free air convection
- Work with leading edge and trailing edge triac dimmers,MLV and
- Dimming: Reverse phase /trailing edge ,ELV,TRIAC dimmers &
- 0-10V/1-10V/Potentiometer/10V PWM 4 in 1 available
- PWM output, does not change the color index
- Full protection aluminum housing, for dry, damp, wet location
- Strong compatibility, flicker-free dimming
- Suitable for LED lighting and moving sign applications
- Compliance to worldwide safety regulations for lighting
- 7 years warranty
Specifications
model | SMT-012-030VTDSW | SMT-024-030VTDSW | |
Output | DC Voltage | 12VDC | 24VDC |
Voltage Accuracy | ±5% | ±5% | |
Rated current | 2.5Amp | 1.25Amp | |
Rated power | 30W | 30W | |
Voltage Regulation | ±0.5% | ||
Load Regulation | ±1% ±1% | ||
Input | Voltage Range | 100-277 VAC | |
Frequency Range | 47~63HZ | ||
Power Factor ( Typ.) | PF>0.99/110V ; PF>0.98/277V | ||
THD(Typ. ) @ full load | <10%@120VAC <15%@277VAC | ||
Full Load Efficiency(Typ.) | 79%@120VAC 80%@277VAC | ||
AC Current(Typ.) | 0.5A | ||
Inrush Current(Typ.) | 13A | ||
Leakage current | <0.5mA | ||
Protection | Short Circuit | Hiccup mode, recovers automatically after fault condition is removed. | |
Over Loading | ≤120% shut down o/p voltage, re-power on to recover | ||
Over temperature | 100℃±10℃ shut down o/p voltage, automatically recover after cooling. | ||
Environment | Working TEMP. | -40~+60℃ | |
Working Humidity | 20~90%RH,non-condensing | ||
Storage TEM.,Humidity | -40~+80℃,10~95%RH | ||
TEMP.coefficient | ±0.03%/℃(0~50℃) | ||
Vibration | 10~500Hz, 2G 10min./1 cycle,period for 60min. each along X,Y,Z axes | ||
Safety&EMC | Safety standards | UL8750 +UL1310,CAN/CSA-C22.2 No.250.13 | |
Withstand voltage | I/P-O/P:1.88KVac | ||
Isolation resistance | I/P-O/P:100MΩ/500VDC/25℃/70%RH | ||
EMC EMISSION | FCC Part 15 B | ||
EMC IMMUNITY | Compliance to EN61000-4-2,3,4,5,6,,11, , Alight industry level | ||
Others | Weight | 0.35Kg | |
Size | 260*32*20mm(L*W*H) | ||
packing | Carton size: 290*270*160mm 30pcs /CTN | ||
Notes | 1. All parameters NOT specially mentioned are measured at 110VAC, 277VAC input , Rated load and 25℃of ambient temperature. 2. Tolerance:includes set us tolerance,line regulation and load regulation . 3. The power supply is considered as a component that will be operated in combination with final Equipment. Since EMC performance will be affected by the complete installation, the final equipment manufactures must be-qualify EMC Directive on the complete installation again. | ||
Mechanical Specification
Ø Input terminals "Black" and "White" to connect to AC L and N.
Ø Output LED SEC output Positive (LED+) , output negative(LED-). Connected to LED light.
Ø Output terminals DIM (+) to 0/1-10V dimmer signal(+ ),DIM (-) white connect to 0/1-10V dimmer signal (-)
Ø Please DO NOT connect “DIM-“ to “LED-“, “DIM+” to “ LED+” ,or other incorrect connection.
Ø Please make sure your connect these correctly otherwise your product will not function correctly and could be damaged.
Derating Curve
Ø Load carried in accordance with the load derating curve, according to the ambient temperature derating, in order to extend the service life.
Dimming Operation and Connecting Diagram
Ø Using two ways of dimming at the same time, customers should be assured that LED lighting is up to the max. Brightness then you could operate with the other dimming;
Using one dimming ---TRIAC/Phase cut dimming
Ø The Pulse-Width Modulation (PWM) of output voltage can be adjusted through input terminal of the AC phase line(L) by connection a phase /Triac dimmer of lighting system.
Ø Working with forward phase /leading edge ,MLV and Reverse phase /trailing edge ,ELV,TRIAC dimmers
Ø Min loading is about 10%
Ø Please try to use dimmers with power at least 1.5 times as the output power of the driver.
Using one dimming ---0-10/1-10V dimming
