Формовочная машина для свода
- Категория: Other Construction Machinery >>>
- Поставщик: Yingkou,Professional,Roll,Forming,Machine,Co.,Ltd.
Поделиться:
Описание и отзывы
Трекер стоимости
| Месяц | Минимальная цена | Макс. стоимость |
|---|---|---|
| Sep-19-2025 | 32130.37 $* | 33737.39 $* |
| Aug-19-2025 | 31860.92 $* | 33453.78 $* |
| Jul-19-2025 | 26730.72 $* | 28067.60 $* |
| Jun-19-2025 | 31320.78 $* | 32886.45 $* |
| May-19-2025 | 27270.82 $* | 28634.20 $* |
| Apr-19-2025 | 30780.42 $* | 32319.49 $* |
| Mar-19-2025 | 30510.42 $* | 32036.29 $* |
| Feb-19-2025 | 30240.55 $* | 31752.24 $* |
| Jan-19-2025 | 29970.48 $* | 31469.74 $* |
Характеристики
Product Description

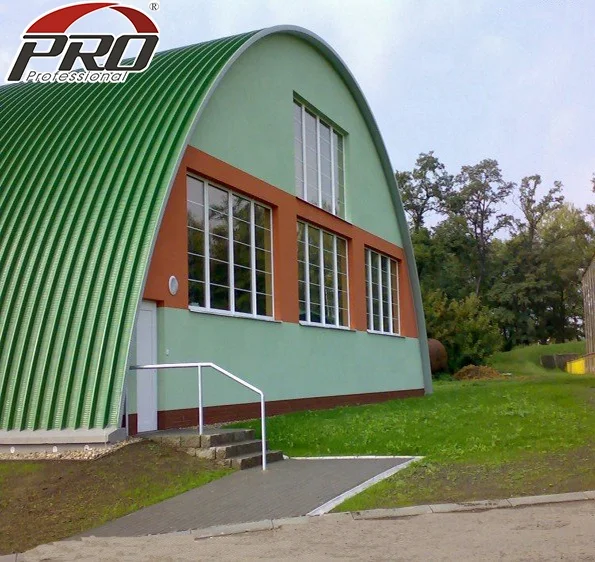

Arch Building Roof Roll Forming Machine
Technical Parameter of PRO-1000-680 | ||||||
Dimension | 11690mm X 2230mm X 2300mm (Double axles & 8 tires) | |||||
Total Weight | About 10 Ton | |||||
Bending Leaf | 10mm thickness, processed by CNC | |||||
Cutting blade | 12CrMoV material, Heat treatment | |||||
Cutting type | Mechanical Cutting | |||||
Forming type | Roll-formed and length-set cutting | |||||
Roller Material | 45# high-quality steel, quenched HRC 55~65, hard chrome plating | |||||
Shaft Material | 45# high-quality steel, galvanized | |||||
Bearing | Made in Harbin | |||||
Stand of molding | 13+1 | |||||
Suitable Span | 6~38m | |||||
De-coiler | Inner-diameter of coil : 450mm ~ 650mm | |||||
Max width of coil : 1000mm ~ 1020mm | ||||||
Load | 10Ton | |||||
Detailed Images
There is brake system on de-coiler, if the machine stop suddenly, the de-coiler can be stopped accordingly.

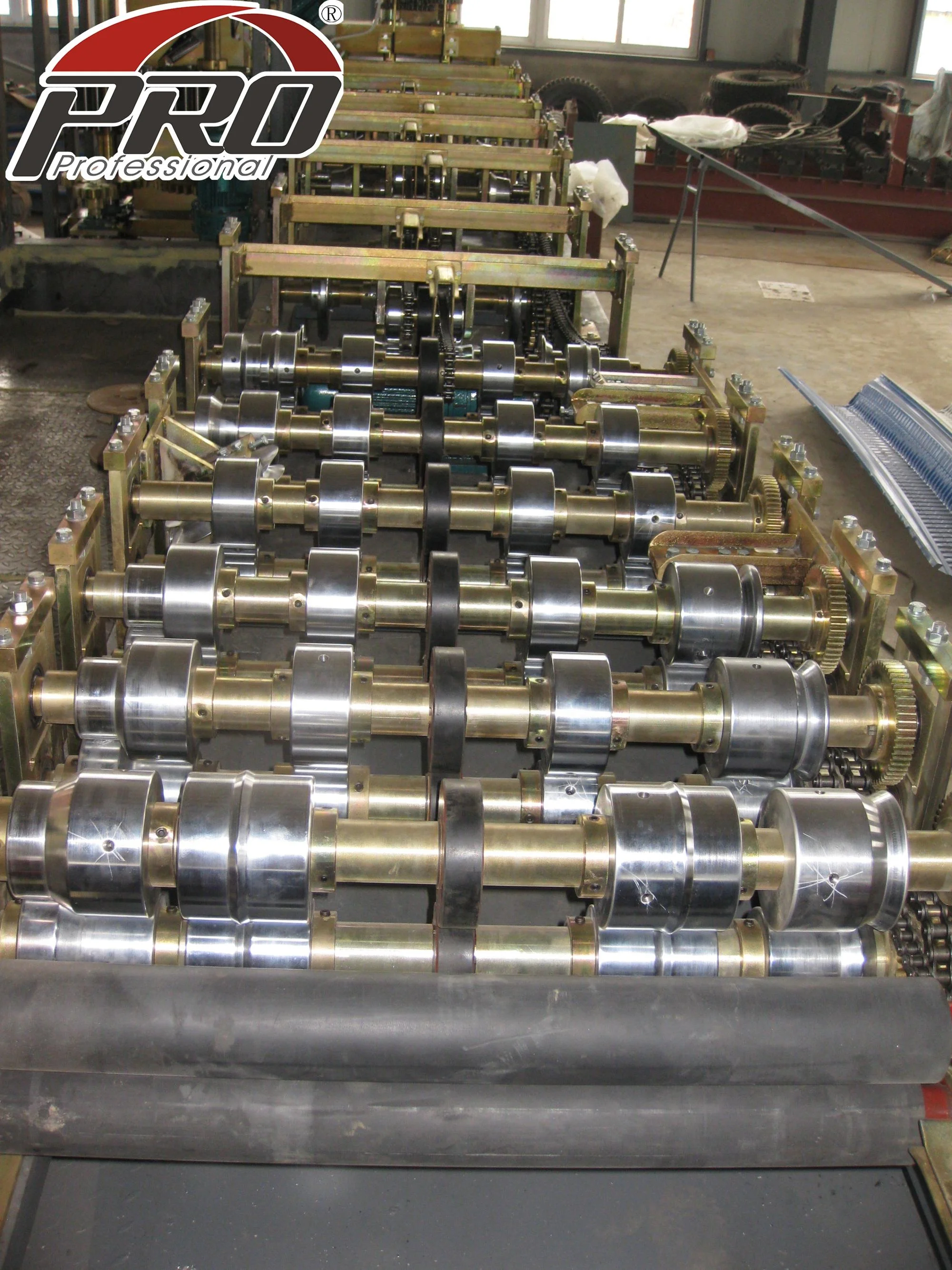

Arch roof machine includes 20 more wider rollers than
other supplier’s machine, which can make the
appearance of finished arch more beautiful.
Arch roof machine’s rollers and shafts are connected with pin inside and screw outside, and with reinforcing
design on both sides of rollers, which can fix the rollers
and shafts tightly without deformation.

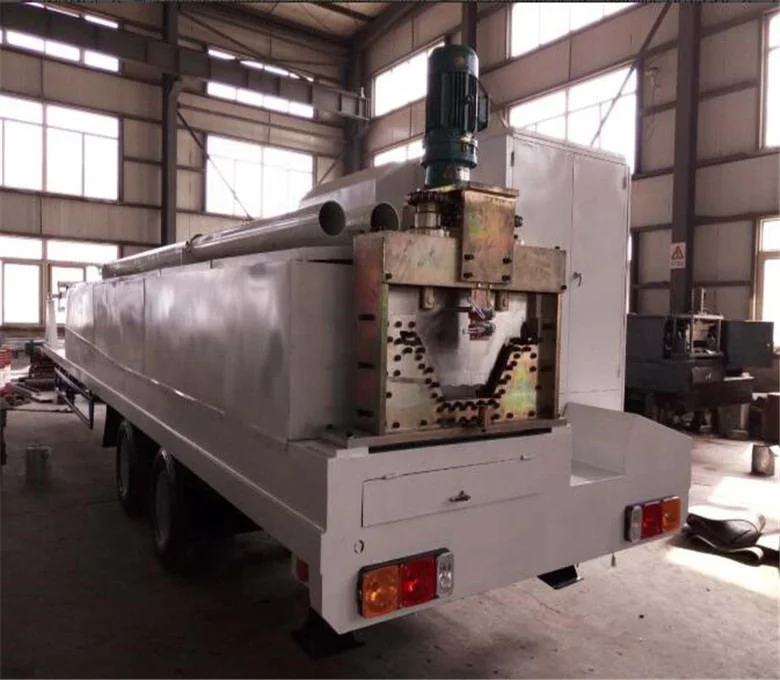

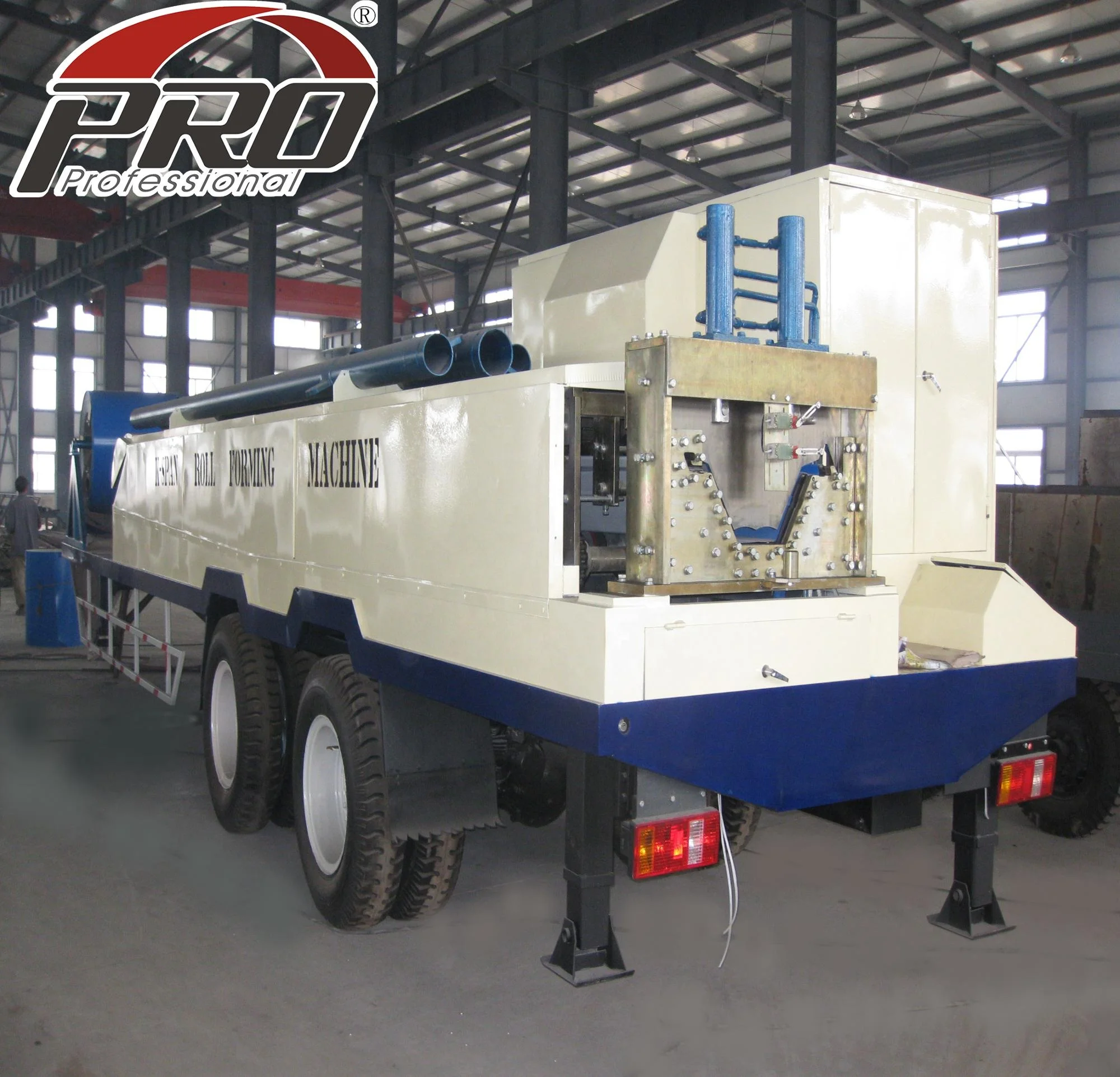

Adopt car rear axle as the axle of machine, with size of
825-16 tires, can load more and has better impact
resistance and damping effect.

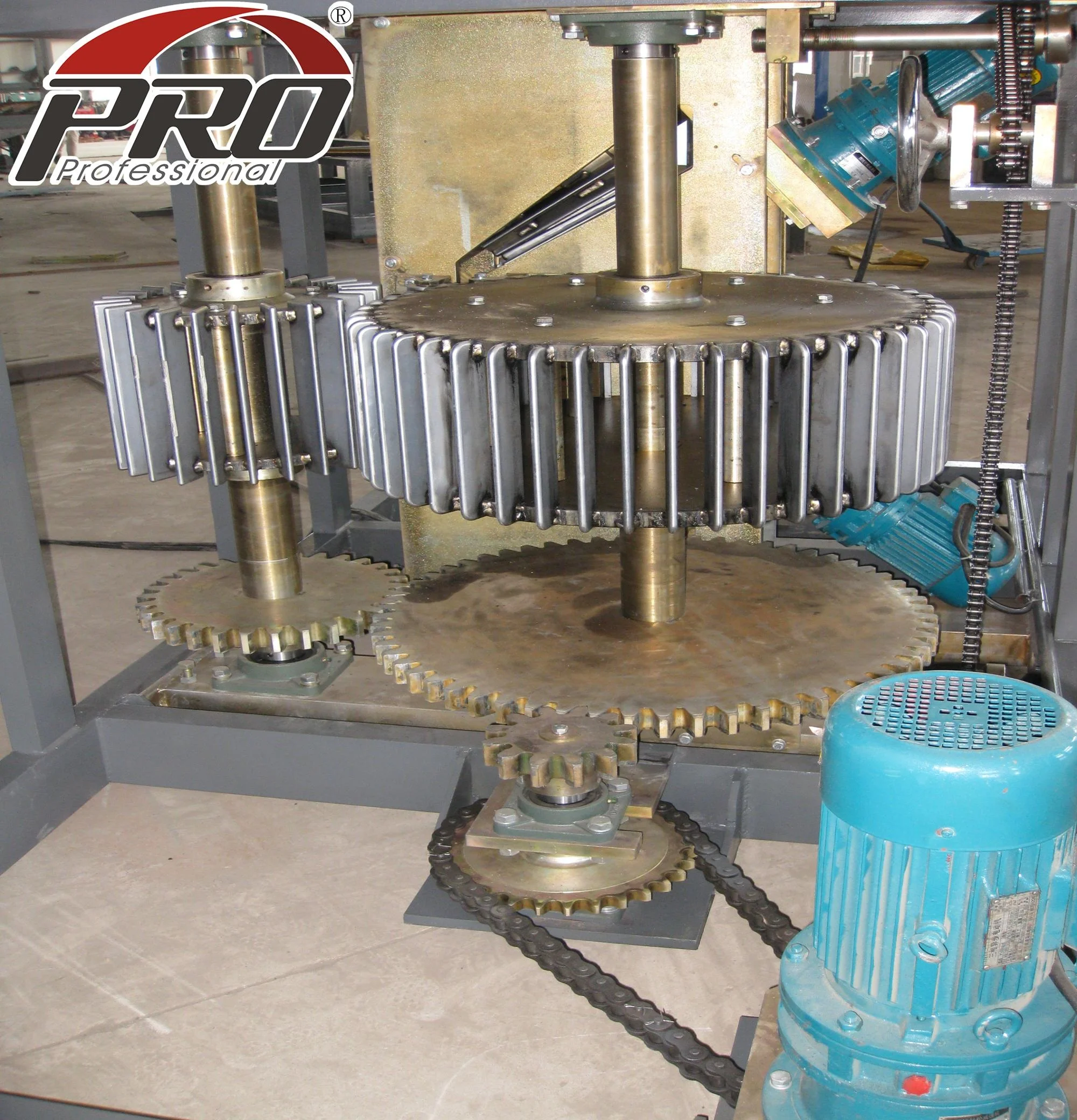

10mm thickness smooth impeller, produced by CNC machining center.
Cutting material: Cr12 MoV, best and sharpest cutting material
Chassis : Raw material is from CHINA An Steel Factory. One whole steel bar without any joint can keep mobile machine without deformation.
The thickness of side plate is 20mm.

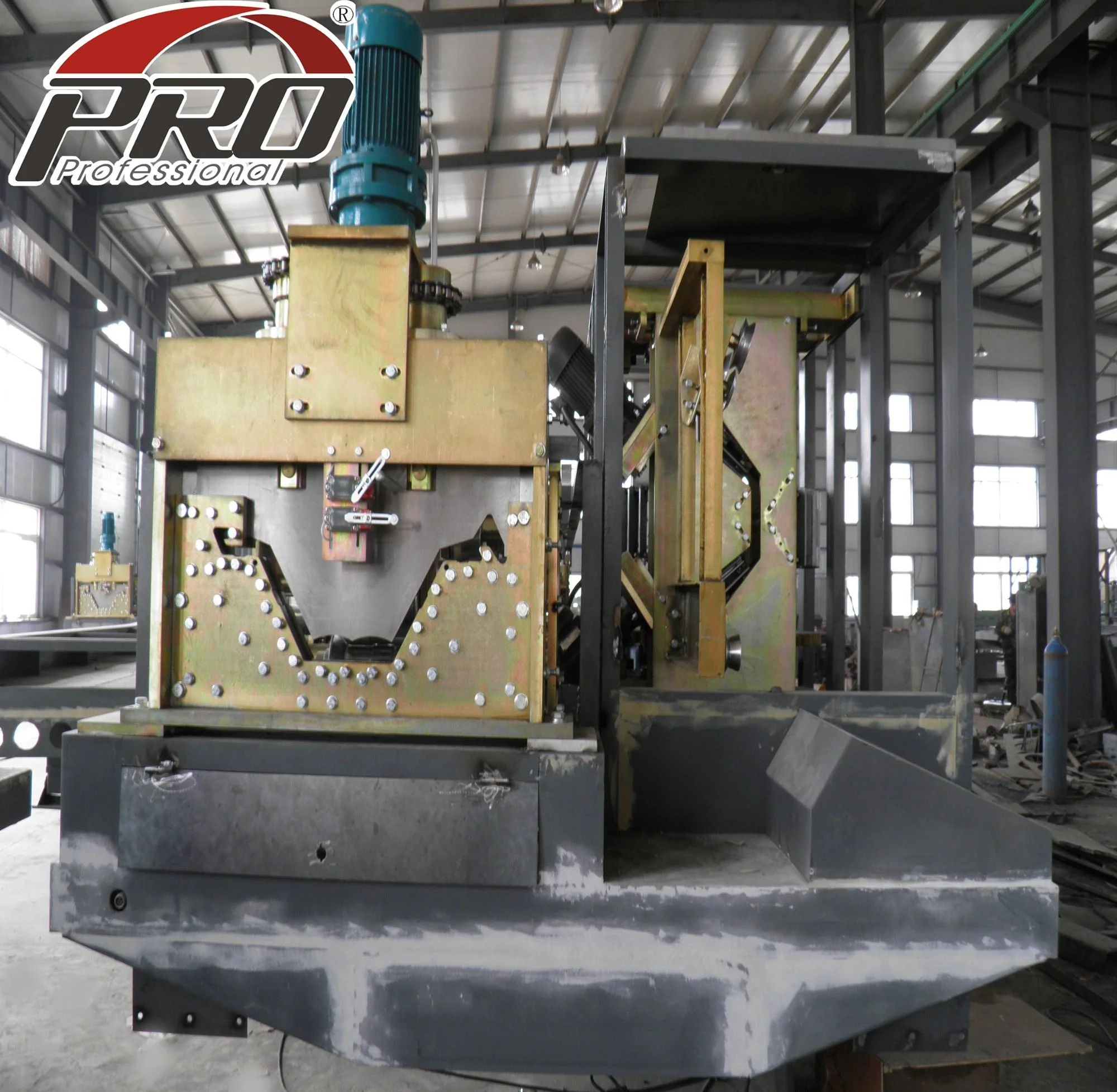

There is hand wheel with scale in bending part, for span height adjustment.
Accessories of BH-1000-680:(FOR FREE) | ||||||
Name | Amount | Usage | ||||
Manual De-coiler | 1 | Coil support & De-coil | ||||
Seaming machine | 2 | Assemble the finished arches | ||||
Run out table | 20 | Sheet support | ||||
Leg of run out table | 19 | Support run out table | ||||
Small leg of run out table | 48 | Adjust the height of run out table | ||||
Fastening screw for leg | 58 | Fastening leg | ||||
Side support | 10 | Sheet support | ||||
Suspender | 3 | Lifting | ||||
Pin of suspender | 2 | Connect the suspender | ||||
Hanger | 8 | Lifting | ||||
Clamp | 4 | Bite finished arches | ||||
Bearing（208#） | 4 | Drive the rollers | ||||
Driving chain | 3（run) | Roll the gears | ||||
Chain link | 3 | Link the chain | ||||
Half section | 3 | Link the chain | ||||
Super plier | 1 | Bite finished arches | ||||
Metal scissor | 1 | For cutting | ||||
Wrench | 1 | For set screw | ||||
Crank handle | 2 | Adjust height of landing leg | ||||
Travel switch | 1(suit) | Measure length for cut-to-length | ||||
VCD | 1 | Showing how to operate the machine Showing how to make project | ||||
Our Company
YingKou Professional Roll Forming Machine Co., Ltd. main products are:Steel-drum production line,steel drum,PRO-240/PRO-120 Arch sheet roll forming machine,Multi-shape Building Machine,Screw-jointed Equipment,Arch Sheet Project,
MSBM Project,Screw-jointed Project,KR Series Roll Forming Machine,Glazed tile Roll Forming Machine,Double Layer
Roll Forming Machine,840 Corrugated Sheet Roll Forming Machine,Corrugated Roof Sheet Forming Machine,
Concealed Roof Sheet Forming Machine,Steel Decking Roll Forming Machine,C/Z/U/M Machine,Lifting Machine,
Unlimited Length Ridge Tile Forming Machine,Sheering Machine,Window and Door Taping machine,
Flat Sheet Bending Machine,Pipe Bender Machine,Bending Machine,Slitting Machine,Slitting Line,
SM-40 Spiral Steel Silo Forming Machine,PU Spray and Perfusion Equipment,Colored Steel Sheet Coils,etc.
Our Service
Pre-Sales Service
* Support inquiry and consult.
* Design machine you want.
* View our Factory.
* Provide the technical support.
During the Production
* We will send photo of making machine process detail every once in a while.
After-Sales Service
* Training how to use machine.
* Training how to make project.
* Engineers available to service machinery overseas.
FAQ
Q: Can you make the machine according to my design or photo type? A: Yes, we have an experienced team for working out the most suitable design and production plan for the machine according to your demand or photo type that you are going to book with us. | ||||||
Q: Are you a factory or trading company? A: We are a factory located in YingKou city, LiaoNing Province, China. Our city is near Beijing. All clients from abroad and home are warmly welcome to visit our factory! | ||||||
Q: How do you guarantee the quality of the products? A: Every section of our production has strict manufacture process, than professional inspectors check every section of the production, next the production will work for testing quality, which must be 100% quality assurance. Unqualified resolute don't a better factory. | ||||||
Q: What is your service? A: We provide the technical support for whole life. Pre-sales service includes inquiry and design support and view our factory. After-sales service includes training how to instal the machine, training how to use the machine, and engineers available to service machinery overseas. | ||||||
