150 ватт 280-4200mA 2A 3A 4A 18 ~ 54Vdc 24V 30V 45V Вт 36В тормозной Inventronics EUM-150S420DG светодиодный
- Категория: Светодиодный драйвер >>>
- Поставщик: Hangzhou,Moonlight,Box,Technology,Co.,Ltd.
Поделиться:
Описание и отзывы
Трекер стоимости
| Месяц | Минимальная цена | Макс. стоимость |
|---|---|---|
| Sep-19-2025 | 21.40 $* | 22.23 $* |
| Aug-19-2025 | 21.45 $* | 22.66 $* |
| Jul-19-2025 | 18.33 $* | 19.35 $* |
| Jun-19-2025 | 21.55 $* | 22.82 $* |
| May-19-2025 | 18.48 $* | 19.16 $* |
| Apr-19-2025 | 21.37 $* | 22.69 $* |
| Mar-19-2025 | 20.6 $* | 21.60 $* |
| Feb-19-2025 | 20.16 $* | 21.48 $* |
| Jan-19-2025 | 20.34 $* | 21.99 $* |
Характеристики

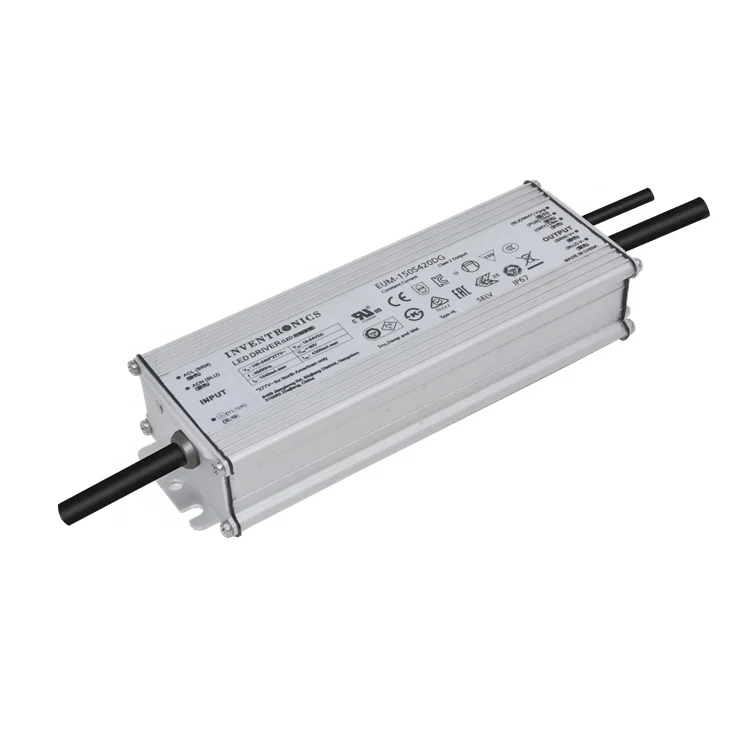

150Watt 280-4200mA 2A 3A 4A 18~54Vdc 24V 30V 45V 150W 36V Inventronics EUM-150S420DG LED Driver
Features:
• Compact Metal Case with Excellent Thermal Performance
• Full Power at Wide Output Current Range (Constant Power)
• Adjustable Output Current (AOC) with Programmability
• Isolated 1-5V/1-10V/10V PWM/3-Timer-Modes Dimmable
• Output Lumen Compensation
• Input Surge Protection: DM 6kV, CM 10kV
• All-Around Protection: OVP, SCP, OTP
• Waterproof (IP66 / IP67) and U* Dry / Damp / Wet Location
• SELV Output
• TYPE HL, for use in a Class I, Division 2 hazardous (Classified) location
• 5 Years Warranty
Description:
The EUM-150SxxxDG series is a 150W, constant-current, programmable IP67 LED driver that operates from 90-305Vac input with excellent power factor. It is created for many lighting applications including high bay, high mast and roadway, etc. The high efficiency of these drivers and compact metal case enables them to run cooler, significantly improving reliability and extending product life. To ensure trouble-free operation, protection is provided against input surge, output over voltage, short circuit, and over temperature.
Models:
| Adjustable Output Current Range | Full-Power Constant Current Range (1) | Default Output Current | Input Voltage Range(2) | Output Voltage Range | Max. Output Power | Typical Efficiency(3) | Power Factor | Model Number(3) | |
| 120 Vac | 220 Vac | ||||||||
| 70-1050mA | 700-1050mA | 700mA | 90 ~ 305 Vac/ 127 ~ 431Vdc | 72 ~ 214Vdc | 150W | 93% | 0.99 | 0.96 | EUM-150S105DG |
| 105-1500mA | 1050-1500mA | 1050mA | 50 ~ 143Vdc | 93.5% | EUM-150S150DG | ||||
| 140-2100mA | 1400-2100mA | 1400mA | 36 ~ 107Vdc | 92% | EUM-150S210DG | ||||
| 280-4200mA | 2800-4200mA | 3150mA | 18 ~ 54Vdc | 91.5% | EUM-150S420DG | ||||
Notes: (1) Output current range with constant power at 150W
(2) Certified input voltage range: U*, FCC 100-277Vac; otherwise 100-240Vac.
(3) Measured at 100% load and 220Vac input (see below “General Specifications” for details).
(4) SELV Output.
(5) To order BIS approved model, please use suffix “DB” in place of “DG” (ex: EUM-150S105DB).
More EUM Models:
More 150W Driver Models:
See What Other Customers Say About Chela's Service:
FAQ
1. What is the warranty of the driver?
-- It's 7 years warranty
2 .What is MOQ of the led driver?
--1pcs
3.Can we get samples for testing?
-- Yes,sample order welcomed.
4.What is delivery of the sample and bulk order?
-- 7working days for samples, 15-25days for the bulk order after receiving payment.
5.What is the payment?
--Paypal,T/T in advance,LC,western Union,visa,credit card,MoneyGram,30% deposit,70% against documents.
USD, EURO are acceptable here.
6.How to delvery the samples and bulk order goods?
-- By DHL,UPS,FedEX,TNT,EMS for samples,
-- By air or by sea for bulk order
Delivery way:
(For more details, please contact Chela Chen for the datasheet.)
EUC-035SxxxDT(ST) EUC-036SxxxDT(ST) EUC-052SxxxDT(ST) EUC-075SxxxDT(ST) EUC-085SxxxDT(ST)
EUC-052SxxxDV(SV) EUC-060SxxxSVM EUC-060SxxxSTM EUC-075SxxxDV(SV) EUC-085SxxxDV(SV)
EUC-100SxxxDT(ST) EUC-120SxxxDT(ST) EUC-150SxxxDTA(STA) EUC-200SxxxDT(ST) EUC-320SxxxDT(ST)
EUC-100SxxxDV(SV) EUC-120SxxxDV(SV) EUC-150SxxxDVA(SVA) EUC-200SxxxDV(SV) EUC-320SxxxDV(SV)
