Постоянный ток переменного тока Es Ce Ul Cul 6 Вт 700 мА 3-12 в класс 2 светодиодный
- Категория: Светодиодный драйвер >>>
- Поставщик: Ever,Shining,Optotech,Co.,Ltd.
Поделиться:
Описание и отзывы
Трекер стоимости
| Месяц | Минимальная цена | Макс. стоимость |
|---|---|---|
| Sep-17-2025 | 2.5 $* | 2.56 $* |
| Aug-17-2025 | 2.8 $* | 2.43 $* |
| Jul-17-2025 | 2.81 $* | 2.23 $* |
| Jun-17-2025 | 2.86 $* | 2.25 $* |
| May-17-2025 | 2.88 $* | 2.71 $* |
| Apr-17-2025 | 2.13 $* | 2.38 $* |
| Mar-17-2025 | 2.70 $* | 2.97 $* |
| Feb-17-2025 | 2.72 $* | 2.52 $* |
| Jan-17-2025 | 2.15 $* | 2.4 $* |
Характеристики
Products Description
Model No. | LD-CU7012-01 | |
INPUT | Voltage Frequency Range | 100-240VAC 50HZ/60HZ |
AC Current(Max) | 0.22A at 115Vac/0.085A at 230Vac | |
POwer Factor | >0.48 at 115Vac/>0.4 at 230Vac with full load | |
Inrush Current(Max) | 21A/240vac | |
Leakage Current | <1m /240Vac | |
OUTPUT | DC Voltage Range | 3-12V(VF=8.5V) |
Constant Current Range | 700mA max | |
Rated Max Power | 6W | |
Ripple & Noise(Max.) Note.2 | 3.6Vp-p | |
Efficiency note 1 | 59% |

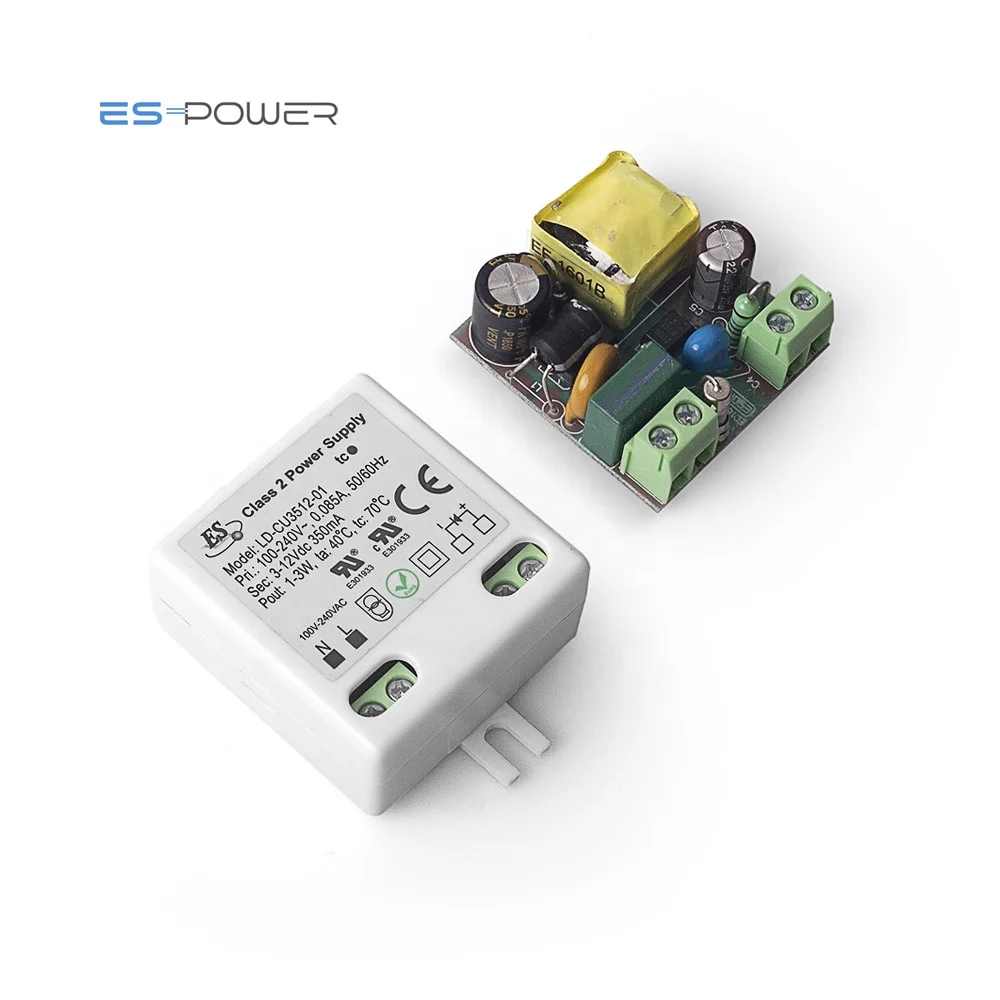

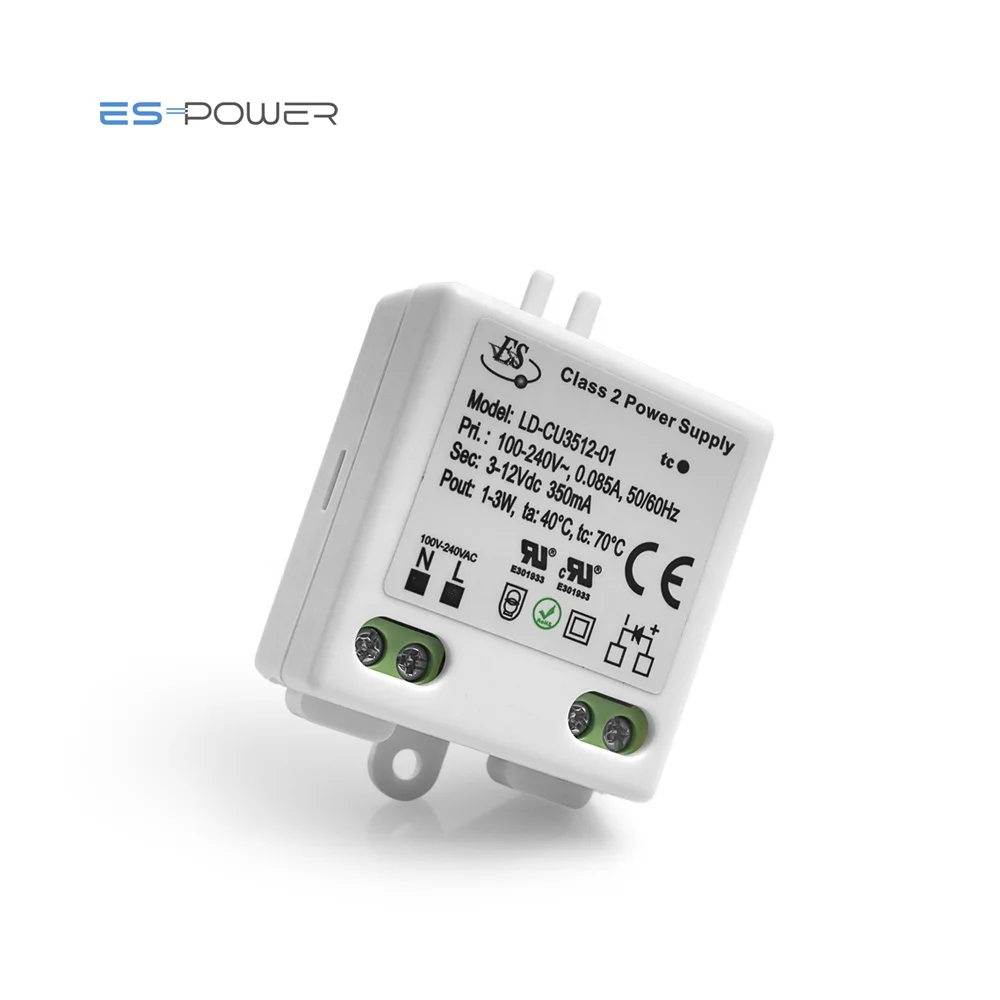

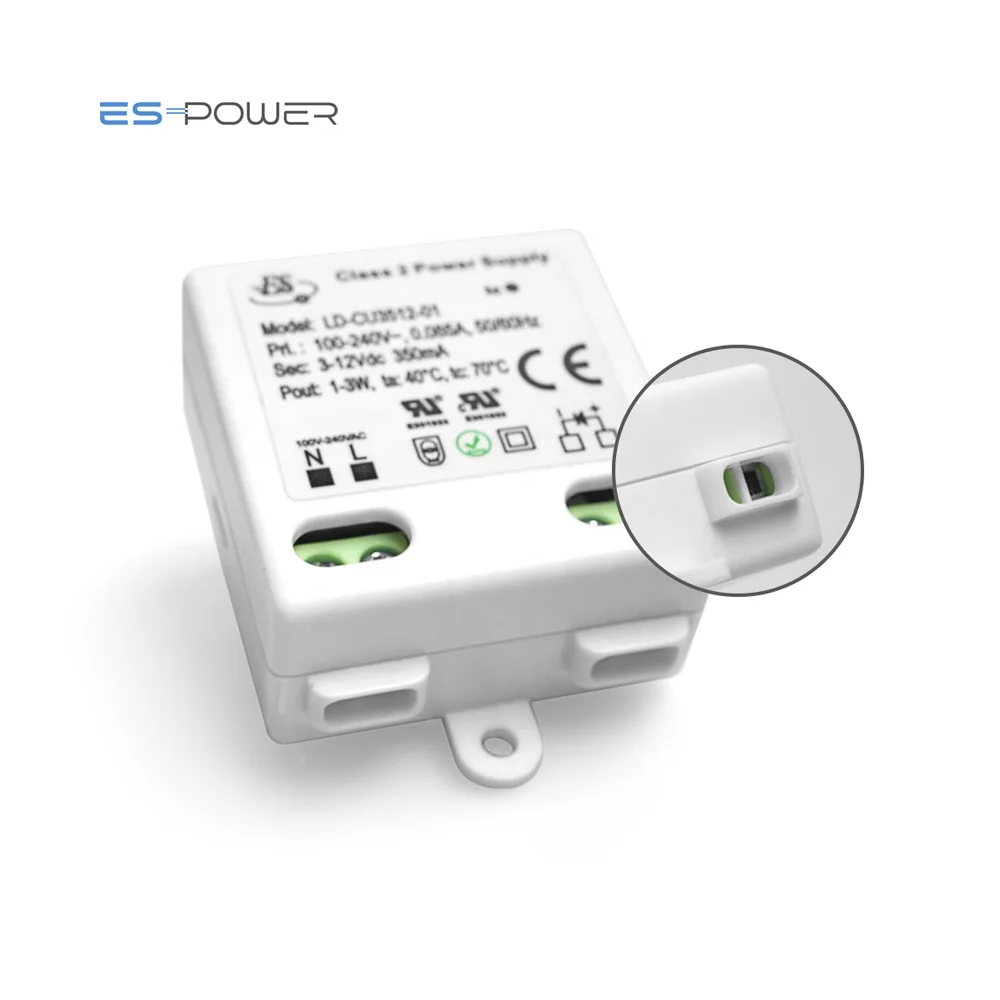

The 01 series is one 3-9W AC-DC Constant Current mode single output LED driver power supply. It accepts the full range input 100-240VAC and provides 2 models with different output voltage,3-12V,that led applications employ the most frequently. Also exploiting Class 2 power supply design and adopting plastic case. The IP65 waterproof level allows this series drivers to fit both indoor and outdoor LED light applications.
Meanwhile,We also providing non dimming and DALI dimming optional with the similar housing from 100W,200W,300W,400W,600W to meet worldwide market demands. Please look at below table,, Please directly conatct us if you have any question or inquiry.
Our Advantages
1. ODM and OEM service are available.
2. We supplying LED DRIVER power supply from 1W to 600W , Both constant current and constant voltage mode, including Non Dimming and TRIAC/ELV Dimming led driver, 0/1-10V Dimmable led drivers , DALI Dimming led driver,etc.
3.Quality Assurance, Passed UL CUL CE FCC TUV CCC KC CB SAA Certification;
3 years-5 years warranty ;
4.On Time Delivery, 1 weeks For Samples; And 3-4 Weeks For Bulk Orders;
Contact Us For Discount Information
1. ODM and OEM service are available.
2. We supplying LED DRIVER power supply from 1W to 600W , Both constant current and constant voltage mode, including Non Dimming and TRIAC/ELV Dimming led driver, 0/1-10V Dimmable led drivers , DALI Dimming led driver,etc.
3.Quality Assurance, Passed UL CUL CE FCC TUV CCC KC CB SAA Certification;
3 years-5 years warranty ;
4.On Time Delivery, 1 weeks For Samples; And 3-4 Weeks For Bulk Orders;
Contact Us For Discount Information
More Product
Company Profile
Certifications
Product Process

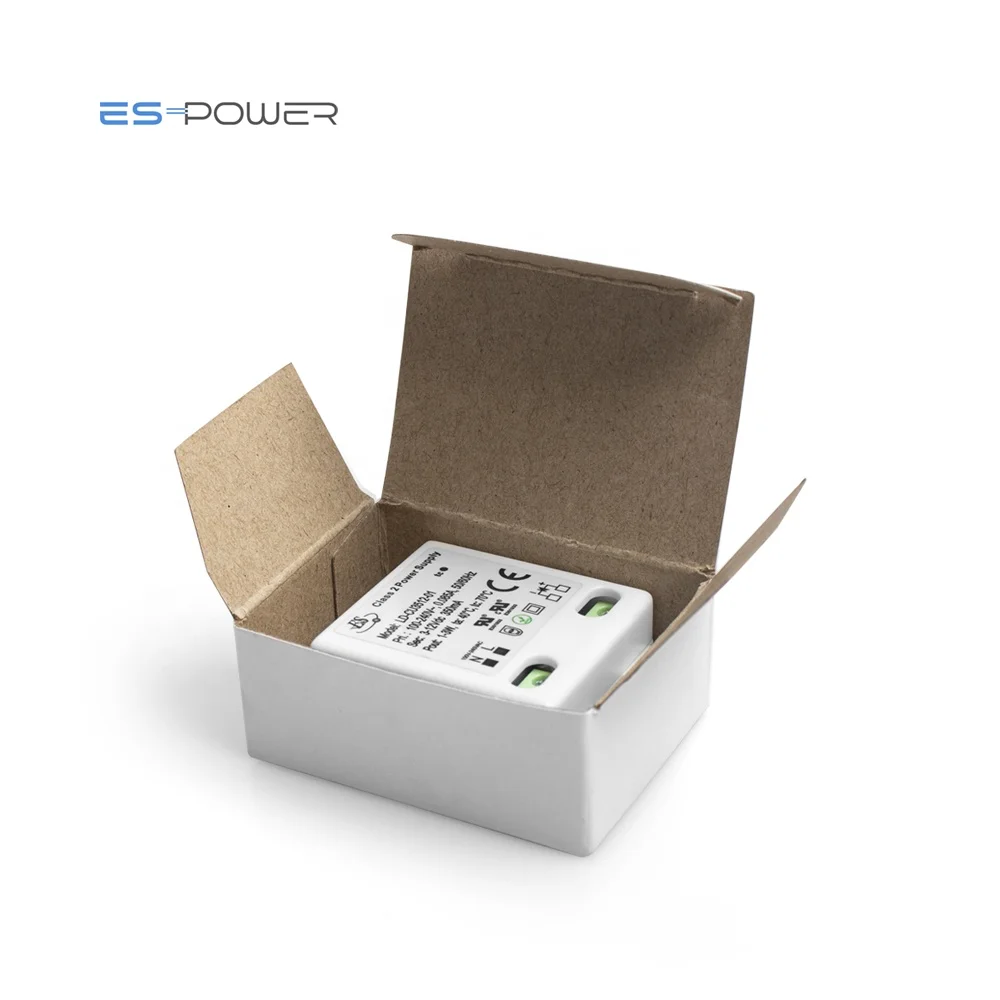

Product packaging
FAQ
Q1: What is your MOQ of LED Driver ?
A : MOQ 100pcs
Q2: How many years warranty of your LED Driver ?
A: 3~5 years warranty
Q3: What is your standard lead time ?
A: 3 days for samples and 2~3 weeks for mass production
Q4: Do you have any certifications of your LED Driver ?
A: We have obtained UL/ cUL/ CE/FCC /TUV/CCC/KC/CB/SAA certificates to meet different martket requirements
Q5: Do you have LED Driver factory?
A:Yes ,We are OEM&ODM manufacturer in Dongguan and headquarter in Taiwan
A : MOQ 100pcs
Q2: How many years warranty of your LED Driver ?
A: 3~5 years warranty
Q3: What is your standard lead time ?
A: 3 days for samples and 2~3 weeks for mass production
Q4: Do you have any certifications of your LED Driver ?
A: We have obtained UL/ cUL/ CE/FCC /TUV/CCC/KC/CB/SAA certificates to meet different martket requirements
Q5: Do you have LED Driver factory?
A:Yes ,We are OEM&ODM manufacturer in Dongguan and headquarter in Taiwan
