Лучшая цена пользовательский гидравлический листогибочный станок
- Категория: Оборудование для обработки металлических листов >>>
- Поставщик: Maanshan,Middle,Asia,Machine,Tools,Manufacture,Co.,Ltd.
Поделиться:
Описание и отзывы
Трекер стоимости
| Месяц | Минимальная цена | Макс. стоимость |
|---|---|---|
| Sep-17-2025 | 0.78 $* | 0.18 $* |
| Aug-17-2025 | 0.23 $* | 0.66 $* |
| Jul-17-2025 | 0.8 $* | 0.67 $* |
| Jun-17-2025 | 0.65 $* | 0.86 $* |
| May-17-2025 | 0.97 $* | 0.16 $* |
| Apr-17-2025 | 0.26 $* | 0.45 $* |
| Mar-17-2025 | 0.67 $* | 0.96 $* |
| Feb-17-2025 | 0.97 $* | 0.95 $* |
| Jan-17-2025 | 0.32 $* | 0.30 $* |
Характеристики

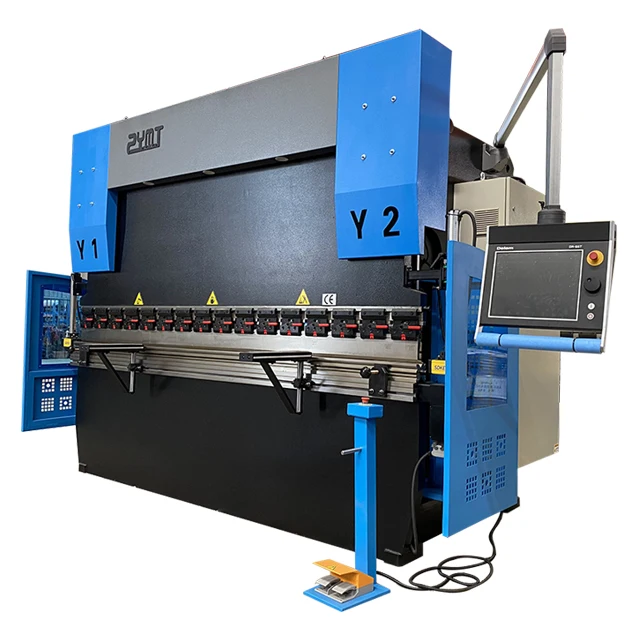

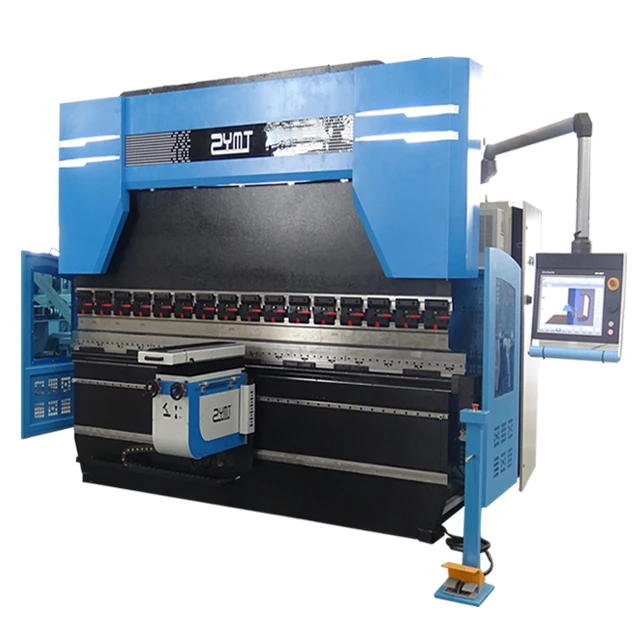

Best Price Custom 100T Hydraulic Press Brake Machine
The ZYB-Hybrid Servo System- improving energy efficiency of up to 75 % compared to conventional hydraulic systems is an innovative servo drive for 8 Axis 100T Hydraulic Press Brake Machine, and thanks to the brushless servo motor.we can precisely control the movement of the slider ram using a minimumamount of oil and energy.
New generation ZYB 8-Axis 100T Hydraulic Press Brake Machine Europro is ZYMT’s general
level press brake with market oriented execution. These high quality European
built press brakes feature 2d multi touch graphical control. ZYB-100T Hydraulic Press Brake Machine
offer the best price to performance value for your fabrication needs.
The ZYB-100T Hydraulic Press Brake Machine Body and upper beam made of steel constructions,has been
designed according minimum stretch and optimum resistance criteria, as the
manufacture of precision CNC machining center is a single operation.
Standard Equipments & Options
√ CNC Axis Control : 3+1 (Y1-Y2-X+V ) 4+1 (Y1 -Y2- X-R + V ) & 6+1 (Y1-Y2-X-R-Z1-Z2+V)
8+1 ( Y1-Y2-X1-X2-R1-R2+V)
√ Hydraulic Valve: BOSH-Rexroth
√ Oil Pump: BOSH-Rexroth
√ Oil Cylinder: CHINA famous brand
√ Main Motor: Estun Servo Motor & Siemens Normal Motor;
√ Linear Encoder: Fagor & Heidenhain
√ Crowning: Motorized Crowning & Hydraulic Cylinders & Manual
√ Pedal Switch: CHINA famou brand
√ Electrics: Schneider
√ Clamps: WILA Hydraulic Clamping & KMechanical fast Clamp
√ Ball Screw Rod: TAIWAN HIWIN
√ Linear Guide: TAIWAN HIWIN
√ Front Support: Support with Dual Linear Guide & Following Supports Systems
√ Tooling: WILA Tooling & China Famous Brand tooling & Customized
√ Backgauge Motor: Estun Servo Motor
√ Finger Amount: 2/3/4/6 & Customized
√ Front | Back Safe Protection: DSP Laser & Light Curtain Protection
√ Metal Protection: Rear & Back
√ Controller: Delem DA69T & DA66T & DA56S & DA52S & ESA -S540 & Customized
Strict Quality Control for Press Brake
Real Powerful Manufacturer & Many Of Body Frame For Press Brake
Shipment For Orders
Customer Cases for Press Brake
