UL наивысшей мощности 12v 24v 36 вольт 48v 100W 200 W 300W 400 Вт постоянное напряжение IP67 светодиодный драйвер ватт 0/1-10v затемнения источник
- Категория: >>>
- Поставщик: Ever,Shining,Optotech,Co.,Ltd.
Поделиться:
Описание и отзывы
Трекер стоимости
| Месяц | Минимальная цена | Макс. стоимость |
|---|---|---|
| Aug-17-2025 | 42.45 $* | 43.43 $* |
| Jul-17-2025 | 34.72 $* | 35.95 $* |
| Jun-17-2025 | 41.70 $* | 42.74 $* |
| May-17-2025 | 41.92 $* | 42.40 $* |
| Apr-17-2025 | 33.40 $* | 34.26 $* |
| Mar-17-2025 | 40.51 $* | 41.67 $* |
| Feb-17-2025 | 40.39 $* | 41.30 $* |
| Jan-17-2025 | 40.22 $* | 41.88 $* |
Характеристики
Products Description
Model No. | LD200H-VU83024-72D | |
output | DC Voltage | 24V |
Rated Current | 8.3A | |
Current Range | 0~8.3A | |
Rated Power | 200W | |
Ripple & Noise(Max.) Note.2 | 350mVp-p | |
Efficiency at 230VAC(Typ.) | 93% | |
Voltage Tolerance Note.3 | ±5% | |
PWM Dimming (optional) | > 1600 Hz (for dimmable version) | |
Voltage Tolerance Note.3 | 0.5s / 230VAC, 1s / 115VAC, at full load. | |
Input | Rated Voltage Note.4 | 100 ~ 277VAC |
Voltage Range | 90 ~ 305VAC | |
Frequency Range | 47-63Hz | |
AC Current(Max) | 2.5A at 115VAC / 1.2A at 230VAC | |
Power Factor | >0.98 at 115VAC / >0.94 at 230VAC at full load. PF 0.9 at 70% load | |
Total Harmonic Distortion | THD < 15% at 230VAC, full load Note 9. | |
Inrush Current(Max) | Cold Start 70A at 230VAC | |
Leakage Current | <1mA / 240Vac |

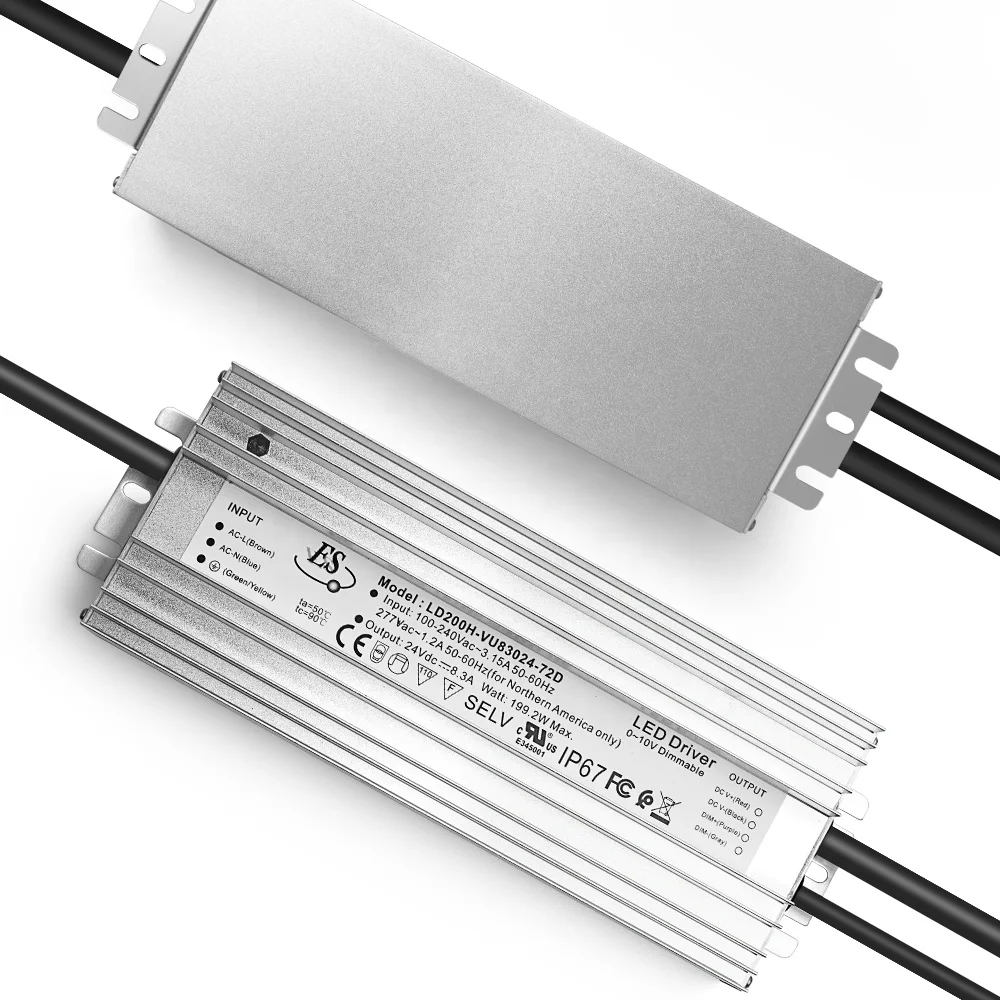

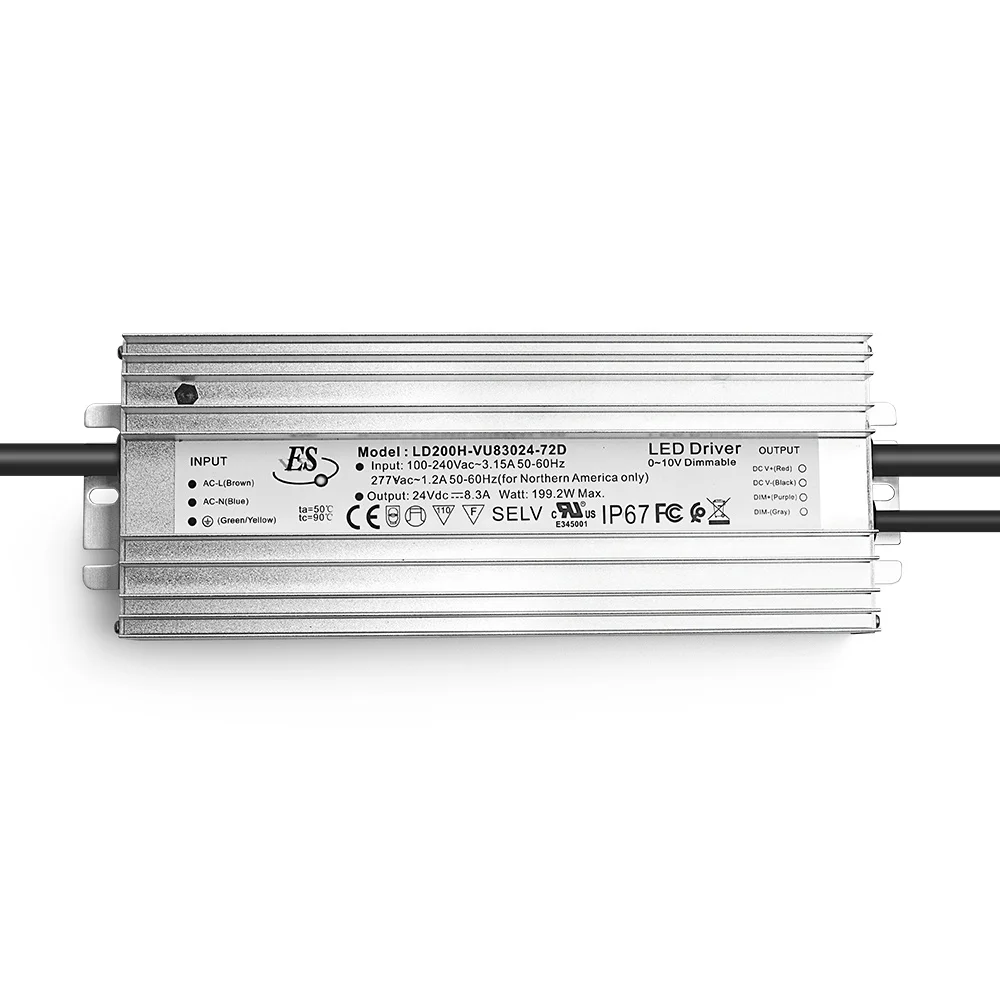

The 72D series is one 200W AC-DC Constant Voltage mode single output LED driver power supply with 3 in one (resistance, 0/1-10V,10V PWM) dimming. It accepts the universal/full range input 100-277VAC （up to 305Vac）and provides 4 models with different output voltage,12V,24V,36V,48Vdc,that led applications employ the most frequently. Also adopting aluminum casing. The IP67 waterproof level allows this series drivers to fit both indoor and outdoor LED light applications.
Meanwhile, We also providing non dimming and DALI dimming optional with the similar housing from 100W,200W,300W,400W,600W to meet worldwide market demands. Please look at below table.
Our Advantages
1. ODM and OEM service are available.
2. We supplying LED DRIVER power supply from 1W to 600W , Both constant current and constant voltage mode, including Non Dimming and TRIAC/ELV Dimming led driver, 0/1-10V Dimmable led drivers , DALI Dimming led driver,etc.
3.Quality Assurance, Passed UL CUL CE FCC TUV CCC KC CB SAA Certification;
3 years-5 years warranty ;
4.On Time Delivery, 1 weeks For Samples; And 3-4 Weeks For Bulk Orders;
Contact Us For Discount Information
1. ODM and OEM service are available.
2. We supplying LED DRIVER power supply from 1W to 600W , Both constant current and constant voltage mode, including Non Dimming and TRIAC/ELV Dimming led driver, 0/1-10V Dimmable led drivers , DALI Dimming led driver,etc.
3.Quality Assurance, Passed UL CUL CE FCC TUV CCC KC CB SAA Certification;
3 years-5 years warranty ;
4.On Time Delivery, 1 weeks For Samples; And 3-4 Weeks For Bulk Orders;
Contact Us For Discount Information
More Product
Company Profile
Certifications
Product Process
Product packaging
FAQ
Q1: What is your MOQ of LED Driver ?
A : MOQ 100pcs
Q2: How many years warranty of your LED Driver ?
A: 3~5 years warranty
Q3: What is your standard lead time ?
A: 3 days for samples and 2~3 weeks for mass production
Q4: Do you have any certifications of your LED Driver ?
A: We have obtained UL/ cUL/ CE/FCC /TUV/CCC/KC/CB/SAA certificates to meet different martket requirements
Q5: Do you have LED Driver factory?
A:Yes ,We are OEM&ODM manufacturer in Dongguan and headquarter in Taiwan
A : MOQ 100pcs
Q2: How many years warranty of your LED Driver ?
A: 3~5 years warranty
Q3: What is your standard lead time ?
A: 3 days for samples and 2~3 weeks for mass production
Q4: Do you have any certifications of your LED Driver ?
A: We have obtained UL/ cUL/ CE/FCC /TUV/CCC/KC/CB/SAA certificates to meet different martket requirements
Q5: Do you have LED Driver factory?
A:Yes ,We are OEM&ODM manufacturer in Dongguan and headquarter in Taiwan
