Класс 2 UL 1-10V блок питания регулировки яркости освещения 100 Вт постоянное напряжение 0-10В с регулируемой яркостью распределительная коробка светодиодный драйвер
- Категория: Светодиодный драйвер >>>
- Поставщик: Ever,Shining,Optotech,Co.,Ltd.
Поделиться:
Описание и отзывы
Трекер стоимости
| Месяц | Минимальная цена | Макс. стоимость |
|---|---|---|
| Aug-18-2025 | 29.66 $* | 30.99 $* |
| Jul-18-2025 | 24.44 $* | 24.45 $* |
| Jun-18-2025 | 29.75 $* | 30.5 $* |
| May-18-2025 | 29.78 $* | 30.35 $* |
| Apr-18-2025 | 23.2 $* | 23.7 $* |
| Mar-18-2025 | 28.49 $* | 29.68 $* |
| Feb-18-2025 | 28.34 $* | 29.47 $* |
| Jan-18-2025 | 28.61 $* | 29.27 $* |
Характеристики
Products Description
Model No. | LD100H-U24-Q2-LP | |
Output | DC Voltage | 24V |
Voltage Tolerance | -3%~3% | |
Current Range | 4.2A | |
Rated Power | 100W | |
Ripple & Noise (Max.) Note.2 | 3.0 Vp-p | |
Efficiency note.1 | >85% | |
Input | Voltage Range | 100~304VAC |
Rated Voltage | 110 - 277 V AC | |
Frequency Range | 47~63Hz | |
AC Current (Max.) | 0.45 A at 240VAC | |
Power Factor | > 0.93 at 240VAC with full load. | |
Inrush Current (Max.) | COLD START 30 A at 240 VAC | |
Leakage Current | < 3 mA / 240 VAC |

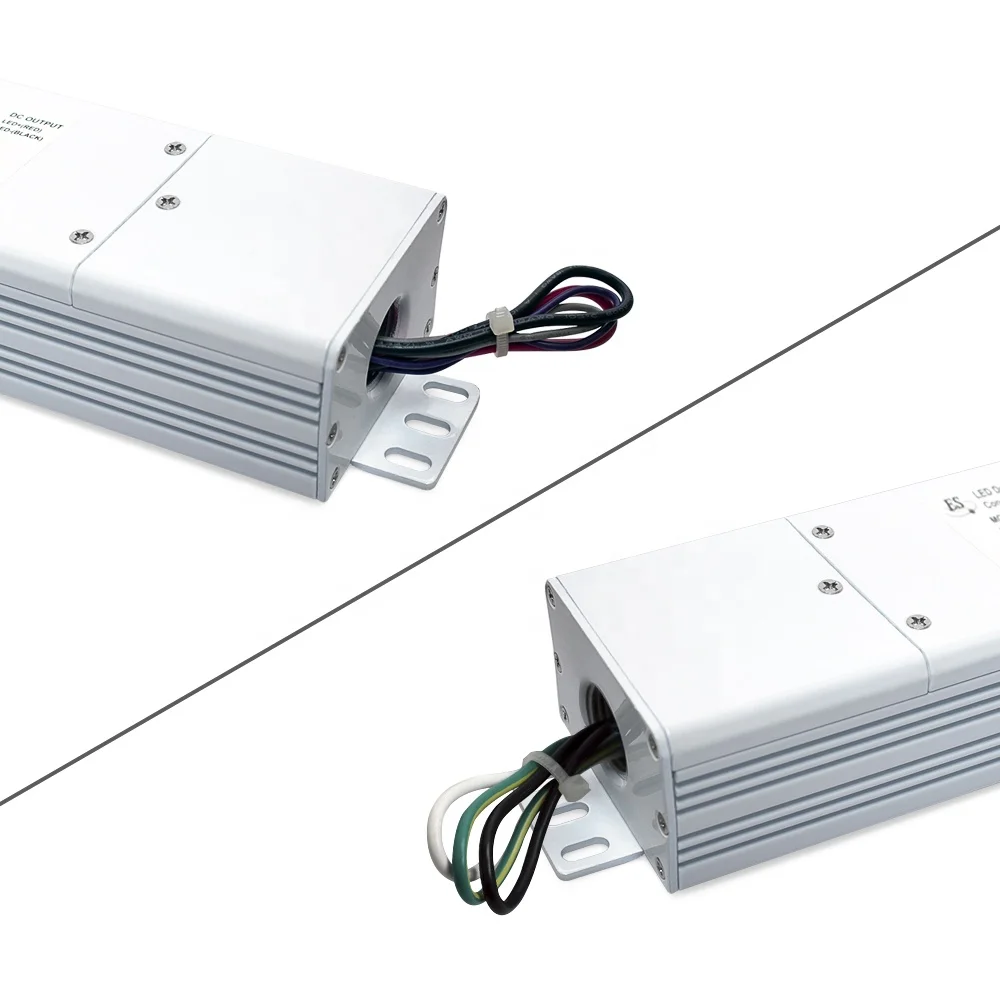

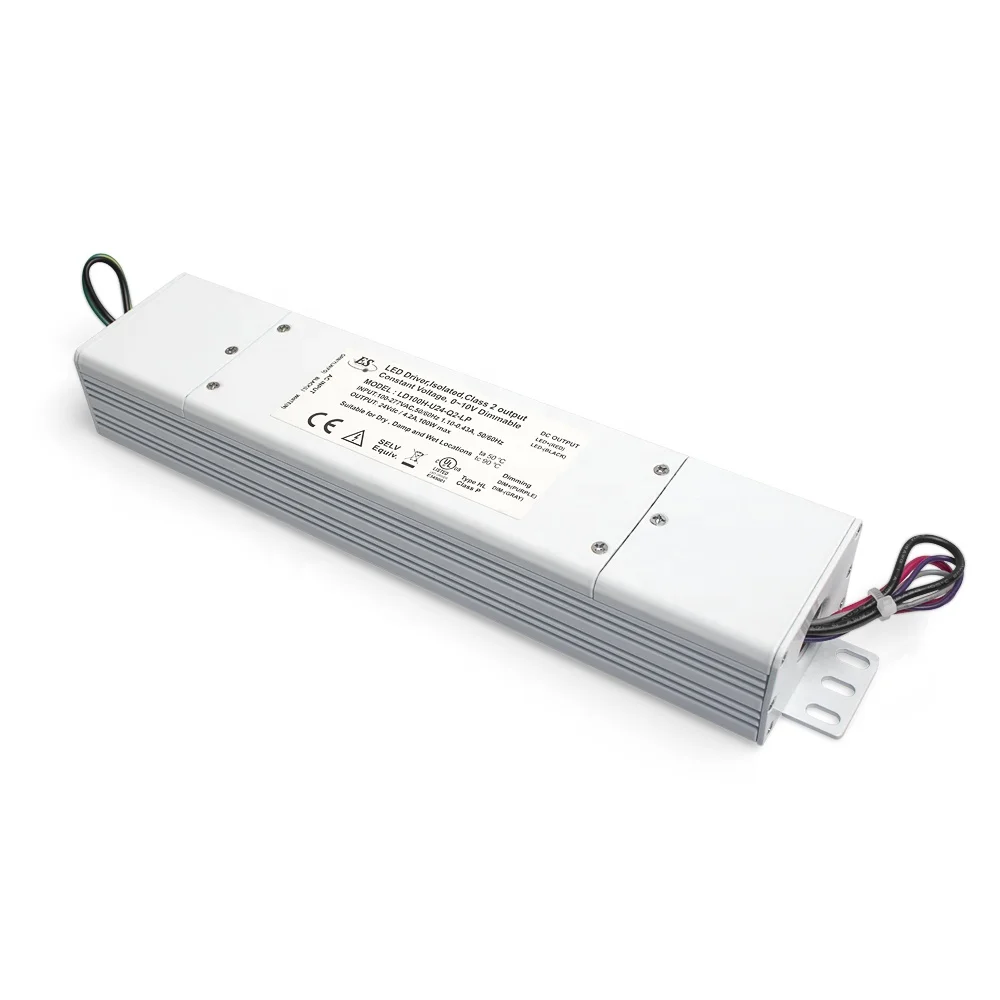

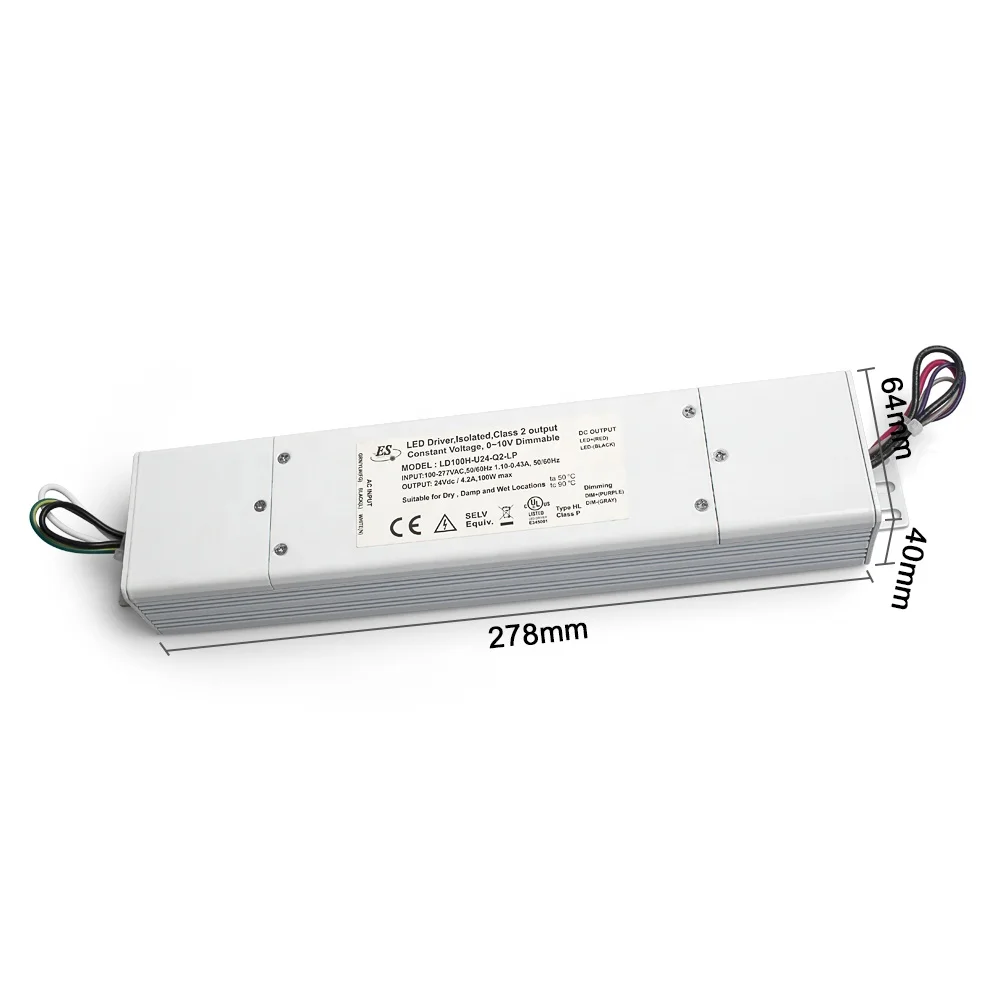

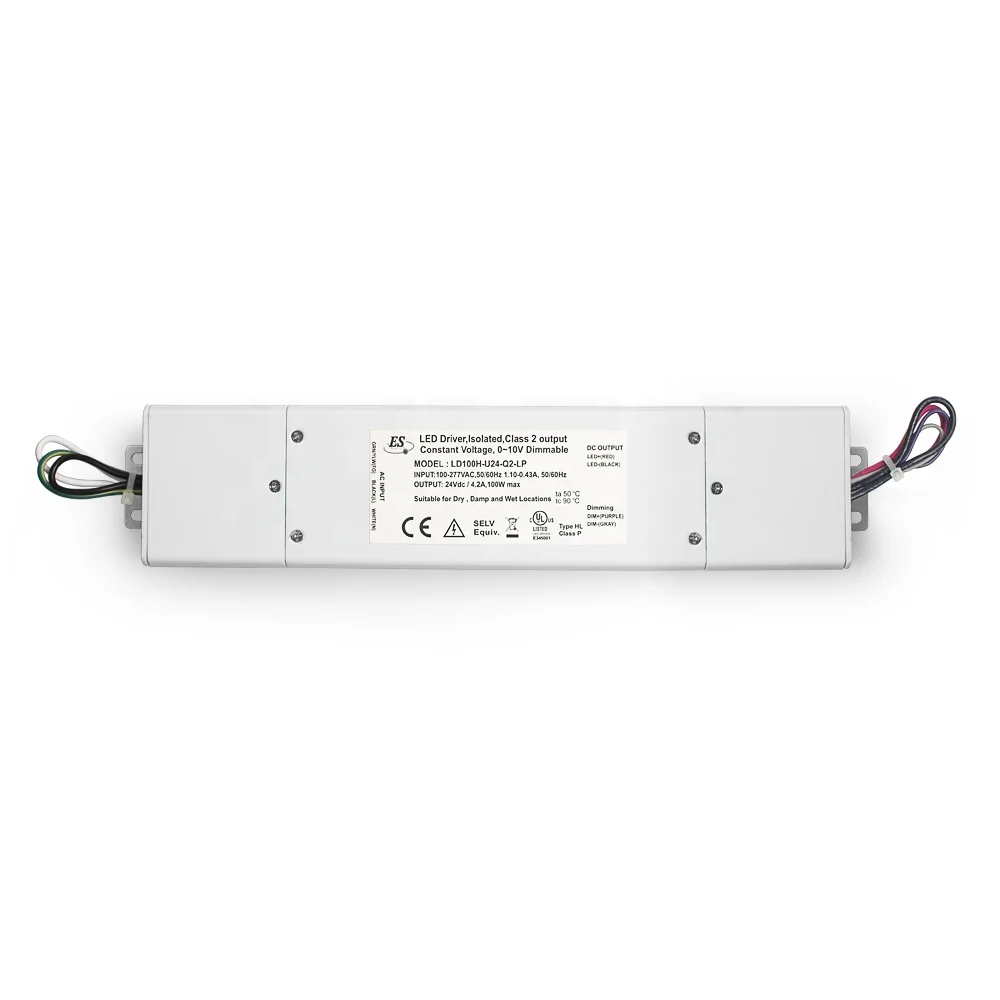

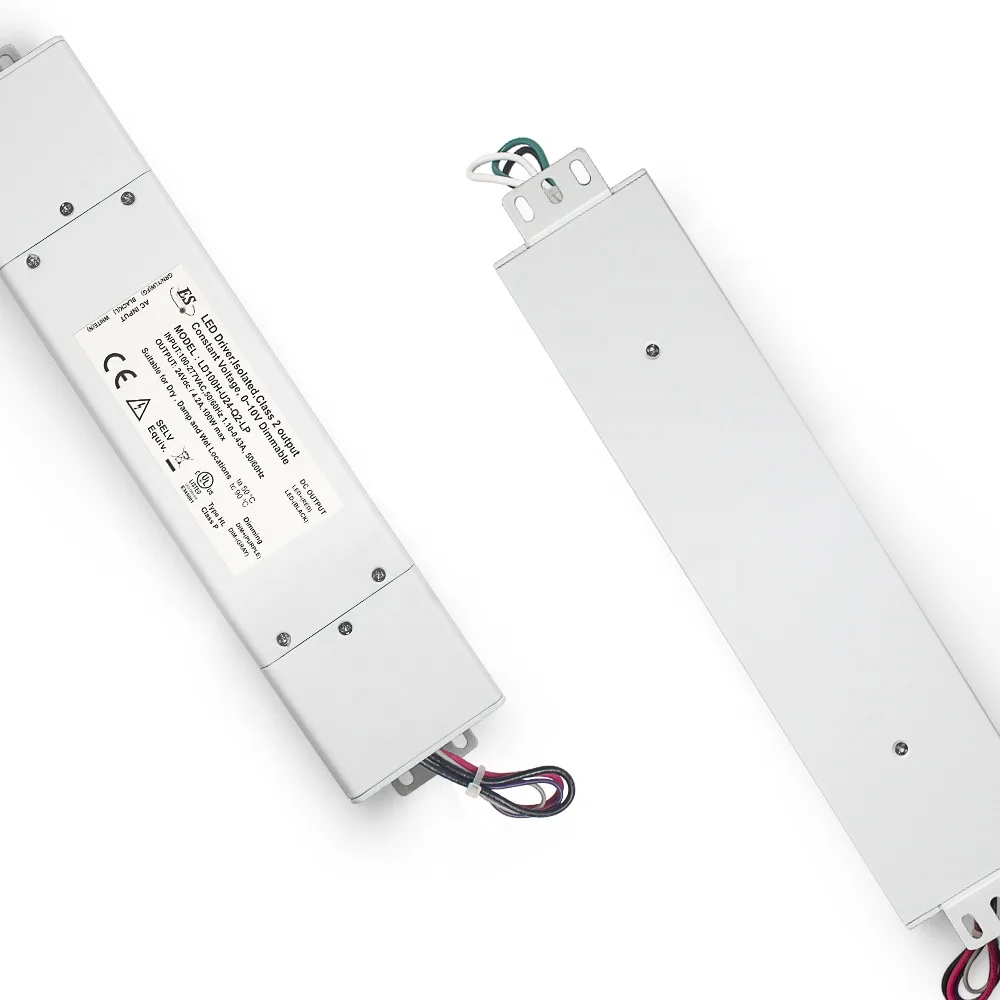

The Q2 series is one UL listed 100W AC-DC Constant Voltage mode single output 0-10V dimmable LED driver power supply with junction box . It accepts the full range input 100-277VAC and provide 24Vdc 4.2A output,that led applications employ the most frequently. Also exploiting Class 2 power supply design and adopting metal case. The IP65 waterproof level allows this series drivers to fit both indoor and outdoor LED light applications.
If you are interested in the item, Please feel free to conatct us !
Our Advantages
1. ODM and OEM service are available.
2. We supplying LED DRIVER power supply from 1W to 600W , Both constant current and constant voltage mode, including Non Dimming and TRIAC/ELV Dimming led driver, 0/1-10V Dimmable led drivers , DALI Dimming led driver,etc.
3.Quality Assurance, Passed UL CUL CE FCC TUV CCC KC CB SAA Certification;
3 years-5 years warranty ;
4.On Time Delivery, 1 weeks For Samples; And 3-4 Weeks For Bulk Orders;
Contact Us For Discount Information
1. ODM and OEM service are available.
2. We supplying LED DRIVER power supply from 1W to 600W , Both constant current and constant voltage mode, including Non Dimming and TRIAC/ELV Dimming led driver, 0/1-10V Dimmable led drivers , DALI Dimming led driver,etc.
3.Quality Assurance, Passed UL CUL CE FCC TUV CCC KC CB SAA Certification;
3 years-5 years warranty ;
4.On Time Delivery, 1 weeks For Samples; And 3-4 Weeks For Bulk Orders;
Contact Us For Discount Information
More Product
Company Profile
Certifications
Product Process

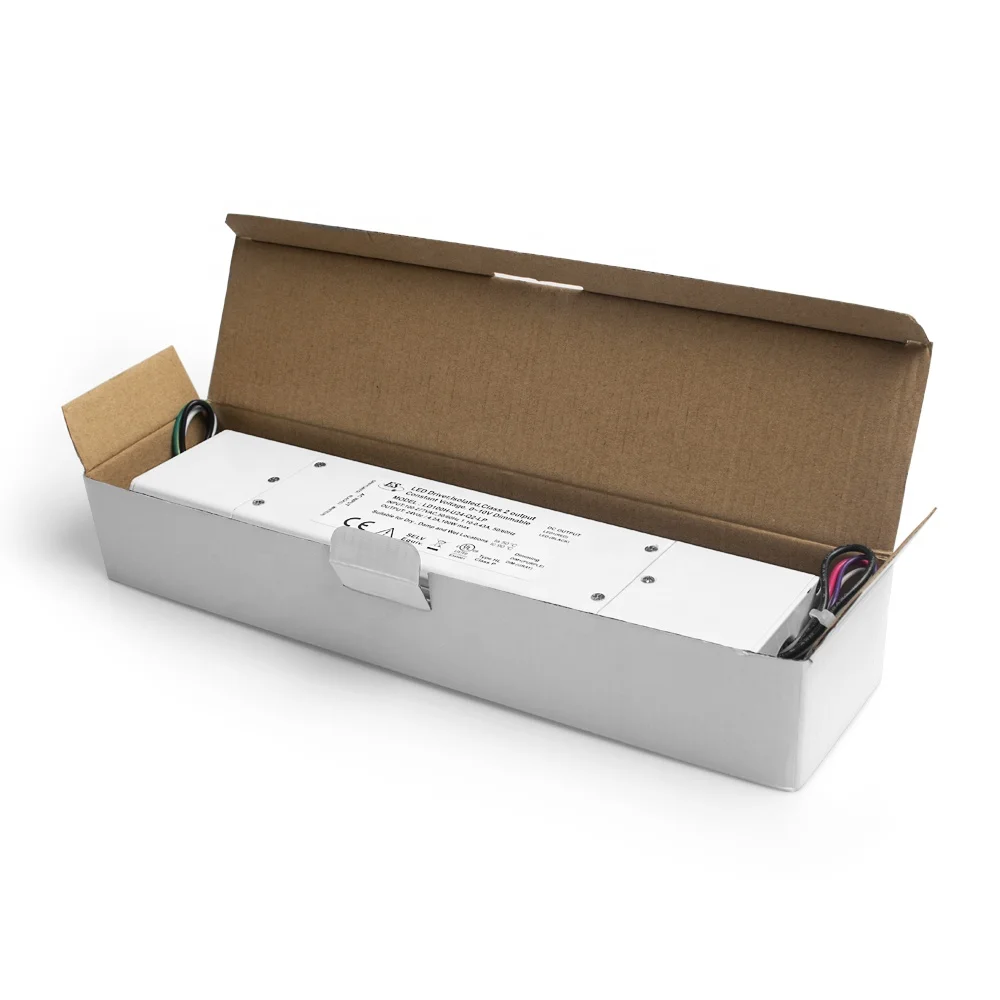

Product packaging
FAQ
Q1: What is your MOQ of LED Driver ?
A : MOQ 100pcs
Q2: How many years warranty of your LED Driver ?
A: 3~5 years warranty
Q3: What is your standard lead time ?
A: 3 days for samples and 2~3 weeks for mass production
Q4: Do you have any certifications of your LED Driver ?
A: We have obtained UL/ cUL/ CE/FCC /TUV/CCC/KC/CB/SAA certificates to meet different martket requirements
Q5: Do you have LED Driver factory?
A:Yes ,We are OEM&ODM manufacturer in Dongguan and headquarter in Taiwan
