Светодиодный драйвер Ip67 60 Вт водонепроницаемая лента с постоянным напряжением 100-240 В переменного тока Входное и выходное напряжение 12 (импульсный источник
- Категория: Светодиодный драйвер >>>
- Поставщик: Ever,Shining,Optotech,Co.,Ltd.
Поделиться:
Описание и отзывы
Трекер стоимости
| Месяц | Минимальная цена | Макс. стоимость |
|---|---|---|
| Sep-17-2025 | 17.82 $* | 18.72 $* |
| Aug-17-2025 | 17.93 $* | 18.57 $* |
| Jul-17-2025 | 14.19 $* | 15.66 $* |
| Jun-17-2025 | 16.94 $* | 17.8 $* |
| May-17-2025 | 14.85 $* | 15.65 $* |
| Apr-17-2025 | 16.47 $* | 17.72 $* |
| Mar-17-2025 | 16.6 $* | 17.36 $* |
| Feb-17-2025 | 16.64 $* | 17.23 $* |
| Jan-17-2025 | 16.20 $* | 17.11 $* |
Характеристики
Products Description
Model No. | LD060L-VU50012-57 | ||
Output | DC Voltage | 12V | |
Current Range | 0~5A | ||
Rated Max. Power | 60W | ||
Voltage Tolerance | ±5% | ||
Ripple & Noise (Max.) note.2 | 120mVp-p | ||
Efficiency note.1 | 85% | ||
NO Load Max. Power | <0.5W@Vinac=230V | ||
Setup ,rise Time | 500ms,50ms / 230Vac at full load | ||
hold up Time (Typ.) | 20ms/ 230Vac at full load | ||
Input | Voltage & Frequency Range | 100 - 240VAC | |
Frequency Range | 50 / 60 Hz | ||
AC Current (Max.) | 1.1A at 115Vac/0.5A at 230Vac for 40W/ 1.4A at 115Vac/0.7A at 230Vac for 60W | ||
Power Factor | > 0.45 at 230Vac with full load. | ||
Inrush Current (Max.) | 65A at 230Vac for 40W/75A at 230Vac for 60W | ||
Leakage Current | < 0.25mA / 240Vac | ||
Protections | Over Current | 110% - 150% Constant current limiting, auto-recovery | |
Short Circuit | Hiccup mode, recovers automatically after fault condition is removed | ||
Over Voltage | 14-19V | ||
Protection type:Shut down o/p voltage,recovers automatically after voltage goes down. | |||
Environment | Working Temp. | -20℃ ~ 60℃ (Refer to output load derating curve) | |
Working Humidity | 20% ~ 90% RH non-condensing. | ||
Storage Temp., Humidity | -40 ~ +60℃, 10% ~ 90% RH | ||
Safety& EMC | Safety Standards | EN61347-1, EN61347-2-13 | |
Withstand Voltage | I/P - O/P : 3.75K VAC | ||
Isolation Resistance | I/P - O/P : 100M ohms / 500VDC at 25 ℃ | ||
EMI Conduction & radiation | meet EN55015 | ||
EMS Immunity | EN61000-4-2, 3, 4, 5, 6, 8, 11, EN61547, EN61000-3-2 Class C | ||
Connection | Input | UL rated, 18 AWG x 2C (150 mm) | |
Output | UL rated, 18 AWG x 2C (150 mm) | ||
Others | MTBF | 100K hours min. MIL-HDBK-217F(25°C) | |
Dimension (L*W*H) | 163 * 44.2 * 32.5 mm | ||
Packing (L*W*H) / Carton | 390 * 280 * 210 mm ; 50 pcs / 20 kg | ||
More Product
Company Profile
Certifications
Product Process

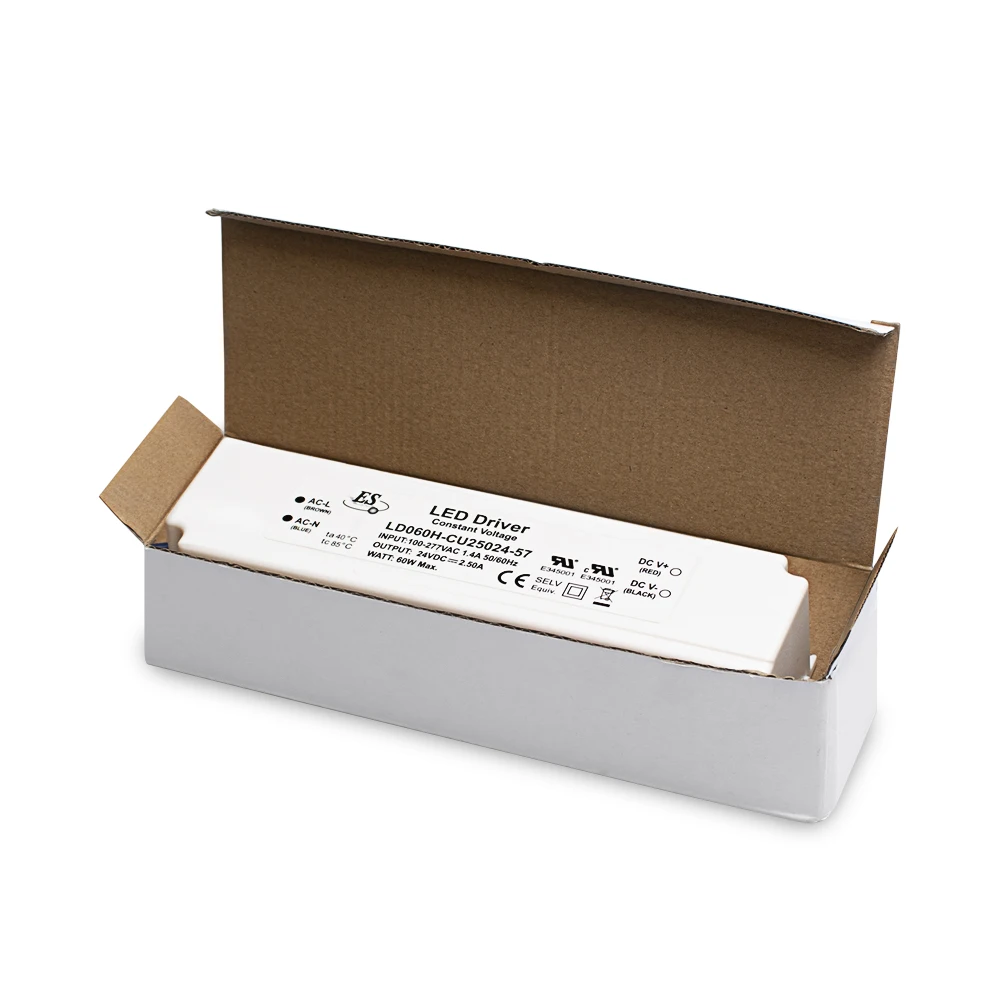

Product packaging
FAQ
Q1: What is your MOQ of LED Driver ?
A : MOQ 100pcs
Q2: How many years warranty of your LED Driver ?
A: 3~5 years warranty
Q3: What is your standard lead time ?
A: 3 days for samples and 2~3 weeks for mass production
Q4: Do you have any certifications of your LED Driver ?
A: We have obtained UL/ cUL/ CE/FCC /TUV/CCC/KC/CB/SAA certificates to meet different martket requirements
Q5: Do you have LED Driver factory?
A:Yes ,We are OEM&ODM manufacturer in Dongguan and headquarter in Taiwan
