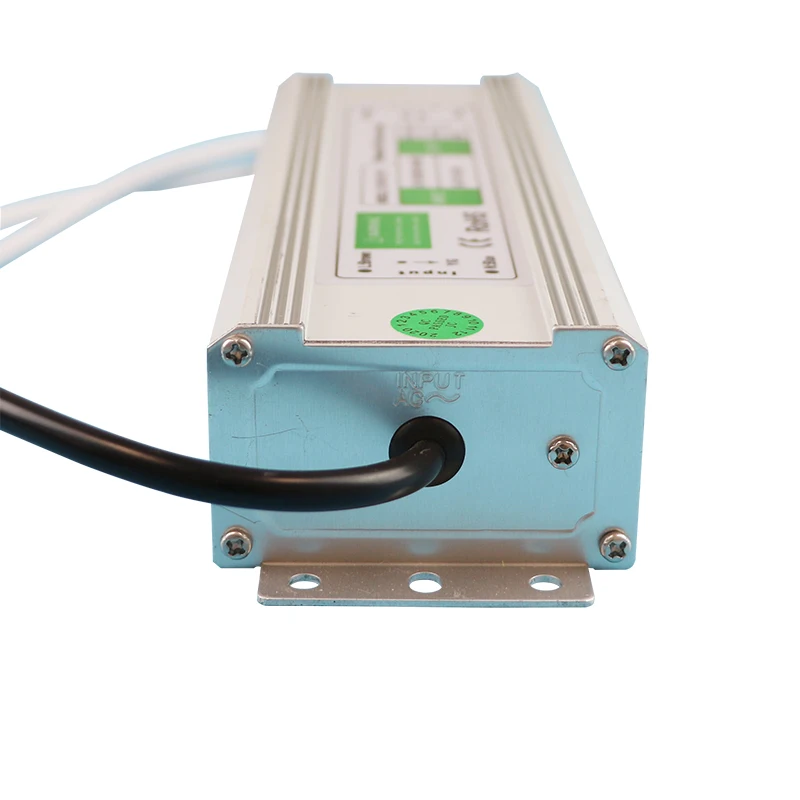

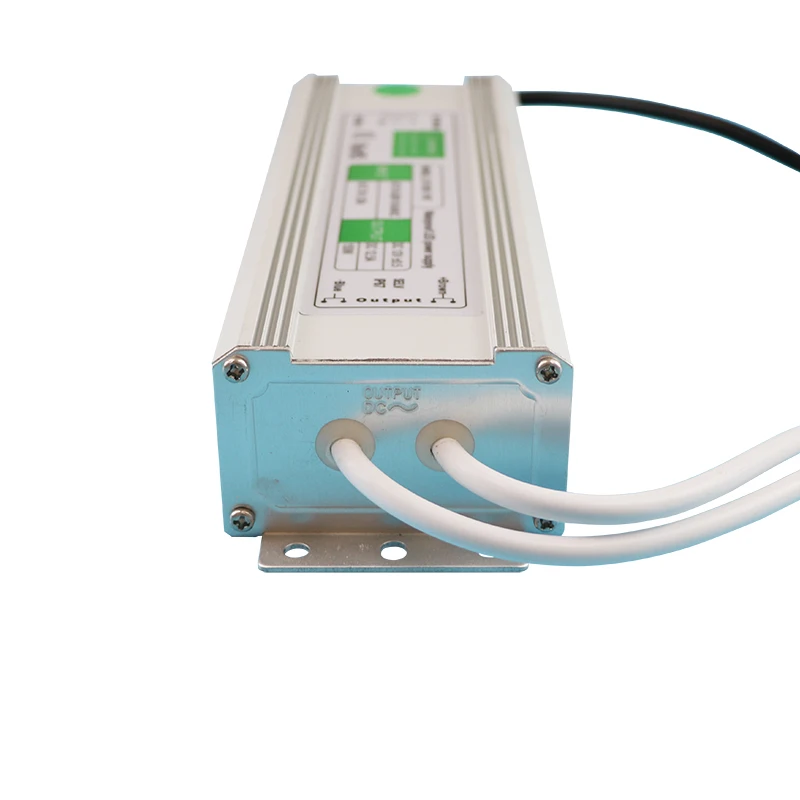

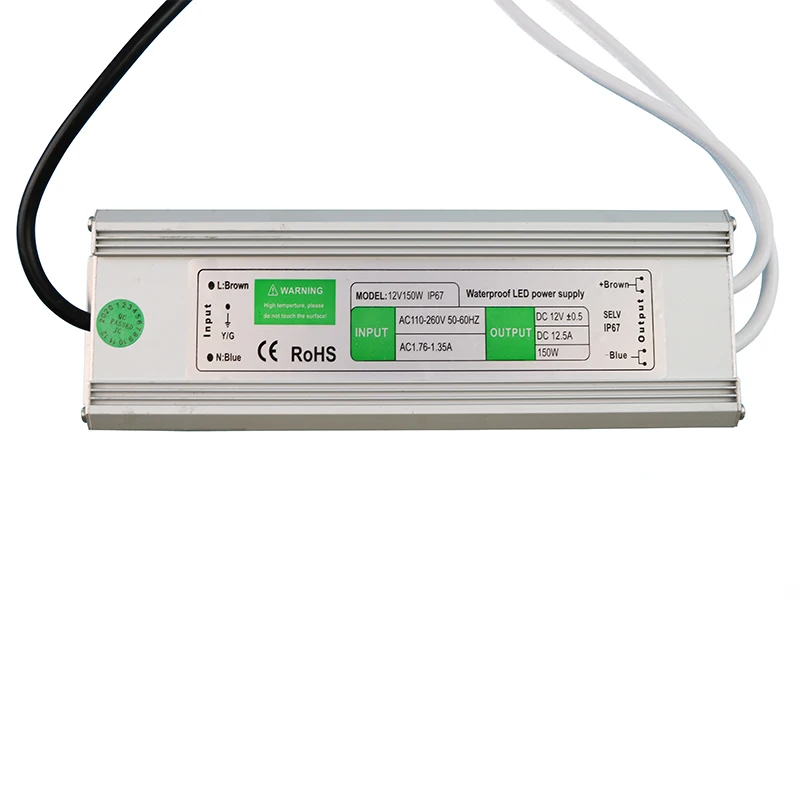

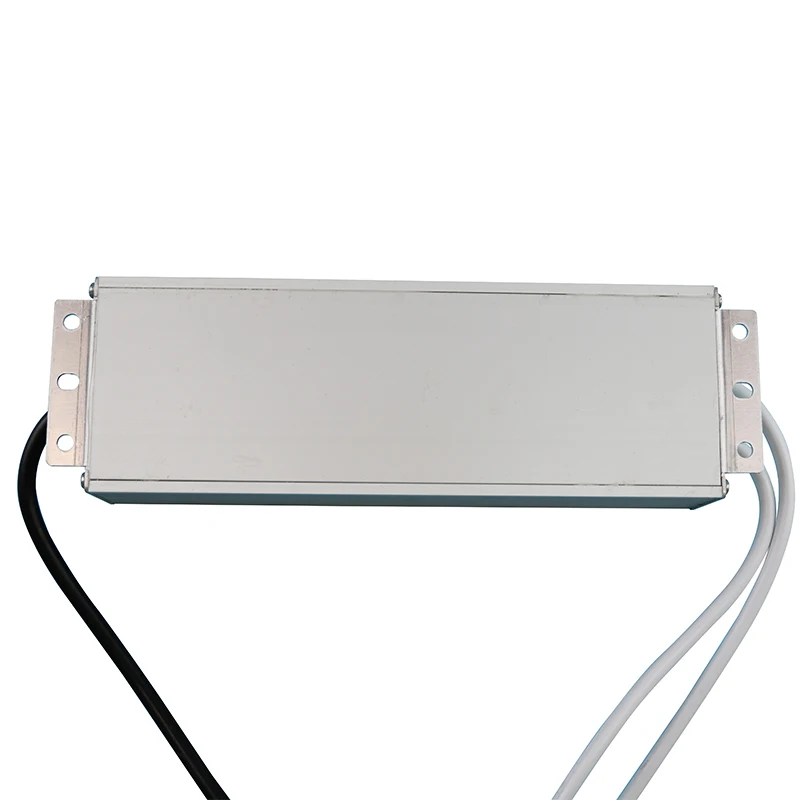

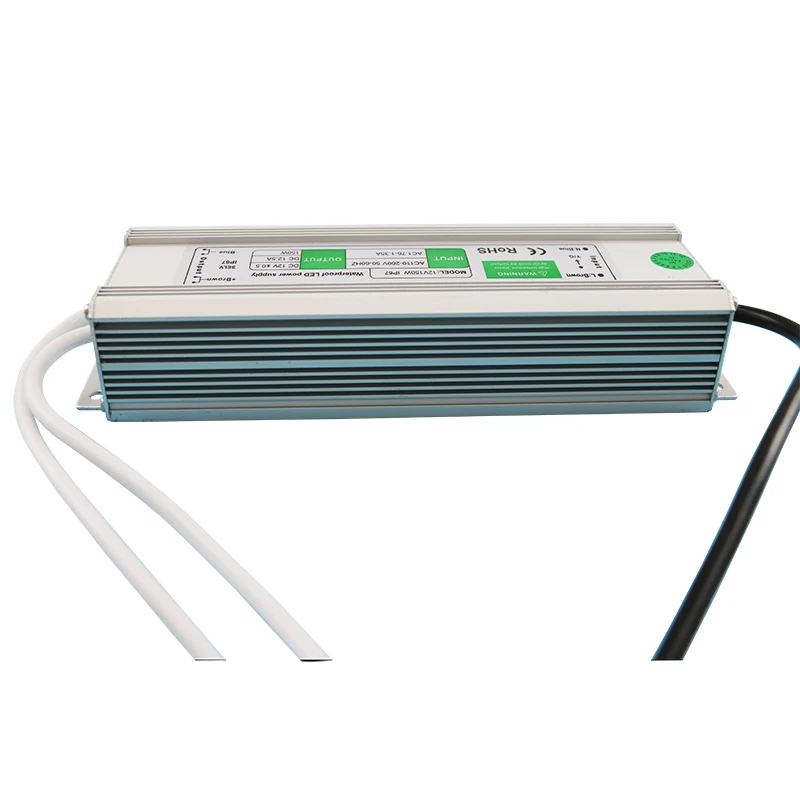

Светодиодный драйвер IP67 150 Вт водонепроницаемый источник питания 12 В
- Категория: Светодиодный драйвер >>>
- Поставщик: Shenzhen,Sunled,Lighting,Co.,Ltd.
Поделиться:
Описание и отзывы
Трекер стоимости
| Месяц | Минимальная цена | Макс. стоимость |
|---|---|---|
| Aug-15-2025 | 11.58 $* | 11.5 $* |
| Jul-15-2025 | 9.50 $* | 9.8 $* |
| Jun-15-2025 | 11.24 $* | 11.13 $* |
| May-15-2025 | 11.39 $* | 11.83 $* |
| Apr-15-2025 | 9.77 $* | 9.49 $* |
| Mar-15-2025 | 11.50 $* | 11.36 $* |
| Feb-15-2025 | 11.33 $* | 11.3 $* |
| Jan-15-2025 | 11.37 $* | 11.76 $* |
Характеристики
| DC Output | DC Voltage: 12V |
| DC Current : 12.5A | |
| Ripple & Noise: 80MV | |
| DC Adjustable Range: ±10% Rated Voltage | |
| Voltage Tolerance: ±2.0% | |
| Line Regulation: ±0.5% | |
| Load Regulation: ±1% | |
| Setup,Rise Time,Hold Up Time:200ms,50ms, 20ms/230VAC | |
| AC Input | AC Voltage Range: 220v |
| Frequency Range: 50-60HZ | |
| Efficiency:90% | |
| AC Current: 0.86/115V 0.4A/230V | |
| AC Inrush Current: 20A/115V 40A/230V | |
| Leakage Current< 0.5mA /240VAC | |
| Protection | Over-load: 105%-150% hiccup mode,Auto-recovery |
| Over-voltage: 115%-135% Cut Off the Output,Auto-recovery | |
| Over-temp. : Shut down O/P voltage, Auto-recovery | |
| Environment | Working temp.: -10~ +60C° (Refer to output load derating curve) |
| Working Humidity:20 ~ 90% RH, non-condensing | |
| Storage Temp.: -10~ +60C° | |
| Storage Humidity: 10 ~ 95% RH | |
| Safety | Isolation Resistance:I/P-O/P,I/P-FG,O/P-FG:100M Ohms/500VDC / 25C°/ 70% RH |
| Withstand Voltage: I/P-O/P:3KVAC I/P-FG:1.5KVAC O/P-FG:0.5KVAC | |
| Safety standards: CE,RoHS |
