Диммирующий привод Miboxer 0 ~ 10 В LS4 12 постоянного тока 24 светодиодный контроллер для одноцветного
- Категория: LED Driver >>>
- Поставщик: Shenzhen,Lijiasheng,Technology,Co.,Ltd.
Поделиться:
Описание и отзывы
Трекер стоимости
| Месяц | Минимальная цена | Макс. стоимость |
|---|---|---|
| Aug-15-2025 | 9.65 $* | 9.70 $* |
| Jul-15-2025 | 7.66 $* | 7.42 $* |
| Jun-15-2025 | 9.17 $* | 9.42 $* |
| May-15-2025 | 9.58 $* | 9.33 $* |
| Apr-15-2025 | 7.83 $* | 7.71 $* |
| Mar-15-2025 | 9.5 $* | 9.57 $* |
| Feb-15-2025 | 8.17 $* | 8.71 $* |
| Jan-15-2025 | 8.80 $* | 8.45 $* |
Характеристики
Technical Parameters
| Product Name | 0/1~10V Dimming Driver |
| Model No. | LS4 |
| Working Voltage | DC12V~24V |
| Working Temperature | -20~60℃ |
| Output Current | Max 12A |
| Dimming range | 0~100% |
| Signal Input | 0/1~10V,10V PWM or Push Dimming |
| Output Connection | Common anode |
| Control Distance | 30m |
| Warranty | 2 years |
| Packing size & net weight | 1PC/box 125mmx26mmx39mm, 0.0615kg |
| Carton size & gross weight | 200pcs/carton, 420x300x290mm, 13kg |
Size

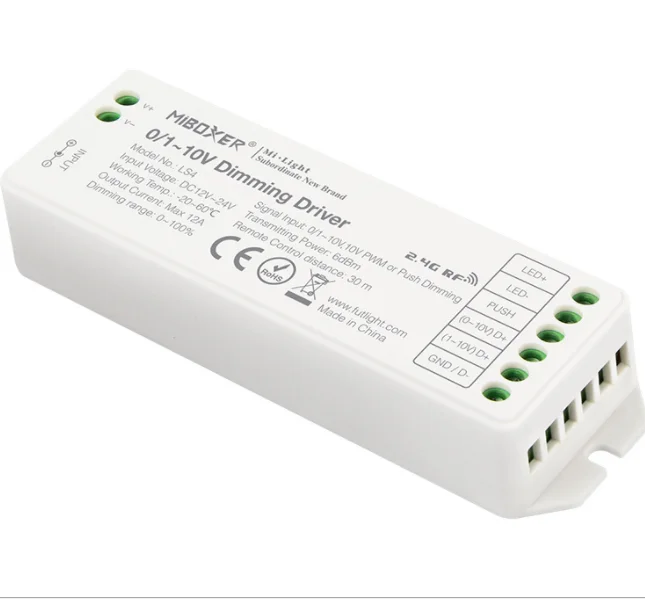

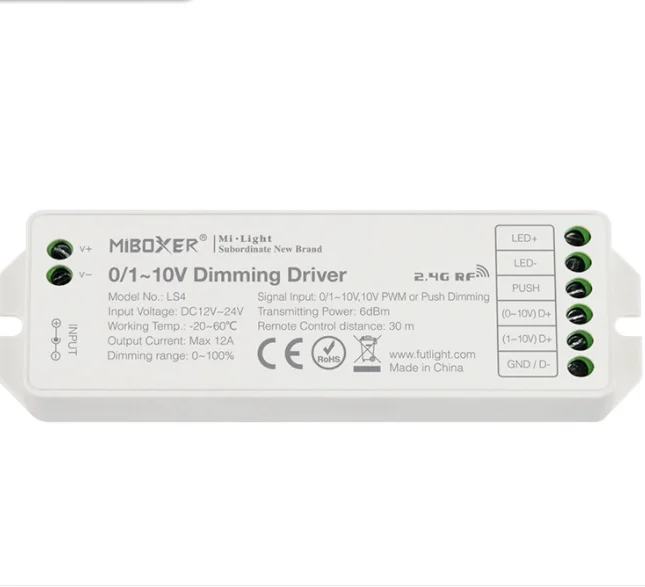

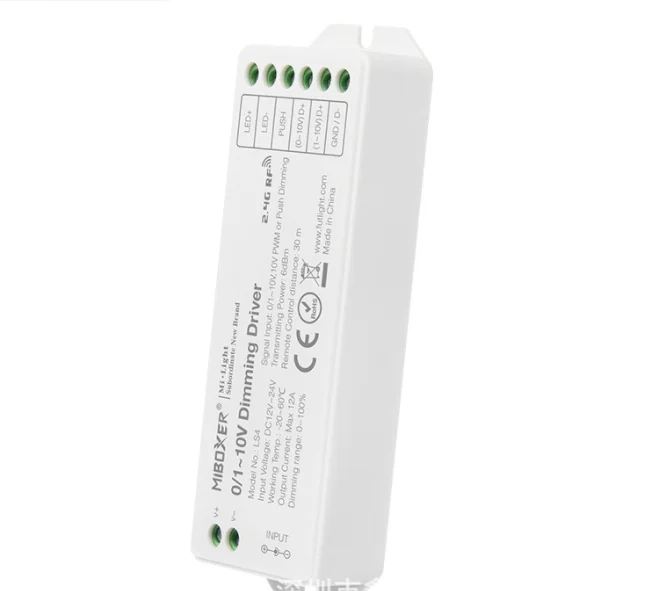

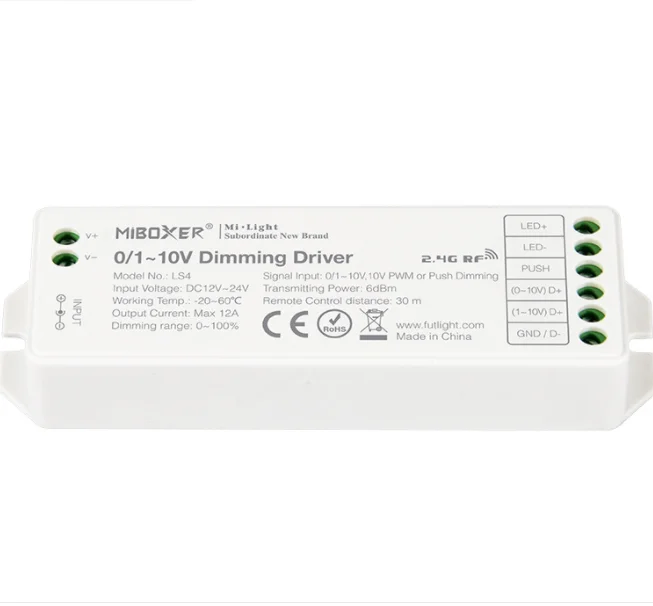

Images

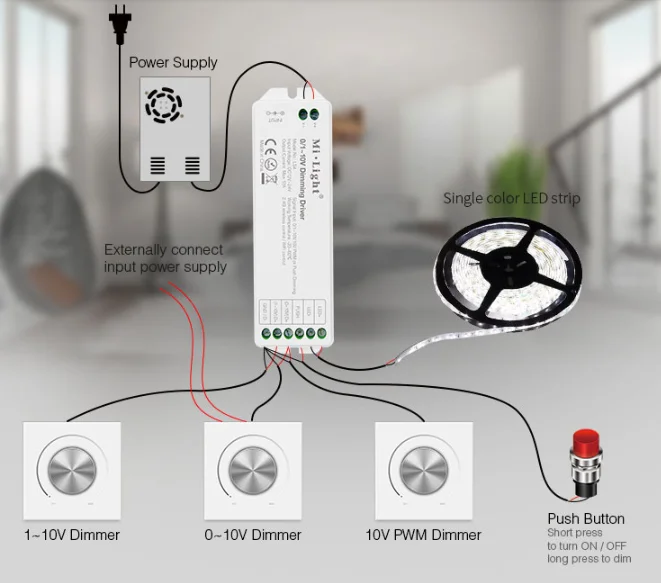

Connection Diagram
Application
Certification
Company Information
Shenzhen Lijiasheng Science & Technology Co., Ltd., founded in 2009, is a high-tech enterprise specialized in the application of LED Products in China.Shenzhen Lijiasheng established our own LED brand - World Uniqueen. our company has developed LED products of full functions and deployed marketing network for domestic and overseas presence based on powerful market management ability and a broad vision to the exterior world with the root in the homeland.
We specialize in various LED lighits products, such as LED Strip Lights,LED Bar Light,LED Controller,LED Bulb Lights,LED Down Lights ,LED Flood Light ,and LED Camping Light ,LED Panel Light,and so on .
