24v 10w Водонепроницаемый IP67 светодиодный драйвер блок питания для светодиодной ленты Европейский сертификат соответствия ограничениям на использование опасных материалов в производстве электрического и
- Категория: Светодиодный драйвер >>>
- Поставщик: Yueqing,Wode,Electrical,Co.,Ltd.
Поделиться:
Описание и отзывы
Трекер стоимости
| Месяц | Минимальная цена | Макс. стоимость |
|---|---|---|
| Sep-16-2025 | 2.97 $* | 2.46 $* |
| Aug-16-2025 | 2.22 $* | 2.58 $* |
| Jul-16-2025 | 2.31 $* | 2.2 $* |
| Jun-16-2025 | 2.56 $* | 2.68 $* |
| May-16-2025 | 2.35 $* | 2.61 $* |
| Apr-16-2025 | 2.97 $* | 2.71 $* |
| Mar-16-2025 | 2.79 $* | 2.7 $* |
| Feb-16-2025 | 2.65 $* | 2.77 $* |
| Jan-16-2025 | 2.50 $* | 2.0 $* |
Характеристики
Product Description

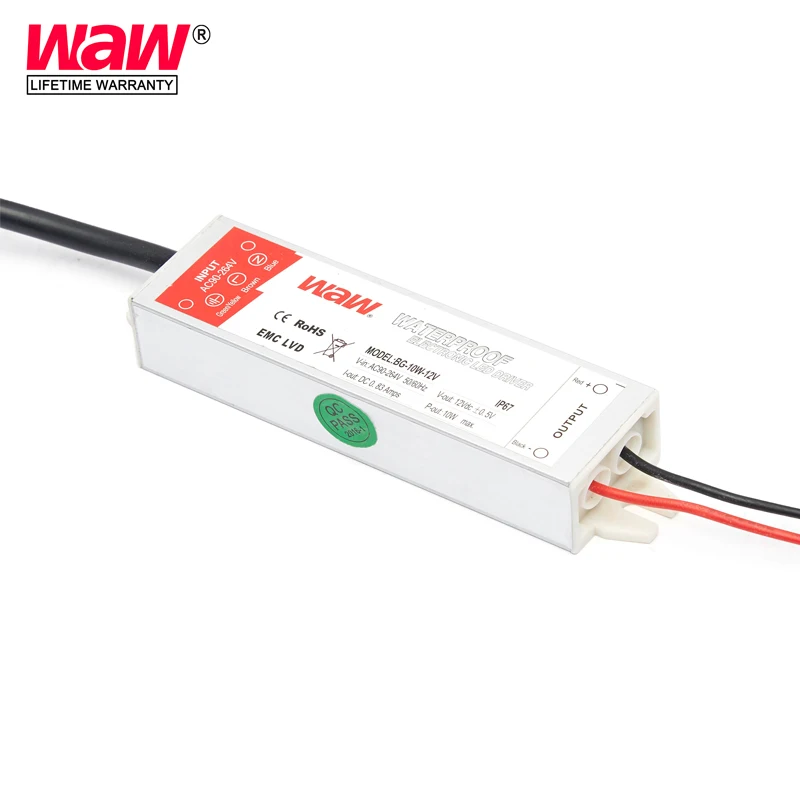

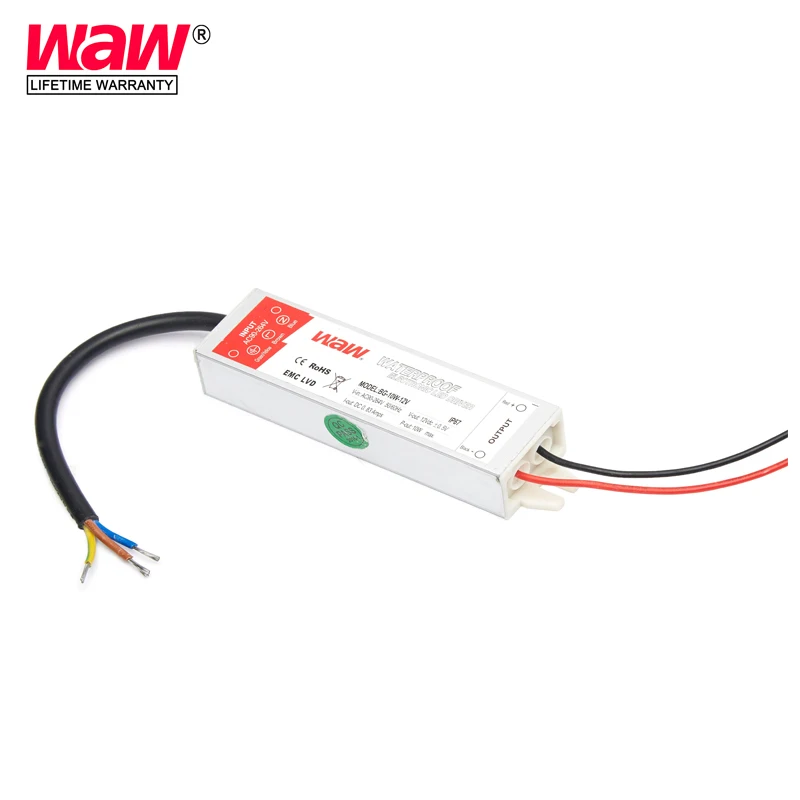

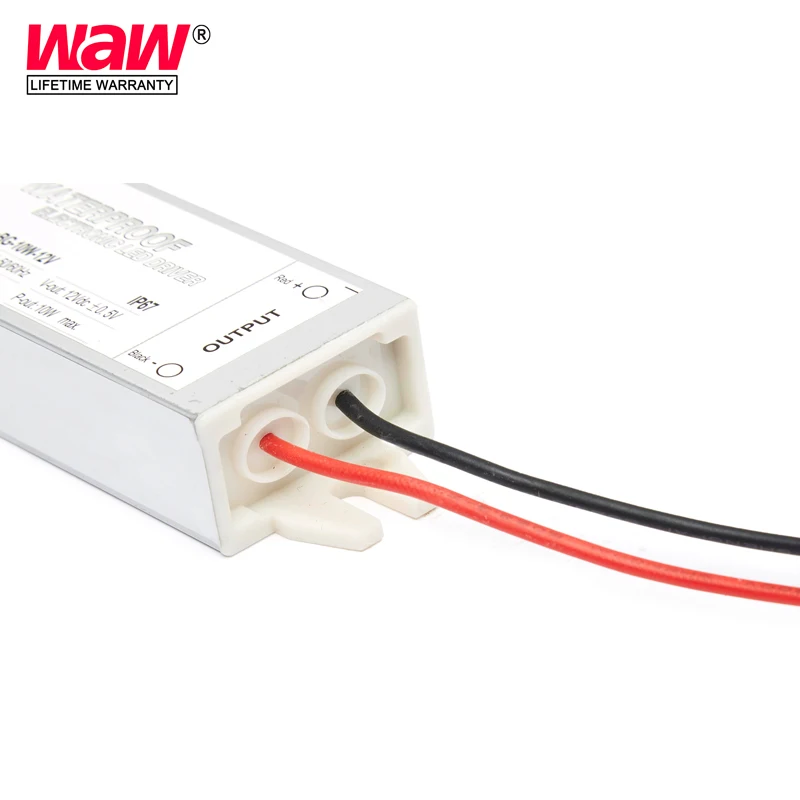

24v 10w waterproof IP67 LED driver LED power supply for LED strip with CE ROHS
Features
1.High Efficiency and good price
2.Built-in EMI filter
3.100% full load burn-in test
4.Low output ripple and noise
5.Protection:Over load/Over voltage/Short circuit
6.LIFETIME WARRANTY!
Specifications
| Model | BG-10-5 | BG-10-12 | BG-10-24 | BG-10-36 | BG-10-48 | |
| OUTPUT | DC voltage | 5V | 12V | 24V | 36V | 48V |
| Rated current | 2A | 0.83A | 0.42A | 0.28A | 0.21A | |
| Ripple and noise | 100mVp-p | 100mVp-p | 100mVp-p | 100mVp-p | 100mVp-p | |
| Intet stability | ±0.5% | ±0.5% | ±0.5% | ±0.5% | ±0.5% | |
| Load stability | ±1% | ±1% | ±1% | ±0.5% | ±0.5% | |
| Efficiency | 78% | 81% | 83% | 84% | 85% | |
| voltage ADJ. range | 5V±10% | 12V±10% | 24V±10% | 36V±10% | 48V±10% | |
| INPUT | AC voltage range | 90~264VAC 47~63Hz; 250~370VDC | ||||
| AC Inrush current | Cold-start current 30A/250V | |||||
| PROTECTION | Overload | 105%~150% Type:pulsing hiccup shutdown Resete:auto recovery | ||||
| Over voltage | 121%~142% Rated output voltage | |||||
| Short circuit | Hiccup mode, recovers automatically after fault condition is removed | |||||
| ENVIRONMENT | Setup,rise,hold up time | 100ms 60ms /230VAC at full load | ||||
| Withstand voltage | Input and output internal:1.5KvAc,input and enclosure:1.5KvAc,Output and enclosure:0.5KvAc | |||||
| Isolation resistance | Input and output internal:Input and enclosure,Output and enclosure:500VDC/100MΩ | |||||
| Working temperature and humidity | -10°C ~+50°C | |||||
| Store temperature and humidity | -20~+85°C, 10~95%RH | |||||
| OTHER | Overall dimension | 116×29×20mm 126PCS/CARTON | ||||
| Weight | 0.12KG | |||||
| CERTIFICATE | CE EMC Authenticate | EN55022:2010 EN61000-3-2:2006+AL:2009 EN61000-3-3:2008 | ||||
| EN55024:2010 EN55015:2006+AL2007+2009 EN61547:2009 | ||||||
| CE LVD Authenticate | EN61347-1:2008T A1:2001 EN61347-2-13:2006 | |||||
| EN60950-1:2006+A11:2009+A1:2010+A12:2001 | ||||||
| ROHS Authenticate | EPA3050B:1996 EN1122B:2001 EPA3052:1996 EPA3060A:1996 | |||||
| EPA7196A:1992 EPA3540C:1996 EPA8270D:2007 IEC62321:2008 | ||||||
