Характеристики
UV-2P Hydraulics Notching Machine
Introduction of UV-1H Manual Notching Machine
The Notching Machine is designed for providing the specimens used in the impact testing tasks.
Notching may cut notch on the specimen for only one go of the cutter.
Besides, it has advantages of high precision, long life, low noise and concise appearance etc.
The Notched samples fulfill the test standard of ASTM E23 and ISO148
Model | UV-1H | UV-2H | UV-2D | UV-2P | |
Notch Type | U or V type | U and V type | |||
Cutter | Single | Double | Double | Double | |
Drive method | By hand | By motor | By hydraulic | ||
Cutter hardness | 72-75 HRC | ||||
Notch stroke | 340mm | ||||
Notch Speed | Manually control | 2.5m/min | 2.0m/min | ||
Size of Specimen | 10mm x 10mm (7.5 or 5mm as special) x 55mm | ||||
Power supply: | None | 3phase, 380/220V, 50/60 Hz | |||
Machine size | 600×500×1200mm | ||||
Weigt | 120kg | 135kg | 150kg | 200kg | |
UV-2P Hydraulics Notching Machine ![]()

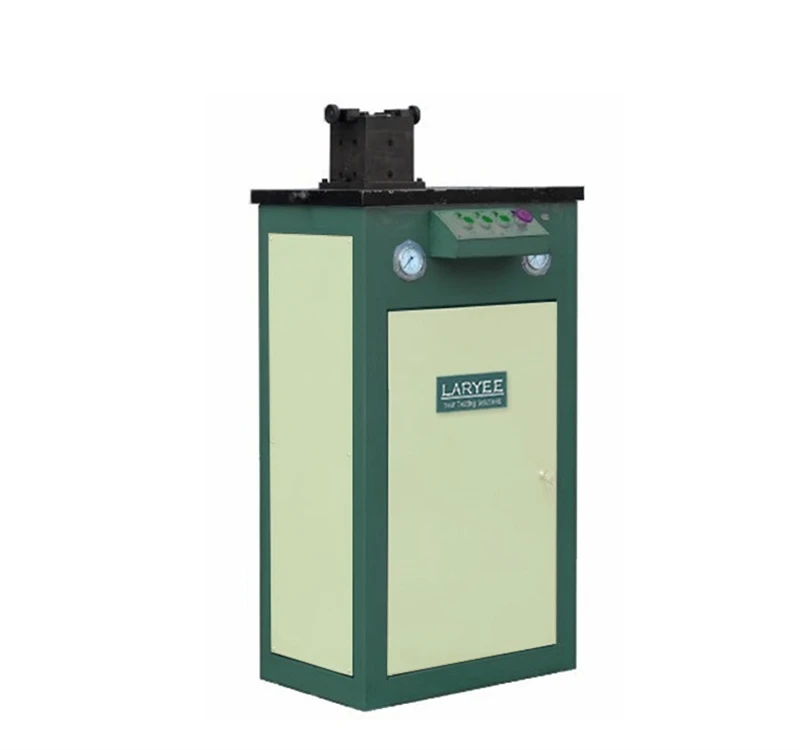

UV-2P Hydraulics Notching Machine
