970kN Trenchless дирекционная сверлильная HDD горизонтально-направленные буровые

970kN Trenchless дирекционная сверлильная HDD горизонтально-направленные буровые

Категория: Other Construction Machinery >>>
Поставщик: Zhengzhou,Hanfa,Imp,&,Exp,Trading,Co.,Ltd.

Цена:350 000,00 $*

Количество:

Описание и отзывы

Трекер стоимости

Месяц	Минимальная цена	Макс. стоимость
Sep-19-2025	416500.40 $*	437325.38 $*
Aug-19-2025	413000.41 $*	433650.55 $*
Jul-19-2025	346500.65 $*	363825.89 $*
Jun-19-2025	406000.25 $*	426300.68 $*
May-19-2025	353500.71 $*	371175.99 $*
Apr-19-2025	399000.16 $*	418950.86 $*
Mar-19-2025	395500.1 $*	415275.18 $*
Feb-19-2025	392000.15 $*	411600.80 $*
Jan-19-2025	388500.61 $*	407925.93 $*

Характеристики

Product Description

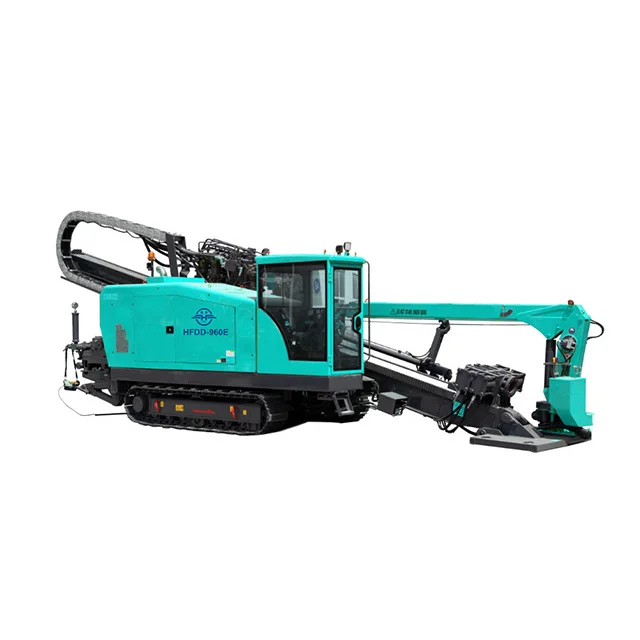

970kN Trenchless Directional Boring HDD Horizontal Directional Drilling Machine
Model: HFDD-960E
Shangchai SDECS9DF300G3
Rated power (kW/r/min): 221/2100
Maximum push-pull force (kN): 970

Technical features
1. The high and low speed push-pull rotation system, the plunger variable motor realizes the high and low speed of the power head, increases the adaptability of the drilling rig's working conditions and improves the construction efficiency;
2. Push-pull and rotary adopts multi-speed output technology, high-pressure common rail of the engine, and fully electronic control module technology, which saves energy in the system and is efficient in construction;
3. The whole machine has a wide field of vision, single and double handle modes, and wire-controlled proportional walking system, which makes the operation comfortable, efficient and safe.

Technical Data

Engine	Model	Shangchai SDECS9DF300G3
Engine		Rated power	221/2100 kW/r/min
Push and pull	Maximum pushing force	970 kN
Push and pull		Maximum push-pull speed	50 m/min
Rotate	torque	33000 N.m
Rotate		Maximum speed	120 r/min
Mud pump	Maximum flow	600 L/min
		Maximum pressure	10 MPa
		Drill pipe	1026mmm
Truck mounted crane	Lifting weight	2t
		Lifting moment	4t.m
		Max. penetration angle	20°
		Max. back expansion diameter	1000mm
Quality	16.2t
Overall Dimension	1065024502600mm
Optical	1. Semi-automatic gripper; 2. Mud antifreeze.

Working Principle

Recommend Products

FAQ

1. Are you trading company or manufacturer

We are professional manufacturer, and our factory mainly produce water well drilling rig, core drilling rig, DTH drilling rig, piling rig, etc. Our products have been exported to more than 50 countries of Asia, South America, Africa, and get a good reputation in the world.

2. Are your products qualified?
Yes, our products all have gained ISO certificate,and we have specialized quality inspection department for checking every machine before leaving our factory.

3. How about your machine quality?
All of our machines hold the ISO, QC and TUV certificate, and each set of machine must pass a great number of strict testing in order to offer the best quality to our customers.

4. Do you have after service?
Yes, we have special service team which will offer you professional guidance. If you need, we can send our engineer to your worksite and provide the training for your staff.

5. What about the qaulity warranty?

We offer one-year quality warranty for machines' main body.

6. How long can you deliver the machine?
Generally, we can deliver the machine in 7 days.

Zhegnzhou Hanfa Imp&exp Trading Co., LTD

Attn: Vincent Guo
Position: Sales manager
Phone:0086~371~55019599
WhatsApp/WeChat: +86 15838112613 24-hour online

Kindly inform us the following information:
1. Application
2. Drilling object(rock/soil/sand, etc)
3. Drilling diameter
4. Drilling depth
Then we could recommend the suitable model with favorable price.
