Горизонтальный направленный буровой станок 13600kN с цифровым
- Категория: Other Construction Machinery >>>
- Поставщик: Zhengzhou,Hanfa,Imp,&,Exp,Trading,Co.,Ltd.
Поделиться:
Описание и отзывы
Трекер стоимости
| Месяц | Минимальная цена | Макс. стоимость |
|---|---|---|
| Sep-19-2025 | 654500.64 $* | 687225.3 $* |
| Aug-19-2025 | 649000.52 $* | 681450.43 $* |
| Jul-19-2025 | 544500.18 $* | 571725.44 $* |
| Jun-19-2025 | 638000.72 $* | 669900.89 $* |
| May-19-2025 | 555500.17 $* | 583275.79 $* |
| Apr-19-2025 | 627000.84 $* | 658350.64 $* |
| Mar-19-2025 | 621500.38 $* | 652575.32 $* |
| Feb-19-2025 | 616000.92 $* | 646800.75 $* |
| Jan-19-2025 | 610500.44 $* | 641025.94 $* |
Характеристики
Product Description

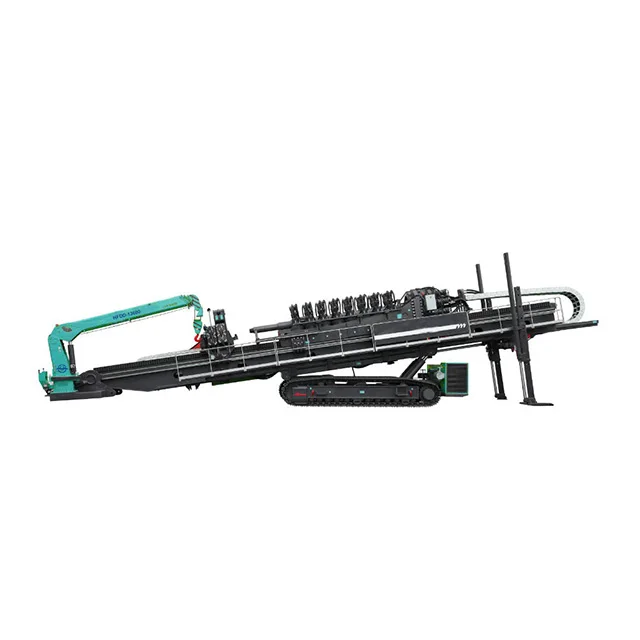

Digital Display Four Power 13600kN Horizontal Directional Drilling HDD Rig Machine
Model: HFDD-13600
Cummins QSZ13-C550
Rated power (kW/r/min): 4*410/1900
Maximum push-pull force (kN):13600
Technical features
1. The digital display system can directly display the main construction parameters such as rotating torque and push-pull force, which overcomes the disadvantage of conversion of pressure gauge used by traditional drilling rig, and the operation is simple;
2. The power head rotating torque, pushing and pulling force overload protection system adopts electronic sensing, which has rapid response, sensitivity and high reliability; Rotating torque and pushing force can be preset accurately; The main shaft of the power head floats, which reliably protects the drill pipe thread and improves the service life of the drill pipe;
3. The four power system adopts Cummins EFI engine, which can complete all actions of the whole vehicle when any engine is started, and can realize multi engine combination technology, combined with multi gear stepless speed regulation technology, which can adapt to a wide range of addresses and low construction cost;
4. Two sets of eight cylinder clamping vises, reliable drill pipe clamping and large shackle torque; The vise floats in the whole process, with a diameter of 400mm, which is convenient for the construction process of casing method.
Model: HFDD-13600
Cummins QSZ13-C550
Rated power (kW/r/min): 4*410/1900
Maximum push-pull force (kN):13600
Technical features
1. The digital display system can directly display the main construction parameters such as rotating torque and push-pull force, which overcomes the disadvantage of conversion of pressure gauge used by traditional drilling rig, and the operation is simple;
2. The power head rotating torque, pushing and pulling force overload protection system adopts electronic sensing, which has rapid response, sensitivity and high reliability; Rotating torque and pushing force can be preset accurately; The main shaft of the power head floats, which reliably protects the drill pipe thread and improves the service life of the drill pipe;
3. The four power system adopts Cummins EFI engine, which can complete all actions of the whole vehicle when any engine is started, and can realize multi engine combination technology, combined with multi gear stepless speed regulation technology, which can adapt to a wide range of addresses and low construction cost;
4. Two sets of eight cylinder clamping vises, reliable drill pipe clamping and large shackle torque; The vise floats in the whole process, with a diameter of 400mm, which is convenient for the construction process of casing method.
Technical Data
Engine | Model | Cummins QSZ13-C550 | |
Rated power | 4*410/1900kW/r/min | ||
Push and pull | Maximum pushing force | 13600 kN | |
Maximum push-pull speed | 32 m/min | ||
Rotate | torque | 260000 N.m | |
Maximum speed | 100r/min | ||
Mud pump | Maximum flow | External | |
Maximum pressure | 20 MPa | ||
Drill pipe | 219/254*9.6 mm*m | ||
Truck mounted crane | Lifting weight | 10t | |
Lifting moment | 25t.m | ||
Max. penetration angle | 16° | ||
Max. back expansion diameter | 2500mm | ||
Quality | 135t | ||
Overall Dimension | 20000*3400*4700mm | ||
Optical | Split operation room | ||
Working Principle
Recommend Products
FAQ
1. Are you trading company or manufacturer
We are professional manufacturer, and our factory mainly produce water well drilling rig, core drilling rig, DTH drilling rig, piling rig, etc. Our products have been exported to more than 50 countries of Asia, South America, Africa, and get a good reputation in the world.
2. Are your products qualified?
Yes, our products all have gained ISO certificate,and we have specialized quality inspection department for checking every machine before leaving our factory.
Yes, our products all have gained ISO certificate,and we have specialized quality inspection department for checking every machine before leaving our factory.
3. How about your machine quality?
All of our machines hold the ISO, QC and TUV certificate, and each set of machine must pass a great number of strict testing in order to offer the best quality to our customers.
All of our machines hold the ISO, QC and TUV certificate, and each set of machine must pass a great number of strict testing in order to offer the best quality to our customers.
4. Do you have after service?
Yes, we have special service team which will offer you professional guidance. If you need, we can send our engineer to your worksite and provide the training for your staff.
Yes, we have special service team which will offer you professional guidance. If you need, we can send our engineer to your worksite and provide the training for your staff.
5. What about the qaulity warranty?
We offer one-year quality warranty for machines' main body.
6. How long can you deliver the machine?
Generally, we can deliver the machine in 7 days.
Generally, we can deliver the machine in 7 days.
Contact Us
Zhegnzhou Hanfa Imp&exp Trading Co., LTD
Attn: Vincent Guo
Position: Sales manager
Phone:0086~371~55019599
WhatsApp/WeChat: +86 15838112613 24-hour online
Kindly inform us the following information:
1. Application
2. Drilling object(rock/soil/sand, etc)
3. Drilling diameter
4. Drilling depth
Then we could recommend the suitable model with favorable price.
Position: Sales manager
Phone:0086~371~55019599
WhatsApp/WeChat: +86 15838112613 24-hour online
Kindly inform us the following information:
1. Application
2. Drilling object(rock/soil/sand, etc)
3. Drilling diameter
4. Drilling depth
Then we could recommend the suitable model with favorable price.
