Автоматическая гибочная машина для высечки

Категория: Machine Tool Equipment >>>
Поставщик: Perfect,Laser,(Wuhan),Co.,Ltd.

Цена:2 300,00 $ - 4 800,00 $*

Количество:

Описание и отзывы

Трекер стоимости

Месяц	Минимальная цена	Макс. стоимость
Sep-18-2025	2737.39 $*	2874.2 $*
Aug-18-2025	2714.36 $*	2850.95 $*
Jul-18-2025	2277.24 $*	2391.49 $*
Jun-18-2025	2668.76 $*	2801.20 $*
May-18-2025	2323.19 $*	2439.12 $*
Apr-18-2025	2622.74 $*	2753.60 $*
Mar-18-2025	2599.47 $*	2729.67 $*
Feb-18-2025	2576.36 $*	2705.16 $*
Jan-18-2025	2553.2 $*	2681.52 $*

Характеристики

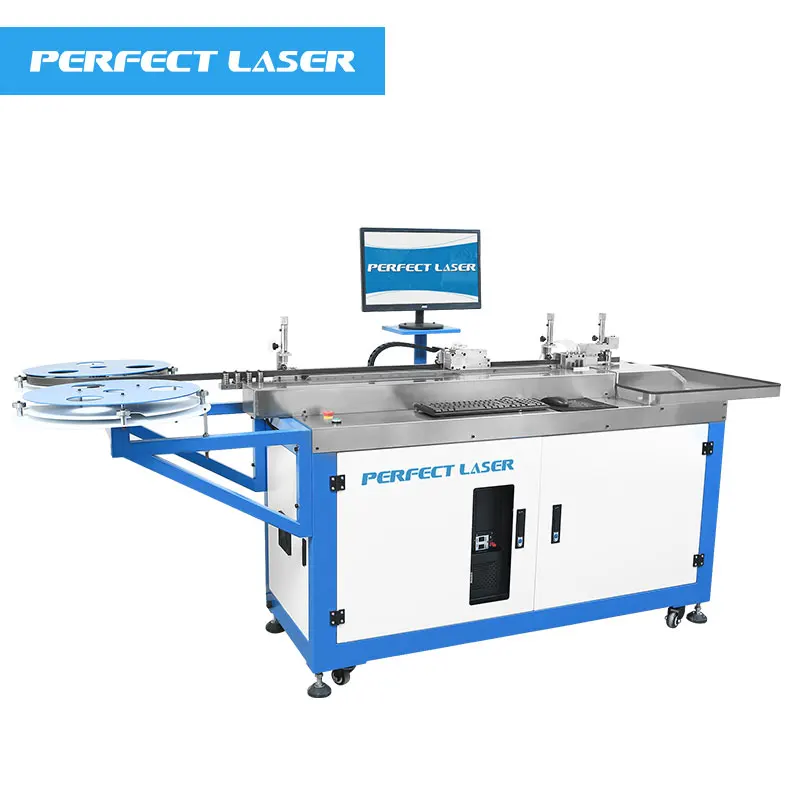

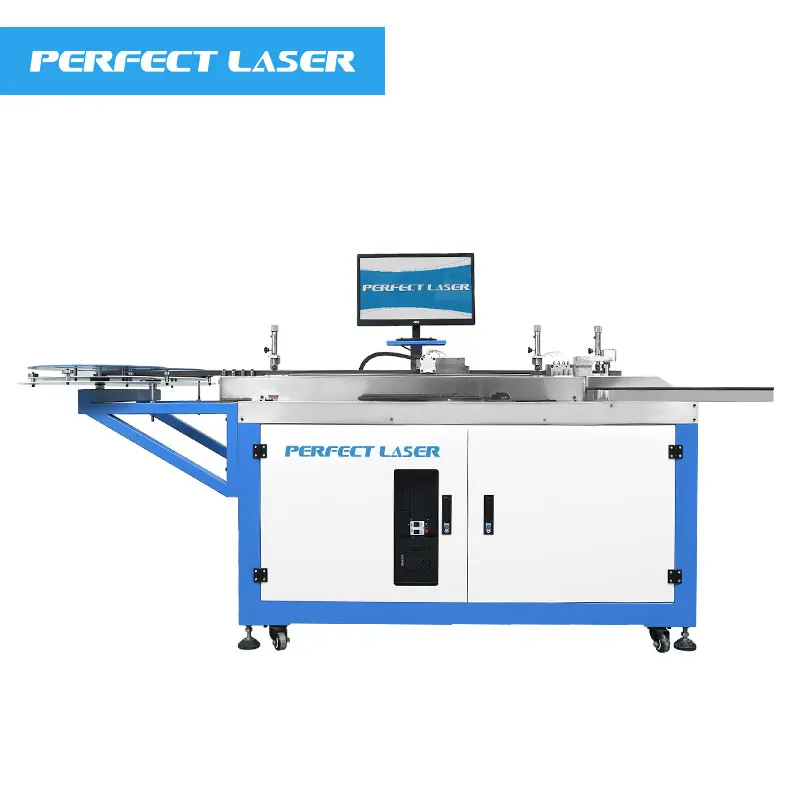

automatic steel rule die bending machine For Die Cutting

( Model: PEC-100 )

Contact:Jessica Wechat/Whatsapp: +8613886024827 Email: Jessica@)perfectlaser.net

Product Description

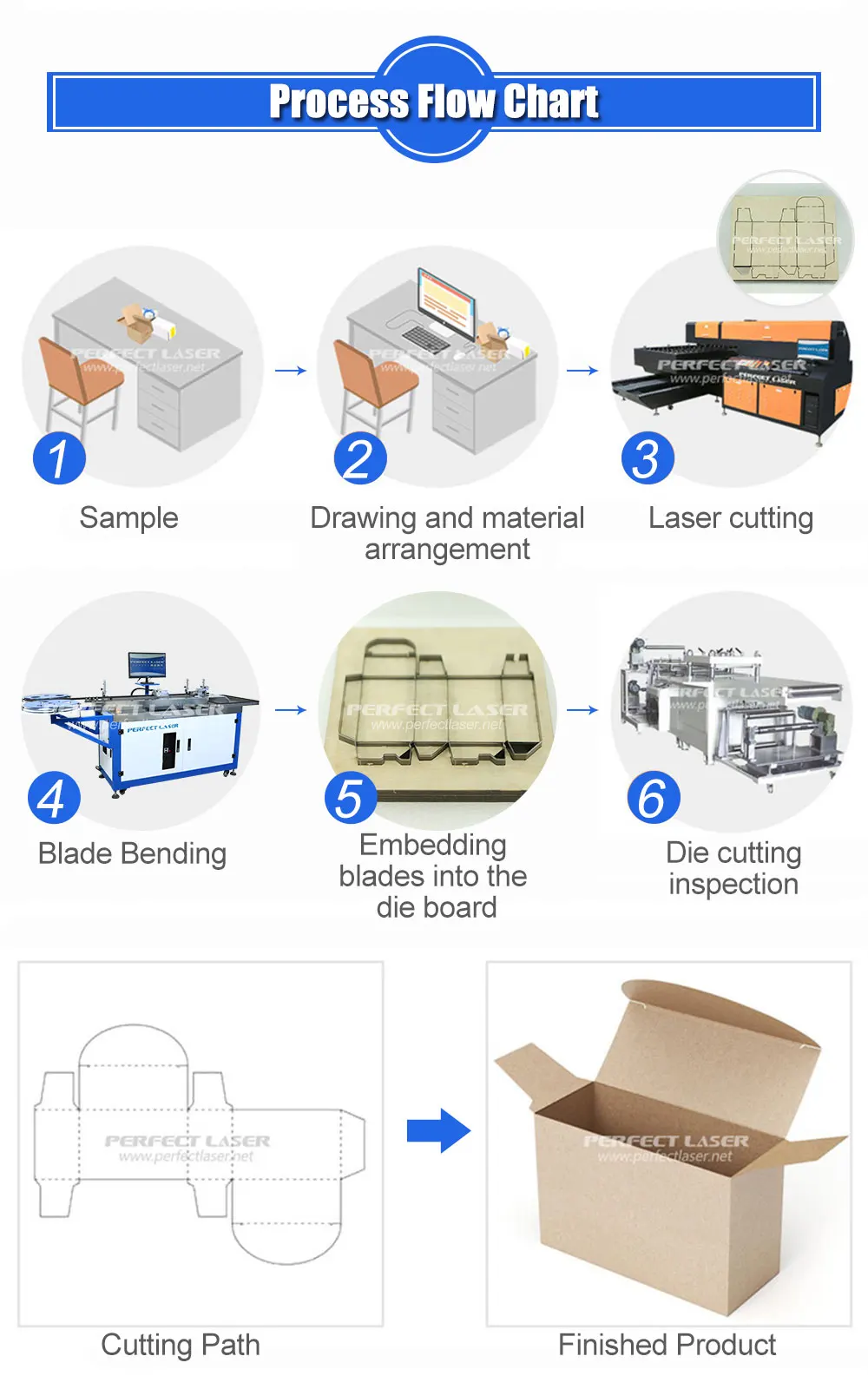

PEC-100 automatic bending machine for blades is mainly used in conjunction with the die board laser cutting machine to bend the blades embedded in the cutter template.

This automatic bending machine for blades adopts a unique professional design and has powerful bending editing functions, which can realize a variety of operations such as scimitar, bridge position and eagle mouth on the same machine.

At the same time, the automatic bending machine for blades uses a cutting method after bending, and the scissors are made of high-speed steel, which improves the cutting speed and accuracy.

The entire process of the automatic bending machine for blades is controlled by computer and runs fully automatically. It is widely used in printing, packaging, food, cartons, stickers and other industries.

Features

Samples

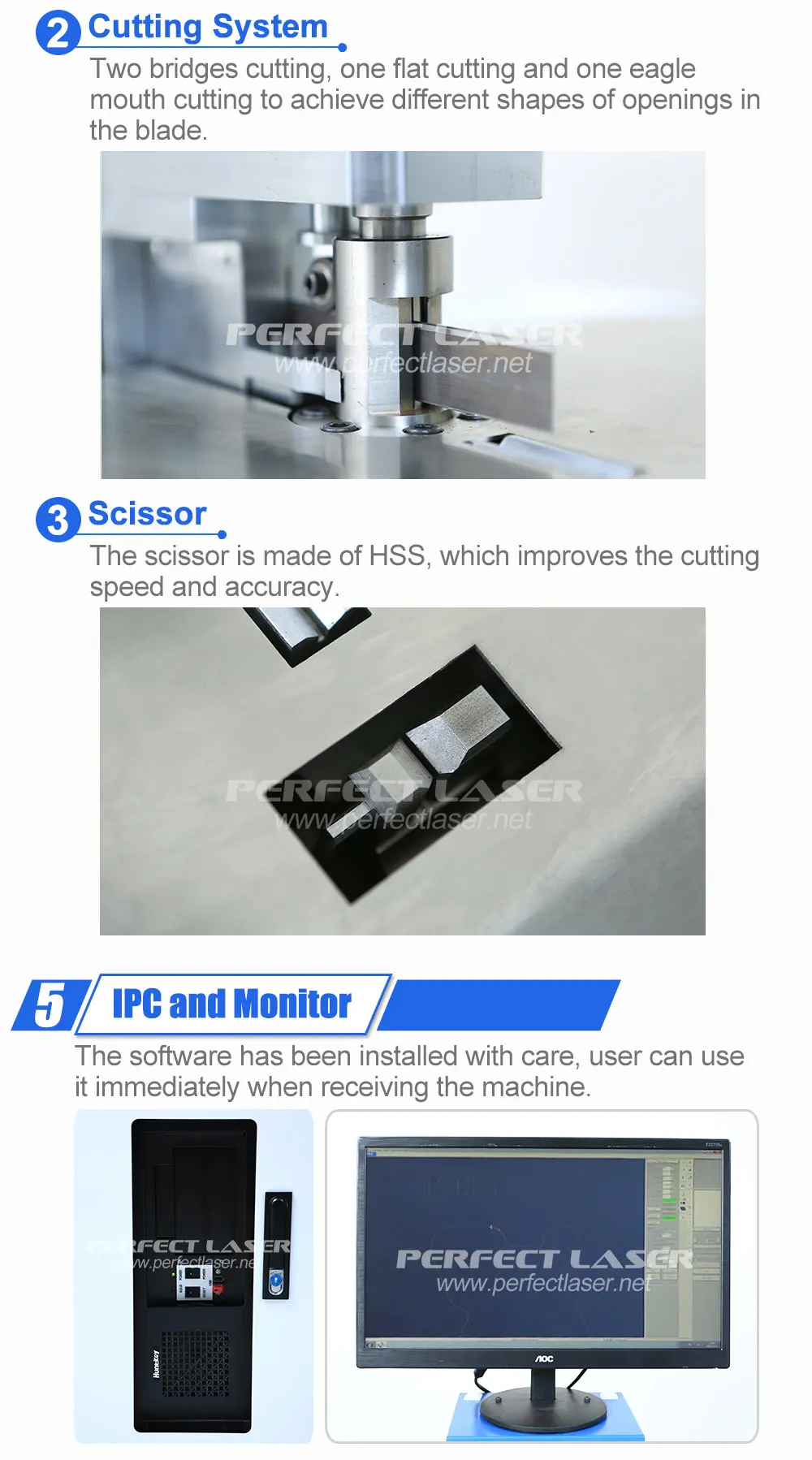

Detailed Images

Technical Data

Device Name	Auto Blade Bending Machine
Model	PEC-100
Feeding Accuracy	±0.3mm
Maximum Bending Angle	110°
Motor	Feeding, bending: Japan imported servo motor, 400W x 2 Bridge: 750W x 1
Rail Screw	Taiwan TPI
Blade Size	Thickness: 0.71mm / 1.07mm (0.45mm / 0.53mm optional); Height: 23.8mm (conventional), can up to 30mm;
Bridge Height	15mm / 18mm
Air Compressor Pressure	0.5-0.8mpa
Tracheal Diameter	10mm
Optional Device	Feeding table cover
Support File Format	DXF
Total Power	1.5 KW
Voltage	AC/ 220V / single phase
Dimension	2800 x 730 x 1310mm

Company Information

We, Perfect Laser, As a 21-year-old laser machinery and CNC equipement manufacturer, 13 year Golden Supplier in Alibaba, with CE/ISO/, we aims to make high quality products, and also our products have been exported to more than 180 different countries and areas.
