Products Description

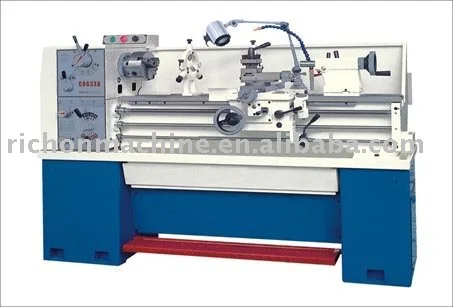

Engine lathe Machine C0632A
Lathe Feature
Precision ground and supersonic frequency hardened bed ways.
The spindle is supported with precision roller bearings.
Headstock gears are made of high quality steel, ground and hardened.
Spindle speed range 70-2000RPM.
Sealed and easy operating feed box has various feeds and thread cutting functions.




Specification
Item
C0632A
C0636A
Max. swing over bed
13"(330mm)
14"(360mm)
Max. swing in gap
183/4"(476mm)
197/8"(506mm)
Max. swing over slide
71/4"(185mm)
81/2"(215mm)
Bed width
73/8"(187mm)
Max. Length of workpiece
30"(750mm)40"(1000mm)
Spindle nose
D1-4
Spindle bore
11/2"(φ38mm)
Taper of bore in spindle Morse
No.5
Spindle speed steps
8
Spindle speed scope
702000r/min
Inch thread
456T.P.I/32
Metric thread
0.47mm/32
Diametral thread
8120D.P./33
Module thread
0.23.5MP/27
Longitudinal feed range
0.00320.1067in/r(0.0822.71mm/r)
Cross feed range
0.000860.0367in/r(0.0220.933mm/r)
Max. travel of tailstock quill
35/8"(95mm)
Taper hole of tailstock
No.3
Electric motor
2HP(1.5KW)110v or 220v(1ph)
220v or 380v(3ph)
Net weight/Gross weight(1000mm)
495/595kg










Company information




Customer Review




FAQ


Q1: How long guarantee period you offer?/ how is warranty?
A1: 12 month guarantee after machine on board.

Q2: What services are available during the guarantee period?
A2: Free replacing parts available in the warranty period.
Cost-value replacing parts available beyond the warranty period.
Quick action and reply for the technical questions at any time.

Q3: Can you provide training for operation CNC machines?
A3: Yes, free training in our factory or engineer overseas service available as customer requirements(relative cost born
by customer.

Q4: Can you provide customized machine or Special purpose machine?
A4: Yes, we provide different kinds processing solutions for customers, in order to meet different requirements.

Q5: Can we visit your factory before order?
A5: Sure, we warmly welcome you to visit our factory at any time. The more you know us, the more you trust us! So you can rest assured on our quality products and our best services.

Q6: Where is your factory located?
A6: Our factory is located in Kunming city, Yunnan province, in the southwest of China.
