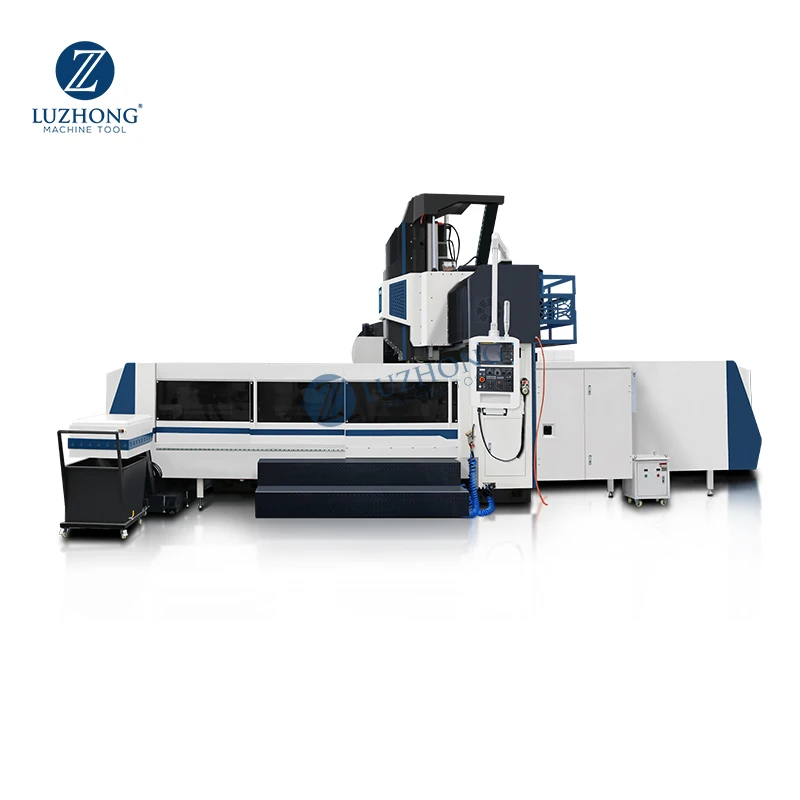

Двухколонный обрабатывающий центр GMC2014 Сверхмощный Козловой фрезерный станок 5
- Категория: Machine Tool Equipment >>>
- Поставщик: Shandong,Luzhong,Cnc,Machine,Tool,Co.,Ltd.
Поделиться:
Описание и отзывы
Трекер стоимости
| Месяц | Минимальная цена | Макс. стоимость |
|---|---|---|
| Sep-15-2025 | 80920.73 $* | 84966.6 $* |
| Aug-15-2025 | 80240.77 $* | 84252.16 $* |
| Jul-15-2025 | 67320.72 $* | 70686.96 $* |
| Jun-15-2025 | 78880.12 $* | 82824.27 $* |
| May-15-2025 | 68680.32 $* | 72114.77 $* |
| Apr-15-2025 | 77520.69 $* | 81396.33 $* |
| Mar-15-2025 | 76840.97 $* | 80682.44 $* |
| Feb-15-2025 | 76160.16 $* | 79968.69 $* |
| Jan-15-2025 | 75480.41 $* | 79254.11 $* |
Характеристики
Product Description
Specification
Specifications | Units | GMC2014 |
Table size | mm | 1200*2100 |
X axis travel | mm | 2000 |
Y axis travel | mm | 1500 |
Z axis travel | mm | 800 |
Gantry width | mm | 1500 |
Maximum passing height of gantry | mm | 1030 |
T slot(number-width-pitch) | mm | 7-22x170 |
Spindle taper | BT50 | |
Max. spindle speed | rpm | 6000 |
Rapid traverse speed | m/min | 15 |
Cutting feed speed | m/min | 10 |
Main motor power | kw | 15/18.5 |
Guide rail type | 2 axis linear rails and 1 axis hard rail | |
Max.table load | T | 3.5 |
Machine weight | T | 17 |
Overall dimension | mm | 4600x3180x3390 |

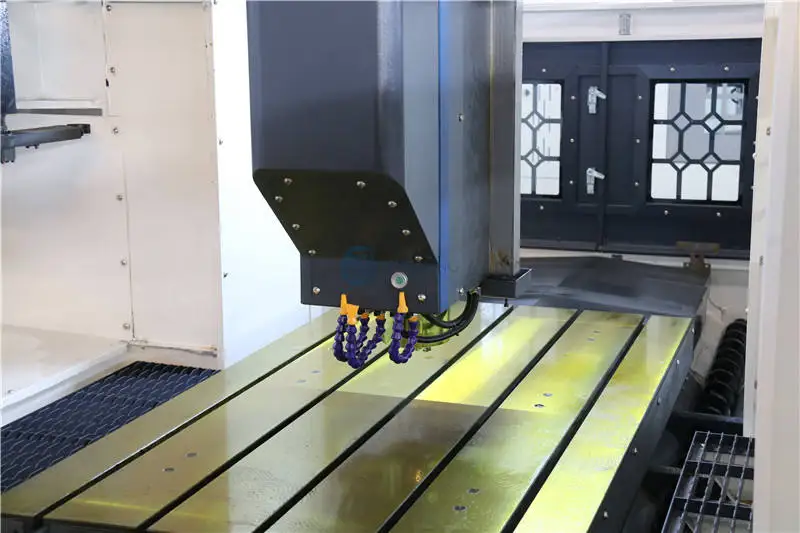

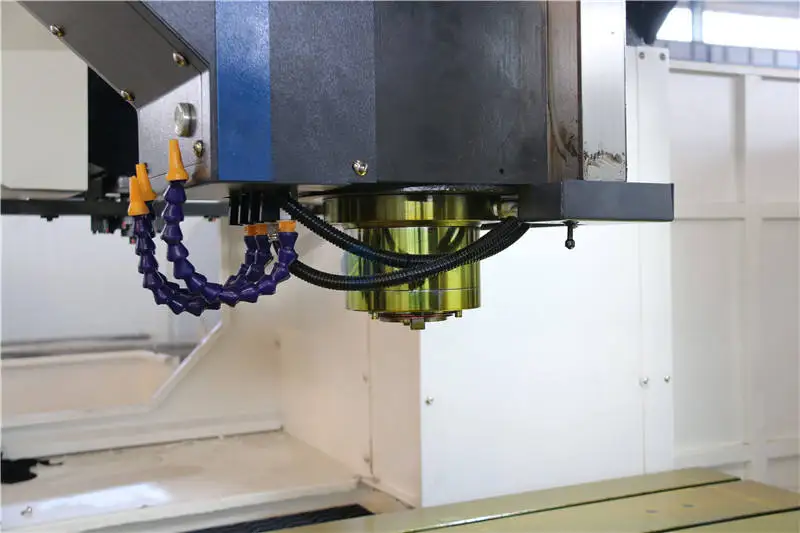

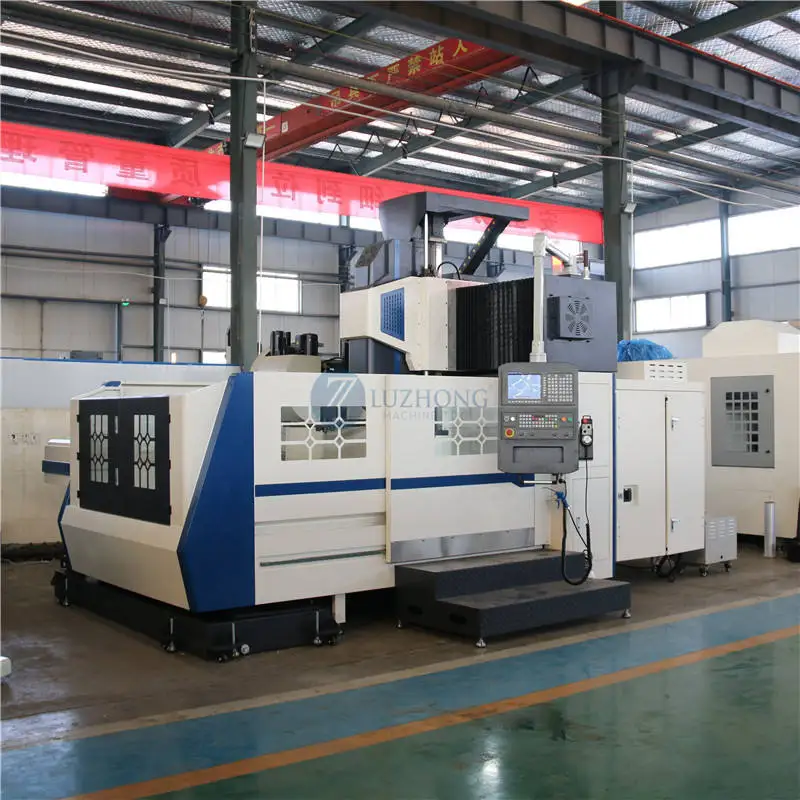

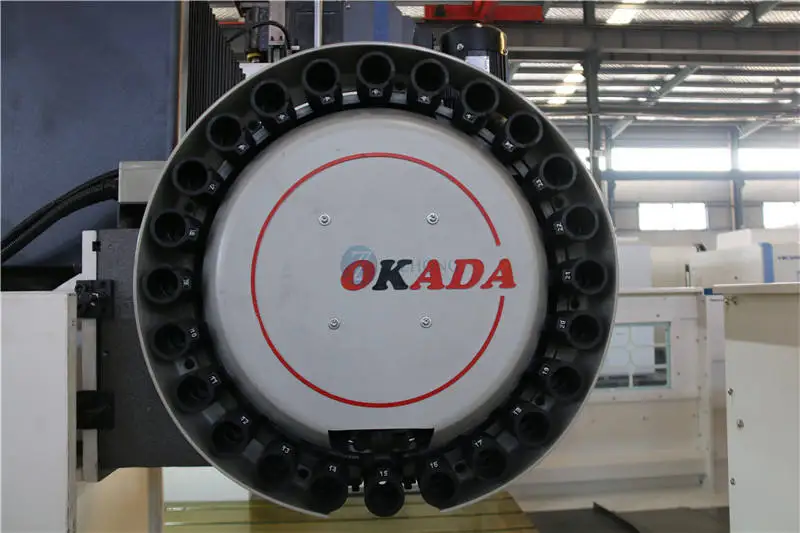

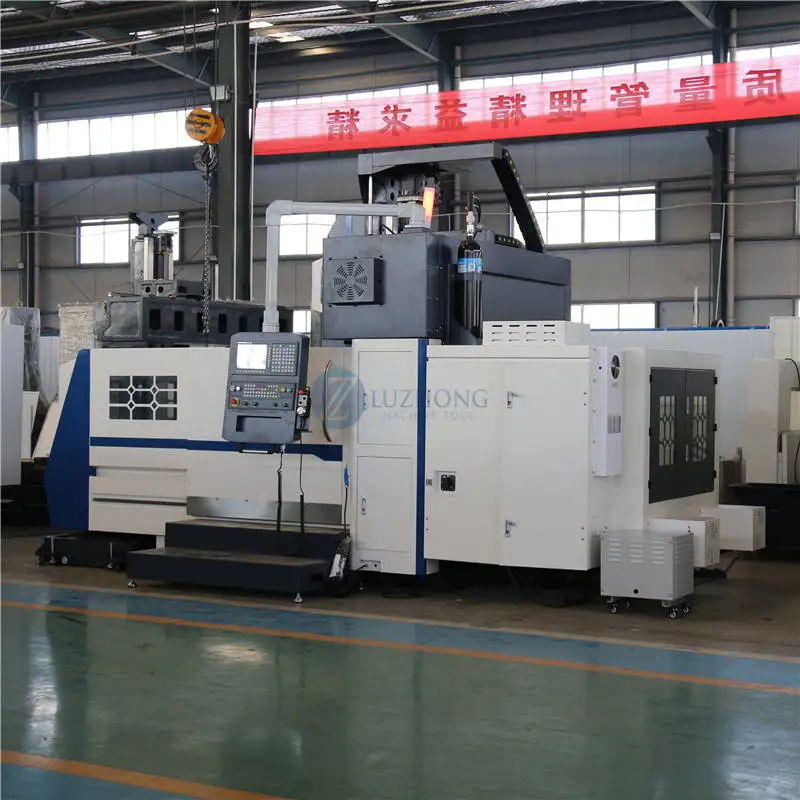

Details Images
