Китайская заводская цена VTL-i600 ЧПУ вертикальный токарный
- Категория: Machine Tool Equipment >>>
- Поставщик: Munzer,Technology,Co.,Ltd.
Поделиться:
Описание и отзывы
Трекер стоимости
| Месяц | Минимальная цена | Макс. стоимость |
|---|---|---|
| Sep-16-2025 | 46410.79 $* | 48731.79 $* |
| Aug-16-2025 | 46020.76 $* | 48321.76 $* |
| Jul-16-2025 | 38610.20 $* | 40541.96 $* |
| Jun-16-2025 | 45240.24 $* | 47502.61 $* |
| May-16-2025 | 39390.18 $* | 41360.51 $* |
| Apr-16-2025 | 44460.69 $* | 46683.49 $* |
| Mar-16-2025 | 44070.9 $* | 46274.95 $* |
| Feb-16-2025 | 43680.1 $* | 45864.73 $* |
| Jan-16-2025 | 43290.61 $* | 45455.5 $* |
Характеристики

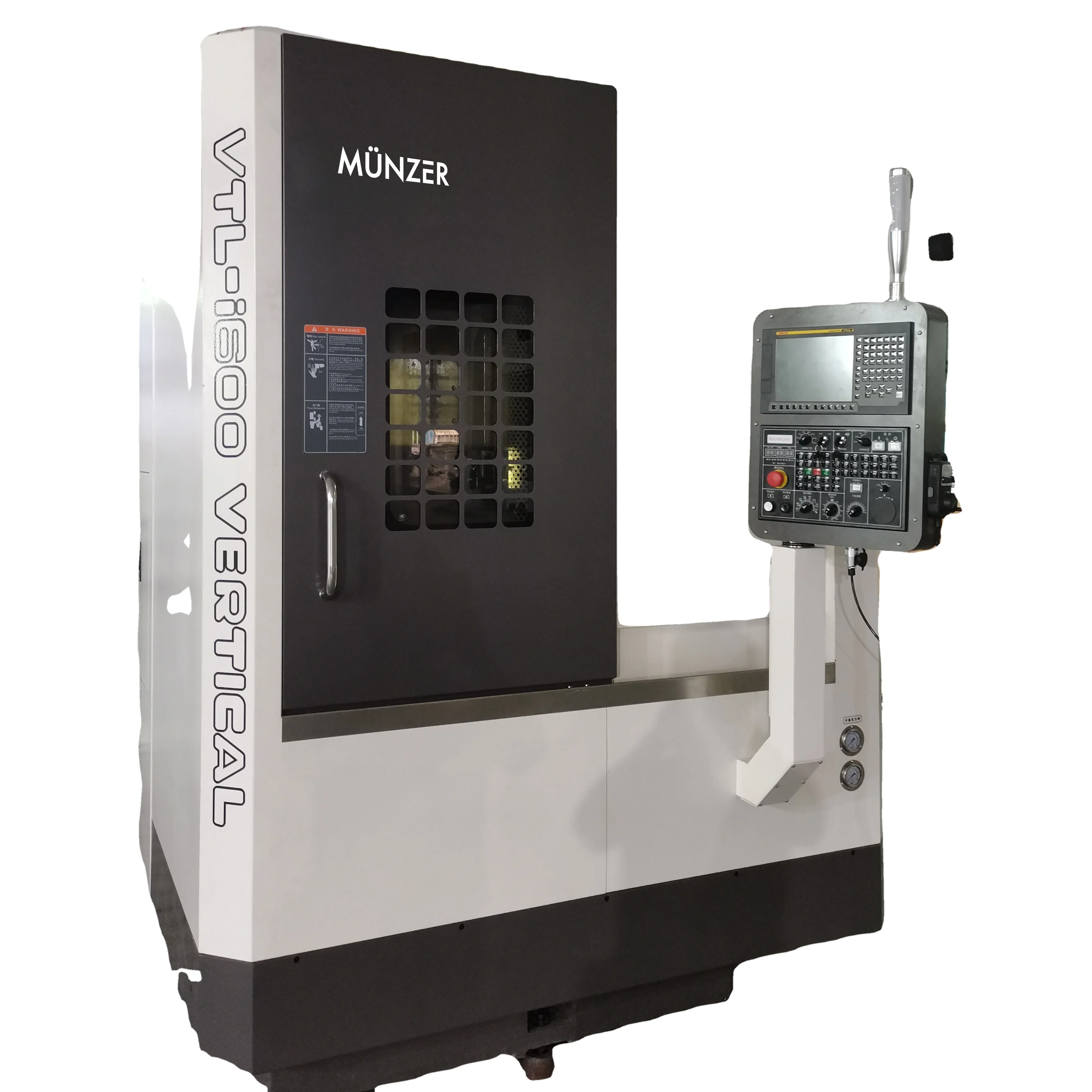

Packed with the latest machine tools technology and high precision turning capabilities, the MUNZER’s VTL-i600 series ultra performance vertical CNC turning center combines a high rigidity structure and precision linear guideways with a servo indexing turret and powerful spindle. These series features a compact machine size withheavy duty turning capabilities. The optional live tooling turret, C-axis, dual-face turning holders and workpiece balancing analyzer allows the VTL-i600 series to be able to complete turning, milling, drilling, tapping, dual-face machining and workpiece balancing analyzing in one single machine.
PRODUCT SPECIFICATIONS
CONTENT | Unit | VTL-i600 | VTL-i800 | ||
Capacity | Max.swing over bed | mm | Ф850 | Ф1000 | |
Max.turning diameter | mm | Ф750 | Ф800 | ||
Max.turning length(height) | mm | 520 | 780 | ||
Chuck size | inch | 12'' | 15'' | ||
Max.Loading weight | kg | 600 | 1160 | ||
Spindle | Spindle nose | - | A2-8 | A2-11 | |
Max.Spindle speed | rpm | 2500 | 2000 | ||
Spindle motor | kw | 15/18.5 | 15/18.5 | ||
Axis travel | x/z axis travel | mm | 450/750 | 450/840 | |
x/z axis rapid traverse | m/min | 20/20 | 20/20 | ||
Positioning accuracy | mm | ±0.008 | ±0.008 | ||
Repeat positioning accuracy | mm | ±0.005 | ±0.005 | ||
Tool Turret | Tool Turret type | - | Hydraulic turret-8T | Hydraulic turret-8T | |
Tool position | pcs | 12 | 12 | ||
Max.Tool speed | rpm | 4000 | 4000 | ||
I.D. tool size | mm | Ф40 | Ф40 | ||
O.D. tool size | mm | 25*25 | 25*25 | ||
Electrical parameters | Voltage | v | 380 | 380 | |
Frequency | Hz | 50 | 50 | ||
Max. installed power | KVA | 35 | 40 | ||
Control | Fanuc | Oi-TF | Oi-TF | ||
Machine dimensions | L*W*H | mm | 2600*1950*3150 | 3450*2560*3500 | |
Packing size | mm | 4100*2300*3500 | 4700*2800*3800 | ||
weight | kg | 6500 | 8500 | ||
Munzer focus one design, manufacturer and distribution of advanced metal-cutting machine tool solutions. As manufacturing demands, we bring innovation and expand our collet and workholding options to many demanding applications.
