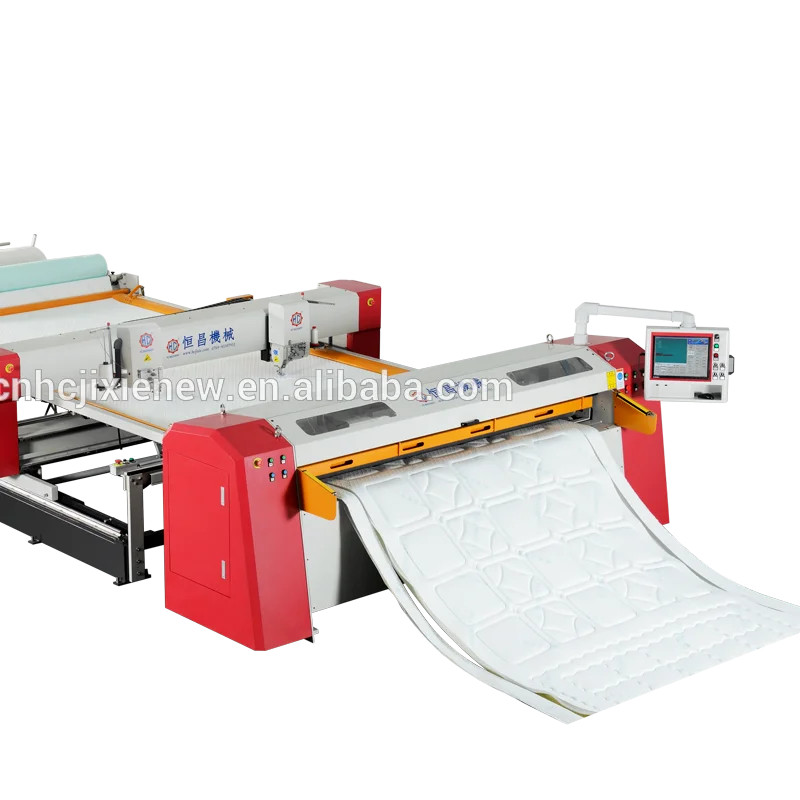

Новинка hengchang HC - D3000 автоматическая высокоскоростная двухголовочная крупная стеганая
- Категория: Стегальные машины >>>
- Поставщик: Dongguan,New,Hengchang,Intelligent,Equipment,Co.,Ltd.
Поделиться:
Описание и отзывы
Трекер стоимости
| Месяц | Минимальная цена | Макс. стоимость |
|---|---|---|
| Sep-16-2025 | 0.64 $* | 0.88 $* |
| Aug-16-2025 | 0.31 $* | 0.41 $* |
| Jul-16-2025 | 0.97 $* | 0.93 $* |
| Jun-16-2025 | 0.22 $* | 0.26 $* |
| May-16-2025 | 0.25 $* | 0.93 $* |
| Apr-16-2025 | 0.1 $* | 0.4 $* |
| Mar-16-2025 | 0.45 $* | 0.65 $* |
| Feb-16-2025 | 0.61 $* | 0.8 $* |
| Jan-16-2025 | 0.81 $* | 0.2 $* |
Характеристики
Product Description
Product Application
Mattress panel, mattress pads, bedspreads, comforters, bedding, upholstery, and etc.
Mattress panel, mattress pads, bedspreads, comforters, bedding, upholstery, and etc.
HC-D3000 Technical Specification | ||||||
Quilt width | ≤2400mm | |||||
Quilting thickness | ≤80mm | |||||
Needle size | DP*17 21#/22#/23# | |||||
Stitch | 2-6mm | |||||
Rotation speed | 3000RPM | |||||
Production speed | 40-160m/h | |||||
Power | 10.5KW | |||||
Voltage | 3-Phase 380V/50HZ3-Phase 220V/60HZ | |||||
Weight | 5000KG | |||||
Size(L*W*H) | 10000*4500*1600mm | |||||
Special Function
• Advanced qualified lock stitch sewing head, rotating speed can be up to 3000RPM.
• Diagnostic testing for thread broken and pattern compensation.
• Adjustable presser plate in different thickness.
• Memories restart all patterns after stop quilting.
• 360° T&J and simple pattern, more than 200 patterns.
• Capable pattern-designing software can adopt various quilting file and quilting system.
• Daily output counter and total output counter.
• Needle arrangement and pattern showing.
• Automatic needle lift,pneumatic thread cutting and thread break detector.
• Pattern compensation and correction.
• Panasonic servo control system.
• Automatic material feeding and cutting device.
• Special left sewing head design, patented product.
• Advanced qualified lock stitch sewing head, rotating speed can be up to 3000RPM.
• Diagnostic testing for thread broken and pattern compensation.
• Adjustable presser plate in different thickness.
• Memories restart all patterns after stop quilting.
• 360° T&J and simple pattern, more than 200 patterns.
• Capable pattern-designing software can adopt various quilting file and quilting system.
• Daily output counter and total output counter.
• Needle arrangement and pattern showing.
• Automatic needle lift,pneumatic thread cutting and thread break detector.
• Pattern compensation and correction.
• Panasonic servo control system.
• Automatic material feeding and cutting device.
• Special left sewing head design, patented product.
Company Introduction
Packing & Delivery
Packaging | ||
Size | Wooden box:4800×2300×2200mm | |
Weight | 4.5T | |
Packaging Details | The normal package is wooden box(Size: L*W*H). If export to european countries,the wooden box will be fumigated. | |
Our Service
Pre-Sales Service
* Inquiry and consulting support.
* View our Factory.
* Inquiry and consulting support.
* View our Factory.
After-Sales Service
* Training how to instal the machine, training how to use the machine.
* Engineers available to service machinery overseas.
* Training how to instal the machine, training how to use the machine.
* Engineers available to service machinery overseas.
Certifications
