Ультразвуковая стегальная машина без иглы резьбы

Ультразвуковая стегальная машина без иглы резьбы

Категория: Quilting Machines >>>
Поставщик: Jiangsu,Gaoqi,Machinery,Co.,Ltd.

Цена:9 600,00 $*

Количество:

Описание и отзывы

Трекер стоимости

Месяц	Минимальная цена	Макс. стоимость
Sep-15-2025	11424.70 $*	11995.6 $*
Aug-15-2025	11328.73 $*	11894.94 $*
Jul-15-2025	9504.5 $*	9979.83 $*
Jun-15-2025	11136.52 $*	11693.58 $*
May-15-2025	9696.2 $*	10181.14 $*
Apr-15-2025	10944.69 $*	11491.17 $*
Mar-15-2025	10848.69 $*	11390.28 $*
Feb-15-2025	10752.83 $*	11290.49 $*
Jan-15-2025	10656.17 $*	11189.58 $*

Характеристики

OUR FACTORY

PRODUCT PARAMENTERS

Product

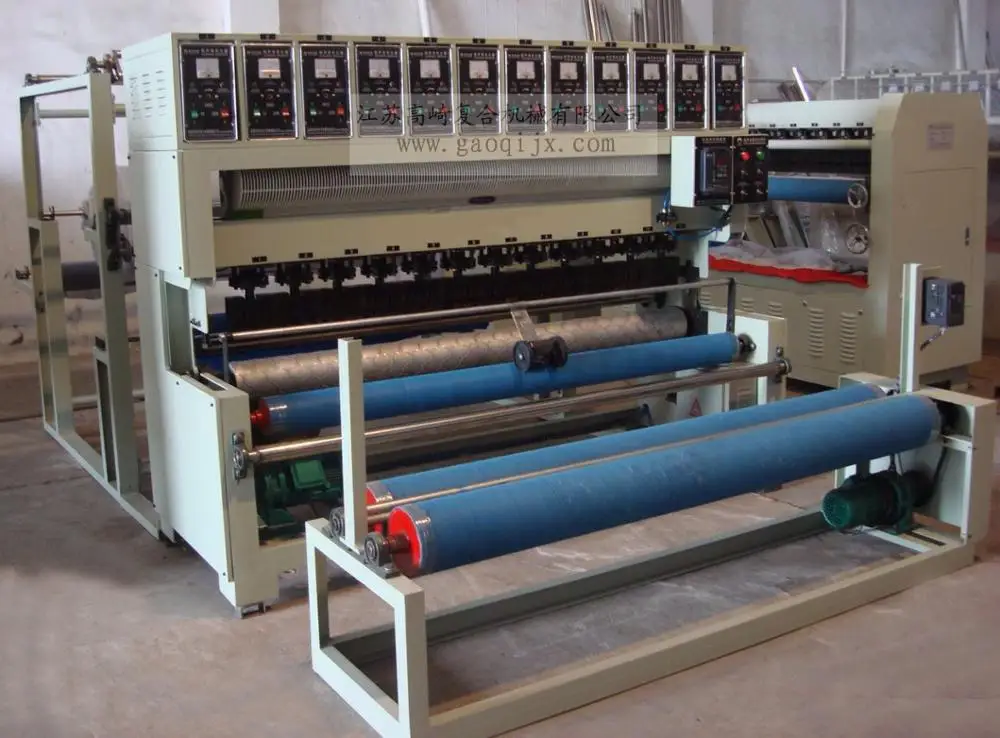

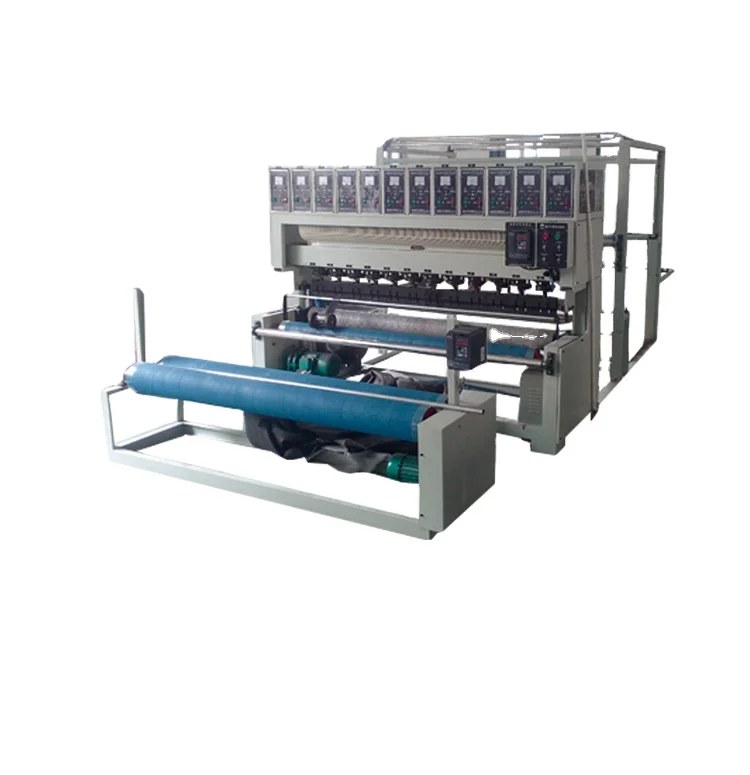

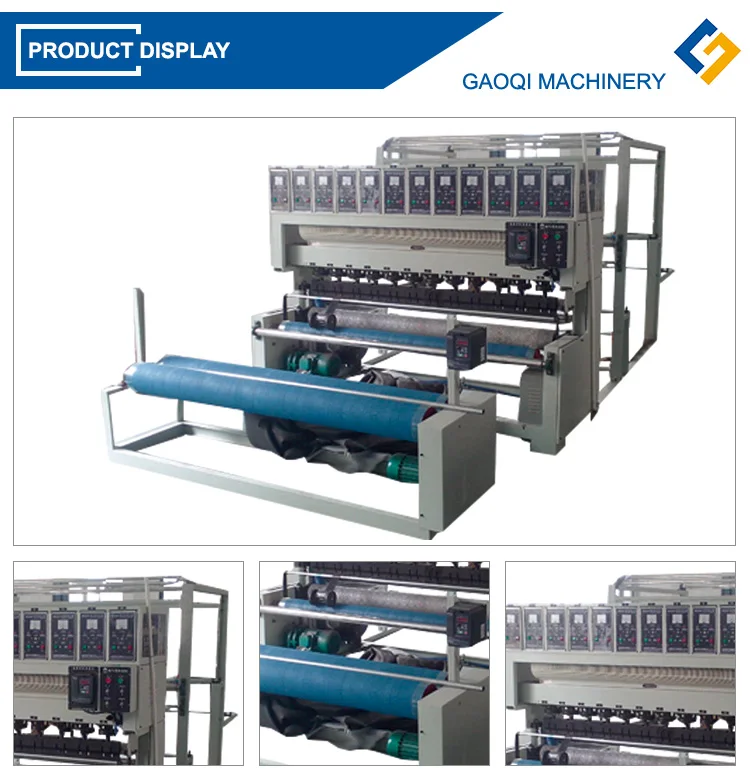

Ultrasonic Quilting Machine

The machine is transmitted by high-frequency vibration waves to the surface of two or more materials to be welded. In the case of pressurization, the surfaces of the materials are rubbed together to form a fusion between the molecular layers, and are suitable for welding of cloth and cloth, cloth and chemical fiber cotton, plastic film and plastic film.

Application:

This machine can do high-frequency ultrasonic embossing and recombination on flat flexible materials such as artificial cotton,plush, non-woven fabrics, chemical & blended fabrics, silk and leather. It is widely used in the industries like knitting,printing, garment lining, fabric, shoe-making, decoration, diapers, urinal pad, sanitary towel, seat cushion, back cushion, non-slip mat, body armor, bedding, and automobile.With the advanced technology of high-frequency ultrasonic embossing, embossing-recombination plus air cooling, the processed products are featured by being soft, washable, high fastness, no scald on surface, no protruding, power-saving and efficient.

Model	GQ-UQ1800	GRT1800	GRT2300	GRT2400	GRT2600	GRT3100
Number of generator	12 sets
Effective roller length	1800MM (Customizable)
Working speed	100-400m/hour
Motor Power	5.5KW	8Kw,380V	8Kw,380V	8Kw,380V	8Kw,380V	8Kw,380V
Frequency	20KHZ	20KHZ	20KHZ	20KHZ	20KHZ	20KHZ
Roller diameter	φ175	1800mm	2300mm	2400mm	2600mm	3100mm
Weight	3500KG
