Аппарат для ультразвуковой стегания KIVAS с


Поделиться:


Цена:7 150,00 $*

Количество:



Описание и отзывы


Трекер стоимости

Месяц Минимальная цена Макс. стоимость
Mar-16-2024 8509.13 $* 8934.30 $*
Feb-16-2024 8437.25 $* 8859.29 $*
Jan-16-2024 7079.38 $* 7433.21 $*
Dec-16-2023 8294.5 $* 8709.17 $*
Nov-16-2023 7222.13 $* 7583.79 $*
Oct-16-2023 8151.62 $* 8559.12 $*
Sep-16-2023 8080.41 $* 8484.26 $*
Aug-16-2023 8008.56 $* 8408.95 $*
Jul-16-2023 7937.30 $* 8334.94 $*

Характеристики





Product Display

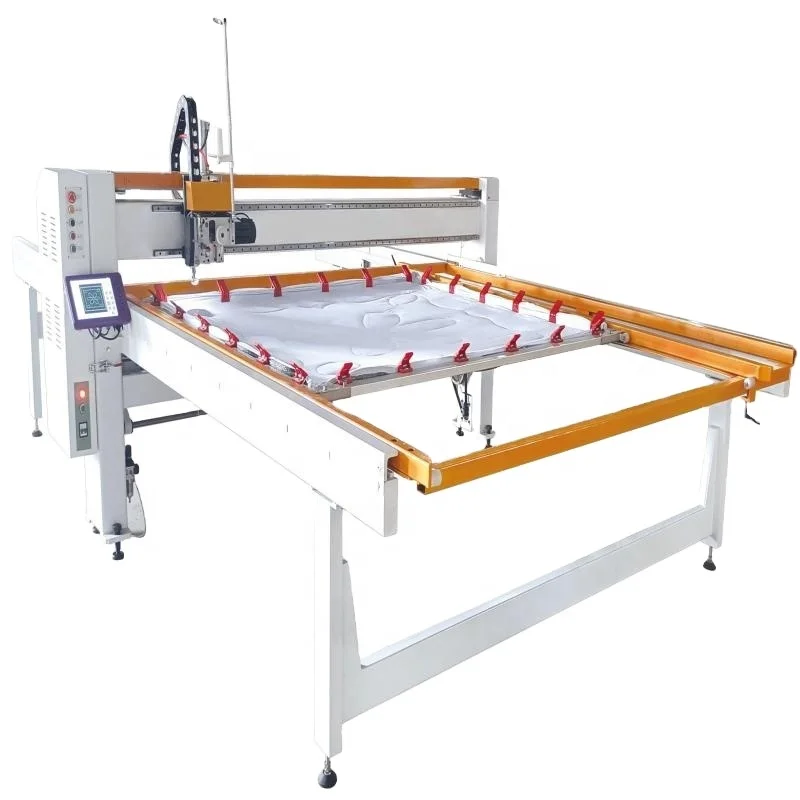

Fully automatic single-pin computer quilting machine KWS-DF-8T
Perfect design and MANUFACTURE MAKE THE needle symmetrical and beautiful, stable performance, head lifting, automatic thread cutting, suitable for high-volume processing. The computer displays preset parameters, quilting pattern and working status in both Chinese and English. Screen display, touch operation, the operator can select the required working parameters according to the screen prompt. The machine head moves left and right, and the frame moves back and forth.Touch screen operation is more convenient, hundreds of quilting patterns, including almost all the patterns on the market, free choice of working parameters. When quilting, the movement of the machine head is
dynamically tracked and displayed on the screen in real time with the color of the pattern changing. The high-sensitivity anti-collision sensing device protects the safety of the machine head, and the automatic thread trimming function greatly reduces labor costs.


Video Description




Parameter


Fully automatic single-pin computer quilting machine KWS-DF-8T
Quilting size
2600*2800mm
Needle drop size
2400*2600mm
Machine size
3400*5500*1400mm
Weight
1000kg
Quilting thick
1200g/m²
Spindle speed
1500-2200r/min  step2-7mm
Voltage
220V/50HZ
Power
2.0KW
Packing size
3560*880*1560mm
Packing weight
1100kg
Needle type
18#、21#、23#


Products Description




Head lifting, automatic thread cutting,
suitable for high-volume processing.
The computer displays preset parameters,quilting pattern and working status in both Chinese and English. Screen display, touch operation,

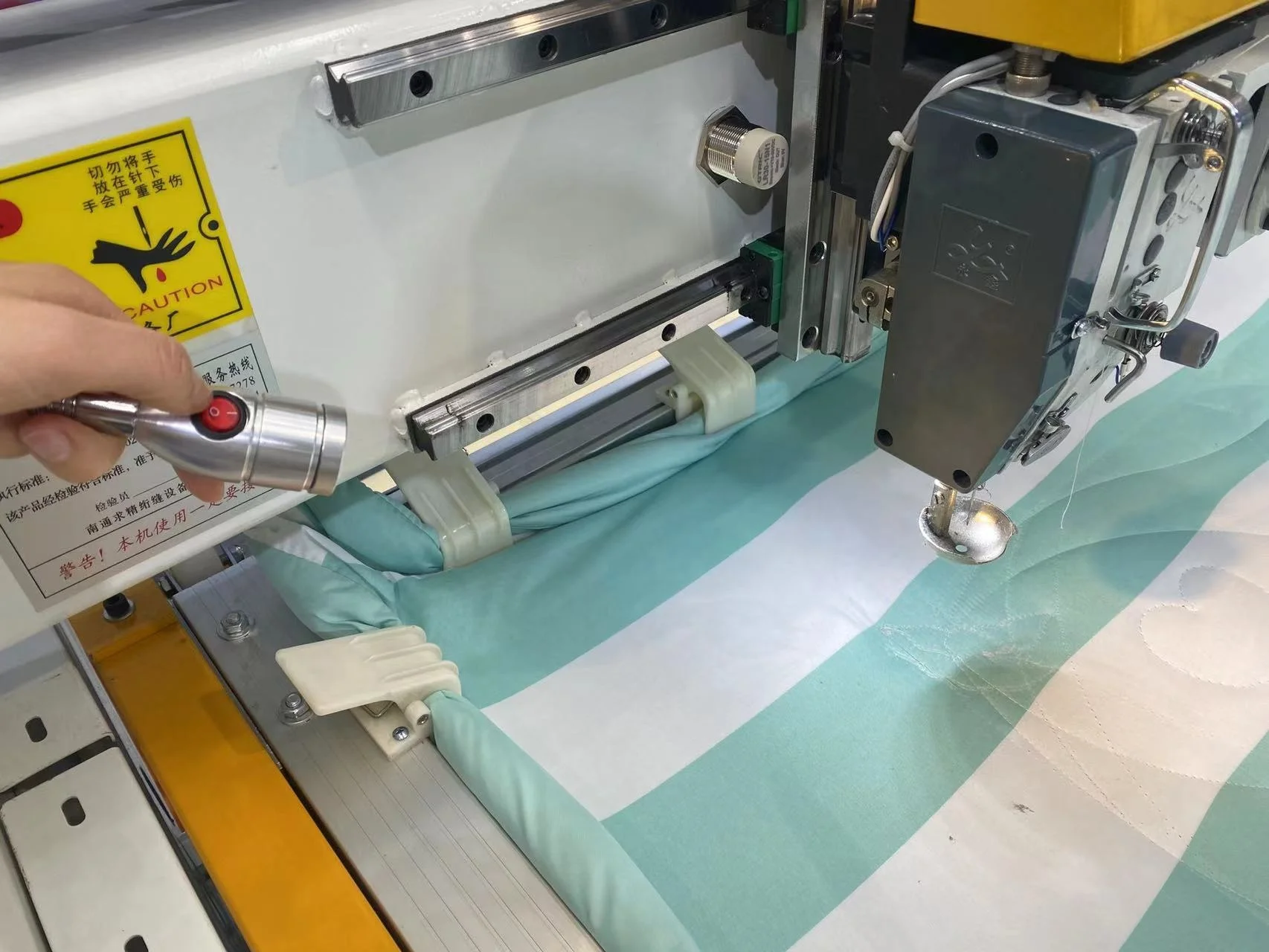

This machine uses high stability round knife shear line, so that the bottom line head consistent length, the head 10 cm lift stroke


High light LED light, high sensitive anti-collision sensor direct drive
The upper and lower head adopts the servo motor with high precision direct drive, with high quilting accuracy, fast speed and improved production efficiency.

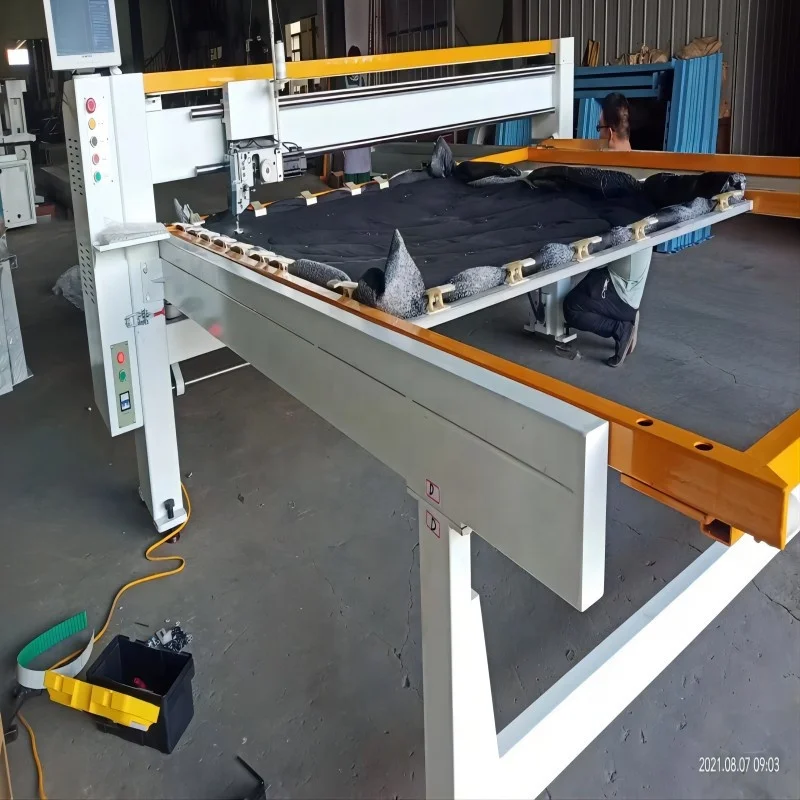

X axis Y axis motor, the machine head moves left and right, the frame moves back and forth


Products Application


Why choose US
Computer quilting machine can automatically and quickly sew a variety of materials and patterns. Mainly used for the production of various quilts, bedcovers, sleeping bags, mattresses, textile ornaments, there are more than 460 kinds of flowers, special flower patterns can be customized.




Company Profile And Certifications

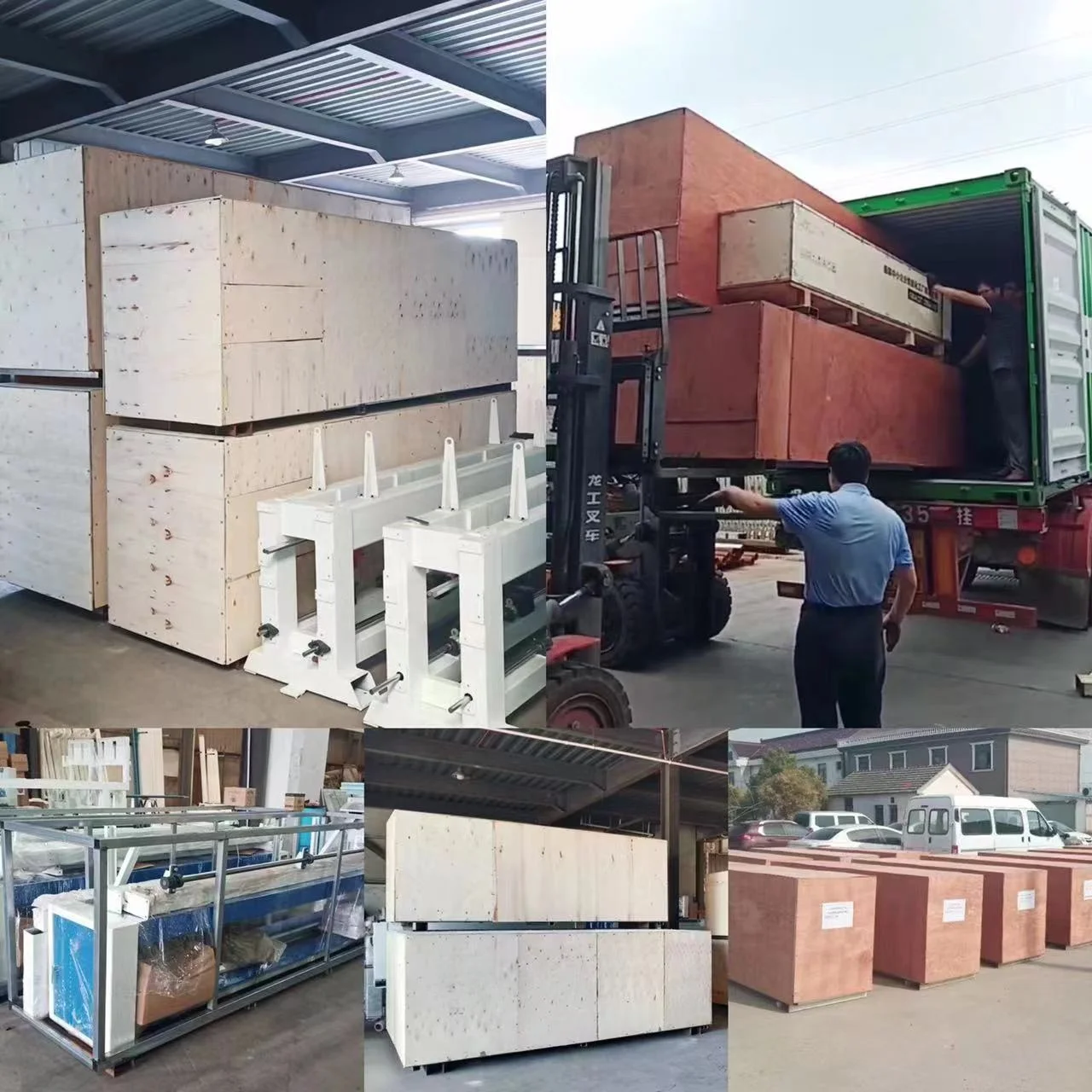

Packaging & Shipping


The whole set of equipment includes:
1 KWS-DF-8 quilting machine, 2 frames (adjustable); bench + platform + frame 1 set; 1 winding machine, spindle shell, spindle core and needle.






FAQ


OUR SERVICE
Know more about us,will help you more
01 Pre-sales service
Inquiry and consulting support. 20 years Home textile machinery experience.
One-to-one sales engineer technical service.
Hot-line of service is available in 24h, responded in 8h.
02 After service
Technical training Equipment evaluation;
Installation and debugging Troubleshoot;
Maintenance Update and improvement;
One-year warranty. Provide technical support free all-life of the products.
Keep all-life contacting with clients, get feedback on use of the equipment and make the products quality continually perfected.
1. How long is the warranty for this machine?
One-year warranty. Provide technical support free all-life of the products.
Keep all-life contacting with clients, get feedback on use of the equipment and make the products quality continually perfected.
2. After-sales service?
We can provide high quality after-sales service, video online after-sales, can send engineers to your factory for training and installation.
3. How to control the quality?
We have professional engineers and inspectors to make sure that every part of the machine works well before leaving the factory.
4. How can I contact you?
You can contact us through TM, Skype, Whats app, we chat, Email.
5. What are the terms of payment?
Telegraphic transfer, Western Union, Pay pal, cash, letters of credit, trade guarantees, etc.
6. Is your company a manufacturer or a trading company?
We are a professional manufacturer with our own international trade department so that we can better understand the needs of our customers and offer reasonable prices.
If you have any further questions, please feel free to contact us.
