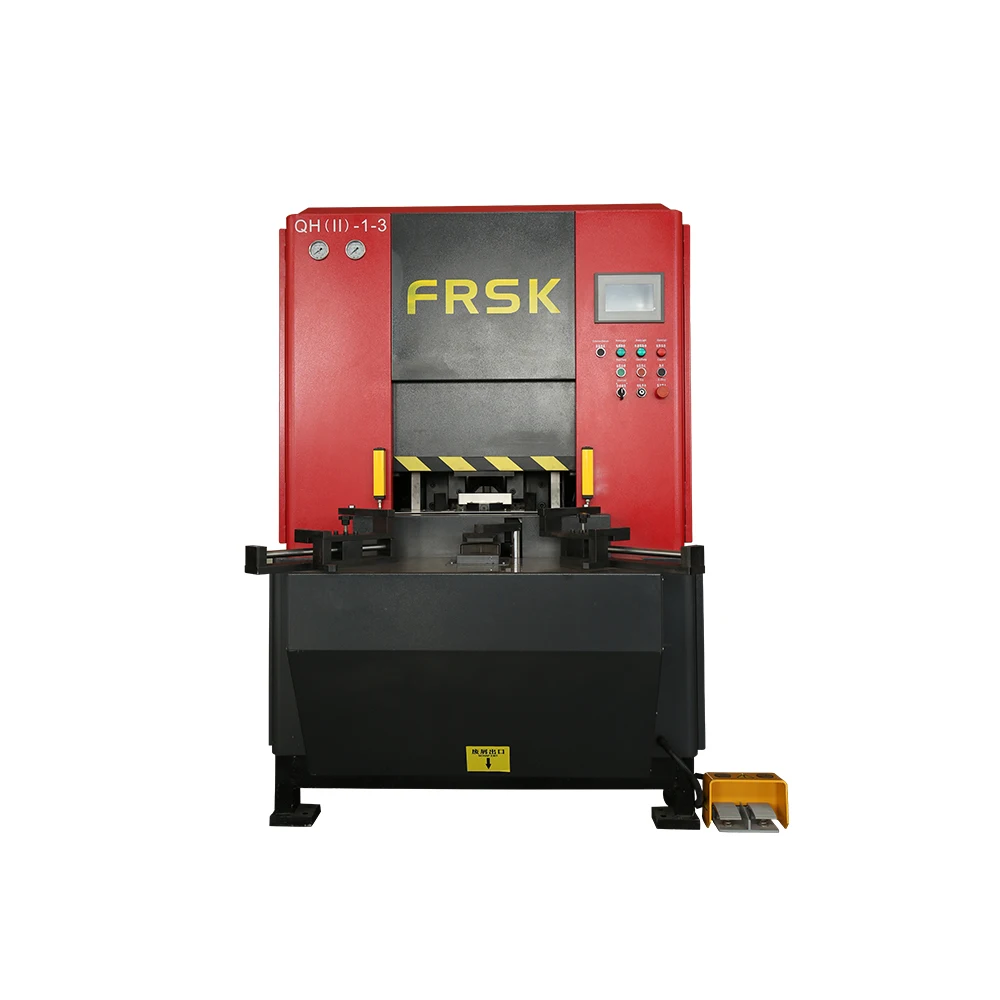

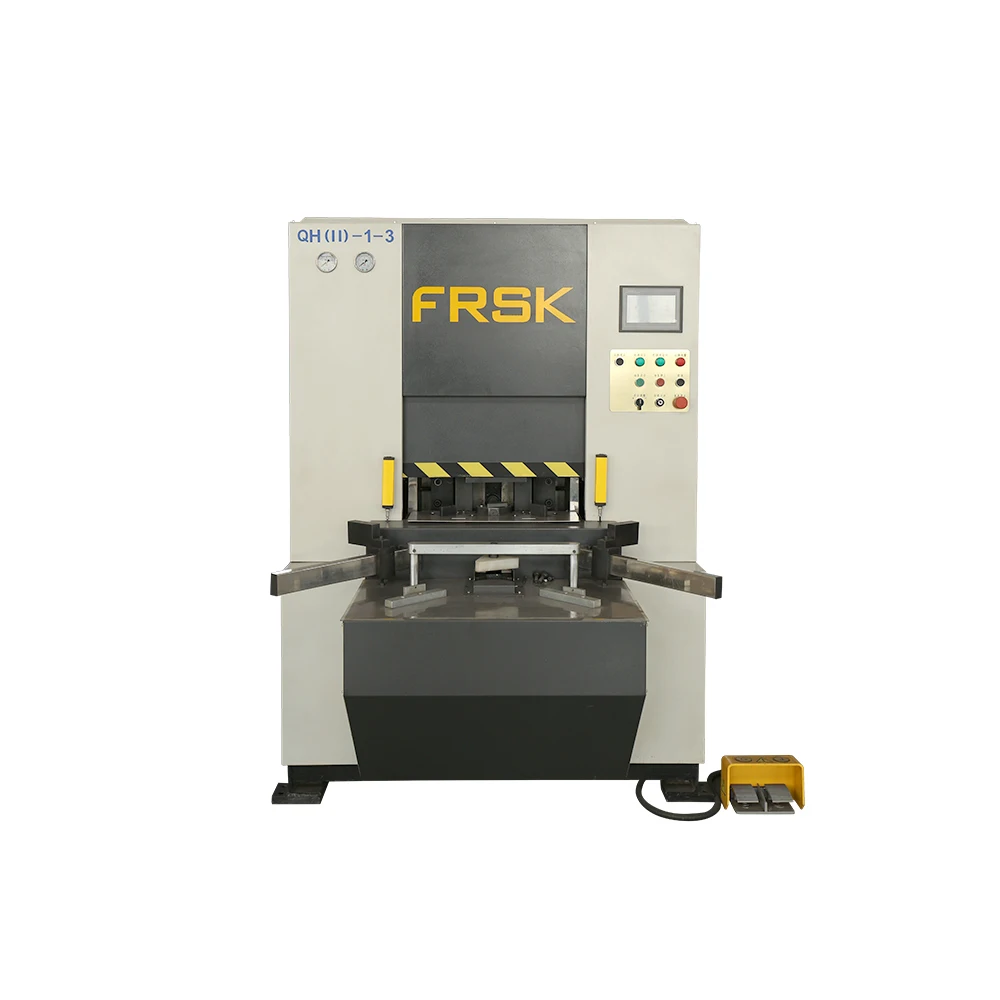

CNC угловая формовочная машина для крышки контейнера/инструмента/распределительного
- Категория: Другое станочное оборудование >>>
- Поставщик: Yantai,Ruisike,CNC,Machine,Co.,Ltd.
Поделиться:
Описание и отзывы
Трекер стоимости
| Месяц | Минимальная цена | Макс. стоимость |
|---|---|---|
| Sep-18-2025 | 0.41 $* | 0.32 $* |
| Aug-18-2025 | 0.97 $* | 0.19 $* |
| Jul-18-2025 | 0.2 $* | 0.66 $* |
| Jun-18-2025 | 0.11 $* | 0.67 $* |
| May-18-2025 | 0.9 $* | 0.9 $* |
| Apr-18-2025 | 0.49 $* | 0.66 $* |
| Mar-18-2025 | 0.38 $* | 0.88 $* |
| Feb-18-2025 | 0.54 $* | 0.53 $* |
| Jan-18-2025 | 0.25 $* | 0.97 $* |
Характеристики
Products Description
Application Area

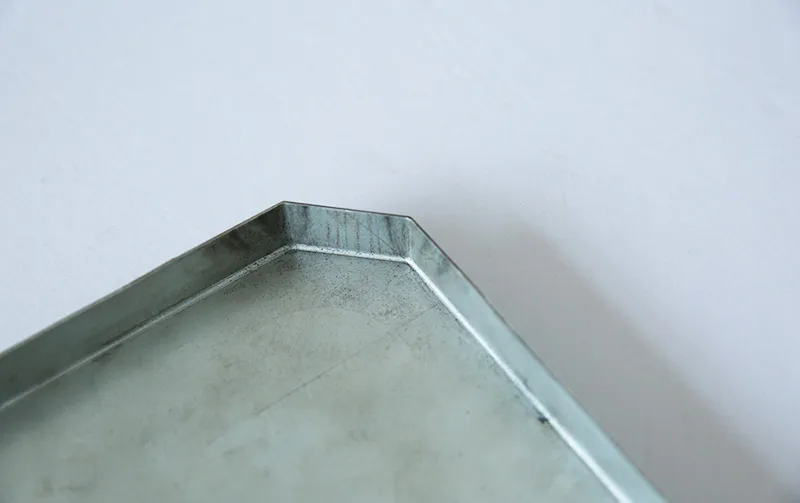

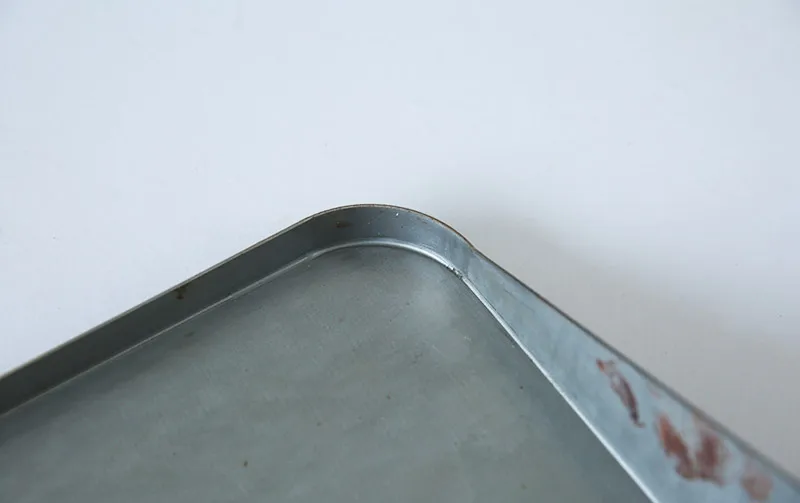

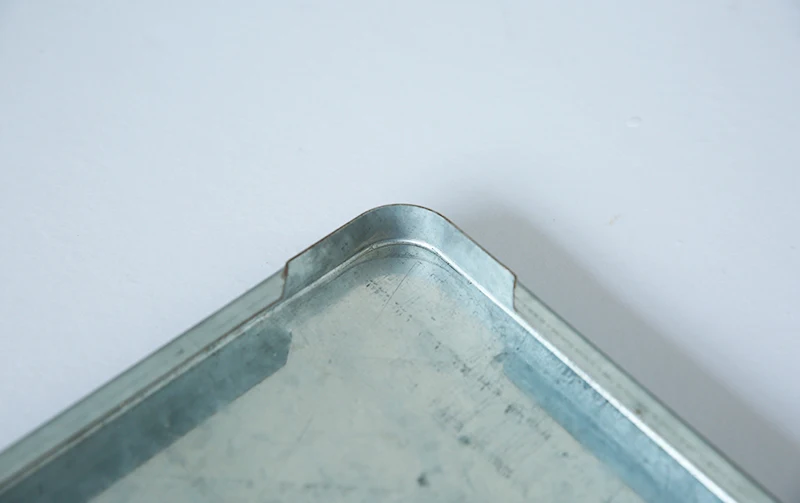

This machine is used in the processing of sheet metal corner moulding such as cold-rolled plate ,aluminum plate ,stainless steel plate ,copper plate etc.
Widely used in the switching door ,cover plate ,aluminum single panel curtain wall , switchboard ,container cover, household appliances ,instruments and other fields
Technical Features
*The machine owns twin shear function，the integrated shearing and forming function can be chosen in mass production ,the corner can be formed and sheared without changing shearing position ,saving physical capability .when the production is of great variety ,in small batch ,the separated forming and shearing function can be chosen . when the flange height is below 30mm, the flange height can be flexible and changeable ,the workpiece can be finished directly just change the station to shear after the corner isformed. This machine is one of the most advanced models in the world recently.
*Install safety light curtain protection to make the production process more safe and humanistic .
*Adopt the imported first-class brand components as our key electrical components to ensure the reliability and stability of the system.
*The PLC controller with 68 points can store and save lots of sheet metal corner moulding technologies, gap compensation coefficients .At the same time ,it can save and rewrite the coefficients of special materials and even the complex bimetal at any time
*This machine improves shearing efficiency more than six times by changing the tedious process of open-angle welding ,grinding etc into rolling forming directly .it saves labor ,electricity ,gas ,grinding material and other accessories for enterprises, therefore ,it is both environmentally friendly and greatly reduces the production cost , could be regarded as the enterprise save-money expert.
*Install safety light curtain protection to make the production process more safe and humanistic .
*Adopt the imported first-class brand components as our key electrical components to ensure the reliability and stability of the system.
*The PLC controller with 68 points can store and save lots of sheet metal corner moulding technologies, gap compensation coefficients .At the same time ,it can save and rewrite the coefficients of special materials and even the complex bimetal at any time
*This machine improves shearing efficiency more than six times by changing the tedious process of open-angle welding ,grinding etc into rolling forming directly .it saves labor ,electricity ,gas ,grinding material and other accessories for enterprises, therefore ,it is both environmentally friendly and greatly reduces the production cost , could be regarded as the enterprise save-money expert.
technical parameters | Content | ||||||
Model | JCX-QH2-1-3 | ||||||
Processing Range (mm) | Material | Thickness | Flange height (mm) | Corner radius | |||
Cold-rolled plate | 0.6 | <10 | 1.5-50 | ||||
0.8-1.2 | <20 | 1.5-50 | |||||
1.5 | <25 | 1.5-50 | |||||
2.0-3.0 | <30 | 1.5-50 | |||||
304(higher level included)Stainless steel plate | 0.5-3.0 | 1-2mm lower than the flange height of the cold rolled plate | 1.5-50 | ||||
Aluminum plate | 1-3 | Same as the flange height of cold rolled plate | 1.5-50 | ||||
Processing time moulding one corner | About 7 sec. | ||||||
Processing time moulding fours corners | About 32 sec. | ||||||
Mould configuration | Rolling mould ,square mould ,shear knife | ||||||
AC servo motor | Fuji/Japan | ||||||
Pneumatic System | Airtac/Taiwan | ||||||
PLC | FATEK/Taiwan | ||||||
Low voltage electrical appliance | Schneider /France | ||||||
hydraulic valve | Duplomatic/Italy | ||||||
Main motor power(KW) | 4 | ||||||
Dimensions(Length×Width×height) (mm) | 1280×1930×1890 | ||||||
Weight(KGS) | 1650 | ||||||
