Сверлильный и фрезерный станок
- Категория: Other Machine Tool Equipment >>>
- Поставщик: Shenzhen,Richon,Industry,Co.,Ltd.
Поделиться:
Описание и отзывы
Трекер стоимости
| Месяц | Минимальная цена | Макс. стоимость |
|---|---|---|
| Sep-15-2025 | 1488.43 $* | 1562.20 $* |
| Aug-15-2025 | 1475.59 $* | 1549.49 $* |
| Jul-15-2025 | 1238.50 $* | 1300.96 $* |
| Jun-15-2025 | 1450.96 $* | 1523.61 $* |
| May-15-2025 | 1263.46 $* | 1326.96 $* |
| Apr-15-2025 | 1425.86 $* | 1496.2 $* |
| Mar-15-2025 | 1413.94 $* | 1484.41 $* |
| Feb-15-2025 | 1400.46 $* | 1470.36 $* |
| Jan-15-2025 | 1388.98 $* | 1457.6 $* |
Характеристики
Products Description

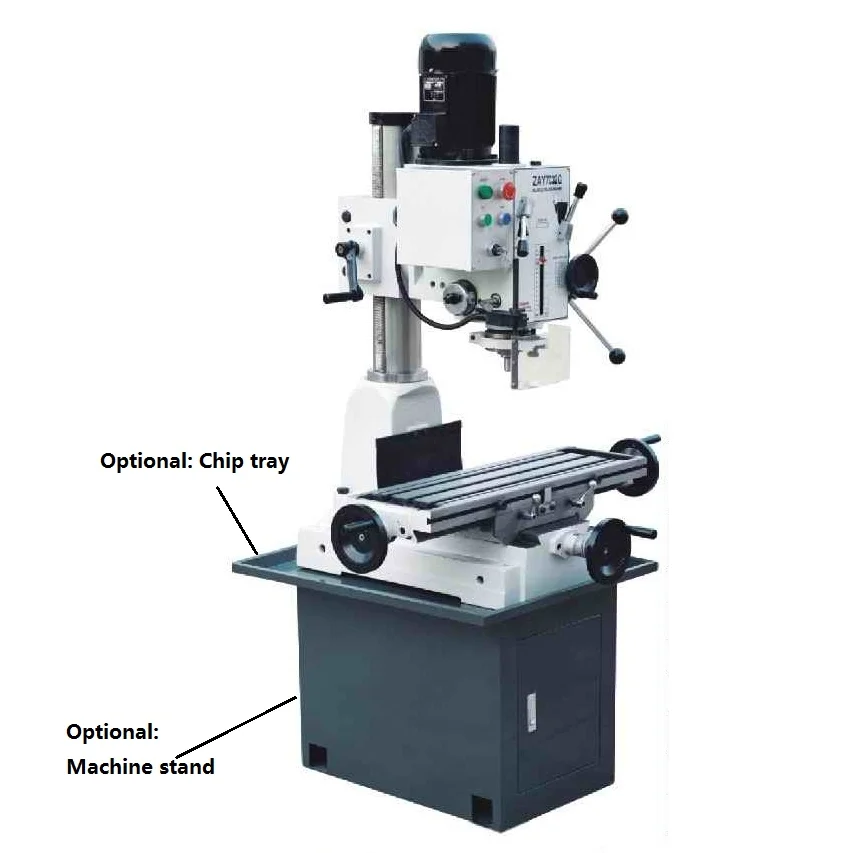

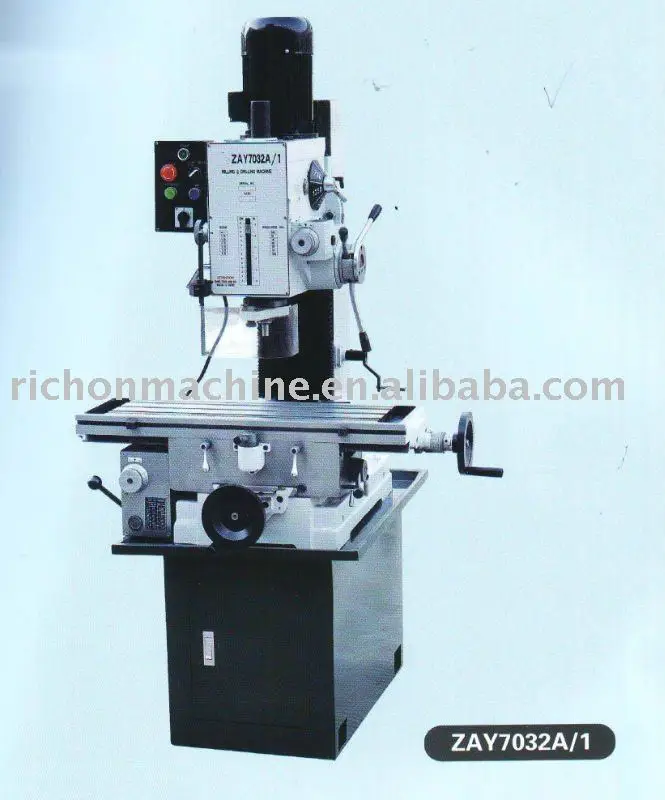

Drilling and Milling machine ZAY7032A/1
MAIN SPECIFICATION | UNIT | ZAY7032A/1 | ||
Drilling capacity | mm | 32 | ||
Max.boring diameter | mm | 50 | ||
Max.face milling capacity | mm | 63 | ||
Max.end milling capacity | mm | 20 | ||
Max.distance from spindle nose to table | mm | 400 | ||
Min.distance from spindle axis to column | mm | 260 | ||
Spindle travel | mm | 130 | ||
Spindle taper | M.T.3 or R8 | |||
Step of spindle speed | 6 | |||
Range of spindle speed | 50HZ | rpm | 80-1250 | |
60HZ | rpm | 95-1500 | ||
Auto-feeding step of spindle | 6 | |||
Automatic feeding amount of spindle | mm/r | 0.06-0.30 | ||
Swivel angle of headstock (Headstock perpendicular) | ±90° | |||
Auto-feeding step of worktable(Longitudinal/cross) | 6 | |||
Auto-feeding amount of worktable | mm/min | 24,35,49,73,104,145 | ||
Size of table | mm | 800x240 | ||
Forward and backward travel of table | mm | 165 | ||
Left and right travel of table | mm | 450 | ||
Motor Power | kw | 0.75(1Hp) | ||
Voltage/Frequency | As customer's requirement | |||
Net weight | kg | 355 | ||
Gross weight | kg | 415 | ||
Packing size | mm | 930x770x1160 | ||
Company information
Customer Review
FAQ
Q1: How long guarantee period you offer?/ how is warranty?
A1: 12 month guarantee after machine on board.
Q2: What services are available during the guarantee period?
A2: Free replacing parts available in the warranty period.
Cost-value replacing parts available beyond the warranty period.
Quick action and reply for the technical questions at any time.
Q3: Can you provide training for operation CNC machines?
A3: Yes, free training in our factory or engineer overseas service available as customer requirements(relative cost born
A1: 12 month guarantee after machine on board.
Q2: What services are available during the guarantee period?
A2: Free replacing parts available in the warranty period.
Cost-value replacing parts available beyond the warranty period.
Quick action and reply for the technical questions at any time.
Q3: Can you provide training for operation CNC machines?
A3: Yes, free training in our factory or engineer overseas service available as customer requirements(relative cost born
by customer.
Q4: Can you provide customized machine or Special purpose machine?
A4: Yes, we provide different kinds processing solutions for customers, in order to meet different requirements.
Q5: Can we visit your factory before order?
A5: Sure, we warmly welcome you to visit our factory at any time. The more you know us, the more you trust us! So you can rest assured on our quality products and our best services.
Q6: Where is your factory located?
A6: Our factory is located in Kunming city, Yunnan province, in the southwest of China.
Q4: Can you provide customized machine or Special purpose machine?
A4: Yes, we provide different kinds processing solutions for customers, in order to meet different requirements.
Q5: Can we visit your factory before order?
A5: Sure, we warmly welcome you to visit our factory at any time. The more you know us, the more you trust us! So you can rest assured on our quality products and our best services.
Q6: Where is your factory located?
A6: Our factory is located in Kunming city, Yunnan province, in the southwest of China.
Contact us
