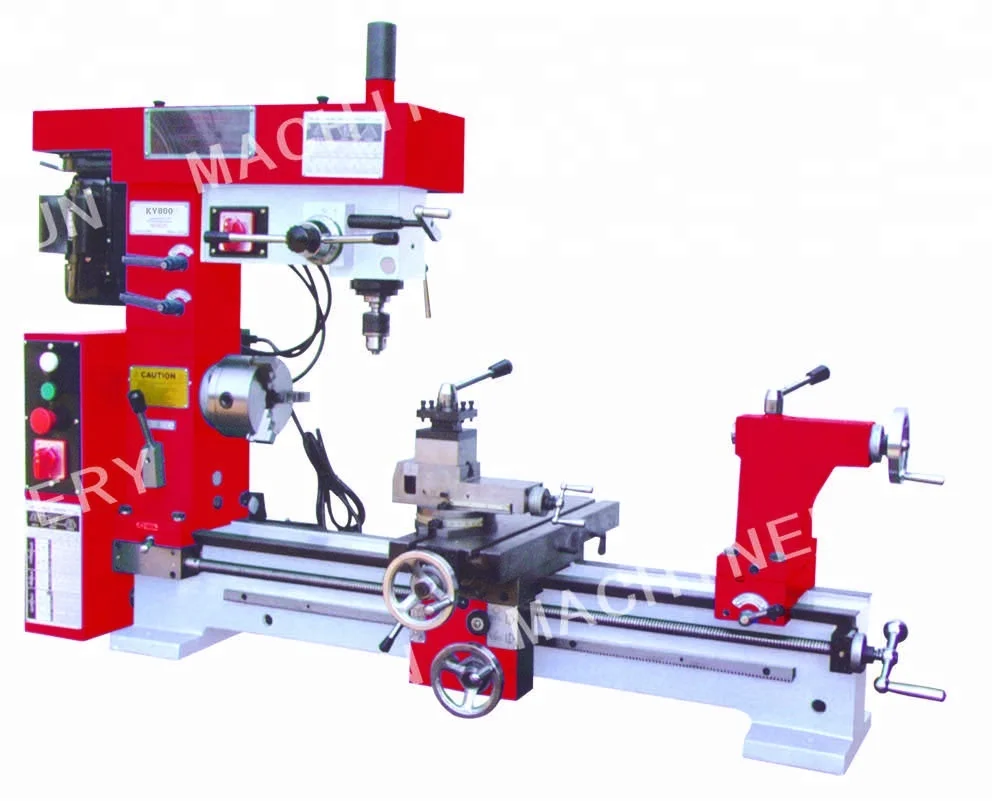

Низкая цена 3 в 1 бытовой верстак с переменной скоростью токарный станок фрезерный сверлильный комбинированный
- Категория: Other Machine Tool Equipment >>>
- Поставщик: Yangzhou,Kaiyun,Machinery,Co.,Ltd.
Поделиться:
Описание и отзывы
Трекер стоимости
| Месяц | Минимальная цена | Макс. стоимость |
|---|---|---|
| Sep-15-2025 | 0.55 $* | 0.33 $* |
| Aug-15-2025 | 0.99 $* | 0.55 $* |
| Jul-15-2025 | 0.37 $* | 0.77 $* |
| Jun-15-2025 | 0.59 $* | 0.91 $* |
| May-15-2025 | 0.0 $* | 0.15 $* |
| Apr-15-2025 | 0.65 $* | 0.53 $* |
| Mar-15-2025 | 0.26 $* | 0.89 $* |
| Feb-15-2025 | 0.28 $* | 0.80 $* |
| Jan-15-2025 | 0.93 $* | 0.33 $* |
Характеристики
Product Description
Specification | ||
Model No. | KY500/KY800 | |
Swing over bed | 420mm | |
Distance between centers | 500mm/800mm | |
Max.longitudinal travel | 440mm/740mm | |
Max.cross travel | 200mm | |
Taper of spindle | M.T.4 | |
Spindle hole | 28mm | |
Step of speed/Range of speed | 7/160-1360r.p.m | |
Barrel travel | 70mm | |
Taper of center | M.T.3 | |
Metric thread can be cut | 0.2-6mm | |
Inch thread can be cut | 4-120 T.P.I | |
Longitudinal range of automatic feeding | 0.05-0.35mm | |
Cross range of automatic feeding | 0.05-0.35mm | |
Drilling/Milling | ||
Drilling capacity | 22mm | |
Table size(L*W) | 475*160mm | |
End mill capacity | 28mm | |
Face mill capacity | 80mm | |
Distance between spindle center and column | 285mm | |
Distance between spindle nose and table | 306mm | |
Spindle travel | 110mm | |
Spindle taper | M.T.3 | |
Range of spindle speed | 120-3000r.p.m | |
Swivel angle of headstock | ±180° | |
Main motor power/Drill and mill mait motor | 0.55kw/0.55kw | |
Standard accessories | ||
Drilling chuck | 1 pc | |
Toolbox & tools | 1 set | |
Optional accessories | ||
4-jaw chuck | 1 set | |
Backplate | 1 pc | |
Follow rest | 1 pc | |
Steady rest | 1 pc | |
Face plate | 1pc | |
Collet chuck | 1 set | |
Turning tools | 1 pc | |
Leadscrew cover | 1 set | |
FEATURES
1.Compact combination machine.
2.Adjustable height drill/mill head increases capacity.
3.Large MT4 spindle bore.
4.Fine feed handle and clutch for precision milling.
5.Headstock provides two step of feeds.
6.Spindle is supported by high precision bearing.
7.T-s lot cross slide.
8.Adjustable gibs for the slideway.
9.Automatic longitudinal & cross feed.
10.Right/Left hand threads cutting is available.
11.Equipped with emergency stop button.
12.Tailstock may be offset turning taper.
