Профессиональный гибочный станок из нержавеющей стали с
- Категория: Другое станочное оборудование >>>
- Поставщик: Yantai,Ruisike,CNC,Machine,Co.,Ltd.
Поделиться:
Описание и отзывы
Трекер стоимости
| Месяц | Минимальная цена | Макс. стоимость |
|---|---|---|
| Sep-18-2025 | 0.28 $* | 0.79 $* |
| Aug-18-2025 | 0.51 $* | 0.21 $* |
| Jul-18-2025 | 0.19 $* | 0.87 $* |
| Jun-18-2025 | 0.39 $* | 0.97 $* |
| May-18-2025 | 0.70 $* | 0.35 $* |
| Apr-18-2025 | 0.98 $* | 0.89 $* |
| Mar-18-2025 | 0.27 $* | 0.38 $* |
| Feb-18-2025 | 0.2 $* | 0.6 $* |
| Jan-18-2025 | 0.49 $* | 0.37 $* |
Характеристики
Products Description
Technical Features
1、The working speed is fast,there is no liquid filling pause when switching fast and slow,and there is no pressure relief and pressure starting process in the return journey.One travel time is short and the working speed is fast.The working
2、\tProgramming is very simple ,no need for plate thickness,plate.
width,upper die,lower die,material tensile strength and other programming parameters ,the angle is directly adjusted by hand wheel.The worker can master in 5 minutes .Upload programming is at least 2 hours.
3、\tLow maintenance costs,no proportional valve,not affected to wear and tear,the failure rate is very low.
4、\tTo control Y axis fluctuation position at discretion by using grating.
5.\tspeed stepless regulation:according to the work requirements,the speed can ba arbitrarily adjusted range of 10%-150%,can more effectively complete the batch processing production tasks.
6、\tThe control system adopts the professional numerical control system NC9 or NC10,with a touch-type wire-controlled steering wheel ,and the electronic handwheel controls fine-tuning the upper and lower die-to-line and the back-end material fine-tuning .
7、\tIt is equipped with a special bending lower die for corner forming machine and the forming effect is very good .
uuispeed is increased by about 50% compared with the existing lower-type bending machine .
2、\tProgramming is very simple ,no need for plate thickness,plate.
width,upper die,lower die,material tensile strength and other programming parameters ,the angle is directly adjusted by hand wheel.The worker can master in 5 minutes .Upload programming is at least 2 hours.
3、\tLow maintenance costs,no proportional valve,not affected to wear and tear,the failure rate is very low.
Energy saving and consumption reduction :when working,it can save electricity and reduce consumption ,saving more than 50% of electricity compared with the existing lower bending machine .
4、\tTo control Y axis fluctuation position at discretion by using grating.
5.\tspeed stepless regulation:according to the work requirements,the speed can ba arbitrarily adjusted range of 10%-150%,can more effectively complete the batch processing production tasks.
6、\tThe control system adopts the professional numerical control system NC9 or NC10,with a touch-type wire-controlled steering wheel ,and the electronic handwheel controls fine-tuning the upper and lower die-to-line and the back-end material fine-tuning .
7、\tIt is equipped with a special bending lower die for corner forming machine and the forming effect is very good .

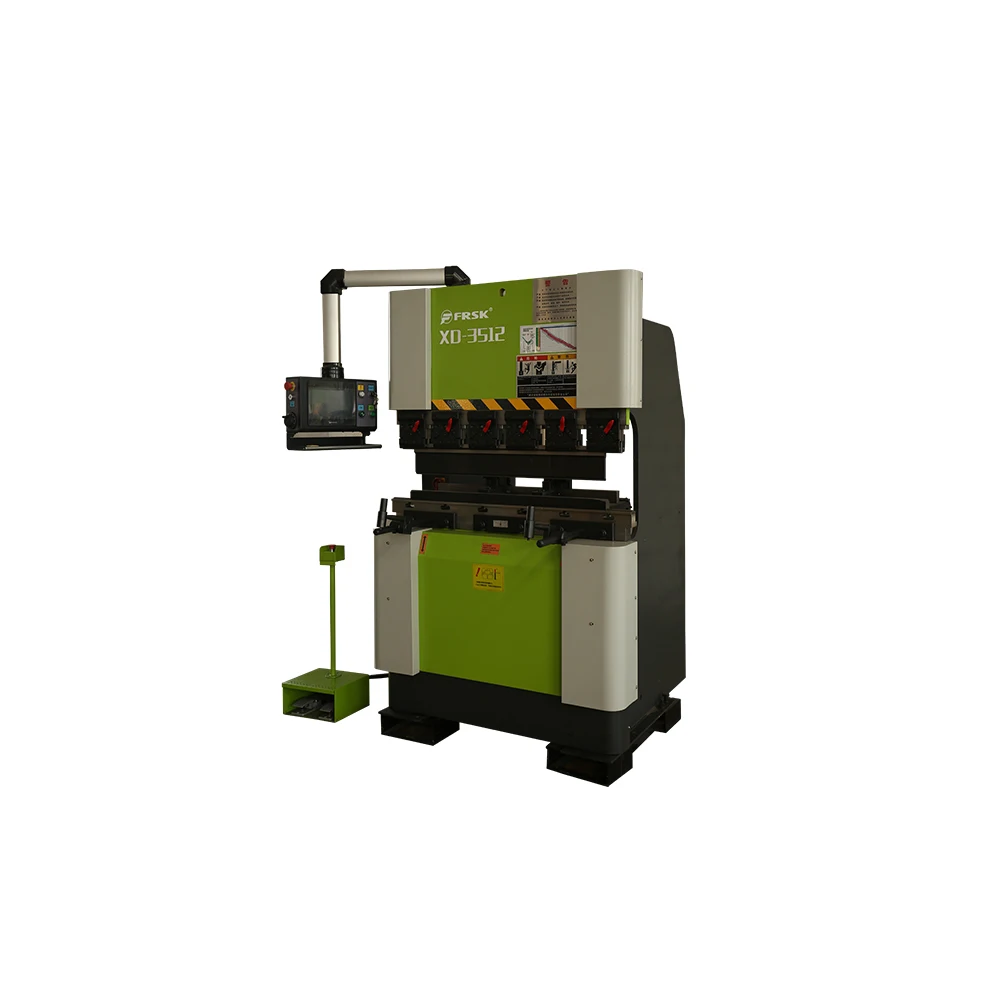

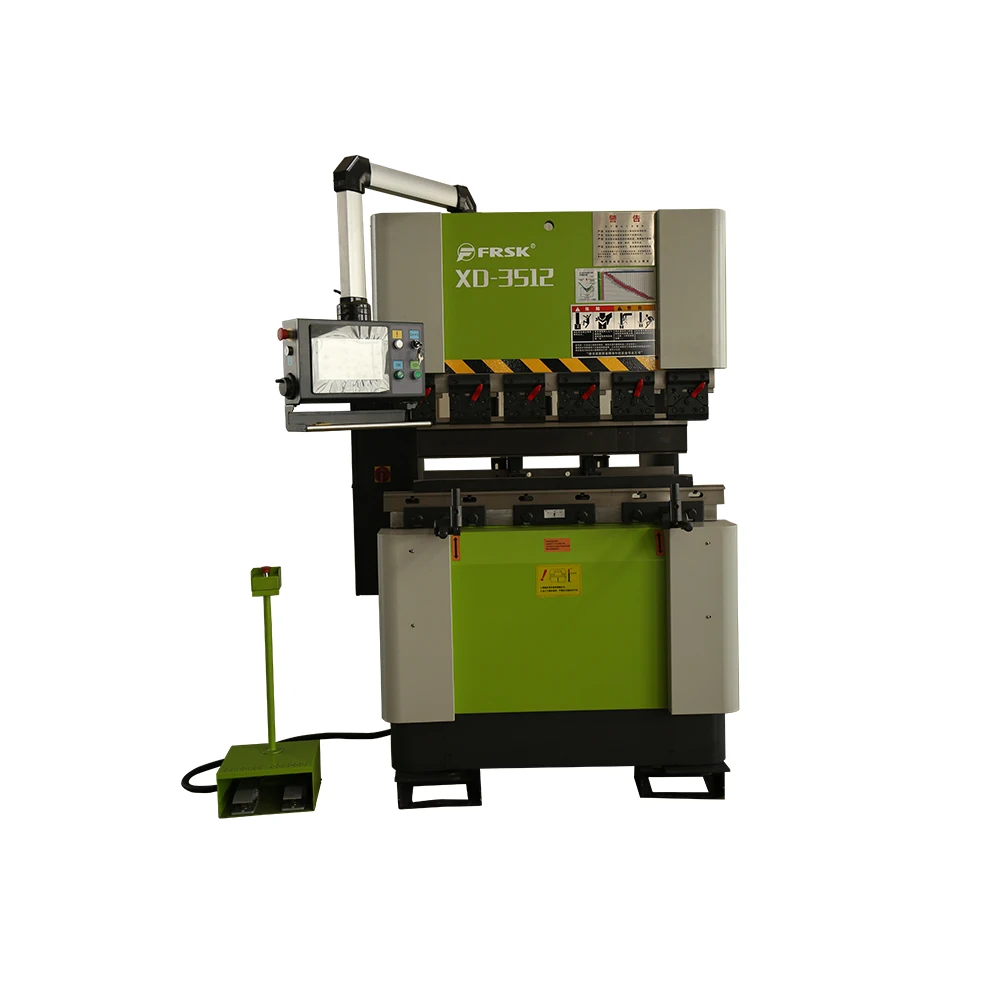

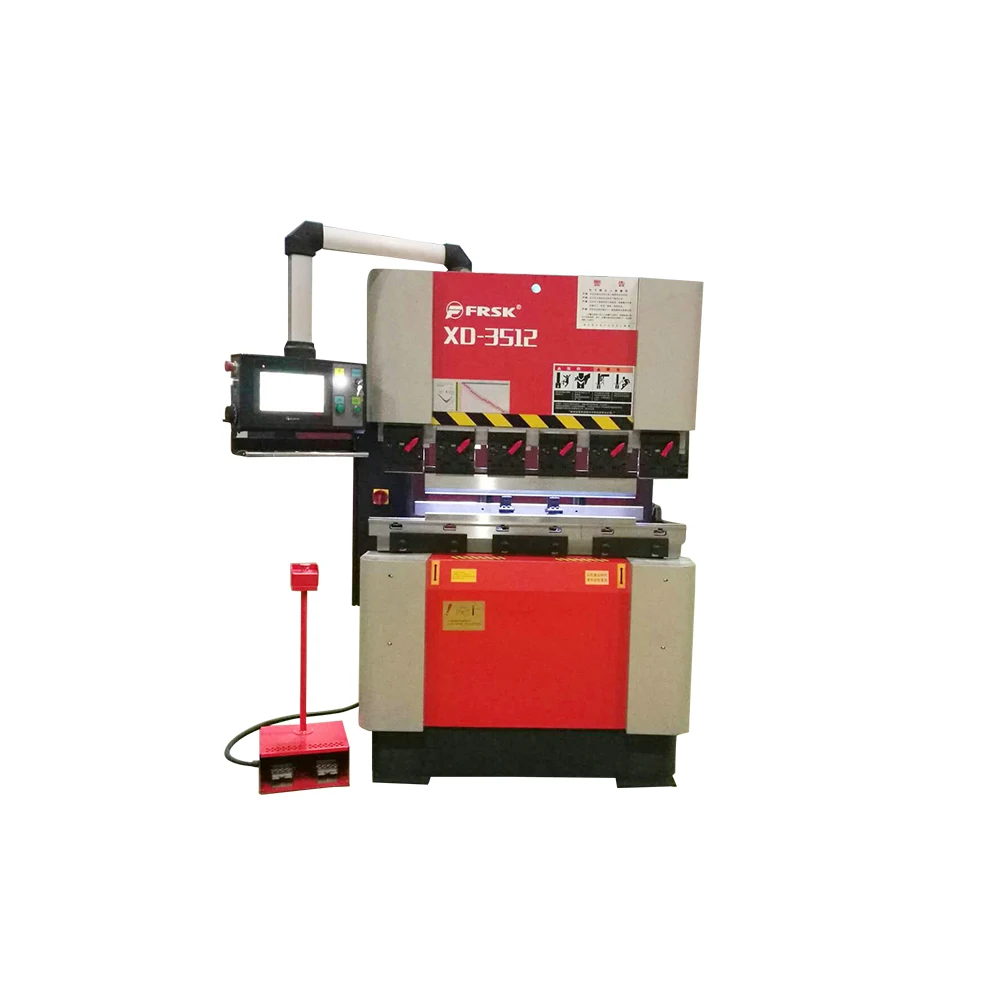

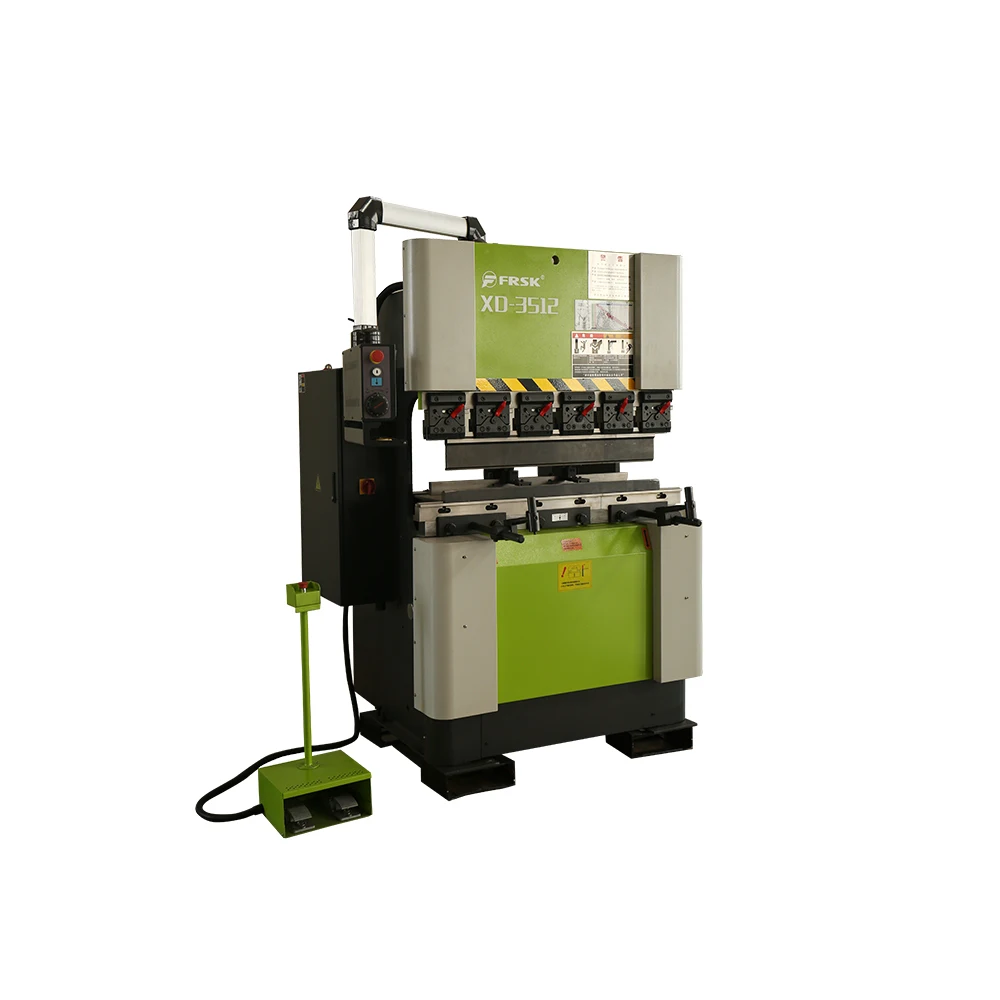

Technical specification | Unit | XD-3512 | XD-6020 | XD-1030 | ||
Nominal pressure | kN | 350 | 600 | 1000 | ||
Length of table | mm | 1200 | 2020 | 3000 | ||
Distance between housings | mm | 1000 | 1700 | 2550 | ||
Throat | mm | 200-250 | 400 | 400 | ||
Stroke of working table | mm | 100-103 | 100-103 | 100-103 | ||
Max. open height | mm | 430-435 | 430-435 | 430-435 | ||
max. die setting height | mm | 310-315 | 310-315 | 310-315 | ||
Speed of lower working table | approaching | mm/s | 37-47 | 52-65 | 37-47 | |
bending | 7.5-1.0 | 7.0-8.5 | 7.5-9.2 | |||
returning | 47-55 | 52 | 47-66 | |||
Number of hydro-cylinder | set | 1 | 3 | 3 | ||
main motor | kW | 3 | 5.5 | 7.5 | ||
Machine precision | Slide repeating | mm | ≤±0.01 | ≤±0.01 | ≤±0.01 | |
Slide positioning | mm | ≤±0.02 | ≤±0.02 | ≤±0.02 | ||
Back gauge repeat positioning | mm | ≤±0.02 | ≤±0.02 | ≤±0.02 | ||
Working precision | Work straightness | mm | 0.15/m | 0.15/m | 0.15/m | |
Bending angle error | ′ | <±15 | <±15 | <±15 | ||
Net weight | kg | 1900 | 3500 | 6500 | ||
Overall dimension（L*W/H0） | mm | 1320*1300*2170 | 2100×1580×2240 | 3410×1560×2560 | ||
Hydraulic tank capacity | L | 33.0 | 51.0 | 70.0 | ||
Technical specification | Unit | XD-3512 | XD-6020 | XD-1030 | ||
Nominal pressure | kN | 350 | 600 | 1000 | ||
Length of table | mm | 1200 | 2020 | 3000 | ||
Distance between housings | mm | 1000 | 1700 | 2550 | ||
Throat | mm | 200-250 | 400 | 400 | ||
Stroke of working table | mm | 100-103 | 100-103 | 100-103 | ||
Max. open height | mm | 430-435 | 430-435 | 430-435 | ||
max. die setting height | mm | 310-315 | 310-315 | 310-315 | ||
Speed of lower working table | approaching | mm/s | 37-47 | 52-65 | 37-47 | |
bending | 7.5-1.0 | 7.0-8.5 | 7.5-9.2 | |||
returning | 47-55 | 52 | 47-66 | |||
Number of hydro-cylinder | set | 1 | 3 | 3 | ||
main motor | kW | 3 | 5.5 | 7.5 | ||
Machine precision | Slide repeating | mm | ≤±0.01 | ≤±0.01 | ≤±0.01 | |
Slide positioning | mm | ≤±0.02 | ≤±0.02 | ≤±0.02 | ||
Back gauge repeat positioning | mm | ≤±0.02 | ≤±0.02 | ≤±0.02 | ||
Working precision | Work straightness | mm | 0.15/m | 0.15/m | 0.15/m | |
Bending angle error | ′ | <±15 | <±15 | <±15 | ||
Net weight | kg | 1900 | 3500 | 6500 | ||
Overall dimension（L*W/H0） | mm | 1320*1300*2170 | 2100×1580×2240 | 3410×1560×2560 | ||
Hydraulic tank capacity | L | 33.0 | 51.0 | 70.0 | ||
Company Profile
Yantai Ruisike CNC Machine Co ., Ltd.is a company engaged in developing ,designing,producing and saling sheet metal cnc mechanical machinery .the main products include:cnc corner forming machine ,cnc bending machine ,angle cutter ,riveting machine etc.cnc corner forming machine as our leading product ,its technical performance has reached international advanced level.
Yantai Ruisike CNC Machine Co.,Ltd.is located in Yantai ,a beautiful coastal city in the east of Shandong Peninsula ,owns branches in Guangzhou ,Beijing ,Shanghai etc,our machine has covered all major cities in China and exported to Canada ,USA ,Poland
,Singapore,Malaysia ,India, Dubai ,Turkey ,South Africa etc.With the tenet of "people-oriented, leading science and technology, honest operation and creating well-known brand", the company adheres to the management concept of "base on sincerity, win by excellence", and the quality policy of "seeking development with science and technology, seeking survival with quality", let's join hands to create brilliance for the development of sheet metal machinery industry.
Our Factory
Payment&Delivery
Sales Markrt
FAQ
Q1. What is the advantage about your company?
A1. Our company has professional team and professional production line.
Q2. Why should I choose your products?
A2. Our products are high quality and low price.
Q3. The logo and the color can be customized?
A3. Yes, we welcome you to sample custom
Q4. Any other good service your company can provide?
A4. Yes,we can provide good after-sale and fast delivery.
A1. Our company has professional team and professional production line.
Q2. Why should I choose your products?
A2. Our products are high quality and low price.
Q3. The logo and the color can be customized?
A3. Yes, we welcome you to sample custom
Q4. Any other good service your company can provide?
A4. Yes,we can provide good after-sale and fast delivery.
