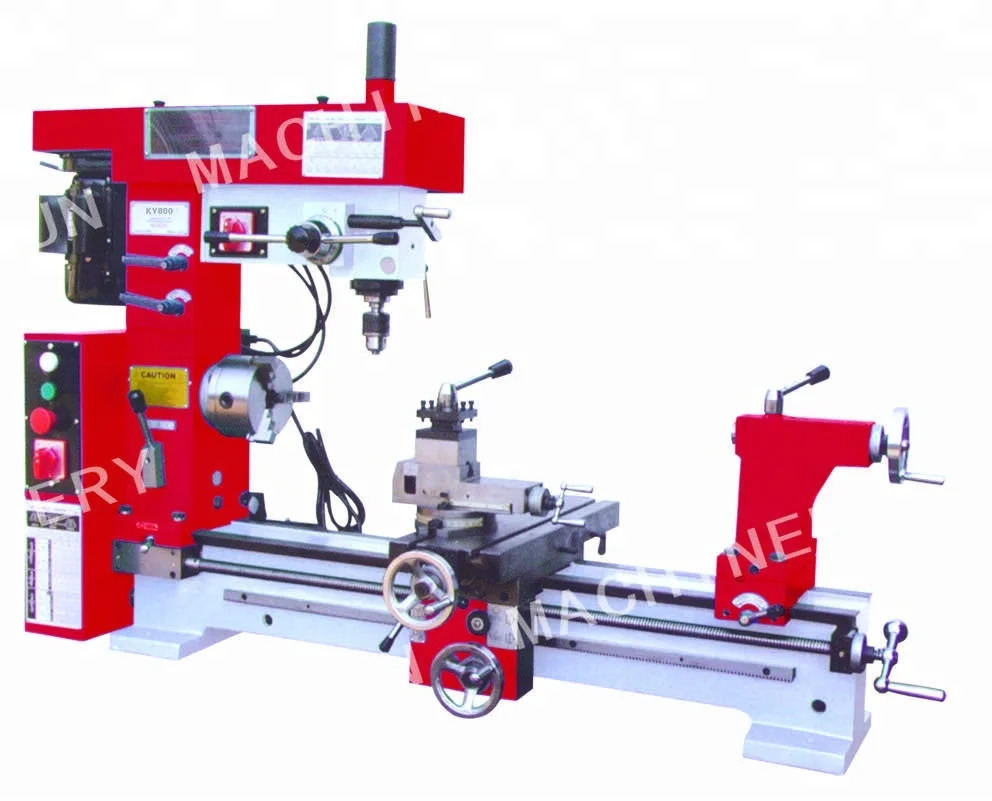

Высокоточная универсальная комбинированная машина 3 в 1
- Категория: Другое станочное оборудование >>>
- Поставщик: Yangzhou,Kaiyun,Machinery,Co.,Ltd.
Поделиться:
Описание и отзывы
Трекер стоимости
| Месяц | Минимальная цена | Макс. стоимость |
|---|---|---|
| Sep-15-2025 | 0.5 $* | 0.13 $* |
| Aug-15-2025 | 0.70 $* | 0.92 $* |
| Jul-15-2025 | 0.42 $* | 0.74 $* |
| Jun-15-2025 | 0.50 $* | 0.61 $* |
| May-15-2025 | 0.1 $* | 0.69 $* |
| Apr-15-2025 | 0.77 $* | 0.39 $* |
| Mar-15-2025 | 0.12 $* | 0.19 $* |
| Feb-15-2025 | 0.48 $* | 0.59 $* |
| Jan-15-2025 | 0.43 $* | 0.96 $* |
Характеристики
Product Description
Specification | ||
Model No. | KY500/KY800 | |
Swing over bed | 420mm | |
Distance between centers | 500mm/800mm | |
Max.longitudinal travel | 440mm/740mm | |
Max.cross travel | 200mm | |
Taper of spindle | M.T.4 | |
Spindle hole | 28mm | |
Step of speed/Range of speed | 7/160-1360r.p.m | |
Barrel travel | 70mm | |
Taper of center | M.T.3 | |
Metric thread can be cut | 0.2-6mm | |
Inch thread can be cut | 4-120 T.P.I | |
Longitudinal range of automatic feeding | 0.05-0.35mm | |
Cross range of automatic feeding | 0.05-0.35mm | |
Drilling/Milling | ||
Drilling capacity | 22mm | |
Table size(L*W) | 475*160mm | |
End mill capacity | 28mm | |
Face mill capacity | 80mm | |
Distance between spindle center and column | 285mm | |
Distance between spindle nose and table | 306mm | |
Spindle travel | 110mm | |
Spindle taper | M.T.3 | |
Range of spindle speed | 120-3000r.p.m | |
Swivel angle of headstock | ±180° | |
Main motor power/Drill and mill mait motor | 0.55kw/0.55kw | |
Standard accessories | ||
Drilling chuck | 1 pc | |
Toolbox & tools | 1 set | |
Optional accessories | ||
4-jaw chuck | 1 set | |
Backplate | 1 pc | |
Follow rest | 1 pc | |
Steady rest | 1 pc | |
Face plate | 1pc | |
Collet chuck | 1 set | |
Turning tools | 1 pc | |
Leadscrew cover | 1 set | |
FEATURES
1.Compact combination machine.
2.Adjustable height drill/mill head increases capacity.
3.Large MT4 spindle bore.
4.Fine feed handle and clutch for precision milling.
5.Headstock provides two step of feeds.
6.Spindle is supported by high precision bearing.
7.T-s lot cross slide.
8.Adjustable gibs for the slideway.
9.Automatic longitudinal & cross feed.
10.Right/Left hand threads cutting is available.
11.Equipped with emergency stop button.
12.Tailstock may be offset turning taper.
Packing & Delivery
Warehouse to film
Related Products
Combination Machine
Our Company
Since establishing, after years of effort, we, which is Kaiyun Machinery have grown into a professional supplier of Metalworking and woodworking machinery in China, with more than 50 domestic qualified factories as our long-term and OEM partners. Outstanding technical engineers & strict inspector ensure us turn out high quality products because they all know this is the absolutely vital that the quality is the basic of products. Our all products are exported to the worldwide markets, especially in America and Europe market.
Our Service
