Product Description

Product Application

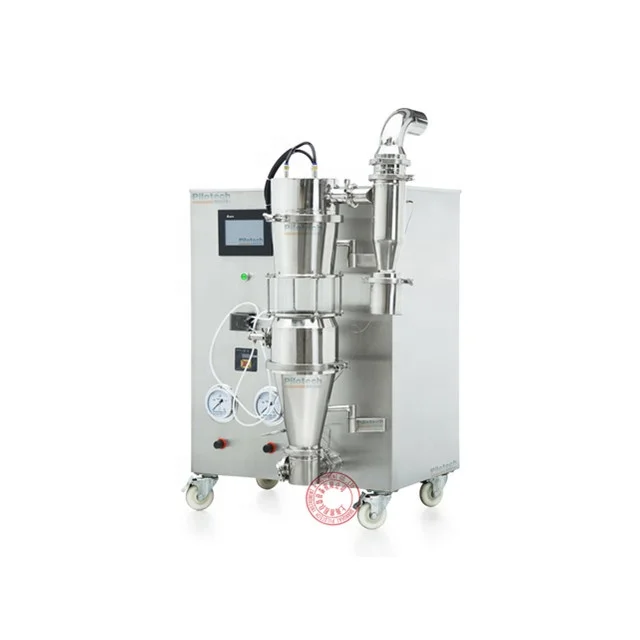

YC-1800 laboratory Spray dryercan be used in a wide range of applications where the production of a free-flowing or solid  powder sample is required.This technique has successfully processed materials in the following areas:
>Oxide • Blood • Polymers and Resins
> Beverages • Flavours & Colourings
> Milk & Egg Products • Plant & Vegetable Extracts
> Pharmaceuticals • Heat Sensitive Materials
> Plastics • Perfumes • Dyestuffs

> Ceramics & Advanced Materials
> Soaps & Detergents •Textiles
> Foodstuffs • Adhesives

> Bones, Teeth & Tooth Amalgam and many others

SPECIFICATIONS FOR 25 TON CRAWLER EXCAVATOR

Material
Machine body
/
SUS 304 stainless steel
Atomizer
/
SUS 306 stainless steel
Drying chamber
/
SUS 304 stainless steel

Main performance parameters
Capacity
ML/H
1500~1800
Min.sample
ML
30
Power
kw
3.5

 System
Inlert temperature
°C
105~200
Drying time
S
1~1.5
Noise
DB
<65

Main Features

1) Dual control modes of fully automatic control and manual control are available. During the entire experimental process, the color LCD touch screen animation display is available.

2) A built-in oil-free air compressor must be equipped with the stainless steel air tank to prevent corrosion.

3)Shutdown protection function: just press the stop button when shutting down. The machine will stop running immediately except for the blower to ensure that the heating part of the equipment will not break down due to improper
operation (shutting down the blower by force).

4) The spray head is a concentric one. It guarantees no eccentricity during atomization that may lead to spraying to the bottle wall. The spray head can move up and down after installed to facilitate the adjustment of the atomization position to improve the spray drying effect. The spray head is made of SUS316L stainless steel.


5)Spray dry at low temperature (105°C)using for thermo-sensitive material.


6)Fluid-bed drying is provided as a optional fuanction.Besides liquids,many labs need drying lots of powders.

Certifications
Detailed Images

Machine Parts

Name: drying chamber

Material:SUS304 stainless steel , high borosilicate glass

The orgnization of thsese materials is helpful for oper-ators to observe the drying dynamics . The stainless steel is unbreakable  and  heat-resisting.

Main Features

Name: air compressor
Air cyclinder meterial:SUS304 stainless steel

The air compressor is oil-free. On the whole, the air cylinder of this kind is made of iron completely. As time goes by, it is liable to corrosion because of water steam. To address the problem, we switched to 304-stainless steel. So no problem will be presented in any length of time.



Machine Parts

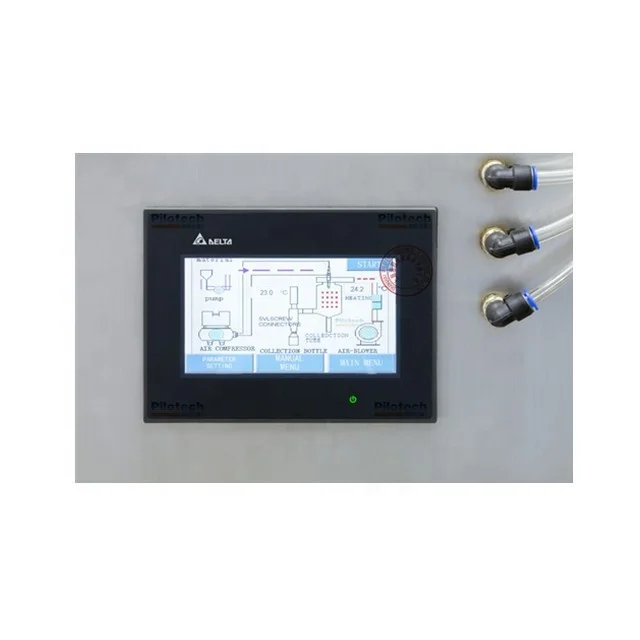

Brand: Delta
Original: Taiwan
Dual control modes of fully automatic control and manual control are available. During the entire experimental process, the color LCD touch screen animation display is available.

Main Features

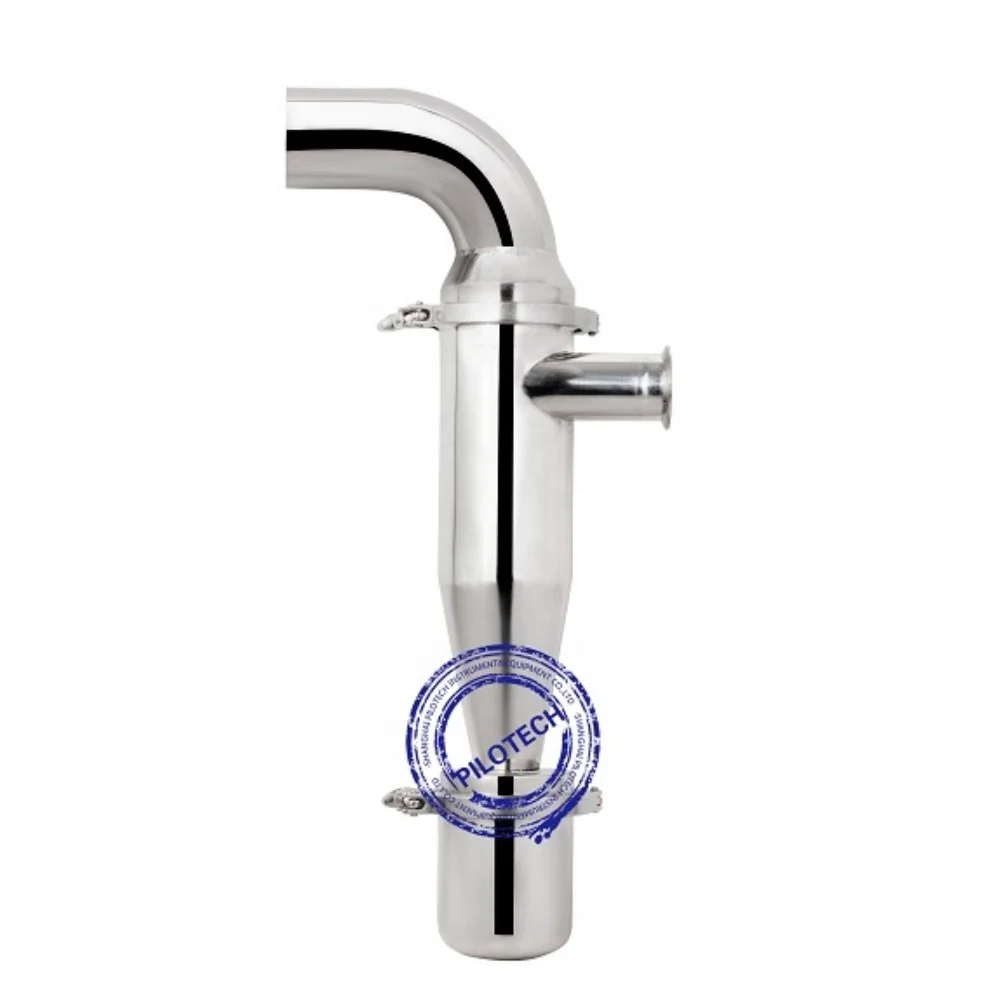

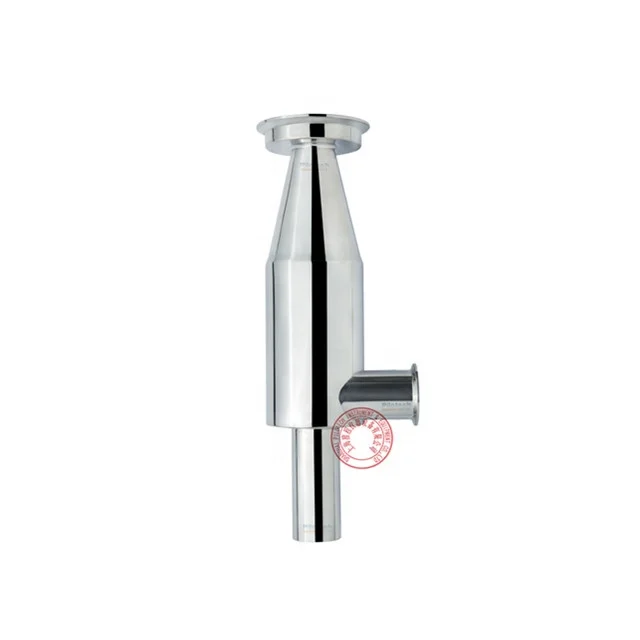

Name: cyclone separator
Material:SUS304 stainless steel
The function of this part is to separate the outputs qqickly,which seems like a centrifugal machine ,at last get our needs.

Our Service

Pre-Sales Service

* Inquiry and consulting support.

* Sample testing support.

* View our Factory.

After-Sales Service

* Training how to instal the machine, training how to use the machine.

* Engineers available to service machinery .

Packing & Delivery
Packaging
Size
1150(L)*1050(W)*1380(D)MM
Weight
194KG



Packaging Details
The normal package is wooden box(Size: L*W*H). If container is too tigher,we will use pe film for packing or pack it according to customers special request.
