Фармацевтическая сушильная машина для распыления порошка пищевая высокоскоростная Центробежная сушилка-распылитель химической
- Категория: >>>
- Поставщик: Zhengzhou,Aslan,Machinery,Co.,Ltd.
Поделиться:
Описание и отзывы
Трекер стоимости
| Месяц | Минимальная цена | Макс. стоимость |
|---|---|---|
| Sep-15-2025 | 0.50 $* | 0.86 $* |
| Aug-15-2025 | 0.5 $* | 0.65 $* |
| Jul-15-2025 | 0.22 $* | 0.81 $* |
| Jun-15-2025 | 0.62 $* | 0.38 $* |
| May-15-2025 | 0.90 $* | 0.7 $* |
| Apr-15-2025 | 0.71 $* | 0.51 $* |
| Mar-15-2025 | 0.88 $* | 0.87 $* |
| Feb-15-2025 | 0.9 $* | 0.55 $* |
| Jan-15-2025 | 0.33 $* | 0.36 $* |
Характеристики
Pharmaceutical Powder Spraying Drying Machine Food High Speed Centrifugal Spray Dryer Tower Chemical Industry Powder Sprayer
Machine introduction:
Spray drying is the technology most widely used in the liquid shaping and drying industrial. The drying technology is most suitable for producing solid powder or pasticle products from liquid materials, such as : solution, emulsion, suspension and pumpable paste states. Therefor , when the particle size and distribution of the final products, residual water contents, msaa desnsity and the particle shape meet the precise standard, spray drying is one of the most desired processing technology.
Machine working principle:
The air enter into the air distribution of the dryer top after been filtered and heated. The hot air enters into the drying room evenly in the situation of sprial form. The liquid will be spray into the very extremely fine liquid drop after pass through the high-speed centrifugal atomizer on the tower top, and then through very shot time contacting with the hot air , the liquid material will be dried into the final powder products. The final products will be dishcharge out from the bottom of the drying tower and cyclones, the waste air will be dicharged out also.
Machine features:
1. High drying speed, the drying process only need several seconds, which is very suitable for the heat sensitive materials.
2. The final products has the advantage of good evenly, fluidity and solubility, high purity and goods quality.
3. Simple produce process, easy operation. For 40%-60% (some special material can reach to 90%)moisture content liquid can be dried into powder one time. After dried, no need crushing or selecting, reduce process steps,improve product purity.
4. For product particle diameter size, density, moisture cna be change in some range according to change the operation condition.
Machine technical parameter:
Model | ASL-LPG5 | ASL-LPG50 | ASL-LPG150 | ASL-LPG200 |
Inlet temperature | 140-350 degree (automatically controlled) | |||
Outlet temperature | 80-90 degree | |||
Max. Moisture evapration rate | 5kg per hour | 50kg per hour | 150kg per hour | 200kg per hour |
Centrifugual spraying nozzle transmission mode | Compressed air transmission | Mechanical transmission | ||
Rotary speed | 25000rpm | 18000rpm | 15000rpm | 15000rpm |
Spray nozzel diameter | 50mm | 120mm | 150mm | 180mm |
Heat supply | Electricity | Electricity+steam, fuel oil and gas | Settled by users | |
Max. Electric heat power | 9kw | 63kw | 99kw | / |
Dimension | 1.8*0.93*2.2m | 3.7*3.2*5.1m | 5.5*4.5*7m | / |
Dried powder collection | >95% | >95% | >95% | >95% |

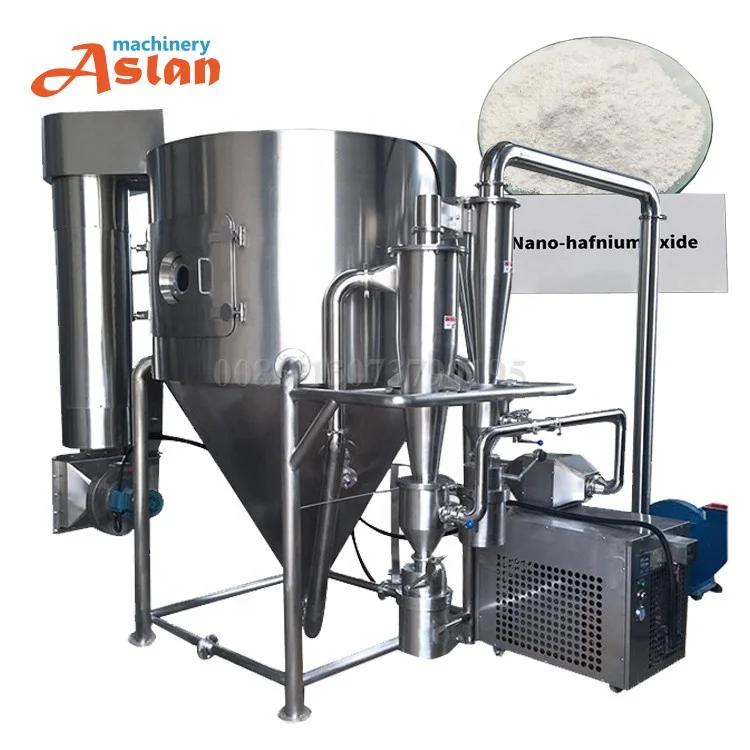

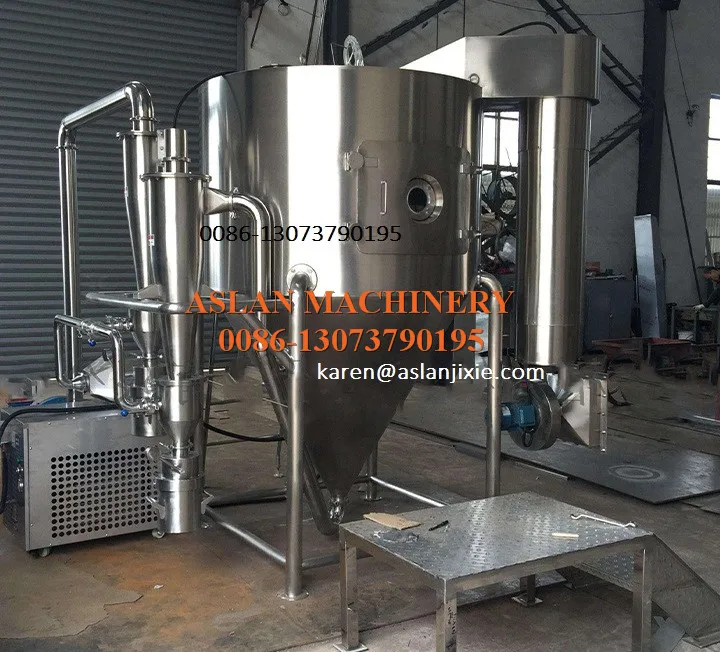

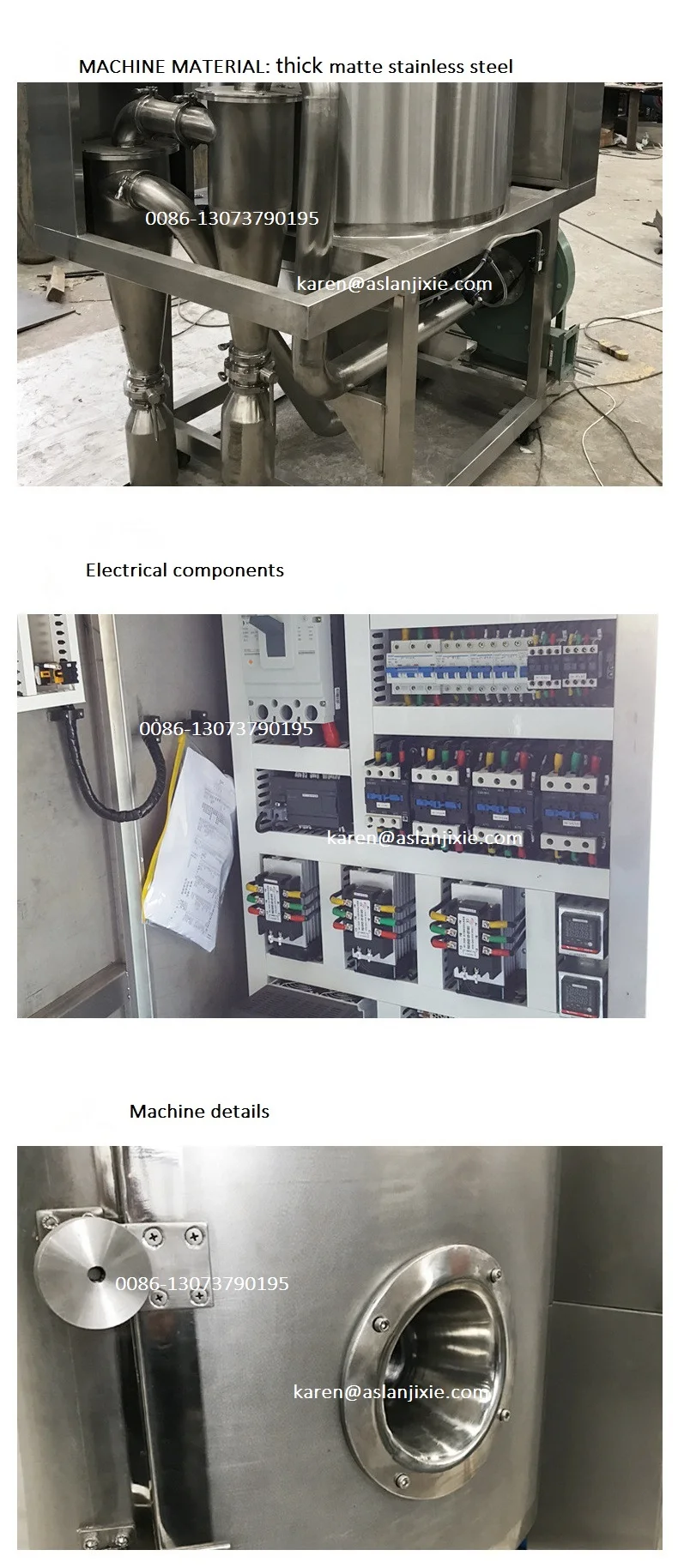

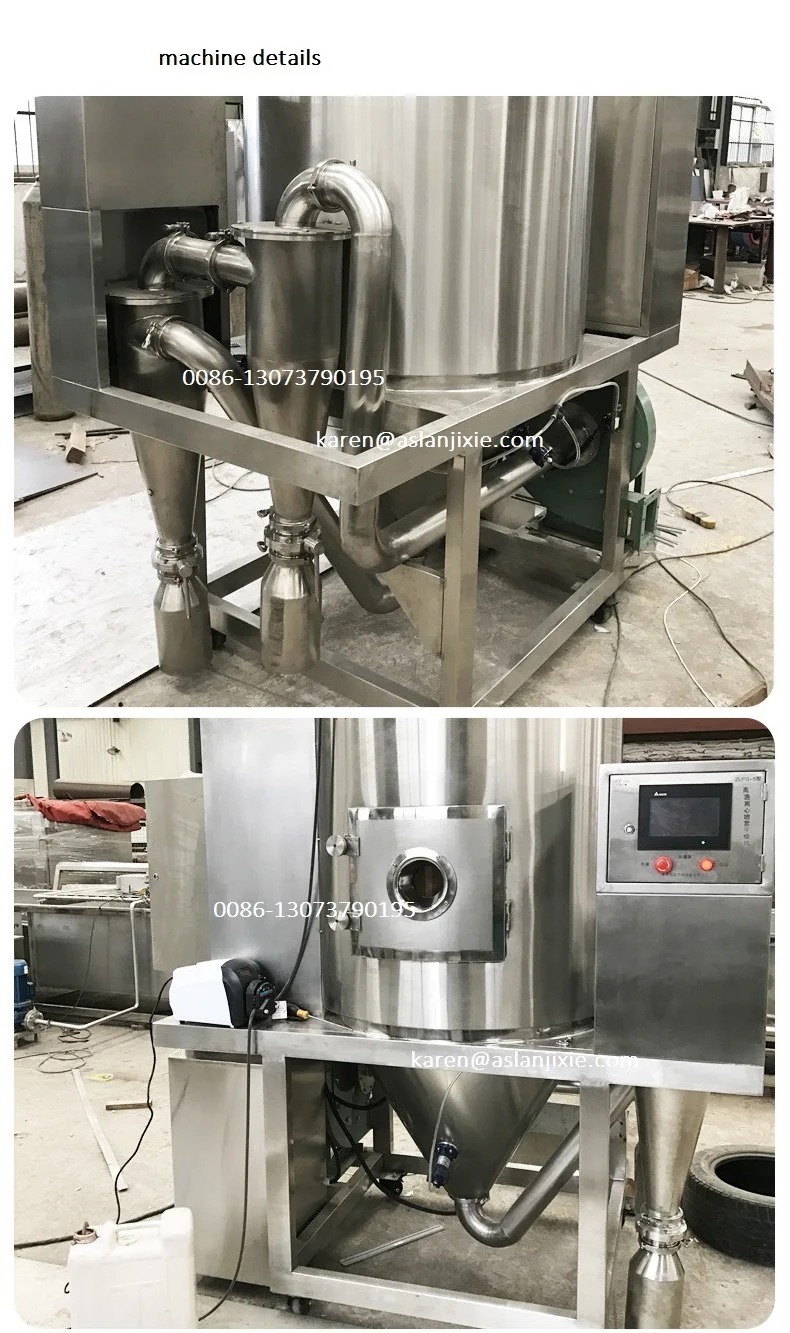

Machine photo:
Machine application:
Packaging & Shipping
A conner of workship
Machine freight by truck or container. Container machine be fixed by steel wire, to make sure all of them not be damage by transport jolt.
About package we will use 1cm plywood standard export wooden box.
About documents
We can provided Telex release bill of loading or Original Bill of loading, Certificate of original. Other documents can be provided according to your requirement.
Our Services
About after sell service of our aslan machinery
Usually machine guarantee time is about 1 year. Within guarantee time. Machine breaking caused by machine itself design defect, we are responsible for it. We can provided free charge breaking part. If machine breaking caused by humane factor, user need take responsibility for it, we will provided technical support .
About goods shipping of our aslan machinery
We have long time working shipping forwarder. We can do our best to send machine to your port safe and sound. If your need, we can help you do custom clearance .
About payment term of our aslan machinery
Currently, in order to protect you and us rights. Both us in safe, hope we can do business in safe way .
L/C(>20000USD),Western Union,T/T(bank transfer),Escrow
which one is you want, we can discuss it .
About online Service of our aslan machinery
24 hours online to solve any problem. Your email will be reply within 12 hours. Your satisfy is our pursuit. Sincerely hope our cooperation .
