Заводская цена вакуумный центробежный распылитель для фармацевтического
- Категория: >>>
- Поставщик: Henan,Ocean,Machinery,Equipment,Co.,Ltd.
Поделиться:
Описание и отзывы
Трекер стоимости
| Месяц | Минимальная цена | Макс. стоимость |
|---|---|---|
| Sep-15-2025 | 0.42 $* | 0.43 $* |
| Aug-15-2025 | 0.52 $* | 0.19 $* |
| Jul-15-2025 | 0.25 $* | 0.91 $* |
| Jun-15-2025 | 0.41 $* | 0.55 $* |
| May-15-2025 | 0.75 $* | 0.65 $* |
| Apr-15-2025 | 0.42 $* | 0.69 $* |
| Mar-15-2025 | 0.89 $* | 0.1 $* |
| Feb-15-2025 | 0.69 $* | 0.47 $* |
| Jan-15-2025 | 0.42 $* | 0.0 $* |
Характеристики
Factory price vacuum centrifugal spray dryer atomizer for pharmaceutic
Ms Wendy Zhou Whatsapp:008613283956135 Email: wendy@chinaocmachine.com
Product Description
High speed centrifugal spray drying equipment is a new type of high efficiency drying process equipment.It can make the moisture content of 40% ~ 90% liquid solution, emulsion, suspension generally in a few seconds to tens of seconds to evaporate 95% ~ 98% of the water.To meet the production requirements of powder granular products.Especially suitable for drying heat sensitive materials, the product has good dispersibility, fluidity and solubility.
Advantage:
1. The drying speed is fast, the surface area of the material liquid is greatly increased after atomization, in the hot air flow, it can evaporate 95-98% of the water instantly, and the drying time is only a few seconds, especially suitable for the drying of heat-sensitive materials.
2. suitable for heat sensitive materials, because the liquid drops and the hot air flow direction, although the hot air
temperature is high, but the temperature of the material in the water evaporation is not too high.
3.The wide range of use, a large number of material with great difference in physical properties are used in this production.
4. The product has good uniformity, fluidity and solubility, high purity and good quality.
5. Simplified production process, convenient operation and control.For the moisture content of 40-60% (up to 90% of special materials) of the liquid can be dried into powder products, dry without crushing and screening, reduce the production process, improve product purity.The particle size, bulk density and moisture of the product can be adjusted by changing the operating conditions within a certain range, and it is very convenient to control and manage.
2. suitable for heat sensitive materials, because the liquid drops and the hot air flow direction, although the hot air
temperature is high, but the temperature of the material in the water evaporation is not too high.
3.The wide range of use, a large number of material with great difference in physical properties are used in this production.
4. The product has good uniformity, fluidity and solubility, high purity and good quality.
5. Simplified production process, convenient operation and control.For the moisture content of 40-60% (up to 90% of special materials) of the liquid can be dried into powder products, dry without crushing and screening, reduce the production process, improve product purity.The particle size, bulk density and moisture of the product can be adjusted by changing the operating conditions within a certain range, and it is very convenient to control and manage.
Technical parameter
Name of drying material | Animal Blood |
Blood handling capacity | 50kg/hour |
Water evaporation | 50kg/h |
Inlet temperature | 220℃ |
Outlet temperature | 90℃ |
Solid content | 30% |
Heating mode | electrical heating |
output material type | The air supply concentrates the discharge |
dusting method | Cyclone dust collector + bag dust collector |
Diameter of drying chamber | φ2.2 |
Equipment total power | About 97.5KW (electric heating power 82.5KW) |
Atomization form | centrifugal |

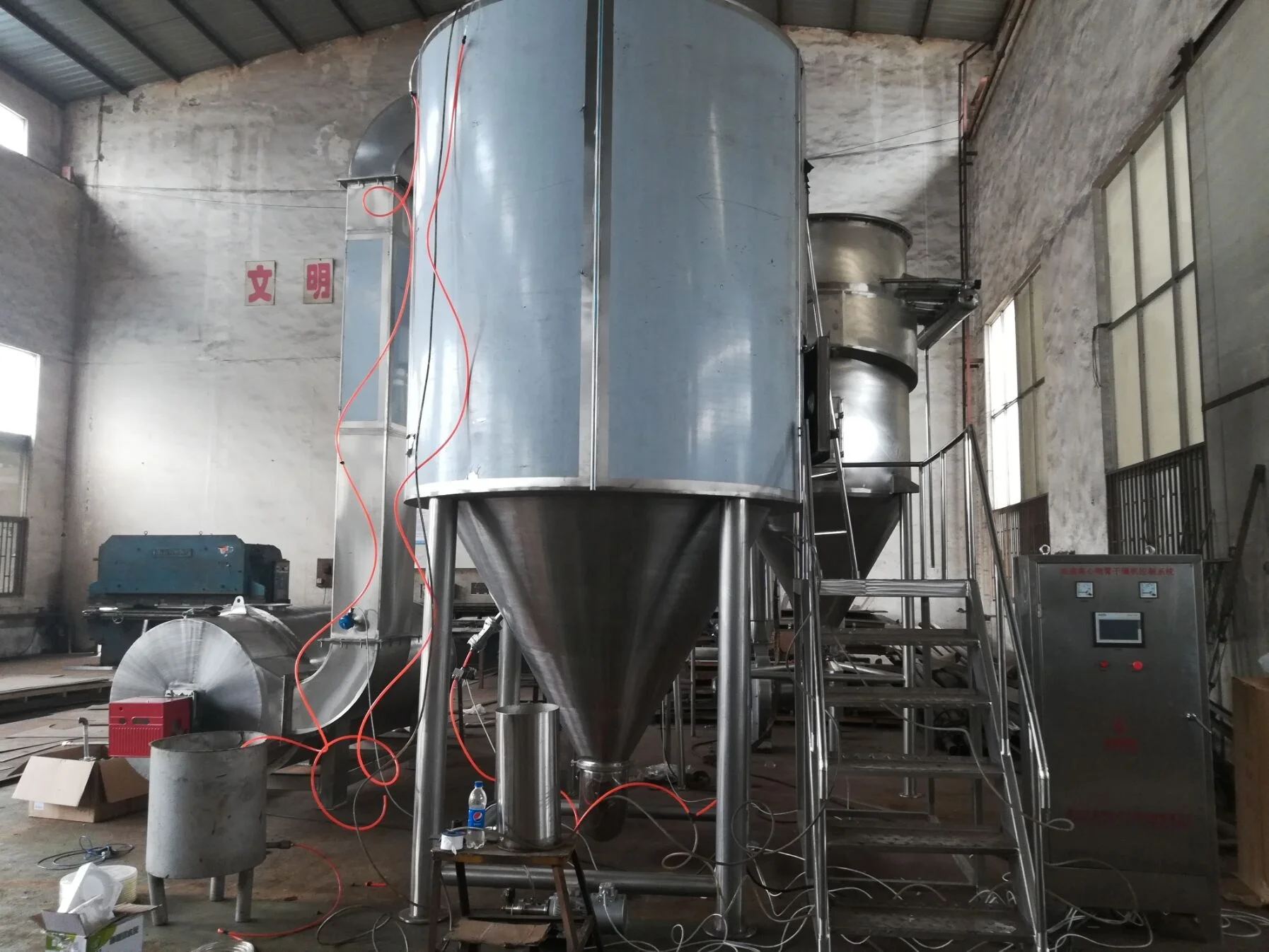

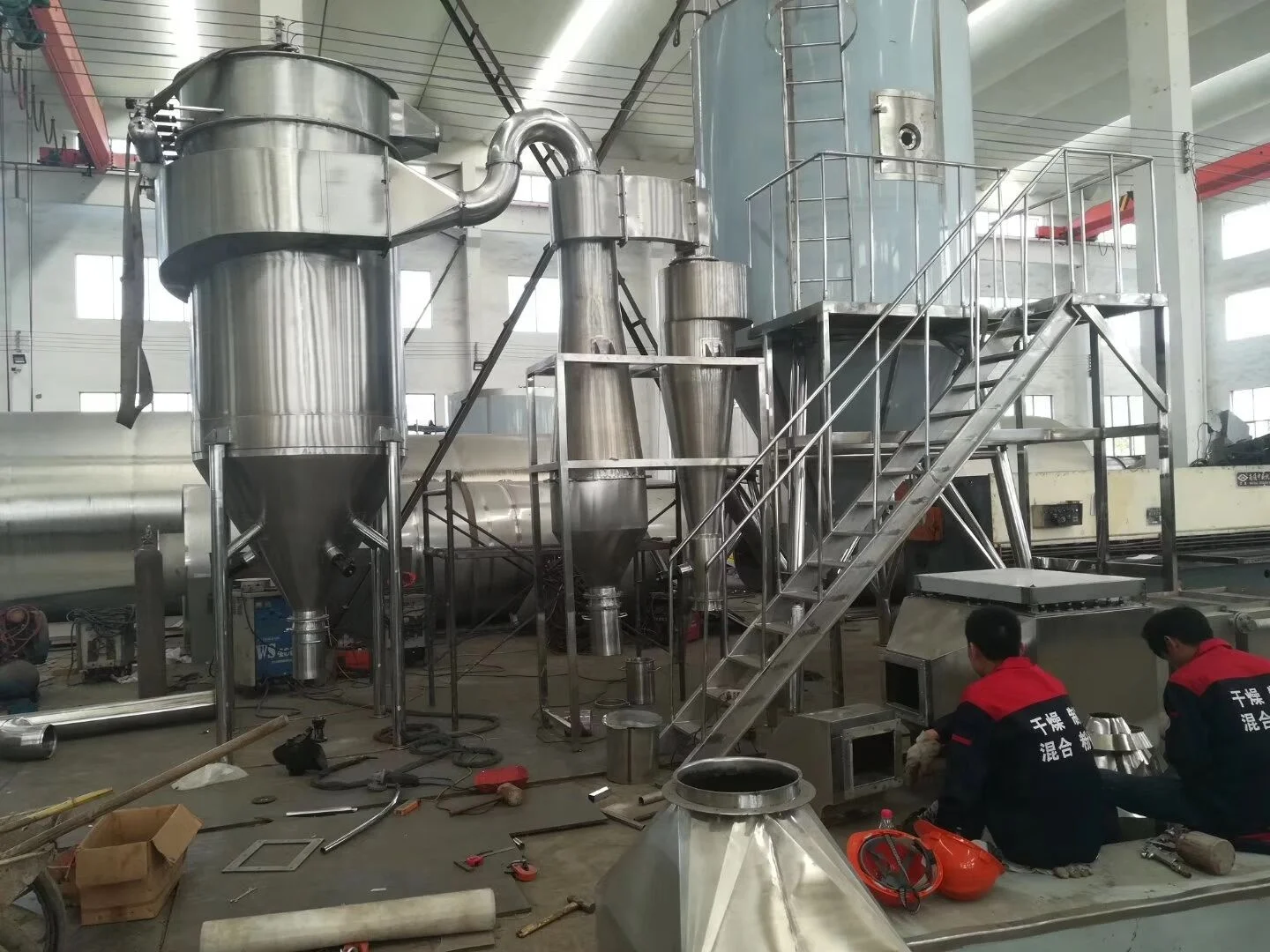

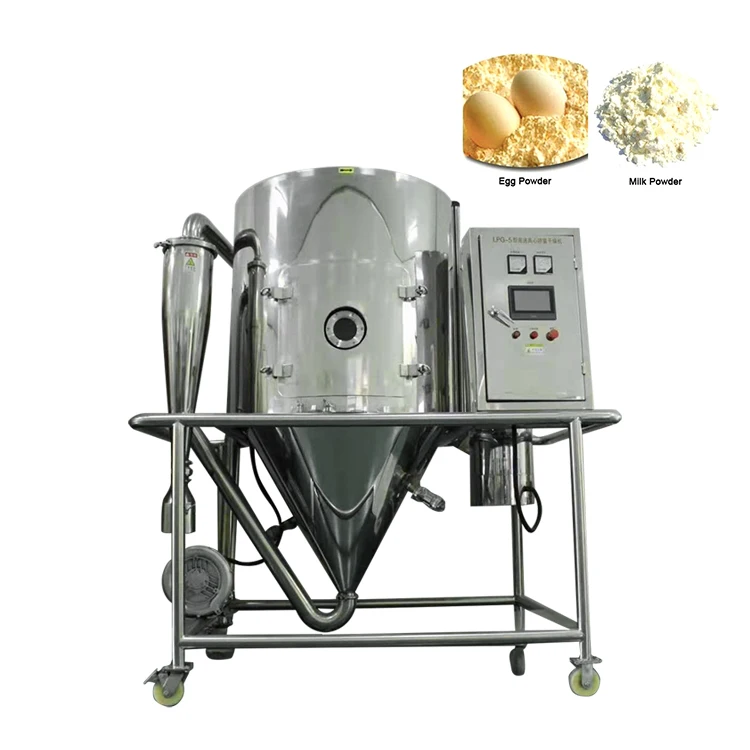

Detailed Images
Related Products
Company Introduction
Henan Ocean Machinery Equipment Co.,Ltd., an ISO9001 certified and High-tech Enterprise established more than 10 years ago, is a professional manufacturer specialized in R&D, production and sales of Mechanical Equipment products such as Snack Food ProcessingMachine, Fruit and advantage Machine, Food & Packaging Machine,Water well drilling rig and Poultry Equivalents,ect.,which arewidely sold worldwide and we have been recognize by our customers year after year.

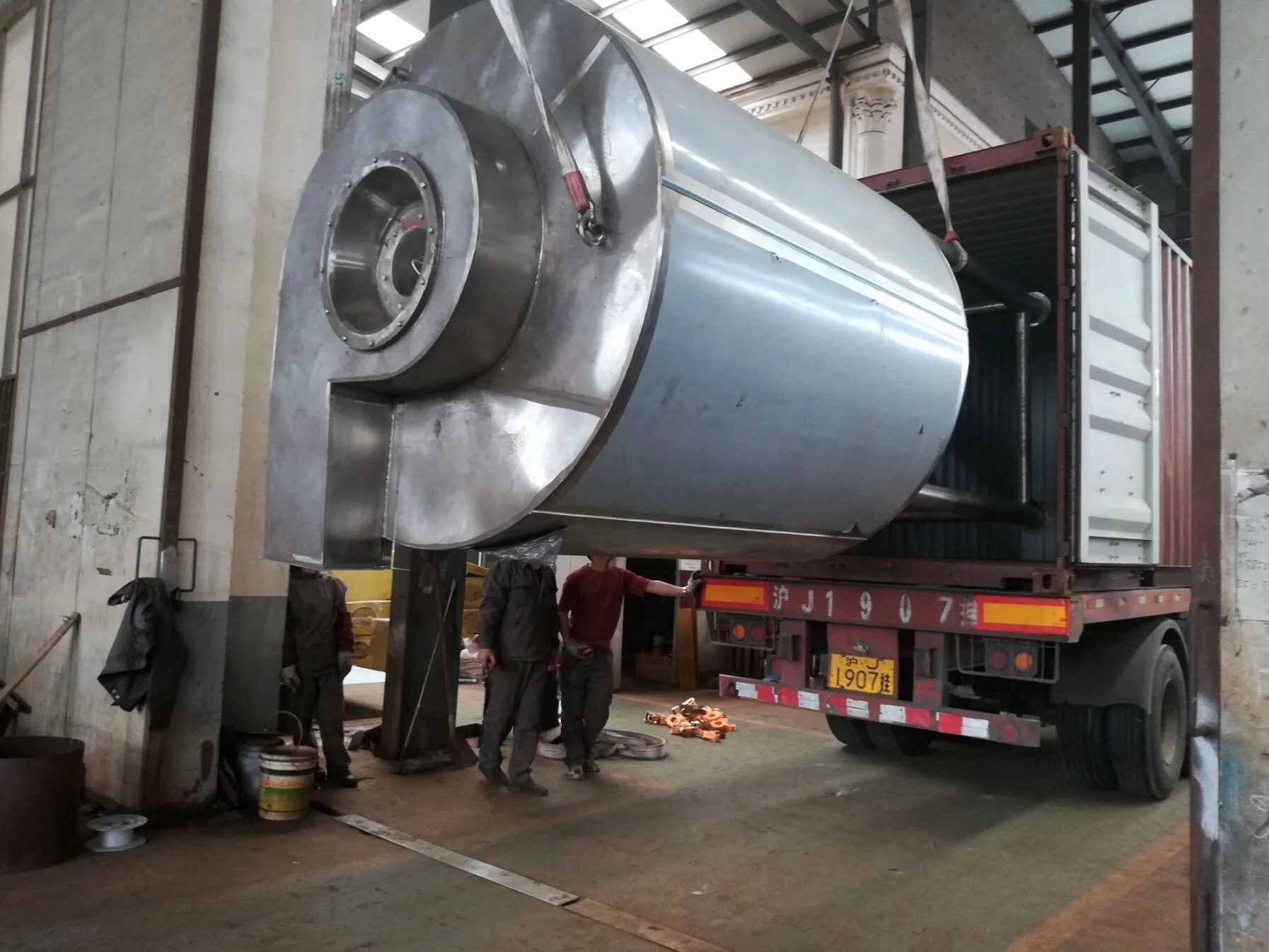

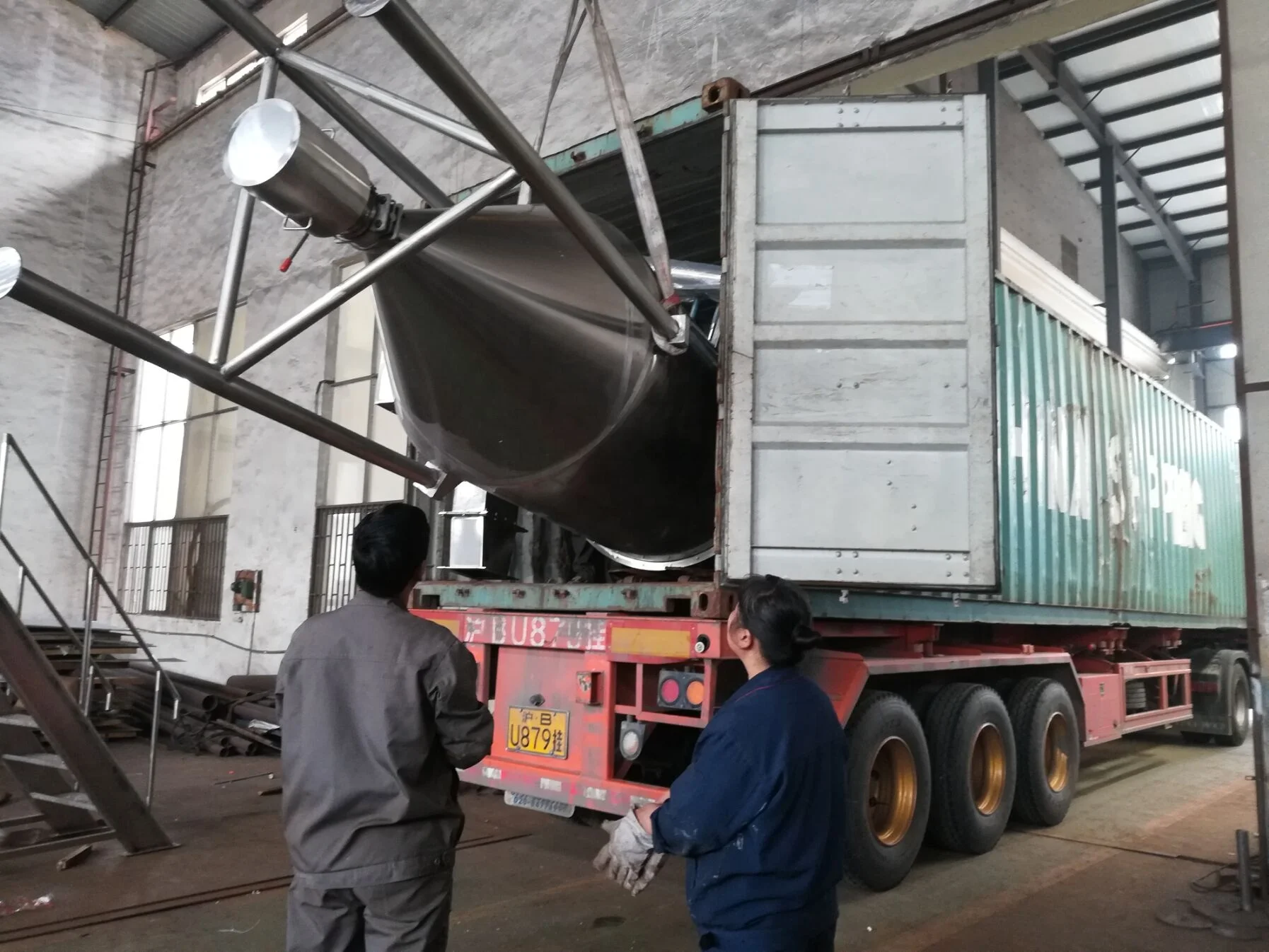

Packing&Shipping
After Sales Service
1.Warranty
All the products have one year guarrantee.2.Training
We provide training to make sure every
customer can install and operate the machines.
3. Spare parts
We provide all spare parts for all machine in lifetime use.
4.Standby Servive
We are always ready to help. Just let us know whenever you have questions or problems.
