Характеристики

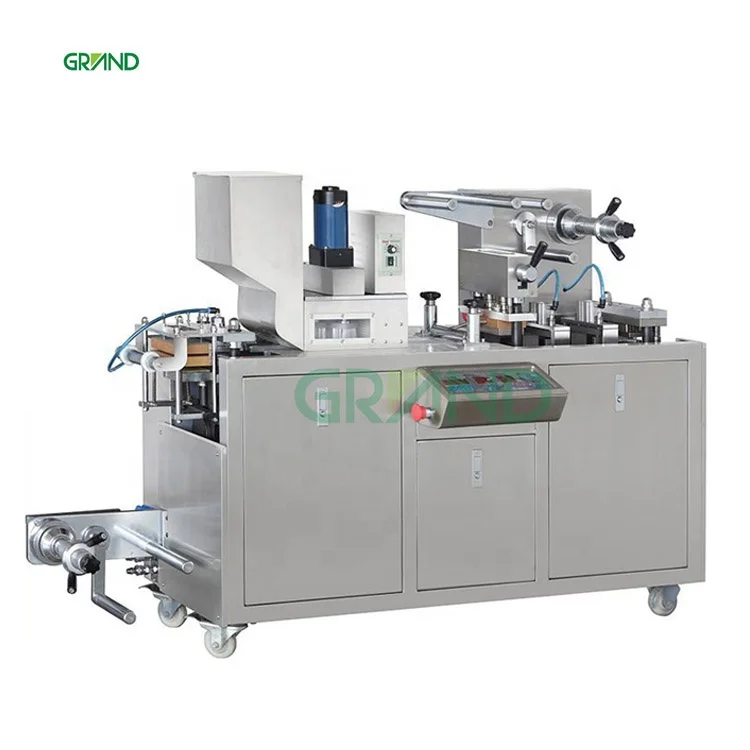

DPP-80 Alu Alu Blister Machine Al-Plastic Blister Packing Machine for Tablet
Main Technical Parameters
Product Name | DPP-80 Alu Alu Blister Machine Al-Plastic Blister Packing Machine for Tablet |
Model | DPP-80 |
Punch Frequency | 10-33 times/min |
Production Capacity | 2400 plates/hour |
Max. Forming Area & Depth | 105*70mm (standard depth ≦15mm), Max. Depth 25mm (can be customized) |
Standard Stroke Range | 30-80mm (can be designed as per user’s required) |
Standard Plate Size | 80*70mm (can be designed as per user’s required) |
Air Pressure | 0.4-0.6MPa |
Compressed Air Required | Air compressor ≥0.3m3/min |
Total Power Supply | 380V/220V 50HZ 2.8KW |
Main Motor | 0.75KW |
PVC Hard Film | 0.15-0.5*110mm |
PTP Aluminum Film | 0.02-0.035*110mm |
Dialysis Paper | 50-100g*110mm |
Mould Cooling | Tap water or Recycling water |
Overall Dimension | 1840*590*1100mm (L*W*H) |
Net Weight | 450KG |
Gross Weight | 520KG |
Noise Index | <75dBA |
Product Description
DPP-80 multifunctional automatic blister packing machine, the machine is the company comprehensive domestic and foreign aluminum plastic packaging machine has the advantages of innovative design, my company a number of innovative technology is used in the key parts, the contact part of the drug and the stainless steel and high-grade aluminum alloy material production, applicable to the pharmaceutical, food, health care products industry packing element piece, sugar coated tablets, capsules also packaging small food and metal parts, electronic components. The machine set coil uncoiling, aluminum (AL) feeding, blister forming, filling, waste recycling, heat sealing, print a batch number, reticulate indentation, edition piece rushed cut, display finished counting and ten functions in one, goods packaging sealing good, safe and sanitary.
Working Process
Step 1: Blister Packing Material Unwinding
Step 2: Blister Forming after Heating (the shape can be customized)
Step 3: Automatic Product Feeding
Step 4: Sealing Aluminum Film Unwinding
Step 5: Hot Sealing Station
Step 6: Cutting
Customer Feedback
Exhibition & Samples
Main Features
1. Newest type high-power transmission mechanism to arrange the chain and drive the main driving shaft. The errors and noises of other gear wheel transmission can be avoided.
2. Imported controlling system is adopted; also it can be equipped with detecting and rejection function device for number of medicines according to the user’s requirement.
3. Photoelectrical controlling system to make PVC, PTP, Aluminum/Aluminum material to be automatically fed and waste side to be cut automatically to guarantee the Synchronous stability of over- length distance and multi stations.
4. It can be optional equipped with photocell correction device, imported stepper motor traction and image- character register to optimize packing grade.
After Sales and Unique Service
Service 1
Providing photographer recording high precision video about installing, debugging and changing mould for you before shipment, cost paid by ourselves. The video helps you operate the machine better, which not provided by other suppliers.
Service 2
Different languages are available to be inputted in the touch screen, such as Russian, Arabic, French, Spanish etc., in order to help your machine operator understand and run machine smoothly.
Service 3
We will dispatch engineers to your site for machine installation and commissioning, and also do the training for your technicians.
Service 4
We make guarantee of the machine for 12 (twelve) months. During this Warranty period, the seller will provide free spare parts that cause by the machine’s quality within 10 days by fast courier upon receipt of buyer’s notice. We will also provide one set of spare parts /wear & tear parts to customer along with the shippment of the machine.
Service 5
We warmly welcome the suggestions from customer to make us grow better and produce better machine along with providing better service to customer, and creat more value for customer.
Service 6
Before placing the order or before shipping, welcome to our factory to take a visit and inspect the machine. We will pick you up in the airport or train station and arrange your following schedule in our city to bring you a nice journey during this visit.
Company Profile
We're specialized in the pharmaceutical and packing machiney for more than 10 years, such as plastic ampoule forming filling and sealing machine, capsule filling machine, blister packing machine, strip packaging machine, cartoning machine etc..
Our machines were exported to many different countries and regions in the whole world, such as Indonesia, Thailand, Malaysia, Philippines, New Zealand, Korea, the Middle East area, Poland, Belgium, France, UK, Greece, Italy, Turkey, USA, central and south America such as Trinidad and Tobago, Mexico, Brazil, Russia, Ukraine, UZ, Tunisia, Algeria, Morroco etc. Good reputation of the machine quality and after sales service always gained from customers.
Various kinds of factories and companies in different fields are cooperating with us. Such as pharmaceutical, food , supplement, stationery, hardware, agrochemical factories. For pesticide, fertilizer, personal care products, like cosmetics, daily use products etc..
Our sales team are professional in communicating with customer about different aspects of our machines. We also have our own technical research group to do the new products development and professional group for customer overseas after sales service . For customer who doesn’t need our enginner for machine installation, we will provide them the detail and professional machine installation and running video for support and help.
Welcome to get in touch with us, we are always here for you......
Our machines were exported to many different countries and regions in the whole world, such as Indonesia, Thailand, Malaysia, Philippines, New Zealand, Korea, the Middle East area, Poland, Belgium, France, UK, Greece, Italy, Turkey, USA, central and south America such as Trinidad and Tobago, Mexico, Brazil, Russia, Ukraine, UZ, Tunisia, Algeria, Morroco etc. Good reputation of the machine quality and after sales service always gained from customers.
Various kinds of factories and companies in different fields are cooperating with us. Such as pharmaceutical, food , supplement, stationery, hardware, agrochemical factories. For pesticide, fertilizer, personal care products, like cosmetics, daily use products etc..
Our sales team are professional in communicating with customer about different aspects of our machines. We also have our own technical research group to do the new products development and professional group for customer overseas after sales service . For customer who doesn’t need our enginner for machine installation, we will provide them the detail and professional machine installation and running video for support and help.
Welcome to get in touch with us, we are always here for you......
