Многоцелевой токарный мини-станок 3 в 1 станок и сверлильный

Многоцелевой токарный мини-станок 3 в 1 станок и сверлильный

Категория: Other Machine Tool Equipment >>>
Поставщик: Shanghai,Sumore,Industrial,Co.,Ltd.

Цена:1 255,00 $ - 1 300,00 $*

Количество:

Описание и отзывы

Трекер стоимости

Месяц	Минимальная цена	Макс. стоимость
Aug-15-2025	1594.98 $*	1626.83 $*
Jul-15-2025	1293.77 $*	1319.24 $*
Jun-15-2025	1569.15 $*	1600.40 $*
May-15-2025	1556.48 $*	1587.70 $*
Apr-15-2025	1242.18 $*	1267.29 $*
Mar-15-2025	1531.57 $*	1562.20 $*
Feb-15-2025	1519.9 $*	1549.40 $*
Jan-15-2025	1506.54 $*	1536.52 $*

Характеристики

Product Description

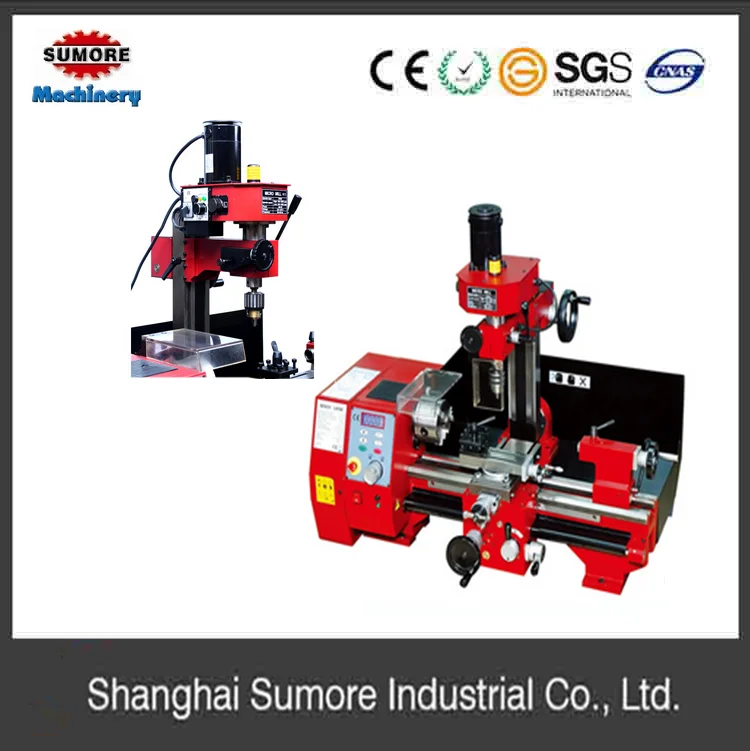

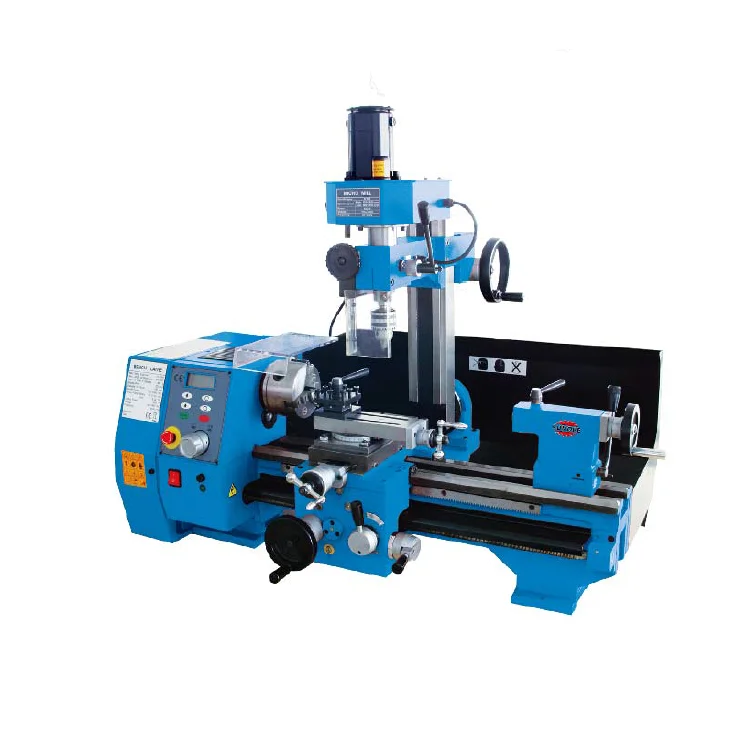

mini multi-purpose lathe milling 3 in 1 lathe mill and drill machine SP2303

have all basis characteristics,compare to normal larger gear head lathe,it has unique advantage,such as smaller size,lighter weight,lower noise,high accuracy and so on. It's relatively simply structure also remain in full rigid and high strength hardened steel base construction.

Futher more,full scale of accessories are provided for each SUMORE BENCH LATHE who still be carry on turnning ,drilling,boring,knurling and threads processes which also means it can be widely introduced into small metal / nonmetal workpieces machining during family metal work, technical school education or scientific facilitices research

II.Features

Exceptional SUMORE Quality
Individual Accuracy Test with Each Machine
Simple But Rigid Steel Structure
Easy Operation & Convenient Reparations
Brushless Motor
Variable Speed
Different Worktable Length Options
Considerable Safety Design
High accurate

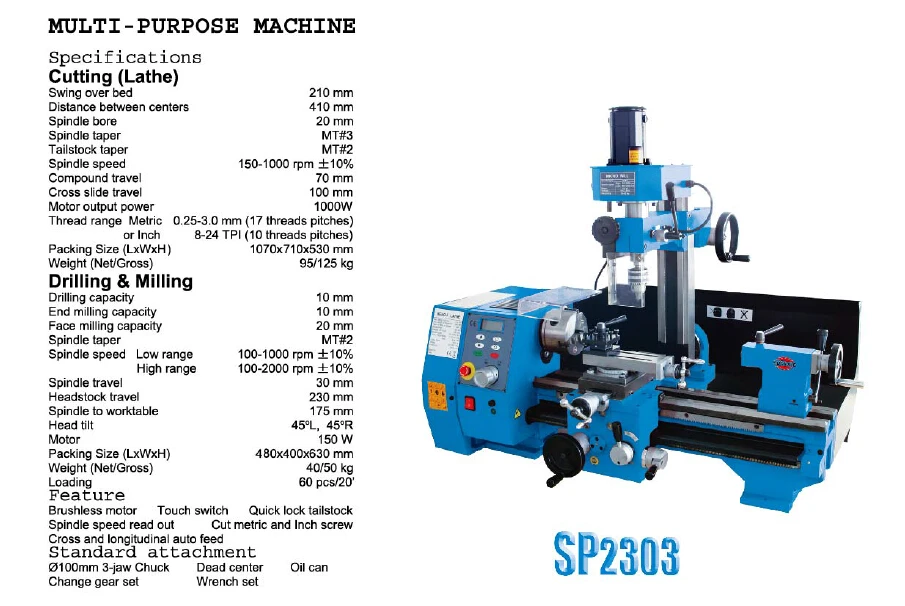

Technical Data

III. Technical Data

Model	SP2303
Turning
Swing over bed	210 mm
Distance between centers	410 mm
Spindle bore	20 mm
Spindle taper	MT3
Tailstock taper	MT2
Spindle speed	150 - 1,000 rpm
Compound Travel	70 mm
Cross slide travel	100 mm
Metric threads range	0.25 - 3.00 mm
Imperial threads range	8 - 24 TPI
Motor power	1,000 w
Packing size (LxWxH)	1,070 x 710 x 530 mm
Net / gross weight	95 / 125 kg
Drilling & Milling
Drilling capacity	10 mm
End milling capacity	10 mm
Face milling capacity	20 mm
Spindle taper	MT2
Spindle speed range	100 - 2,000 rpm
Spindle travel	30 mm
Headstock travel	230 mm
Distance between spindle to table	175 mm
Head tilt (left / right)	45° / 45°
Motor power	150 w
Packing size (LxWxH)	480 x 400 x 630 mm
Net / Gross weight	40 / 50 kg
keyword	milling lathe

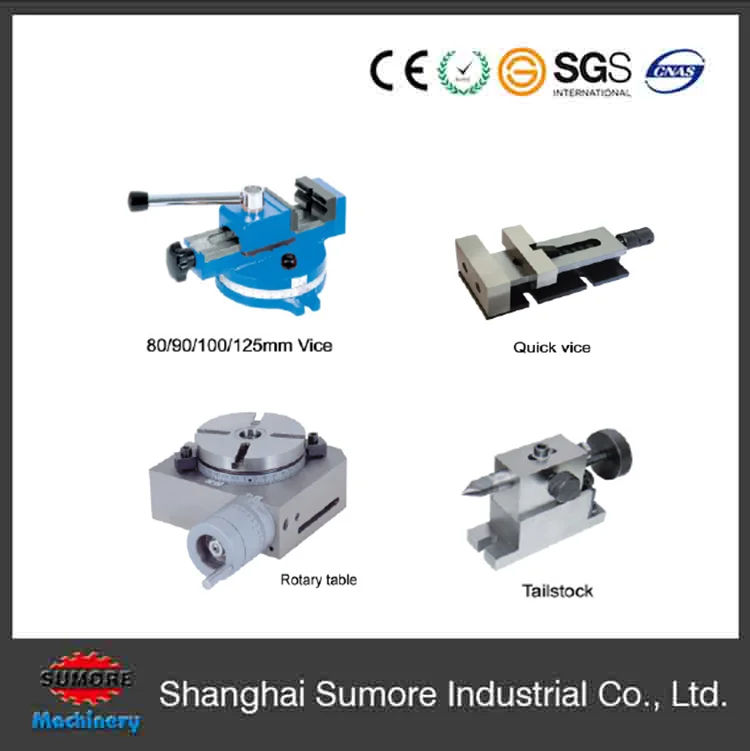

IV. Standard & Optional Accessories

Standard Accessories	Optional Accessories
3-jaw chuck	4-jaw Chuck
Dead Center	Face Plate
Cutting Tools	Face Plate Clamping Kit
Change Gear Set	TiN Coated Cutting Tools & Replaceable Tips
Splash Guard	Steady Rest
Chuck Safety Guard	Follow Rest

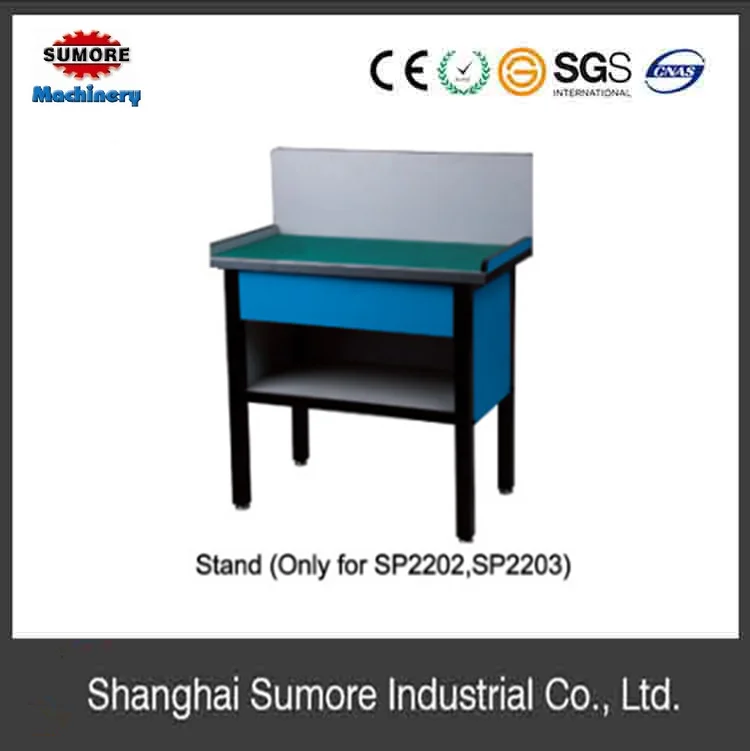

Stand	Drill Chuck and Drill Arbor
Oil Tray	Live Center
Oil Gun	Quick Change Tool Post
Manual & Parts List	Clutch for Feed Rod
	Lead Screw Guard
	Digital Readout Cutting Depth
	Coolant System
	Work Light

tips banner 2.jpg

Packaging & Shipping

V. Packing & Shipping

Package	1 set/polywood case (aluminum strips strengthen)
Minimum Order Quantity (MOQ)	1 sets
Full Container Loading Quantity (FCL)	160 sets/20’GP (unitary; customerized packing available)
Delivery Time	25 calendar days after receiving of advance / full payment
