Характеристики

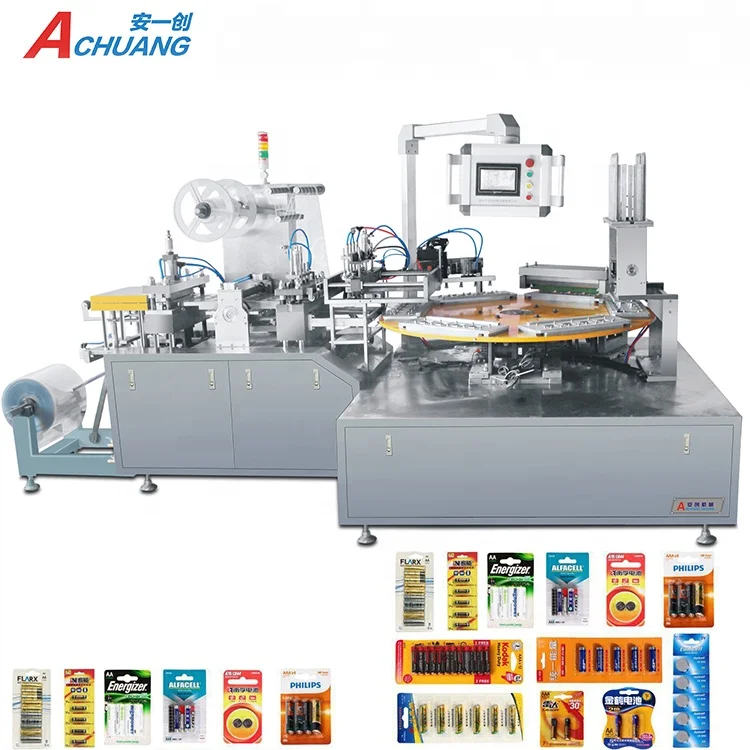

AC-350 Blister Paper Card Packing Machine for AA/AAA battery
Our machine is widly used in battery packing industry.
Product Paramenters
Mode | AC-350B |
Production speed | 15-18 cycles/min |
Stroke range | 30mm-200mm |
Max forming area | 320mm*160mm |
Max standard forming depth | 35mm |
Max non-standard forming depth | 50mm |
Forming heating power | 3.5kw(*2) |
Heat sealing power | 2.5kw |
Total power | 12kw |
Air consumption | consumption ≥0.5 m³/min |
Air Pressure | 0.5-0.8mpa |
Packing material（PVC）(PET) | thickness0.15mm-0.5mm内 |
Max paper dimension | 400mm*180mm*0.5mm |
Total Weight | 1300kg |
Machine dimension(L*W*H) | 3300mm*1700mm*1850mm |
Production Process
The production process：
PVC heating---Blister card forming---servo motor traction---blister card cutting---blister card transfer to the rotary by manipulator-- 2 battery feeder working--- paper card lay down ----blister and paper card sealing----product output
(Optional device: euro-hole machine, labelling machine，ink-jet printer )
machine real shot as below:
PVC heating&forming
PVC roll heating and forming to be the blister ,then will be transferred and cuted by servo motor traction and punching station.
Rotary running detail
there are six station on the rotary,which is blister card transfer station, battery feeder station 1-2, paper card station and product output station.
Battery feeder
Battery feeder is independently developed by our company
Product output
transfer arm can be customized according to your product.
The electrical accessories we use are cooperated with many big brand suppliers
Ensure our equipment is more stable and reliable and our efficiency is higher.
Recommend Products
AC-320B Toothbrush Packing Machine
AC-350 Sim Card Blister Paper Card Packing Machine
AC-320B Blister Card Packing Machine for Ballpoint Pen
Certifications
Company Profile
Wenzhou Anchuang machinery technology Co., Ltd.
Anchuang is a manufacturing & technology company which is specialized in processing and distribution of packing related machinery.In the ever competitive market through long term cooperation,, Anchuang performs like its name, adheres to the principles of high quality, low prices, quick reaction and flexibility to build business partnerships. Through the continued support of old and new clients, we are certain the future holds great success for us
Successful solutions
We cooperate with many clients as below.Our products spread all over the world,
Good service is the key to our success!.
Exhibition
Product packaging&Shipping
FAQ
1. What can your machine do?
Our machine can pack all kinds of blister and paper cards package that you can see in the supermarket,like the
battery,stationery,small products and etc.
2.What size of the package you can make?
The forming area is 320x160mm,the depth is 35mm and
other different sizes according to customer's requirements.
3.What information should I offer if I want to get a quotaion?
- Speed requirement
- machines requirement
-it is better you can show us the pictures of your sample
4.how to get to your factory?
Our factory is located in No.8 Jingye road developed zone of ruian city
Zhejiang province china,and we can pick up you from wenzhou airport
and ruian railway station.
Our machine can pack all kinds of blister and paper cards package that you can see in the supermarket,like the
battery,stationery,small products and etc.
2.What size of the package you can make?
The forming area is 320x160mm,the depth is 35mm and
other different sizes according to customer's requirements.
3.What information should I offer if I want to get a quotaion?
- Speed requirement
- machines requirement
-it is better you can show us the pictures of your sample
4.how to get to your factory?
Our factory is located in No.8 Jingye road developed zone of ruian city
Zhejiang province china,and we can pick up you from wenzhou airport
and ruian railway station.
