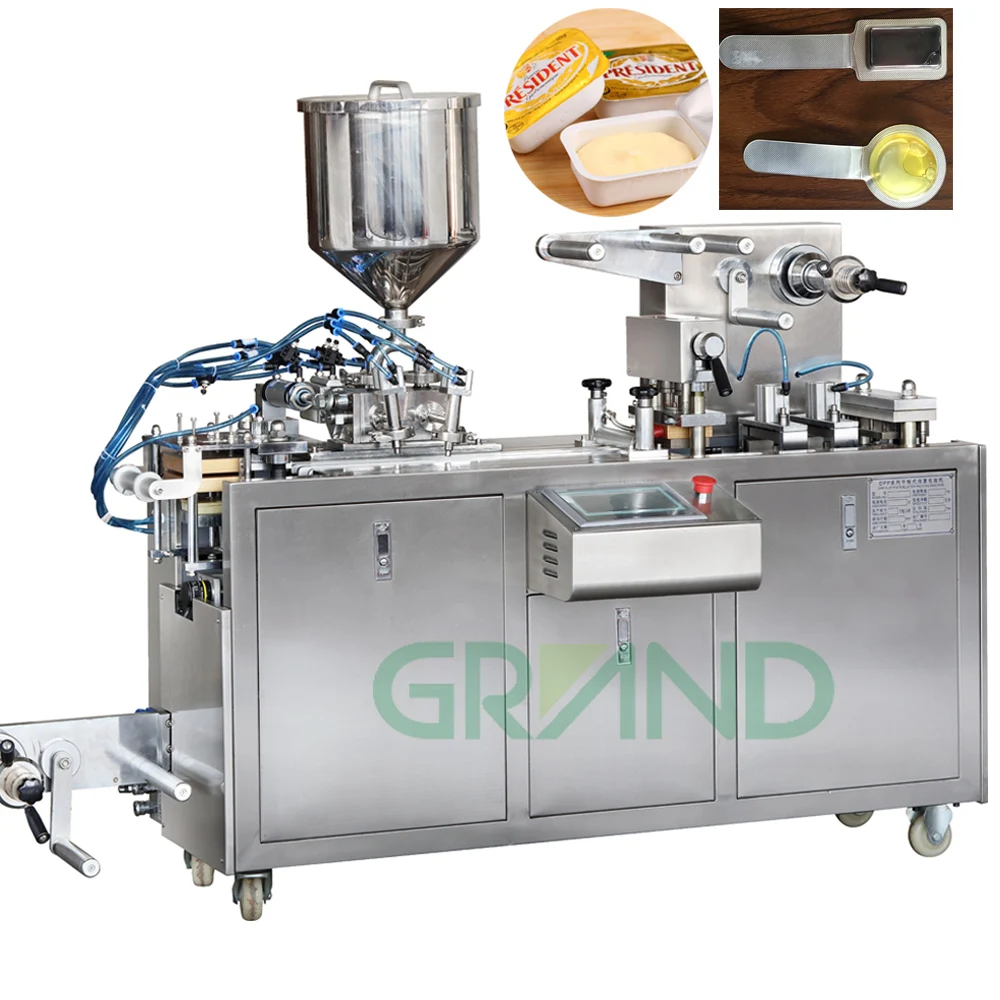

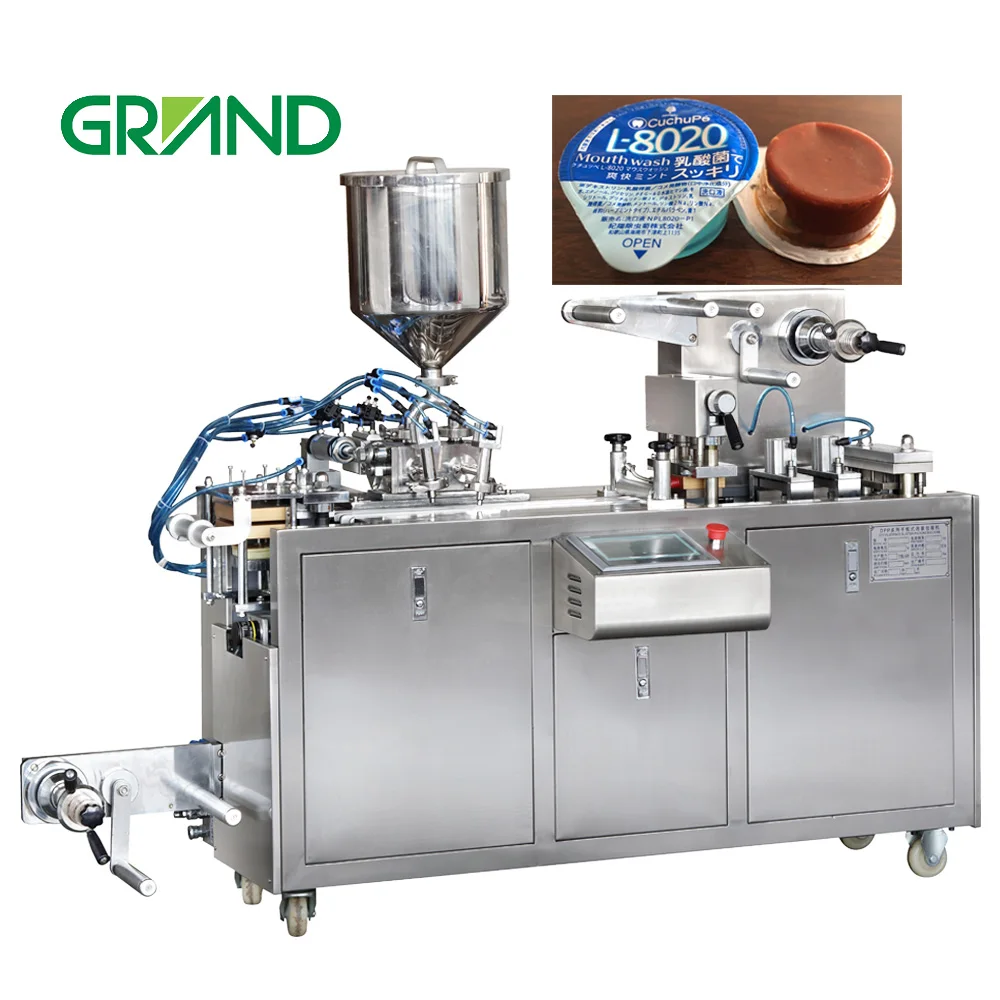

Автоматическая блистерная упаковочная машина для упаковки джема в
- Категория: Blister Packaging Machines >>>
- Поставщик: Hunan,Grand,International,Trade,Co.,Ltd.
Поделиться:
Описание и отзывы
Трекер стоимости
| Месяц | Минимальная цена | Макс. стоимость |
|---|---|---|
| Sep-18-2025 | 0.48 $* | 0.72 $* |
| Aug-18-2025 | 0.8 $* | 0.24 $* |
| Jul-18-2025 | 0.88 $* | 0.6 $* |
| Jun-18-2025 | 0.5 $* | 0.57 $* |
| May-18-2025 | 0.19 $* | 0.61 $* |
| Apr-18-2025 | 0.58 $* | 0.2 $* |
| Mar-18-2025 | 0.28 $* | 0.13 $* |
| Feb-18-2025 | 0.99 $* | 0.50 $* |
| Jan-18-2025 | 0.52 $* | 0.47 $* |
Характеристики
Product Description
Introduction
It adopts the newest type high-power transmission mechanism to arrange the chain and drive the main driving shaft. The errors and noises of other gear wheel transmission can be avoided.
Imported controlling system is adopted; also it can be equipped with detecting and rejection function device for number of medicines according to the user’s requirement.
It adopts photoelectrical controlling system to make PS, PVC, PTP, Aluminum/Aluminum material to be automatically fed and waste side to be cut automatically to guarantee the Synchronous stability of over- length distance and multi stations.
It can be optional equipped with photocell correction device, imported stepper motor traction and image- character register to optimize packing grade.
The machine is suitable for industries of foodstuff, medicine, medical instruments, hardware, electronics and etc for packing.
Main technical parameter
Model | DPP-80 |
Punch frequency | 10-33times/min 10-33times/min |
Production capacity | 2400plates/hour |
Max. Forming area & Depth | 105x70(standard depth less than 15mm), Max. Depth 25mm( customized) |
Standard Stroke range | 30-80mm( can be customized ) 30-80mm(can be designed as per user’s required) |
Standard plate size | 80x70mm (can be designed as per user’s required) |
Air pressure | 0.4-0.6Mpa |
Compressed air required | Air compressor≥0.3m3/min |
Total power supply | 220V 50Hz 2.8Kw |
Main motor | 0.75Kw |
PVC hard Film | 0.15-0.5*110 (mm) |
PTP Aluminum film | 0.02-0.035*110 (mm) |
Dialysis Paper | 50-100g*110(mm) |
Mould cooling | Tap water or Recycling water |
Overall Dimension | 1840x590x1100 (mm)(LxWxH) |
Weight | Net 480kg Gross weight: 550kg |
Noise index | less than 75dBA |
Production Process
Sample Display
Our Services
Service 3: We will dispatch engineers to your site for machine installation and commissioning, and also do the training for your technicians.
Service 4: We makes guarantee of the machine for 12 (twelve) months. During this Warranty period, the seller will provide free spare parts that cause by the machine’s quality within 10 days by fast courier upon receipt of buyer’s notice.(we will also provide one set of spare parts /wear &tear parts to customer along with the shippment of the machine.
Service 5: We warmly welcome the suggestions from customer to make us grow better and produce better machine along with providing better service to customer, and creat more value for customer.
Service 6: Before placing the order or before shipping, welcome to our factory to take a visit to inspect our machine. we will pick you up in the airport or train station and arrange your following schedule in our city to bring you a nice journey during this visit.
Packaging & Shipping
Company Information
ABOUT US
Contact us
Fish Song
Tel: 0086-731-84325498
Mobile phone/Whatsapp: 0086-17352871618
Wechat: 0086-17352871618
Skype: 0086-17352871618
